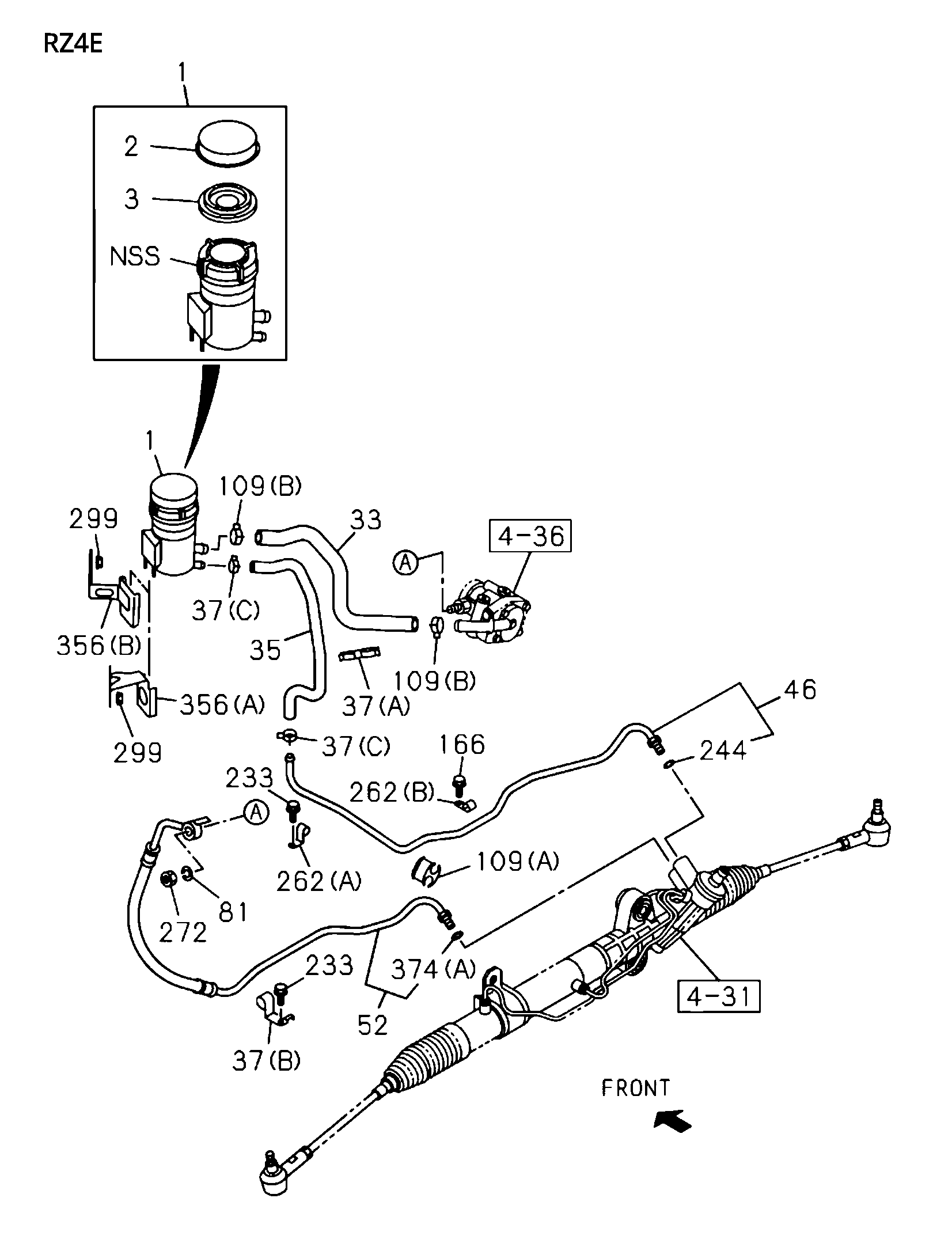

4-35 | POWER STEERING CONTROL, CHASSIS SIDE

Partial Engine

DMAX

D-MAX 2024

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
52 I8-98395 009-3 HOSE, FLEX,P/S CONT VLV 1 2311- E (D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9>
272 I0-91111 512-0 NUT, SHAFT 1 2311- C E (D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> M12
81 I0-91510 812-0 WASHER, LK,FLANGE 1 2311- B D F (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> ID=12.2 OD=21.6
166 I0-28650 616-0 SCREW, TANK TO BRKT 1 2311- BC D E F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> M6X16 FLANGE
356 I8-98395 350-2 BRACKET, P/S,RESERVOIR 1 2311- BCDE F (D-MAX 2024) 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9> (A)
37 I8-97177 580-0 CLIP, RUBBER HOSE 1 2311- BCDE F 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9> (A) ID=17.5 & 21
52 I8-98395 009-3 HOSE, FLEX,P/S CONT VLV 1 2311- D F (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9>
52 I8-98395 011-2 HOSE, FLEX,P/S CONT VLV 1 2311- BC 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9>,HIGH RIDE SUSPENSION(7YC)
1 I8-97234 350-0 TANK ASM, OIL,P/S 1 2311- BCDE F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9>
356 I8-98395 350-2 BRACKET, P/S,RESERVOIR 1 2311- B D F (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) EXC. POWER STEERING ELECTRIC<NV9> (A)
374 I8-97557 847-0 GASKET, HOSE,P/S 1 2311- BCDE F 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9> (B) ID=8.8
3 I8-97349 477-0 GASKET, OIL TANK,P/S 1 2311- BC D E F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9>
52 I8-98395 009-3 HOSE, FLEX,P/S CONT VLV 1 2311- B (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) HIGH RIDE SUSPENSION(7YC) EXC. POWER STEERING ELECTRIC<NV9>
52 I8-98395 009-3 HOSE, FLEX,P/S CONT VLV 1 2311- C (D-MAX 2024) RZ4E-TC ENG(RDZ) HIGH RIDE SUSPENSION(7YC) EXC. POWER STEERING ELECTRIC<NV9>
33 I8-98395 019-1 HOSE, RUBBER,POWER STRG 1 2311- C E (D-MAX 2024) RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) EXC. POWER STEERING ELECTRIC<NV9>
109 I8-97944 127-0 CLIP, HTR HOSE 2 2311- BCDE F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> (B) ID=20.8
35 I8-97543 866-2 HOSE, RETURN,P/S TANK 1 2311- B D F EUR06D SPECIFICATION(8SJ) EXC. POWER STEERING ELECTRIC<NV9>
46 I8-98395 016-2 PIPE, OIL,P/S UNIT TO OIL TANK 1 2311- BC (D-MAX 2024) HIGH RIDE SUSPENSION(7YC) EXC. POWER STEERING ELECTRIC<NV9> L=966
46 I8-98395 016-2 PIPE, OIL,P/S UNIT TO OIL TANK 1 2311- D E F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> L=966
37 I8-98030 682-0 CLIP, HOSE,BYPASS 2 2311- BCDE F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> (C) ID=16
37 I8-98395 349-0 CLIP, HOSE,P/S 1 2311- BCDE F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> (B) ID=21.5
262 I0-95207 310-0 CLIP, HEADLAMP HARNESS 1 2311- BCDE F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> (A) ID=11 H=20 L=20
262 I0-95235 032-0 CLIP, FLEX HOSE,P/S 1 2311- BCDE F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> (B) ID=11 L=20
37 I8-97177 580-0 CLIP, RUBBER HOSE 1 2311- B D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EUR06D SPECIFICATION(8SJ) EXC. POWER STEERING ELECTRIC<NV9> (A) ID=17.5 & 21
2 I8-97349 476-0 CAP, OIL TANK,P/S 1 2311- BC D E F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9>
356 I8-97545 303-1 BRACKET, P/S,RESERVOIR 1 2311- B D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EUR06D SPECIFICATION(8SJ) EXC. POWER STEERING ELECTRIC<NV9> (B)
52 I8-98395 007-3 HOSE, FLEX,P/S CONT VLV 1 2311- C RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9>,HIGH RIDE SUSPENSION(7YC)
33 I8-98395 018-1 HOSE, RUBBER,POWER STRG 1 2311- BCDE F 4JJ3 ENG(LNG) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 5PECIFICATION(NT5) EXC. POWER STEERING ELECTRIC<NV9>
52 I8-98395 012-2 HOSE, FLEX,P/S CONT VLV 1 2311- D E F 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9>
33 I8-97543 867-2 HOSE, RUBBER,POWER STRG 1 2311- B D F RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EUR06D SPECIFICATION(8SJ) EXC. POWER STEERING ELECTRIC<NV9>
81 I0-91510 812-0 WASHER, LK,FLANGE 1 2311- C E (D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> ID=12.2 OD=21.6
35 I8-98395 020-1 HOSE, RETURN,P/S TANK 1 2311- BCDE F (D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NTS) EXC. POWER STEERING ELECTRIC<NV9>
233 I0-28650 616-0 SCREW, TANK TO BRKT 2 2311- BC D E F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> M6X16 FLANGE
109 I8-94252 455-2 CLIP, FLEX HOSE 1 2311- D E F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> (a) ID=10X2 H=22
271 I0-28650 616-0 SCREW, TANK TO BRKT 2 2311- BCDE F (D-MAX 2024) 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9> M6X16 FLANGE
356 I8-98395 350-2 BRACKET, P/S,RESERVOIR 1 2311- C E (D-MAX 2024) RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) EXC. POWER STEERING ELECTRIC<NV9> (A)
109 I8-94252 455-2 CLIP, FLEX HOSE 1 2311- BC (D-MAX 2024) HIGH RIDE SUSPENSION(7YC) EXC. POWER STEERING ELECTRIC<NV9> (a) ID=10X2 H=22
46 I8-98395 014-3 PIPE, OIL,P/S UNIT TO OIL TANK 1 2311- BC EXC. POWER STEERING ELECTRIC<NV9>,HIGH RIDE SUSPENSION(7YC) L=1019
33 I8-98395 019-1 HOSE, RUBBER,POWER STRG 1 2311- B D F (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) EXC. POWER STEERING ELECTRIC<NV9>
272 I0-91111 512-0 NUT, SHAFT 1 2311- B D F (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> M12
244 I8-97557 813-0 GASKET, OIL PIPE,P/S 1 2311- BC D E F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> ID=7.5
52 I8-98395 007-3 HOSE, FLEX,P/S CONT VLV 1 2311- B RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9>,HIGH RIDE SUSPENSION(7YC)
374 I8-97557 810-0 GASKET, HOSE,P/S 1 2311- BCDE F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> (A) ID=7.5
299 I0-91180 106-0 NUT:CONICAL 2 2311- BCDE F (D-MAX 2024) EXC. POWER STEERING ELECTRIC<NV9> M6 FLANGE
52 I8-98395 012-2 HOSE, FLEX,P/S CONT VLV 1 2311- BC 4JJ3 ENG(LNG) HIGH RIDE SUSPENSION(7YC) EXC. POWER STEERING ELECTRIC<NV9>
