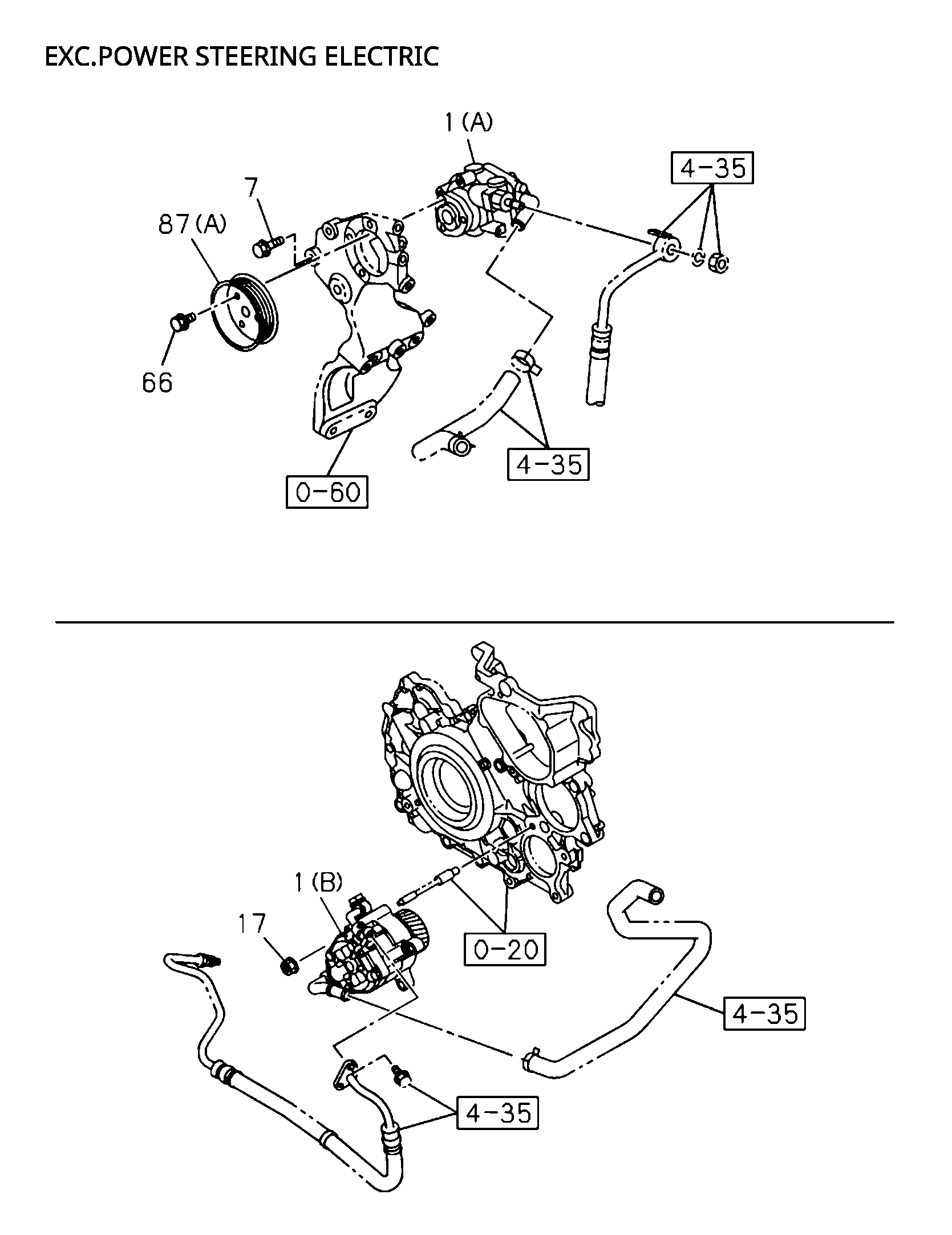

4-36 | POWERSTEERING CONTROL, ENGINE SIDE
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I0-28050 830-0 | BOLT, GEAR CASE COVER | 3 | 2311- | BC D E F | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) POWER STEERING ELECTRIC<NV9> M8X30 FLANGE | ||
| 66 | I0-28050 812-0 | BOLT, CLIP,FUEL HOSE | 3 | 2311- | BCDE F | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> M8X12 FLANGE | ||
| 87 | I8-98383 519-0 | PULLEY, P/S PUMP | 1 | 2311- | BC D E F | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> (A) | ||

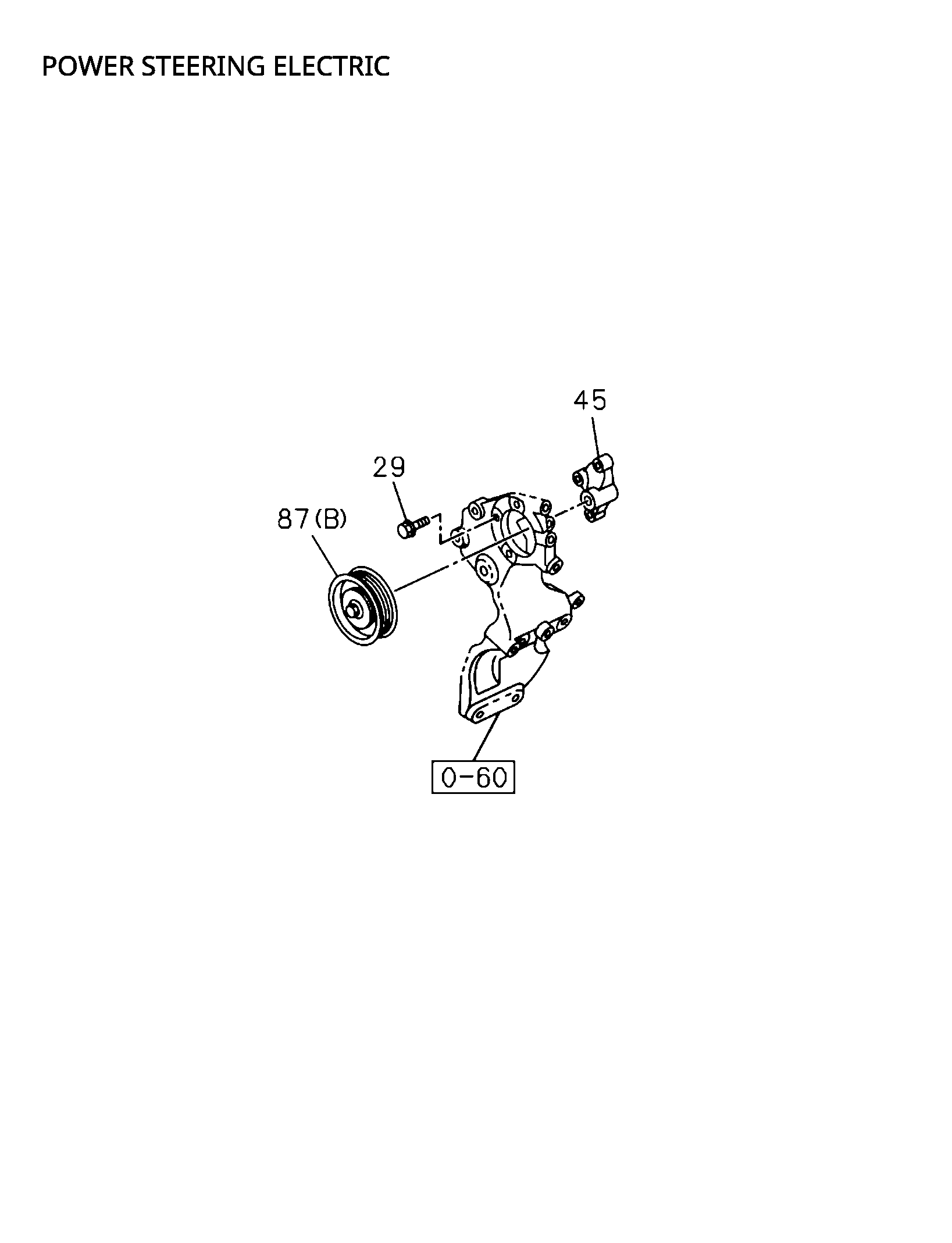

| 87 | I8-97533 814-0 | PULLEY, P/S PUMP | 1 | 2311- | BCDE F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) POWER STEERING ELECTRIC<NV9> (B) | ||
| 1 | I8-98489 892-0 | PUMP ASM, OIL,P/S | 1 | 2311- | D E F | 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9> (B) | ||
| 1 | I8-97824 300-2 | PUMP ASM, OIL,P/S | 1 | 2311- | BCDE F | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 17 | I0-91180 208-0 | NUT, FLEX HOSE,CLU CONT | 3 | 2311- | A | (D-MAX 2024) M8 FLANGE | ||
| 7 | I0-28050 830-0 | BOLT, GEAR CASE COVER | 3 | 2311- | BCDE F | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> M8X30 FLANGE | ||
| 45 | I8-97533 614-0 | BRACKET, IDLE PULLEY,P/S | 1 | 2311- | BCDE F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) POWER STEERING ELECTRIC<NV9> | ||
| 17 | I0-91180 208-0 | NUT, FLEX HOSE,CLU CONT | 3 | 2311- | BCDE F | (D-MAX 2024) 4JJ3 ENG(LNG) M8 FLANGE |
