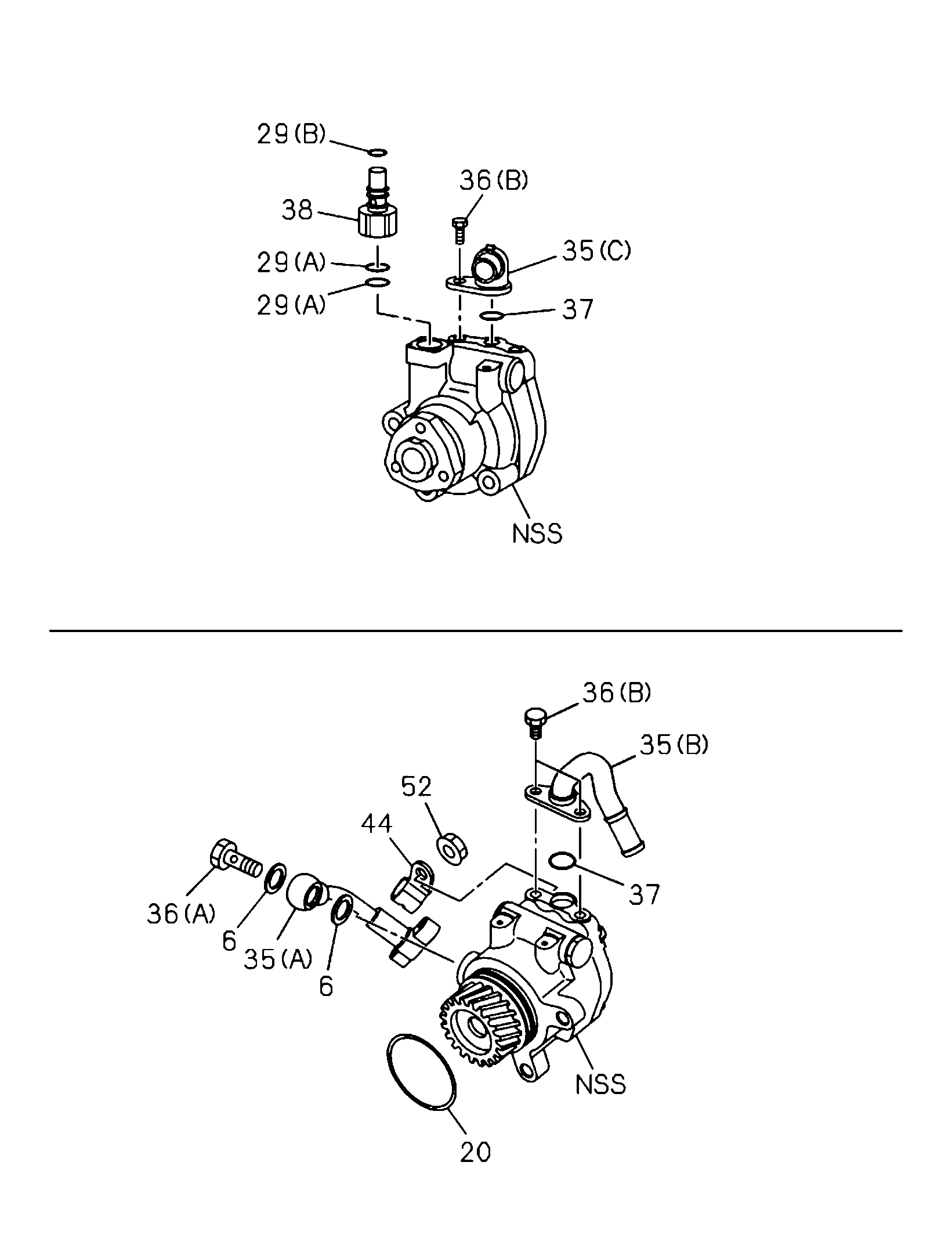

4-42 | POWERSTEERING OIL PUMP
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 35 | I8-97516 035-0 | PIPE, HOSE CONN,OIL PUMP | 1 | B | (B) | |||
| 36 | I8-98165 884-0 | BOLT, CONN,PIPE | 1 | B | (A) EYE-BOLT | |||
| 36 | I8-98166 386-0 | BOLT, CONN,PIPE | 1 | A | (D-MAX 2024) (B) | |||
| 35 | I8-98481 772-0 | PIPE, HOSE CONN,OIL PUMP | 1 | A | (D-MAX 2024) (C) | |||
| 44 | I8-97516 034-0 | BRACKET, OIL PUMP,P/S & EDS | 1 | B | ||||
| 20 | I8-98165 868-0 | GASKET, FRT,OIL PUMP | 1 | B | ||||
| 6 | I8-98165 870-0 | WASHER, PL,OIL PUMP | 2 | B | ||||
| 29 | I8-98481 773-0 | GASKET, PLUG TO VLV | 2 | A | (D-MAX 2024) (A) | |||
| 36 | I8-98166 386-0 | BOLT, CONN,PIPE | 2 | B | (D-MAX 2024) (B) | |||
| 52 | I8-98165 887-0 | NUT, OIL PUMP | 1 | B | ||||
| 38 | I8-98481 771-0 | CONNECTOR, OIL PUMP | 1 | A | (D-MAX 2024) | |||
| 37 | I8-98166 384-0 | GASKET, PIPE CONN,OIL PUMP | 1 | AB | (D-MAX 2024) | |||
| 35 | I8-97516 033-0 | PIPE, HOSE CONN,OIL PUMP | 1 | B | (A) | |||
| 29 | I8-98481 774-0 | GASKET, PLUG TO VLV | 1 | A | (D-MAX 2024) (B) |
