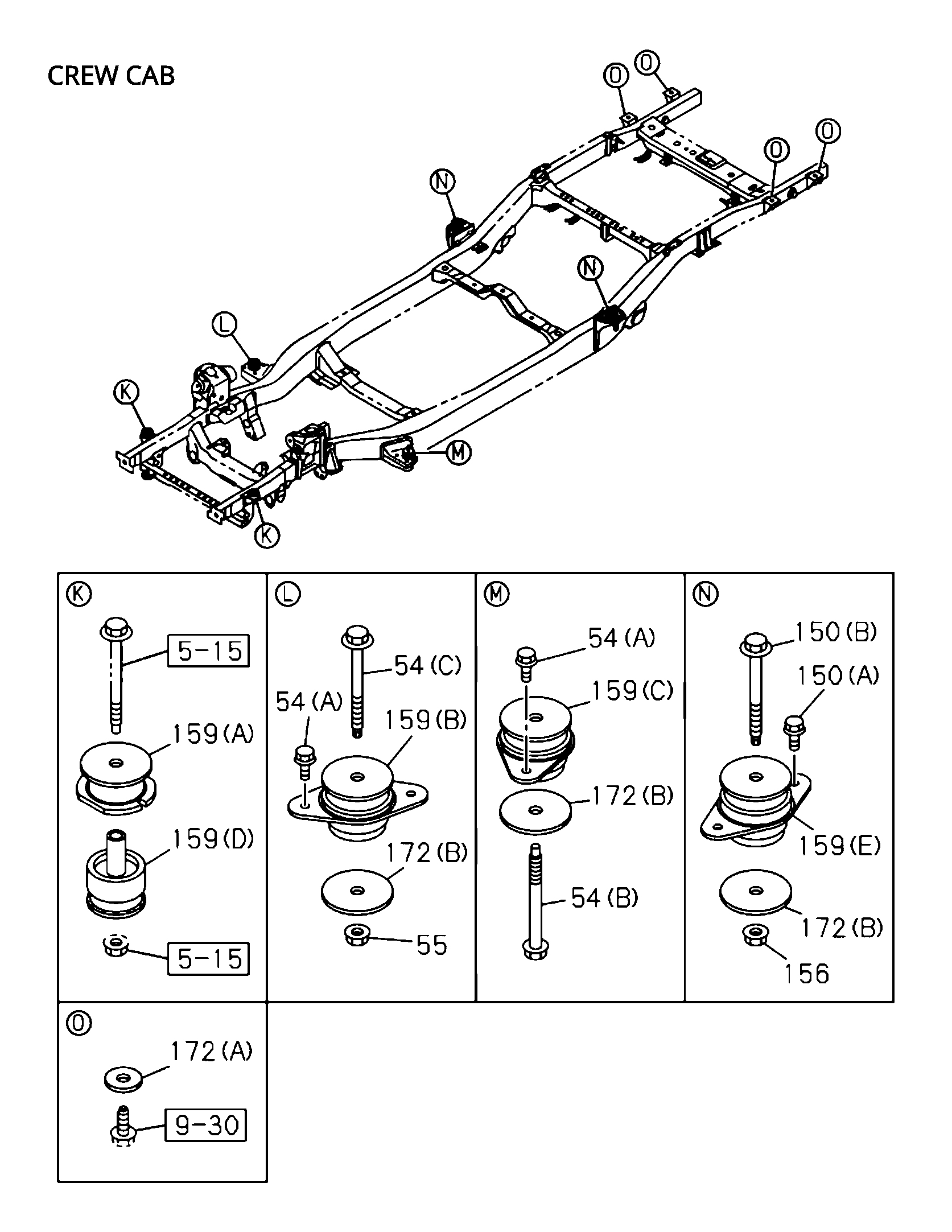

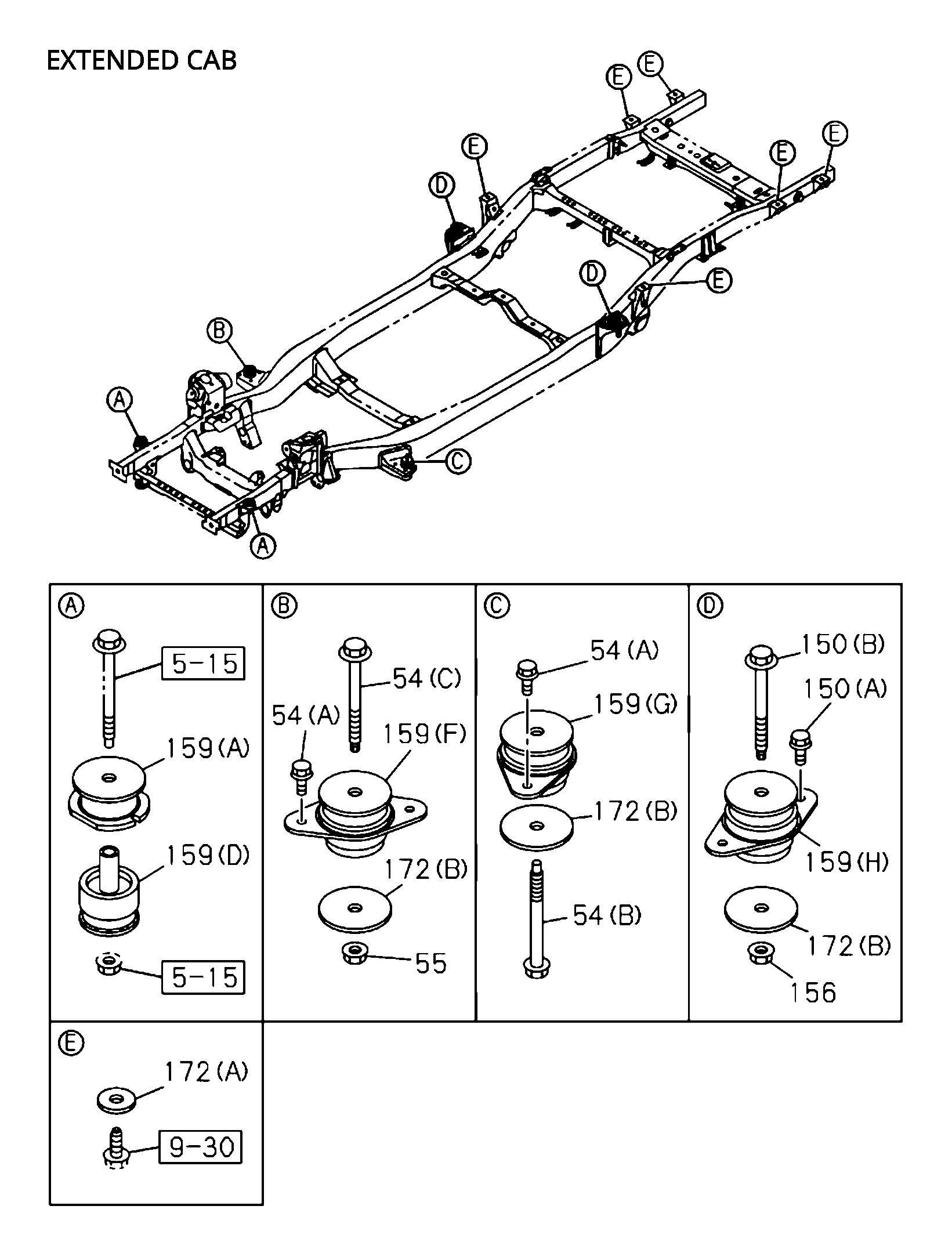

5-10 | CAB MOUNTING, FRAME SIDE
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 150 | I8-98398 066-0 | BOLT, RUBBER | 1 | 2311- | ABCDE F | (D-MAX 2024) (B) M14X120 FLANGE | ||
| 159 | I8-98372 168-1 | RUBBER, CUSHION,CAB MTG | 1 | 2311- | C F | (D-MAX 2024) (B) | ||
| 159 | I8-98372 166-1 | RUBBER, CUSHION,CAB MTG | 1 | 2311- | B E | (D-MAX 2024) (i) | ||
| 159 | I8-98369 967-1 | RUBBER, CUSHION,CAB MTG | 2 | 2311- | B E | (D-MAX 2024) (k) | ||
| 156 | I8-98220 857-1 | NUT, RUBBER | 2 | 2311- | ABCDE F | (D-MAX 2024) M14 FLANGE | ||
| 159 | I8-98369 971-1 | RUBBER, CUSHION,CAB MTG | 2 | 2311- | C F | (D-MAX 2024) (E) | ||
| 159 | I8-98051 326-0 | RUBBER, CUSHION,BODY MTG,REBOUND | 2 | 2311- | ABCDE F | (D-MAX 2024) (D) | ||
| 159 | I6-97367 285-0 | RUBBER, CUSHION,CAB MTG | 2 | 2311- | ABCDE F | (IADG) | ||
| 159 | I8-98369 970-1 | RUBBER, CUSHION,CAB MTG | 1 | 2311- | C F | (D-MAX 2024) (C) | ||
| 159 | I8-98372 170-1 | RUBBER, CUSHION,CAB MTG | 1 | 2311- | A D | (h) | ||
| 150 | I0-28661 025-0 | BOLT, STAY | 4 | 2311- | A BC D E F | (D-MAX 2024) (A) M10X25 FLANGE | ||
| 172 | I8-98098 458-0 | WASHER, BRKT,FUEL TANK | 8 | 2311- | B E | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) ID=13 OD=4Q T=6 | ||
| 55 | I8-98220 857-1 | NUT, RUBBER | 1 | 2311- | A BC D E F | (D-MAX 2024) M14 FLANGE | ||
| 159 | I8-98369 968-1 | RUBBER, CUSHION,CAB MTG | 1 | 2311- | A D | (G) | ||
| 159 | I8-98369 966-1 | RUBBER, CUSHION,CAB MTG | 1 | 2311- | B E | (D-MAX 2024) 0) | ||
| 159 | I8-97367 285-0 | RUBBER, CUSHION,CAB MTG | 2 | 2311- | ABCDE F | (D-MAX 2024) (A) | ||
| 172 | I8-98371 291-0 | WASHER, BODY MTG RUBBER | 4 | 2311- | A BC D E F | (D-MAX 2024) (B) ID=15.6 OD=75 T=4.5 | ||
| 54 | I0-28661 025-0 | BOLT, STAY | 4 | 2311- | ABCDE F | (D-MAX 2024) (A) M10X25 FLANGE | ||
| 159 | I8-98369 969-1 | RUBBER, CUSHION,CAB MTG | 1 | 2311- | A D | (h) | ||
| 159 | I6-98051 326-0 | RUBBER, CUSHION,BODY MTG,REBOUND | 2 | 2311- | ABCDE F | (IADG) | ||
| 172 | I8-98098 458-0 | WASHER, BRKT,FUEL TANK | 4 | 2311- | C F | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) ID=13 OD=40 T=6 | ||
| 150 | I8-97545 718-0 | BOLT, CAB MTG RR | 1 | 2311- | ABCDE F | (D-MAX 2024) (B) M14X120 FLANGE | ||
| 54 | I8-98398 066-0 | BOLT, RUBBER | 1 | 2311- | A BC D E F | (D-MAX 2024) (C) M14X120 FLANGE | ||
| 159 | I8-98372 167-1 | RUBBER, CUSHION,CAB MTG | 1 | 2311- | A D | (F) | ||
| 54 | I8-98398 065-0 | BOLT, RUBBER | 1 | 2311- | A BC D E F | (D-MAX 2024) (B) M14X130 FLANGE | ||
| 172 | I8-98098 458-0 | WASHER, BRKT,FUEL TANK | 6 | 2311- | A D | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) ID=13 OD=40 T=6 |
