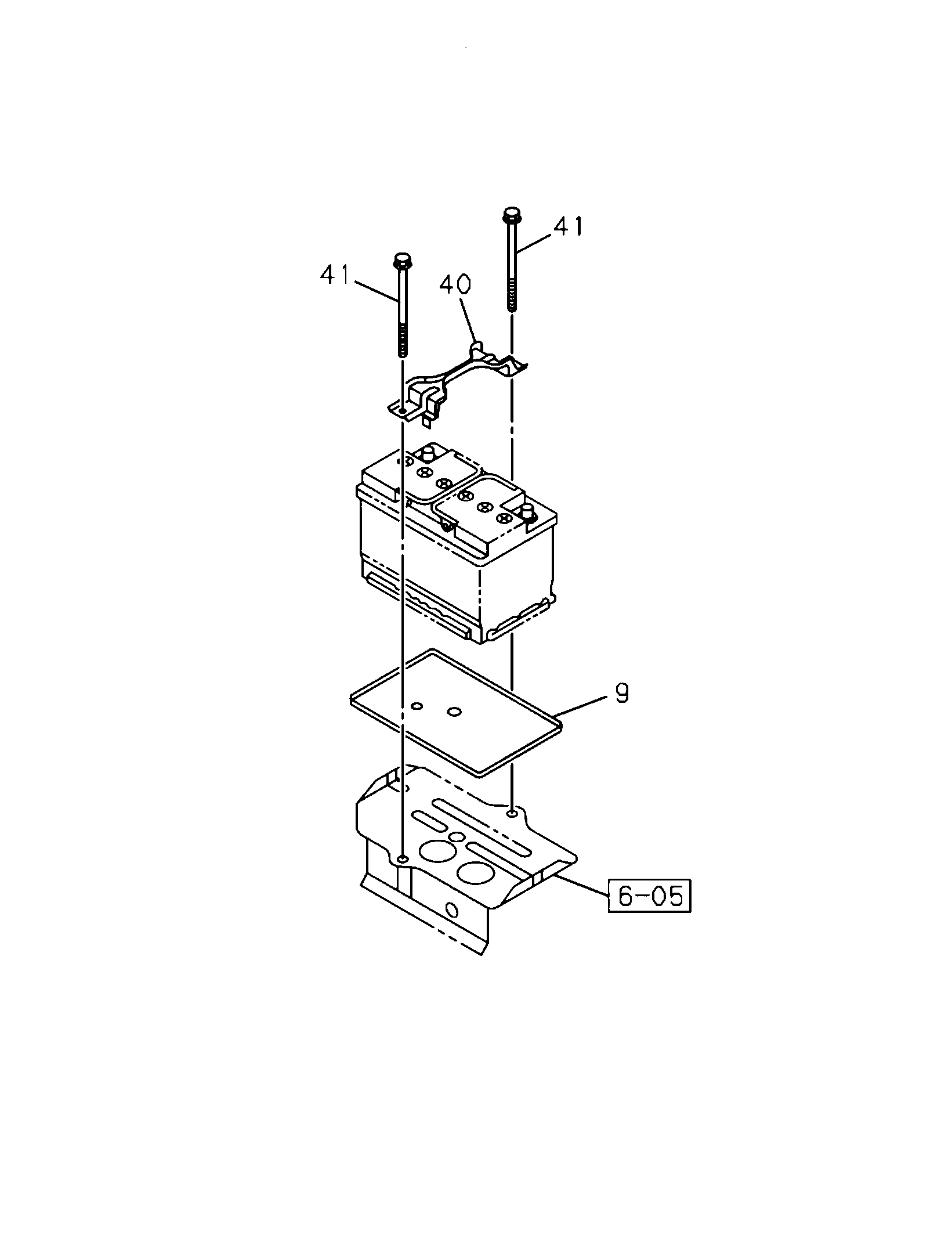

5-20 | BATTERY CARRIER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I8-98392 108-0 | SEAT, BATTERY | 1 | 2311- | ACE | (D-MAX 2024) BATTERY LN3 490 CCA(8TB) | ||
| 9 | I8-98392 107-0 | SEAT, BATTERY | 1 | 2311- | B D F | BATTERY LN4 565 CCA(8TC),BATTERY LN4 780 CCA(8UQ) | ||
| 41 | I8-98391 842-0 | BOLT, CLAMP,BATTERY | 2 | 2311- | ABCDE F | (D-MAX 2024) M8X182 FLANGE | ||
| 9 | I8-98392 108-0 | SEAT, BATTERY | 1 | 2311- | B D F | (D-MAX 2024) BATTERY LN3 490 CCA(8TB),BATTERY LN3 673 CCA(8UN) | ||
| 9 | I8-98392 107-0 | SEAT, BATTERY | 1 | 2311- | ACE | BATTERY LN4 565 CCA(8TC) | ||
| 40 | I8-98391 763-0 | CLAMP, BATTERY | 1 | 2311- | A BC D E F | (D-MAX 2024) |
