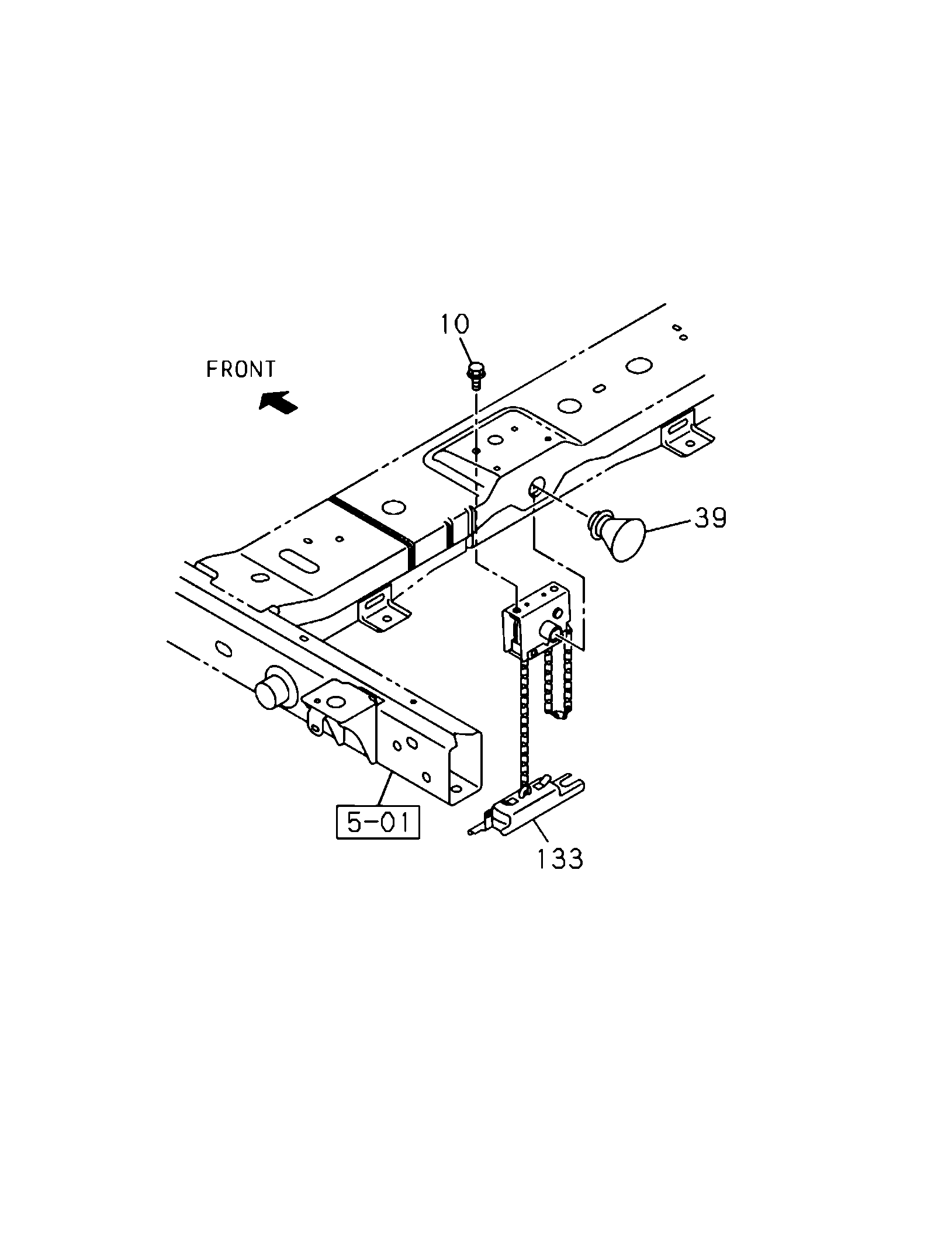

5-30 | SPARE TIRE CARRIER AND COVER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 39 | I8-98163 063-2 | GUIDE, SPARE TIRE HANGER | 1 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 133 | I8-98395 478-3 | HANGER, SPARE TIRE | 1 | 2311- | BC | (D-MAX 2024) HIGH RIDE SUSPENSION(7YC) | ||
| 133 | I8-97821 425-0 | HANGER, SPARE TIRE | 1 | 2311- | BC | EXC. HIGH RIDE SUSPENSION(7YC) | ||
| 10 | I0-28650 820-0 | BOLT | 2 | 2311- | ABCDE F | (D-MAX 2024) M8X20 FLANGE | ||
| 133 | I8-98395 478-3 | HANGER, SPARE TIRE | 1 | 2311- | A D E F | (D-MAX 2024) |
