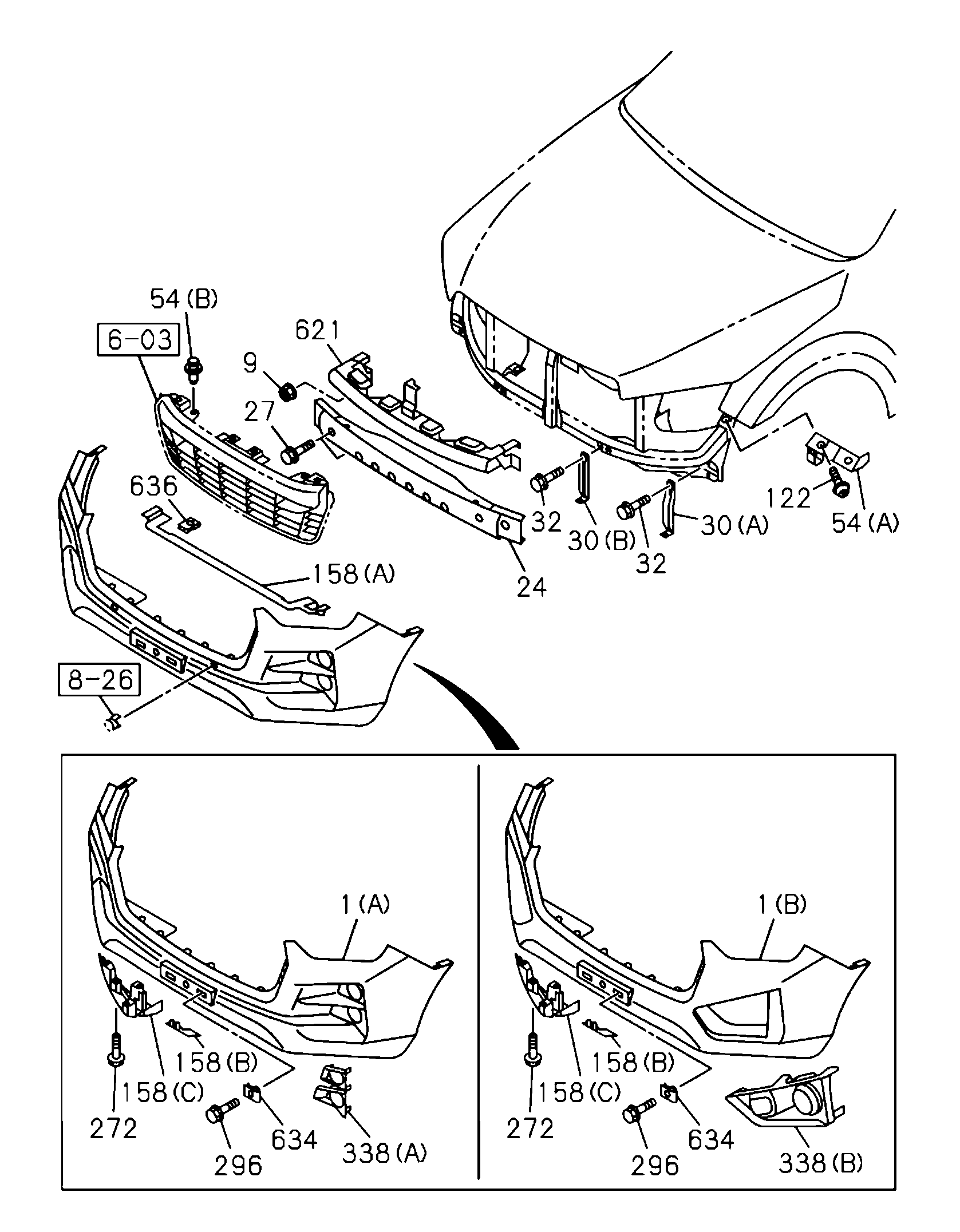

| 1 |
I7-55217 268-1 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
C |
(D-MAX 2024) COLOR KEYED BUMPER(VT4) OVER FENDER<6GH> EXC. KD PAINT LESS SUPPLY<7TV>,WARNING - DISTANCE, PARKING ASSIST, FRT & RR<8SU> (B) PRIMER |
| 1 |
I7-55217 269-1 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
D F |
COLOR KEYED BUMPER(VT4) WARNING - DISTANCE, PARKING ASSIST,FRT & RR<8SU> EXC. KD PAINT LESS SUPPLY<7TV> (B) PRIMER |
| 158 |
I8-97267 864-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
A D F |
(D-MAX 2024) (B) |
| 158 |
I8-97267 864-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> (B) |
| 1 |
I7-55217 268-1 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
F |
(D-MAX 2024) COLOR FOR HIGH APPEARANCE PACKAGE(V46) EXC. KD PAINT LESS SUPPLY<7TV>,WARNING - DISTANCE, PARKING ASSIST, FRT & RR<8SU> (B) PRIMER |
| 296 |
I0-28050 616-0 |
|
BOLT |
2 |
2311- |
|
BC D E F |
(D-MAX 2024) AUSTRALIA EQUIPMENT(B13) M6X16 FLANGE |
| 54 |
I8-98395 190-2 |
|
RETAINER, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) EXC. OVER FENDER<6GH> (A) |
| 158 |
I8-97267 863-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
A D F |
(D-MAX 2024) (B) |
| 54 |
I8-98395 188-2 |
|
RETAINER, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> (A) |
| 158 |
I8-97267 862-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
A D F |
(D-MAX 2024) (A) |
| 338 |
I8-97825 528-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 338 |
I8-97825 530-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
BC E |
(D-MAX 2024) FOG LAM P<T96> OVER FENDER<6GH> EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61> |
| 338 |
I8-97825 527-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 338 |
I8-97825 528-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
D F |
(D-MAX 2024) EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,FOG LAMP<T96> |
| 1 |
I8-97825 519-5 |
|
BUMPER ASM, FRT |
|
2311- |
|
F |
(D-MAX 2024) EXC. COLOR KEYED BUMPER(VT4),COLOR FOR HIGH APPEARANCE PACKAGE(V46),WARNING - DISTANCE, PARKING ASSIST.FRT 8. RR<8SU> (b) |
| 338 |
I8-97825 531-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
BC E |
(D-MAX 2024) FOG LAM P<T96> OVER FENDER<6GH> EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61> |
| 1 |
I7-55217 268-1 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
A |
(D-MAX 2024) (B) PRIMER |
| 54 |
I8-98395 187-2 |
|
RETAINER, FRT BUMPER |
1 |
2311- |
|
A D F |
(D-MAX 2024) (A) |
| 338 |
I8-97825 527-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,FOG LAMP<T96> |
| 54 |
I8-98395 187-2 |
|
RETAINER, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> (A) |
| 54 |
I8-98395 188-2 |
|
RETAINER, FRT BUMPER |
1 |
2311- |
|
A D F |
(D-MAX 2024) (A) |
| 634 |
I8-98054 813-0 |
|
NUT, CLIP |
2 |
2311- |
|
A |
|
| 158 |
I8-97267 861-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> (A) |
| 1 |
I7-55217 267-0 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
B E |
DAYTIME RUNNING LIGHT FOG LAMP<T61> COLOR KEYED BUMPER(VT4) EXC. OVER FENDER<6GH>,KD PAINT LESS SUPPLY<7TV> (A) PRIMER |
| 177 |
I8-97688 310-0 |
|
BOLT |
8 |
2311- |
|
A D F |
(D-MAX 2024) |
| 338 |
I8-97825 531-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
D F |
(D-MAX 2024) FOG LAM P<T96> EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61> |
| 1 |
I7-55217 266-0 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
C |
COLOR KEYED BUMPER(VT4) EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,FOG LAMP<T96>,OVER FENDER<6GH>,KD PAINT LESS SUPPLY<7TV>,WARNING - DISTANCE, PARKING ASSIST.FRT & RR<8SU> (A) PRIMER |
| 158 |
I8-97267 863-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> (B) |
| 338 |
I8-97825 530-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
D F |
(D-MAX 2024) FOG LAM P<T96> EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61> |
| 636 |
I8-98049 368-0 |
|
NUT, AIR SUSP |
8 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> (B) M6W/DISHED WASHER |
| 1 |
I8-97825 519-5 |
|
BUMPER ASM, FRT |
|
2311- |
|
D |
(D-MAX 2024) EXC. COLOR KEYED BUMPER(VT4),WARNING - DISTANCE, PARKING ASSIST, FRT & RR<8SU> (B) |
| 1 |
I8-97829 930-3 |
|
BUMPER ASM, FRT |
C |
2311- |
|
|
(D-MAX 2024) EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,FOG LAMP<T96>,COLOR KEYED BUMPER(VT4),OVER FENDER<6GH>,WARNING - DISTANCE, PARKING ASSIST,FRT & RR<8SU> (A) |
| 1 |
I7-55217 269-1 |
|
BUMPER ASM, FRT |
C |
2311- |
|
|
COLOR KEYED BUMPER(VT4) OVER FENDER<6GH> WARNING - DISTANCE, PARKING ASSIST.FRT 8< RR<8SU> EXC. KD PAINT LESS SUPPLY<7TV> (B) PRIMER |
| 30 |
I8-98370 356-1 |
|
BRACKET, FRT BUMPER |
2 |
2311- |
|
BC E |
(D-MAX 2024) EXC. OVER FENDER<6GH> |
| 30 |
I8-97268 322-0 |
|
BRACKET, FRT BUMPER |
2 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> (A) |
| 1 |
I8-97829 931-3 |
|
BUMPER ASM, FRT |
C |
2311- |
|
|
FOG LAM P<T96> EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,COLOR KEYED BUMPER(VT4),OVER FENDER<6GH>,WARNING - DISTANCE, PARKING ASSIST, FRT & RR<8SU> (a) |
| 158 |
I8-97267 862-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> (A) |
| 1 |
I7-55217 268-1 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
D F |
(D-MAX 2024) COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV>,WARNING - DISTANCE, PARKING ASSIST, FRT & RR<8SU> (B) PRIMER |
| 32 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
6 |
2311- |
|
A BC D E F |
(D-MAX 2024) M6X16 FLANGE |
| 1 |
I8-97825 519-5 |
|
BUMPER ASM, FRT |
C |
2311- |
|
|
(D-MAX 2024) OVER FENDER<6GH> EXC. COLOR KEYED BUMPER(VT4),WARNING - DISTANCE, PARKING ASSIST, FRT & RR<8SU> (b) |
| 158 |
I8-97267 861-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
A D F |
(D-MAX 2024) (A) |
| 296 |
I0-28050 616-0 |
|
BOLT |
2 |
2311- |
|
A |
(D-MAX 2024) M6X16 FLANGE |
| 338 |
I8-97825 531-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
D F |
(D-MAX 2024) DAYTIME RUNNING LIGHT FOG LAMP<T61> |
| 1 |
I7-55217 268-1 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
B E |
(D-MAX 2024) COLOR KEYED BUMPER(VT4) OVER FENDER<6GH> EXC. KD PAINT LESS SUPPLY<7TV> (B) PRIMER |
| 1 |
I7-55217 267-0 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
B E |
FOG LAM P<T96> COLOR KEYED BUMPER(VT4) EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,OVER FENDER<6GH>,KD PAINT LESS SUPPLY<7TV> (A) PRIMER |
| 272 |
I8-98167 444-0 |
|
BOLT, BUMPER TO BODY |
4 |
2311- |
|
BC E |
(D-MAX 2024) EXC. OVER FENDER<6GH> SCREW M6X20 TAPPING W/PL WASHER |
| 1 |
I8-97825 519-5 |
|
BUMPER ASM, FRT |
B |
2311- |
|
E |
(D-MAX 2024) OVER FENDER<6GH> EXC. COLOR KEYED BUMPER(VT4) (b) |
| 30 |
I8-98370 359-1 |
|
BRACKET, FRT BUMPER |
2 |
2311- |
|
A BC D E F |
(D-MAX 2024) (B) |
| 338 |
I8-97825 530-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
D F |
(D-MAX 2024) DAYTIME RUNNING LIGHT FOG LAMP<T61> |
| 1 |
I8-97829 930-3 |
|
BUMPER ASM, FRT |
B |
2311- |
|
E |
(D-MAX 2024) EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,FOG LAMP<T96>,COLOR KEYED BUMPER(VT4),OVER FENDER<6GH> (A) |
| 634 |
I8-98054 813-0 |
|
NUT, CLIP |
2 |
2311- |
|
BC D E F |
AUSTRALIA EQUIPMENT(B13) |
| 338 |
I8-97825 527-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
D F |
(D-MAX 2024) EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,FOG LAMP<T96> |
| 1 |
I7-55217 267-0 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
C |
DAYTIME RUNNING LIGHT FOG LAMP<T61> COLOR KEYED BUMPER(VT4) EXC. OVER FENDER<6GH>,KD PAINT LESS SUPPLY<7TV>,WARNING - DISTANCE, PARKING ASSIST.FRT 8. RR<8SU> (A) PRIMER |
| 30 |
I8-97268 322-0 |
|
BRACKET, FRT BUMPER |
2 |
2311- |
|
A D F |
(D-MAX 2024) (A) |
| 1 |
I8-97829 931-3 |
|
BUMPER ASM, FRT |
B |
2311- |
|
E |
DAYTIME RUNNING LIGHT FOG LAMP<T61> EXC. COLOR KEYED BUMPER(VT4),OVER FENDER<6GH> (a) |
| 27 |
I0-28661 025-0 |
|
BOLT, STAY |
4 |
2311- |
|
A BC D E F |
(D-MAX 2024) M10X25 FLANGE |
| 338 |
I8-97825 528-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,FOG LAMP<T96> |
| 9 |
I0-91180 106-0 |
|
NUT:CONICAL |
6 |
2311- |
|
A B C D E |
(D-MAX 2024) M6 FLANGE |
| 1 |
I7-55217 266-0 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
B E |
COLOR KEYED BUMPER(VT4) EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,FOG LAMP<T96>,OVER FENDER<6GH>,KD PAINT LESS SUPPLY<7TV> (A) PRIMER |
| 158 |
I8-97518 031-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) EXC. OVER FENDER<6GH> (C) |
| 636 |
I8-98049 368-0 |
|
NUT, AIR SUSP |
8 |
2311- |
|
A D F |
(D-MAX 2024) (B) M6W/DISHED WASHER |
| 338 |
I8-97825 531-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
BC E |
(D-MAX 2024) DAYTIME RUNNING LIGHT FOG LAMP<T61> OVER FENDER<6GH> |
| 1 |
I7-55217 267-0 |
|
BUMPER ASM, FRT |
C |
2311- |
|
|
FOG LAM P<T96> COLOR KEYED BUMPER(VT4) EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,OVER FENDER<6GH>,KD PAINT LESS SUPPLY<7TV>,WARNING - DISTANCE, PARKING ASSIST,FRT & RR<8SU> (a) PRIMER |
| 122 |
I0-74160 616-0 |
|
SCREW, ESCUTCHEON,DOOR PULL |
2 |
2311- |
|
A B C D E |
(D-MAX 2024) SCREW M6X16 TAPPING W/PL WASHER |
| 338 |
I8-97825 530-2 |
|
BEZEL, FOG LAMP |
1 |
2311- |
|
BC E |
(D-MAX 2024) DAYTIME RUNNING LIGHT FOG LAMP<T61> OVER FENDER<6GH> |
| 1 |
I7-55217 269-1 |
|
BUMPER ASM, FRT |
1 |
2311- |
|
F |
COLOR FOR HIGH APPEARANCE PACKAGE(V46) WARNING - DISTANCE, PARKING ASSIST,FRT & RR<8SU> EXC. KD PAINT LESS SUPPLY<7TV> (B) PRIMER |
| 177 |
I8-97688 310-0 |
|
BOLT |
8 |
2311- |
|
BC E |
(D-MAX 2024) OVER FENDER<6GH> |
| 158 |
I8-97518 032-0 |
|
EXTENSION, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) EXC. OVER FENDER<6GH> (C) |
| 636 |
I8-98072 786-0 |
|
NUT, EXT,FRT BUMPER |
4 |
2311- |
|
BC E |
(D-MAX 2024) EXC. OVER FENDER<6GH> (A) |
| 54 |
I8-98395 191-2 |
|
RETAINER, FRT BUMPER |
1 |
2311- |
|
BC E |
(D-MAX 2024) EXC. OVER FENDER<6GH> (A) |
| 24 |
I8-98362 121-3 |
|
BAR, FRT BUMPER |
1 |
2311- |
|
A B C D E |
(D-MAX 2024) |
| 1 |
I8-97829 931-3 |
|
BUMPER ASM, FRT |
C |
2311- |
|
|
DAYTIME RUNNING LIGHT FOG LAMP<T61> EXC. COLOR KEYED BUMPER(VT4),OVER FENDER<6GH>,WARNING - DISTANCE, PARKING ASSIST,FRT & RR<8SU> (A) |
| 54 |
I8-97301 188-0 |
|
RETAINER, FRT BUMPER |
6 |
2311- |
|
A BC D E F |
(D-MAX 2024) (B) |
| 621 |
I8-98367 566-1 |
|
SUPPORT, FRT BUMPER |
1 |
2311- |
|
A B C D E |
(D-MAX 2024) |
| 1 |
I8-97829 931-3 |
|
BUMPER ASM, FRT |
B |
2311- |
|
E |
FOG LAM P<T96> EXC. DAYTIME RUNNING LIGHT FOG LAMP<T61>,COLOR KEYED BUMPER(VT4),OVER FENDER<6GH> (A) |
