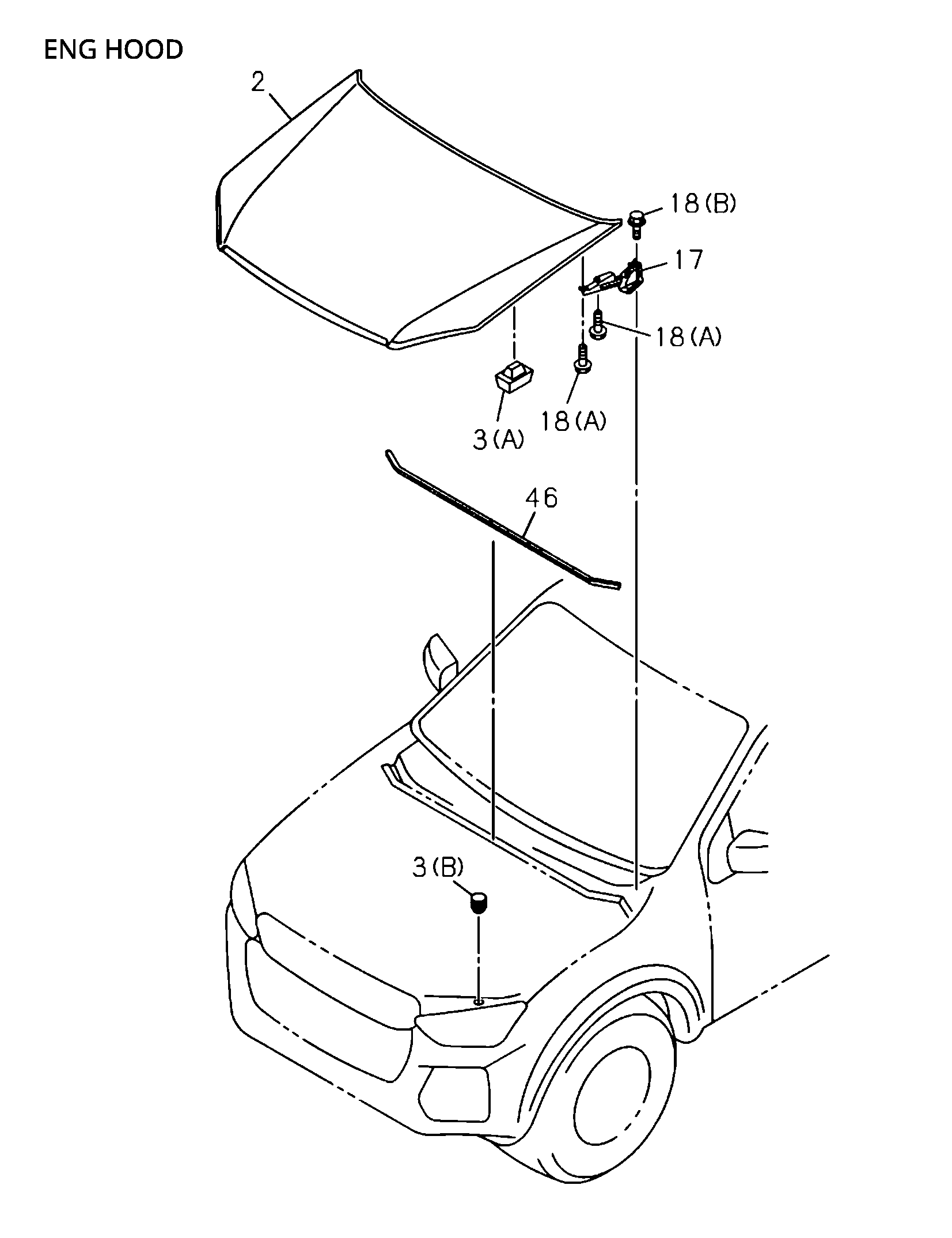

6-10 | ENGINE HOOD AND LOCK
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 43 | I8-98370 366-1 | STAY, ENG HOOD,FRT END | 1 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 31 | I8-97846 125-0 | LOCK, ENG HOOD | 1 | 2311- | B E | (D-MAX 2024) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> | ||
| 48 | I8-97555 705-0 | LEVER, ENG HOOD | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 31 | I8-97846 125-0 | LOCK, ENG HOOD | 1 | 2311- | D F | (D-MAX 2024) IDLE STOP SYSTEM<8BM> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||

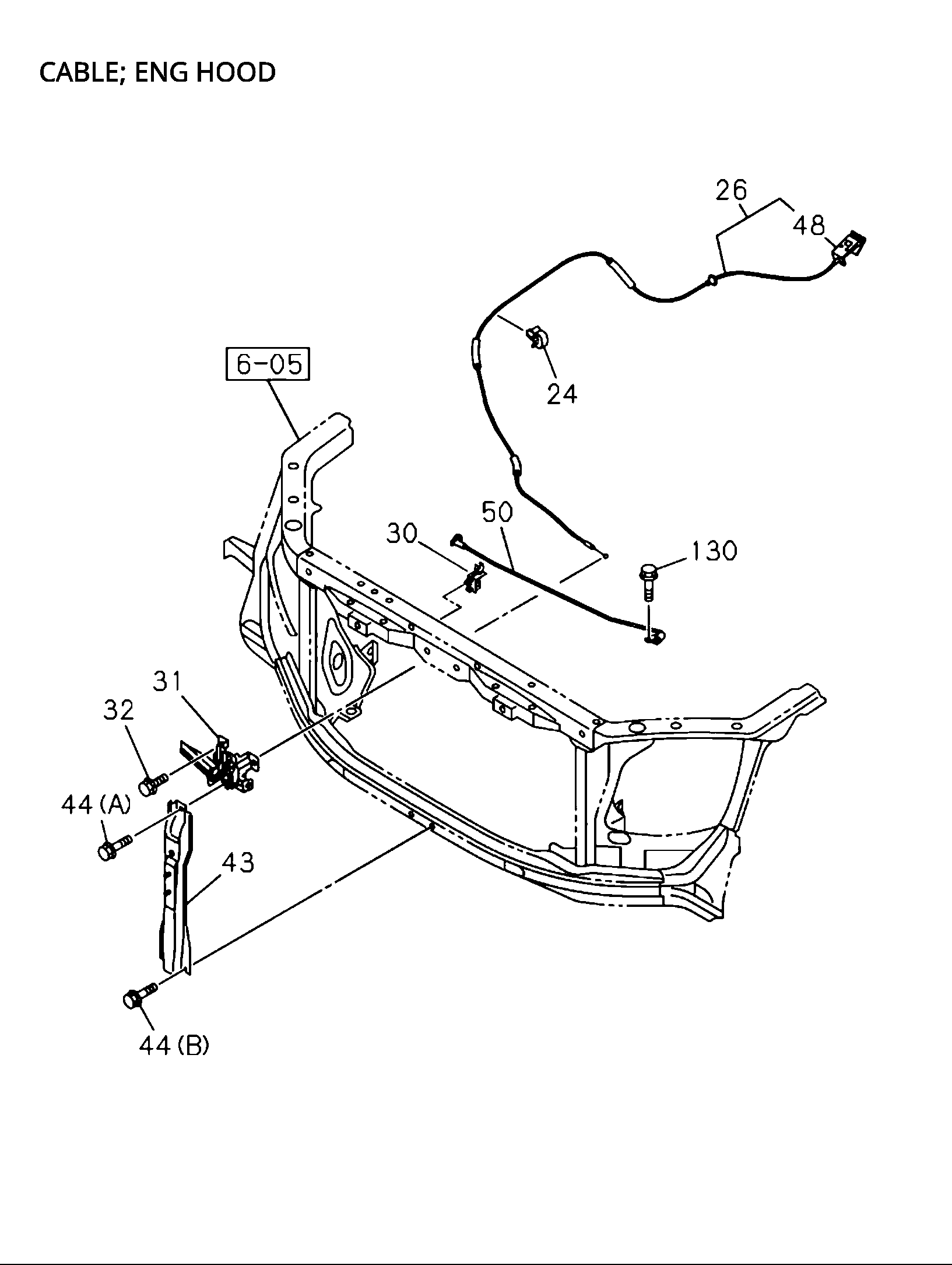

| 26 | I8-98393 091-0 | CABLE, ENG HOOD CONT | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 44 | I0-28660 820-0 | BOLT | 2 | 2311- | ABCDE F | (D-MAX 2024) (B) M8X20 FLANGE | ||
| 3 | I7-55216 896-0 | BUFFER, ENG HOOD,FRT | 2 | 2311- | A BC D E F | (D-MAX 2024) (B) | ||
| 44 | I8-97370 668-0 | BOLT, HOOD LK | 1 | 2311- | ABCDE F | (D-MAX 2024) (A) M6X20W/PL WASHER | ||
| 18 | I8-98208 786-0 | BOLT, TOOL BOX | 4 | 2311- | ABCDE F | (D-MAX 2024) (B) M8X27 | ||
| 18 | I8-98056 122-0 | BOLT, HINGE | 4 | 2311- | A BC D E F | (D-MAX 2024) (A) M8X16 | ||
| 46 | I8-98394 032-3 | SEAL, ENG HOOD | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 50 | I8-98391 469-1 | ROD, SUPPORT,ENG HOOD | 1 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 31 | I8-97846 125-0 | LOCK, ENG HOOD | 1 | 2311- | CD F | (D-MAX 2024) PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 17 | I8-98386 268-1 | HINGE, ENG HOOD | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 3 | I8-98312 732-0 | BUFFER, ENG HOOD,FRT | 4 | 2311- | ABCDE F | (D-MAX 2024) (A) | ||
| 2 | I8-97243 301-4 | PANEL, ENG HOOD | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 32 | I8-97370 668-0 | BOLT, HOOD LK | 2 | 2311- | A BC D E F | (D-MAX 2024) M6X20W/PL WASHER | ||
| 24 | I8-97182 405-0 | CLIP, CONT CABLE | 4 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 130 | I0-28650 616-0 | SCREW, TANK TO BRKT | 1 | 2311- | A BC D E F | (D-MAX 2024) M6X16 FLANGE | ||
| 31 | I8-97846 125-0 | LOCK, ENG HOOD | 1 | 2311- | B | (D-MAX 2024) IDLE STOP SYSTEM<8BM> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> | ||
| 17 | I8-98386 276-1 | HINGE, ENG HOOD | 1 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 30 | I8-98391 471-0 | CLIP, SUPPORT ROD,HOOD | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 31 | I8-97846 127-0 | LOCK, ENG HOOD | 1 | 2311- | ABCDE F | (D-MAX 2024) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,IDLE STOP SYSTEM<8BM>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 31 | I8-97846 125-0 | LOCK, ENG HOOD | 1 | 2311- | CD F | (D-MAX 2024) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> |
