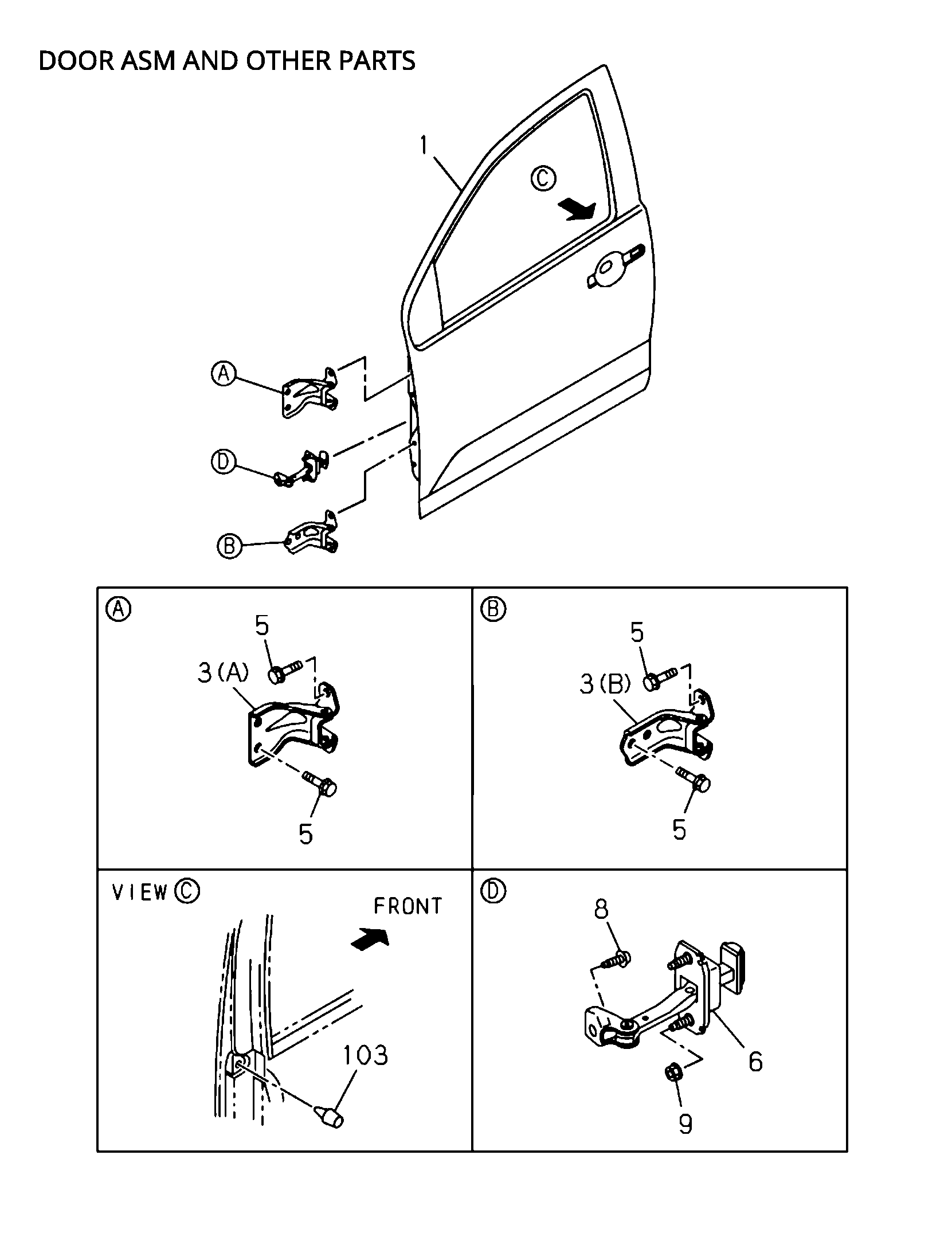

6-30 | FRONT DOOR AND HINGE
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97820 936-0 | DOOR ASM, FRT,WO/TRIM | 1 | 2311- | C F | (D-MAX 2024) | ||
| 103 | I8-98202 864-0 | BUFFER, DOOR GLASS RUN | 2 | 2311- | A B C D E | (D-MAX 2024) | ||
| 8 | I8-98166 694-0 | BOLT, CHECK ARM | 2 | 2311- | A B C D E | (D-MAX 2024) M8X23 | ||
| 5 | I8-98005 842-0 | BOLT, HINGE | 8 | 2311- | A BC D E F | (D-MAX 2024) M8X23 FLANGE | ||
| 6 | I8-97798 557-0 | ARM, CHECK,FRT DOOR | 2 | 2311- | A B C D E | (D-MAX 2024) | ||
| 1 | I8-97820 933-0 | DOOR ASM, FRT,WO/TRIM | 1 | 2311- | AB DE | (D-MAX 2024) | ||
| 1 | I8-97820 935-0 | DOOR ASM, FRT,WO/TRIM | 1 | 2311- | C F | (D-MAX 2024) | ||
| 1 | I8-97820 934-0 | DOOR ASM, FRT,WO/TRIM | 1 | 2311- | AB DE | (D-MAX 2024) | ||
| 3 | I8-98398 909-0 | HINGE, DOOR FRT | 2 | 2311- | A B C D E | (D-MAX 2024) (B) LOWER | ||
| 3 | I8-98398 908-0 | HINGE, DOOR FRT | 2 | 2311- | A BC D E F | (D-MAX 2024) (A) UPPER | ||
| 9 | I8-98049 362-0 | NUT, CHECK ARM | 4 | 2311- | A B C D E | (D-MAX 2024) M6 FLANGE | ||
| 5 | I8-98005 842-0 | BOLT, HINGE | 8 | 2311- | A B C D E | (D-MAX 2024) M8X23 FLANGE | ||

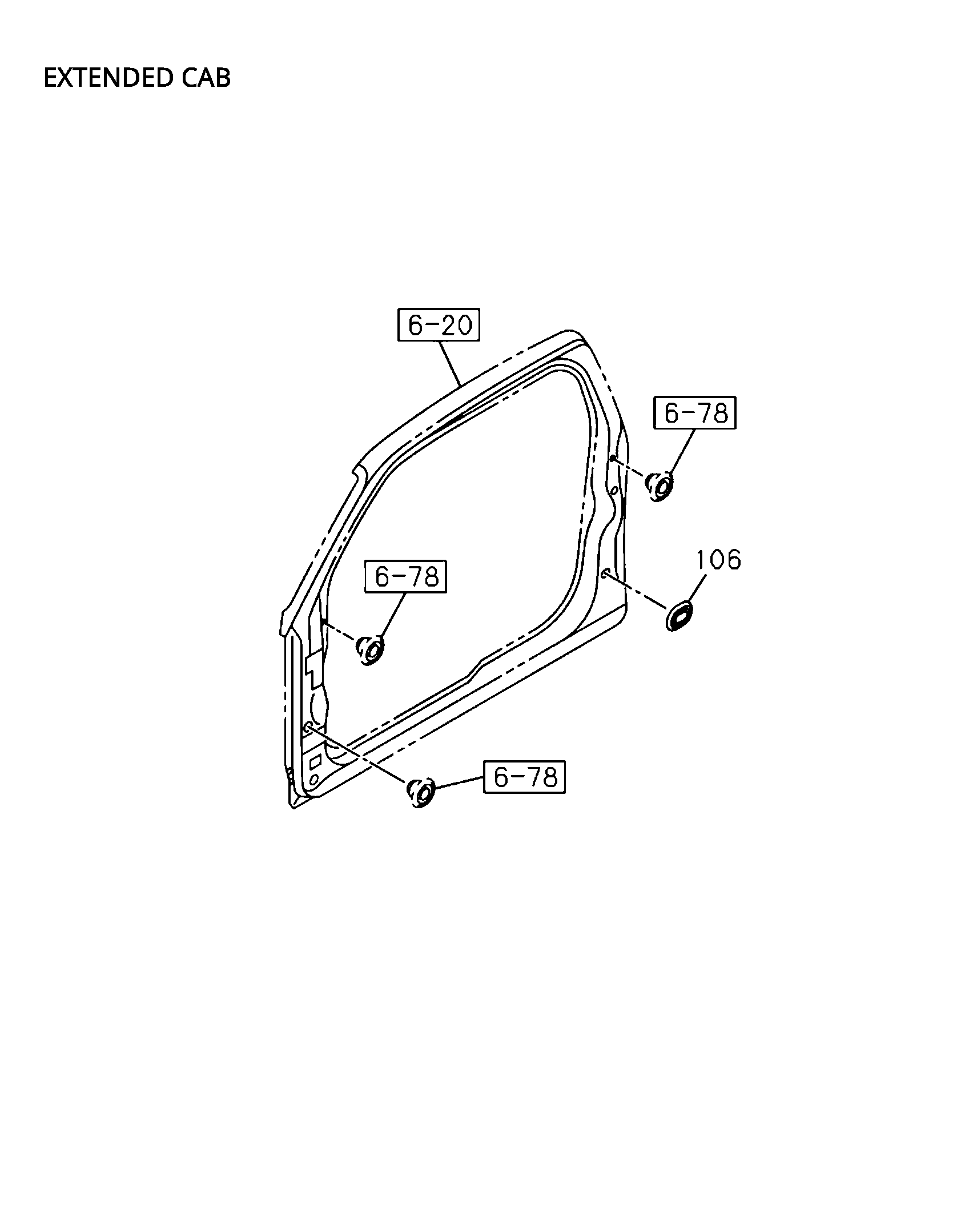

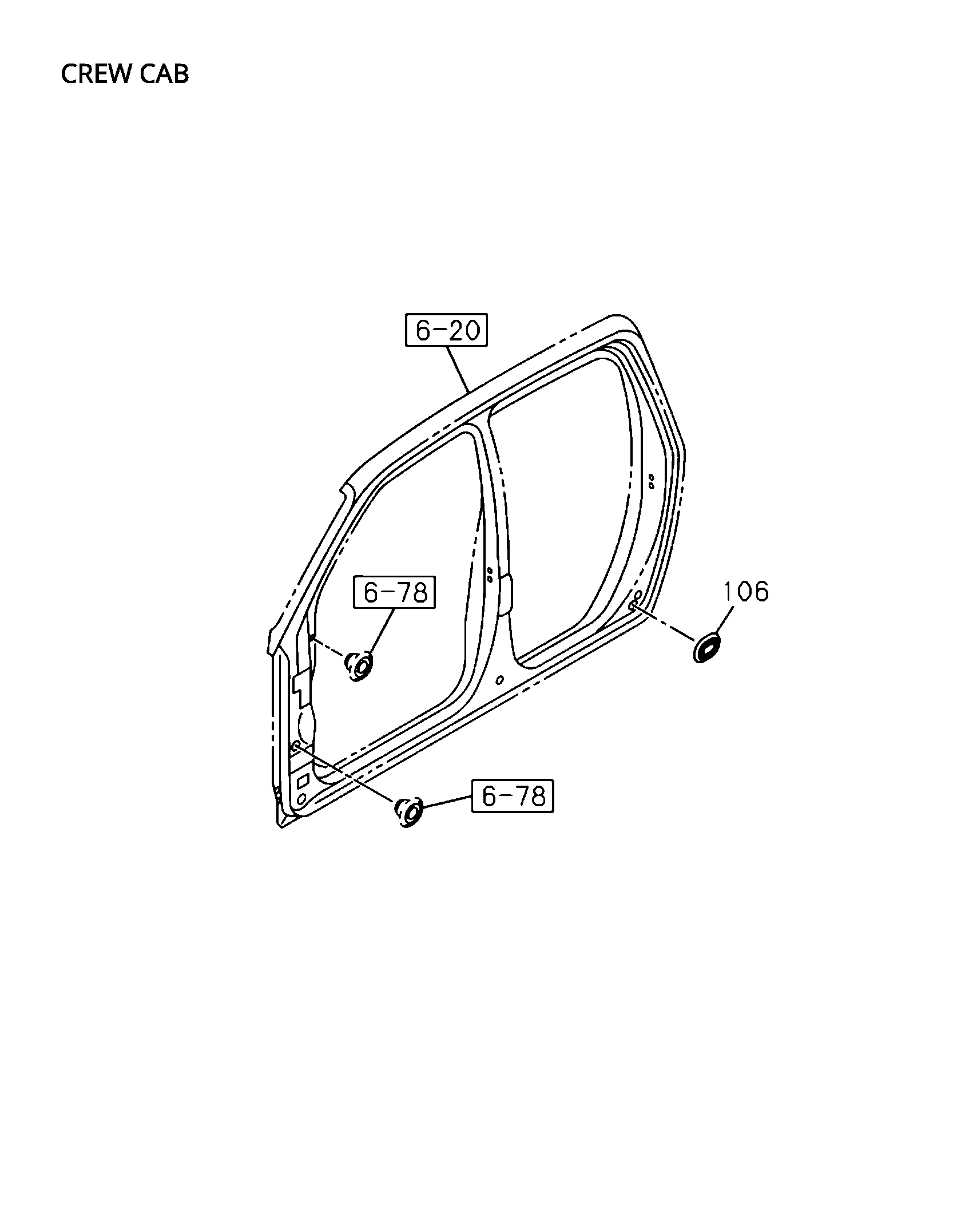

| 106 | I8-94279 724-0 | GROMMET, LOCATION HOLE | 2 | 2311- | A C D F | (D-MAX 2024) |
