| 75 |

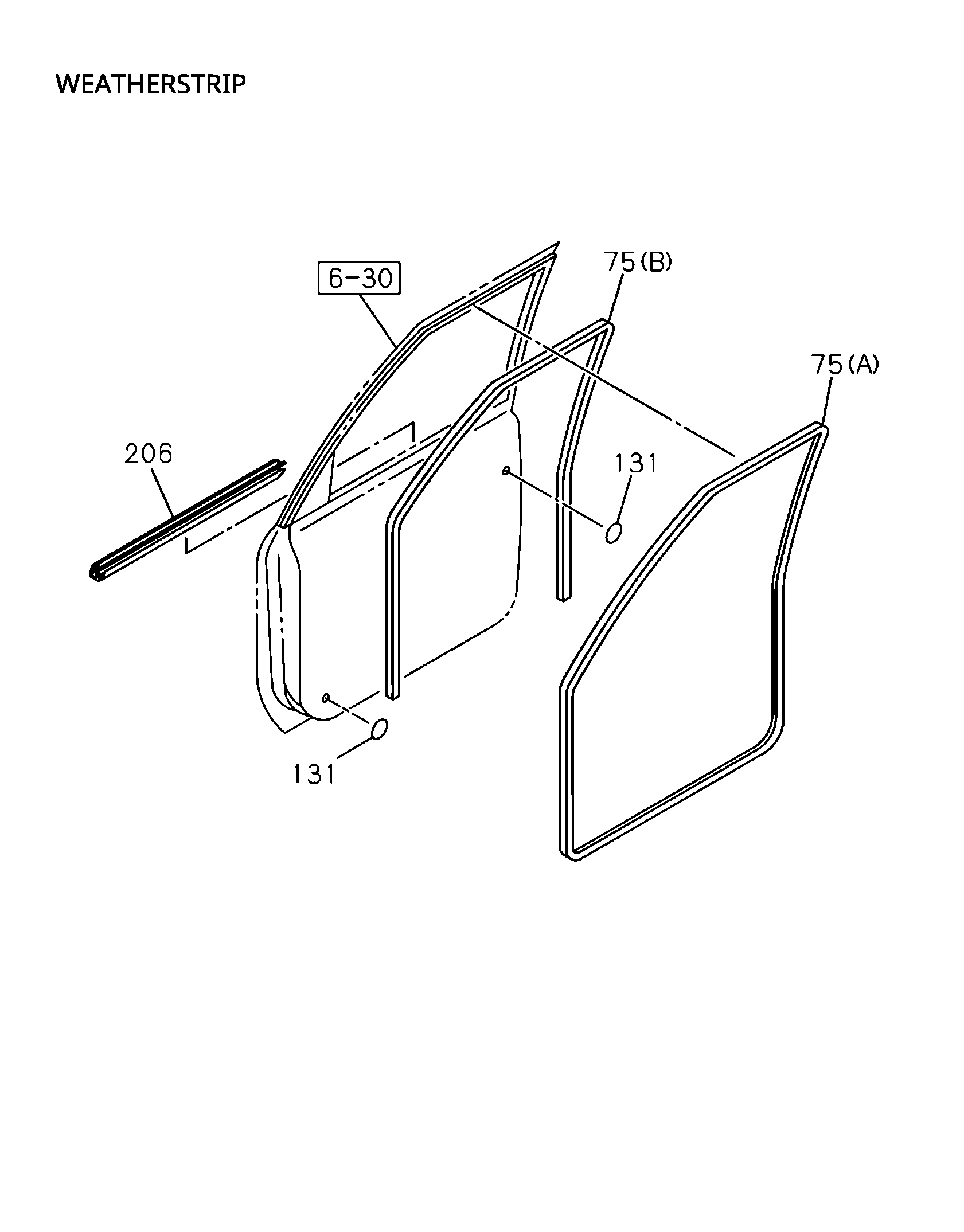

I8-98335 582-2 |
|
WEATHERSTRIP, FRT DOOR |
1 |
2311- |
|
BC E F |
(D-MAX 2024) (A) |
| 131 |
I8-97826 300-0 |
|
SEAL, FRT DOOR |
2 |
2311- |
|
BC D E F |
(D-MAX 2024) EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > OD=20 T=0.2 BLACK |
| 21 |

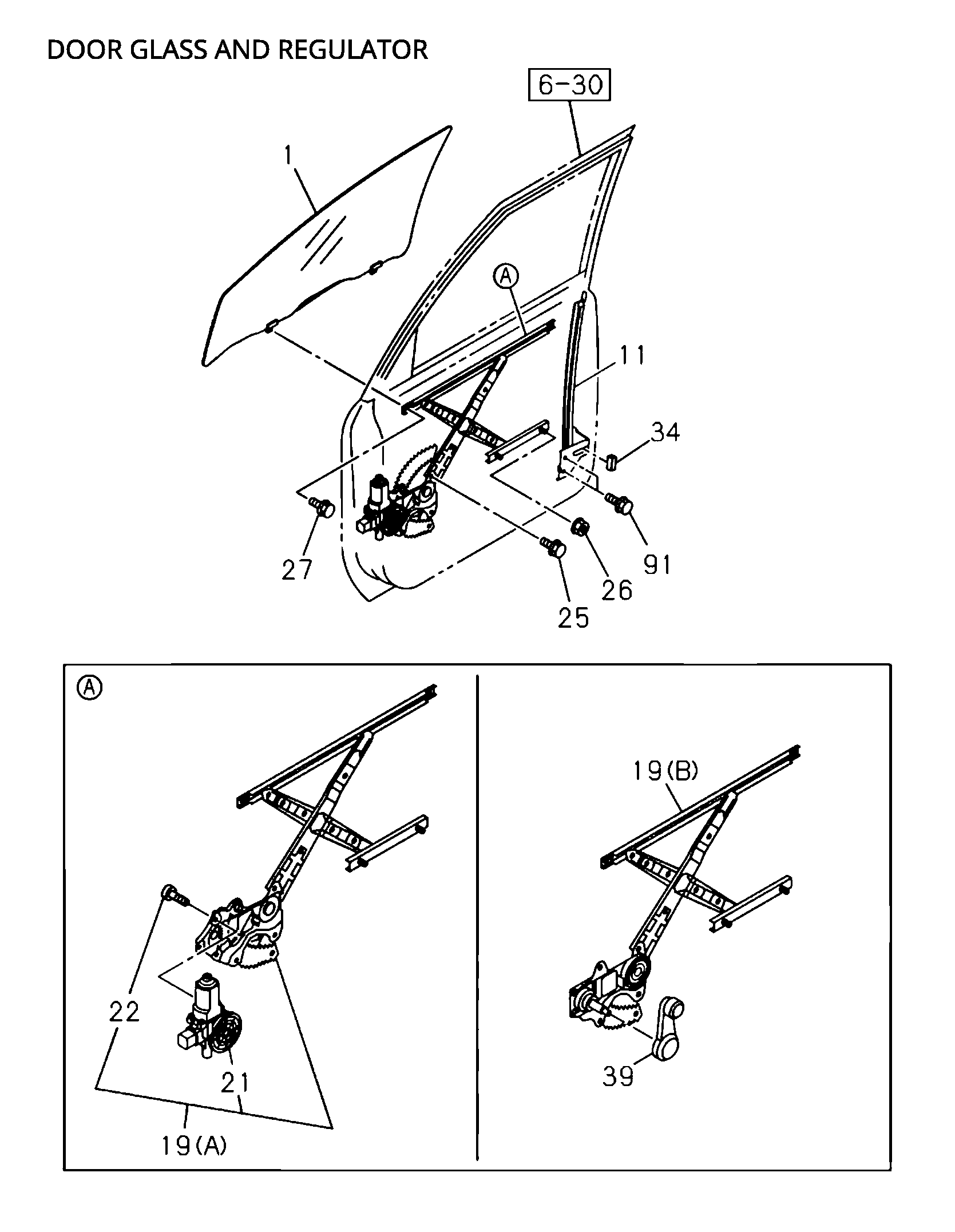

I8-97835 262-0 |
|
MOTOR, POWER WINDOW REG,FRT DO |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 19 |
I8-98335 520-0 |
|
REGULATOR, WINDOW,FRT DOOR |
1 |
2311- |
|
BC D E F |
(D-MAX 2024) EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > (B) |
| 34 |
I8-97824 401-0 |
|
STOPPER, WINDOW REG |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 39 |
I8-97416 724-0 |
|
HANDLE, WINDOW REG,FRT DOOR |
2 |
2311- |
|
CD F |
(D-MAX 2024) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > BLACK |
| 19 |
I8-97834 864-0 |
|
REGULATOR, WINDOW,FRT DOOR |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > (A) |
| 75 |
I8-98335 588-9 |
|
WEATHERSTRIP, FRT DOOR |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) (B) |
| 27 |
I8-98188 381-1 |
|
BOLT, WINDOW REG |
4 |
2311- |
|
A BC D E F |
(D-MAX 2024) M6X10 FLANGE |
| 11 |
I8-98376 802-3 |
|
RAIL, RR GUIDE,FRT DOOR |
1 |
2311- |
|
CD F |
(D-MAX 2024) PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> |
| 11 |
I8-98376 801-3 |
|
RAIL, RR GUIDE,FRT DOOR |
1 |
2311- |
|
CD F |
(D-MAX 2024) PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> |
| 11 |
I8-98376 292-3 |
|
RAIL, RR GUIDE,FRT DOOR |
1 |
2311- |
|
AB E |
(D-MAX 2024) |
| 75 |
I8-98335 583-1 |
|
WEATHERSTRIP, FRT DOOR |
1 |
2311- |
|
A D |
(A) |
| 19 |
I8-98335 519-0 |
|
REGULATOR, WINDOW,FRT DOOR |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > (B) |
| 19 |
I8-97834 864-0 |
|
REGULATOR, WINDOW,FRT DOOR |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 206 |
I8-98335 587-3 |
|
WEATHERSTRIP, FRT DOOR GLASS |
1 |
2311- |
|
C F |
(D-MAX 2024) |
| 75 |
I8-98335 581-2 |
|
WEATHERSTRIP, FRT DOOR |
1 |
2311- |
|
BC E F |
(D-MAX 2024) (A) |
| 11 |
I8-98376 291-3 |
|
RAIL, RR GUIDE,FRT DOOR |
1 |
2311- |
|
CD F |
(D-MAX 2024) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> |
| 21 |
I8-97835 262-0 |
|
MOTOR, POWER WINDOW REG,FRT DO |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> |
| 22 |
I8-98195 236-0 |
|
SCREW, WINDOW REG |
3 |
2311- |
|
BCDE F |
(D-MAX 2024) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > |
| 39 |
I8-97416 724-0 |
|
HANDLE, WINDOW REG,FRT DOOR |
2 |
2311- |
|
B E |
(D-MAX 2024) EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > BLACK |
| 19 |
I8-97834 865-0 |
|
REGULATOR, WINDOW,FRT DOOR |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 75 |
I8-98335 584-1 |
|
WEATHERSTRIP, FRT DOOR |
1 |
2311- |
|
A D |
(A) |
| 206 |
I8-98395 600-3 |
|
WEATHERSTRIP, FRT DOOR GLASS |
1 |
2311- |
|
AB DE |
(D-MAX 2024) |
| 131 |
I8-97826 300-0 |
|
SEAL, FRT DOOR |
2 |
2311- |
|
BC D E F |
(D-MAX 2024) DOOR MIRROR MATERIAL BLACK<RT9> OD=20 T=0.2 BLACK |
| 91 |
I8-98048 996-0 |
|
BOLT, HEAT PROTECTOR |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) M6X8 FLANGE |
| 206 |
I8-98395 599-3 |
|
WEATHERSTRIP, FRT DOOR GLASS |
1 |
2311- |
|
AB DE |
(D-MAX 2024) |
| 1 |
I8-98334 250-0 |
|
GLASS, FRT DOOR |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 19 |
I8-97834 865-0 |
|
REGULATOR, WINDOW,FRT DOOR |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) |
| 206 |
I8-98335 586-3 |
|
WEATHERSTRIP, FRT DOOR GLASS |
1 |
2311- |
|
C F |
(D-MAX 2024) |
| 22 |
I8-98195 236-0 |
|
SCREW, WINDOW REG |
3 |
2311- |
|
BCDE F |
(D-MAX 2024) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > |
| 21 |
I8-97835 261-0 |
|
MOTOR, POWER WINDOW REG,FRT DO |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 11 |
I8-98376 291-3 |
|
RAIL, RR GUIDE,FRT DOOR |
1 |
2311- |
|
AB E |
(D-MAX 2024) |
| 1 |
I8-98334 249-0 |
|
GLASS, FRT DOOR |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) |
| 22 |
I8-98195 236-0 |
|
SCREW, WINDOW REG |
3 |
2311- |
|
A |
(D-MAX 2024) |
| 21 |
I8-97835 260-0 |
|
MOTOR, POWER WINDOW REG,FRT DO |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> |
| 19 |
I8-97834 863-0 |
|
REGULATOR, WINDOW,FRT DOOR |
1 |
2311- |
|
BC D E F |
(D-MAX 2024) DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) |
| 25 |
I8-98188 381-1 |
|
BOLT, WINDOW REG |
6 |
2311- |
|
ABCDE F |
(D-MAX 2024) M6X10 FLANGE |
| 11 |
I8-98376 292-3 |
|
RAIL, RR GUIDE,FRT DOOR |
1 |
2311- |
|
CD F |
(D-MAX 2024) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> |
| 75 |
I8-98335 589-9 |
|
WEATHERSTRIP, FRT DOOR |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) (B) |
| 22 |
I8-98195 236-0 |
|
SCREW, WINDOW REG |
3 |
2311- |
|
A |
(D-MAX 2024) |
| 21 |
I8-97835 261-0 |
|
MOTOR, POWER WINDOW REG,FRT DO |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 > |
| 26 |
I8-98049 362-0 |
|
NUT, CHECK ARM |
4 |
2311- |
|
A BC D E F |
(D-MAX 2024) M6 FLANGE |
