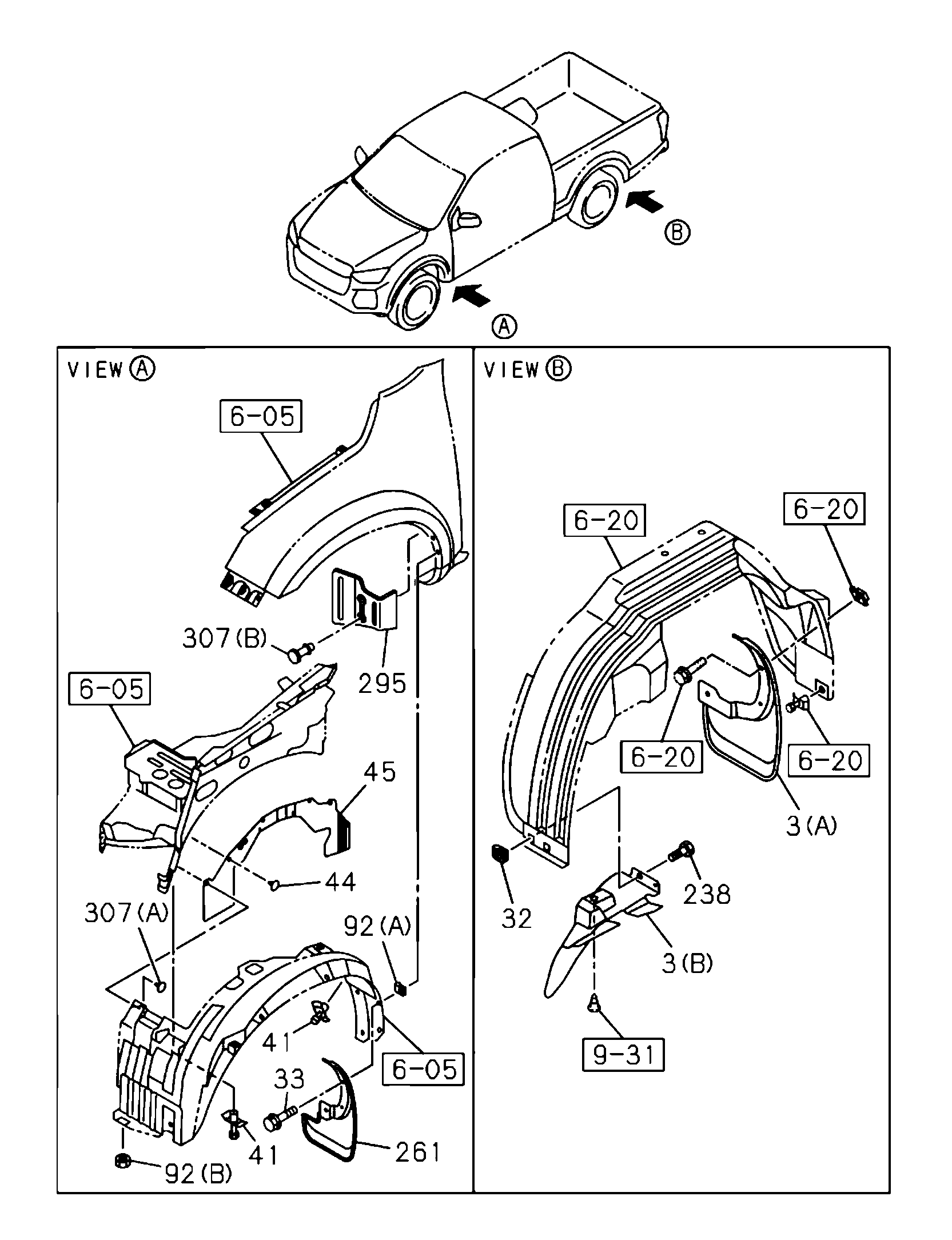

| 3 |
I8-98393 938-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT 8< RR<Q8H> (A) |
| 3 |
I8-98356 221-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
C |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) (A) |
| 45 |
I8-98393 944-2 |
|
COVER, MUD,FENDER SKIRT |
1 |
2311- |
|
A D E F |
(D-MAX 2024) |
| 92 |
I8-97125 519-0 |
|
NUT, SPIRE,MOLDING |
8 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
8 |
2311- |
|
D F |
(D-MAX 2024) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> |
| 33 |
I8-98167 444-0 |
|
BOLT, BUMPER TO BODY |
8 |
2311- |
|
D F |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> SCREW M6X20 TAPPING W/PL WASHER |
| 33 |
I8-98167 444-0 |
|
BOLT, BUMPER TO BODY |
6 |
2311- |
|
B E |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> EXC. OVER FENDER<6GH> SCREW M6X20 TAPPING W/PL WASHER |
| 44 |
I8-94215 211-0 |
|
CLIP, MUD GUARD |
10 |
2311- |
|
A BC D E F |
(D-MAX 2024) OD=22 L=10.7 |
| 3 |
I8-98356 221-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
D F |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) |
| 261 |
I8-98356 197-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
B |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. OVER FENDER<6GH>,HIGH RIDE SUSPENSION(7YC) |
| 92 |
I8-98049 368-0 |
|
NUT, AIR SUSP |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) (B) M6W/DISHED WASHER |
| 92 |
I8-97125 519-0 |
|
NUT, SPIRE,MOLDING |
8 |
2311- |
|
C |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) (a) |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
6 |
2311- |
|
B E |
(D-MAX 2024) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J>,OVER FENDER<6GH> |
| 295 |
I8-97518 010-0 |
|
COVER, WHEEL HOUSE |
1 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) |
| 3 |
I8-98356 219-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
BC |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) (a) |
| 92 |
I8-97125 519-0 |
|
NUT, SPIRE,MOLDING |
6 |
2311- |
|
C |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8t RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) (A) |
| 261 |
I8-98356 197-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
C |
(D-MAX 2024) FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
14 |
2311- |
|
A D F |
(D-MAX 2024) |
| 45 |
I8-98393 945-2 |
|
COVER, MUD,FENDER SKIRT |
1 |
2311- |
|
A D E F |
(D-MAX 2024) |
| 33 |
I8-98167 444-0 |
|
BOLT, BUMPER TO BODY |
8 |
2311- |
|
C |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) SCREW M6X20 TAPPING W/PL WASHER |
| 261 |
I8-98393 892-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
B |
FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> HIGH RIDE SUSPENSION(7YC) EXC. OVER FENDER<6GH> |
| 261 |
I8-98356 197-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
E |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. OVER FENDER<6GH> |
| 3 |
I8-98356 216-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
A |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) |
| 3 |
I8-98393 940-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
B |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> HIGH RIDE SUSPENSION(7YC) (A) |
| 3 |
I8-98356 222-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
D F |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) |
| 45 |
I8-98393 944-2 |
|
COVER, MUD,FENDER SKIRT |
1 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) |
| 33 |
I8-98167 444-0 |
|
BOLT, BUMPER TO BODY |
8 |
2311- |
|
B E |
(D-MAX 2024) OVER FENDER<6GH> SCREW M6X20 TAPPING W/PL WASHER |
| 238 |
I8-98167 444-0 |
|
BOLT, BUMPER TO BODY |
4 |
2311- |
|
A BC D E F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) M6X20 TAPPING W/PL WASHER |
| 261 |
I8-98356 195-1 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 3 |
I8-98356 220-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
BC |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) (a) |
| 261 |
I8-98356 198-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
B |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. OVER FENDER<6GH>,HIGH RIDE SUSPENSION(7YC) |
| 92 |
I8-97125 519-0 |
|
NUT, SPIRE,MOLDING |
8 |
2311- |
|
B E |
(D-MAX 2024) OVER FENDER<6GH> (A) |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
14 |
2311- |
|
B E |
(D-MAX 2024) OVER FENDER<6GH> |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
8 |
2311- |
|
C |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> |
| 307 |
I8-98050 462-0 |
|
RETAINER |
6 |
2311- |
|
A BC D E F |
(D-MAX 2024) (a) |
| 92 |
I8-97125 519-0 |
|
NUT, SPIRE,MOLDING |
6 |
2311- |
|
B E |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8t RR<Q8J> EXC. OVER FENDER<6GH> (A) |
| 33 |
I8-98167 444-0 |
|
BOLT, BUMPER TO BODY |
6 |
2311- |
|
C |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) SCREW M6X20 TAPPING W/PL WASHER |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
6 |
2311- |
|
C |
(D-MAX 2024) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8t RR<Q8J>,HIGH RIDE SUSPENSION(7YC) |
| 3 |
I8-98356 218-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
BC |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) (a) |
| 3 |
I8-98356 217-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
BC |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) (a) |
| 45 |
I8-98393 946-2 |
|
COVER, MUD,FENDER SKIRT |
1 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) |
| 295 |
I8-97518 009-0 |
|
COVER, WHEEL HOUSE |
1 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
14 |
2311- |
|
C |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) |
| 261 |
I8-98356 195-1 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
C |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) |
| 261 |
I8-98356 198-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
B |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) EXC. OVER FENDER<6GH> |
| 261 |
I8-98356 198-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
E |
(D-MAX 2024) FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. OVER FENDER<6GH> |
| 3 |
I8-97517 575-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
D |
REAR BODY STD CARGO BOX(E63) SIDE STEP<6TC> (B) |
| 261 |
I8-98356 196-1 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
B E |
(D-MAX 2024) OVER FENDER<6GH> |
| 3 |
I8-98393 939-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
B |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A) |
| 3 |
I8-98393 939-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT & RR<Q8H> (A) |
| 3 |
I8-98356 222-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
C |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) (A) |
| 33 |
I8-98167 444-0 |
|
BOLT, BUMPER TO BODY |
8 |
2311- |
|
A |
(D-MAX 2024) SCREW M6X20 TAPPING W/PL WASHER |
| 261 |
I8-98356 195-1 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
B E |
(D-MAX 2024) FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> OVER FENDER<6GH> |
| 261 |
I8-98356 196-1 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 3 |
I8-98393 941-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
E |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) |
| 261 |
I8-98356 196-1 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
C |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) |
| 261 |
I8-98356 198-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
C |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8t RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) |
| 3 |
I8-97517 576-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
D |
REAR BODY STD CARGO BOX(E63) SIDE STEP<6TC> (B) |
| 3 |
I8-98356 215-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
D F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT & RR<Q8H> (A) |
| 45 |
I8-98393 945-2 |
|
COVER, MUD,FENDER SKIRT |
1 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) |
| 261 |
I8-98393 895-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
B |
FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) EXC. OVER FENDER<6GH> |
| 307 |
I8-97845 262-0 |
|
FASTENER |
4 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) (B) |
| 32 |
I8-97125 519-0 |
|
NUT, SPIRE,MOLDING |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) |
| 3 |
I8-98356 215-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
C |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A) |
| 3 |
I8-98393 938-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
B |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT 8< RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A) |
| 261 |
I8-98356 196-1 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
D F |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> |
| 261 |
I8-98356 195-1 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
D F |
(D-MAX 2024) FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> |
| 261 |
I8-98356 197-0 |
|
RUBBER, FRT,MUD GUARD |
1 |
2311- |
|
B |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) EXC. OVER FENDER<6GH> |
| 92 |
I8-97125 519-0 |
|
NUT, SPIRE,MOLDING |
8 |
2311- |
|
D F |
(D-MAX 2024) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> (A) |
| 45 |
I8-98393 947-2 |
|
COVER, MUD,FENDER SKIRT |
1 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
16 |
2311- |
|
B E |
(D-MAX 2024) EXC. OVER FENDER<6GH> |
| 3 |
I8-98356 216-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
D F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT& RR<Q8H> (A) |
| 3 |
I8-98393 941-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
B |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) (A) |
| 41 |
I8-94221 150-0 |
|
RIVET, INNER LINER |
16 |
2311- |
|
C |
(D-MAX 2024) EXC. HIGH RIDE SUSPENSION(7YC) |
| 3 |
I8-98356 215-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
A |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) |
| 3 |
I8-98393 940-0 |
|
GUARD, MUD,RR |
1 |
2311- |
|
E |
REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) |
| 3 |
I8-98356 216-1 |
|
GUARD, MUD,RR |
1 |
2311- |
|
C |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) FORMED MUD FLAP FRT& RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A) |
