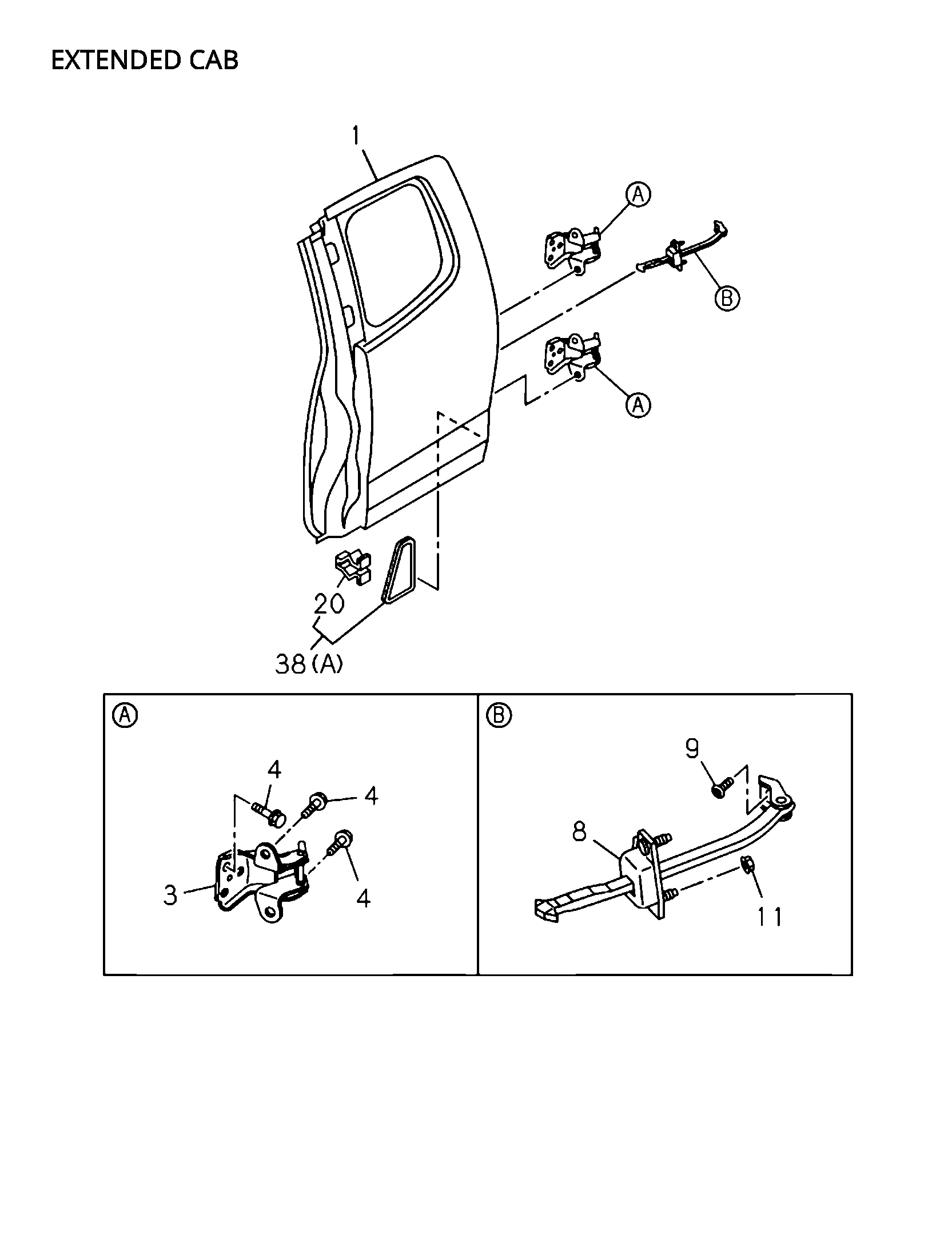

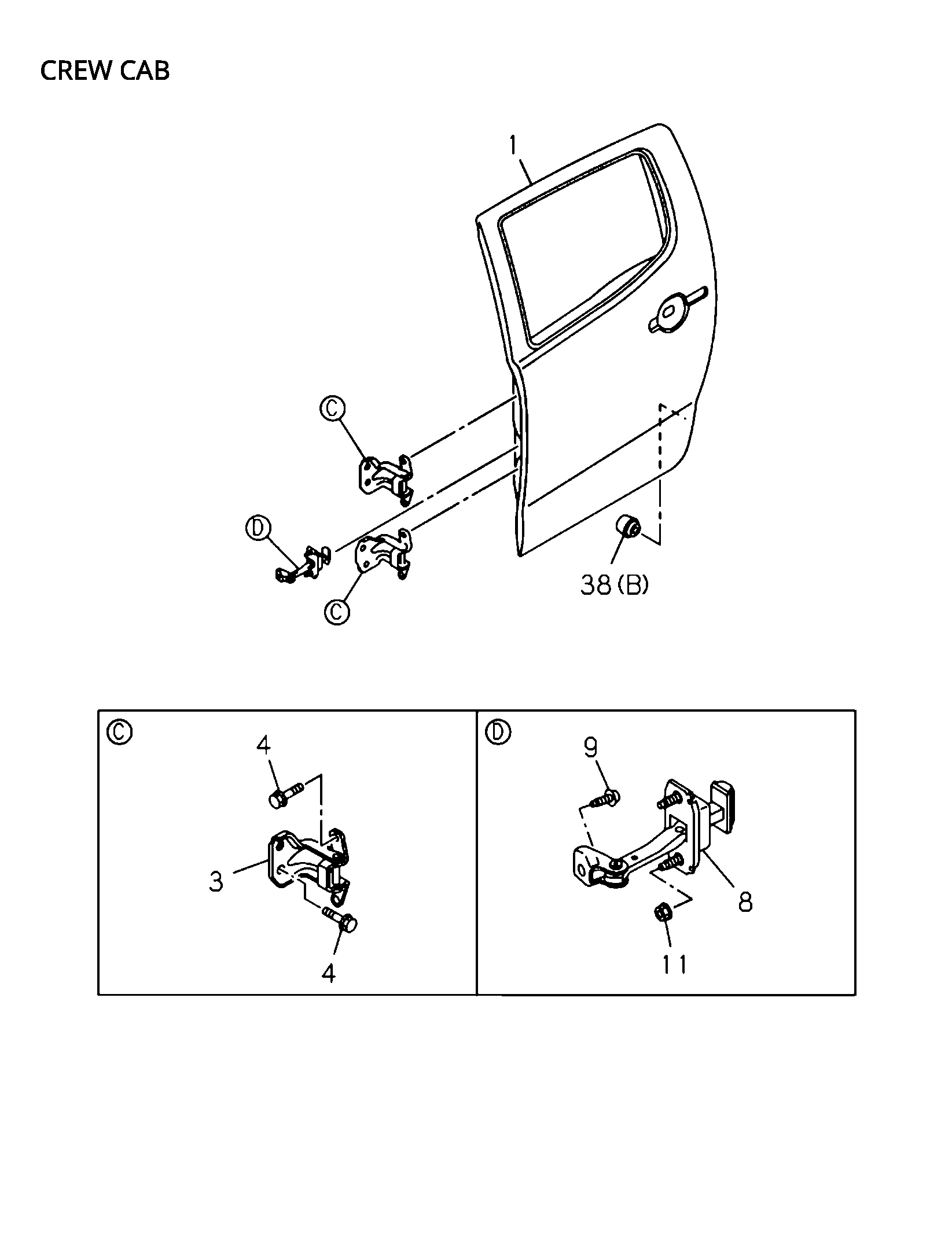

6-50 | REAR DOOR AND HINGE
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97490 841-1 | HINGE, RR DOOR | 1 | 2311- | C F | (D-MAX 2024) LOWER | ||
| 4 | I8-98005 842-0 | BOLT, HINGE | 16 | 2311- | C F | (D-MAX 2024) M8X23 FLANGE | ||
| 11 | I8-98049 362-0 | NUT, CHECK ARM | 4 | 2311- | A C D F | (D-MAX 2024) M6 FLANGE | ||
| 1 | I8-97492 141-7 | DOOR ASM, REAR | 1 | 2311- | C F | (D-MAX 2024) | ||
| 3 | I8-98395 609-1 | HINGE, RR DOOR | 2 | 2311- | A D | LOWER RH & UPPER LH | ||
| 3 | I8-98398 784-1 | HINGE, RR DOOR | 1 | 2311- | C F | (D-MAX 2024) UPPER | ||
| 8 | I8-97798 558-0 | ARM, CHECK,RR DOOR | 2 | 2311- | C F | (D-MAX 2024) | ||
| 4 | I8-98005 842-0 | BOLT, HINGE | 18 | 2311- | A D | (D-MAX 2024) M8X23 FLANGE | ||
| 1 | I8-97492 142-7 | DOOR ASM, REAR | 1 | 2311- | C F | (D-MAX 2024) | ||
| 9 | I8-98166 694-0 | BOLT, CHECK ARM | 2 | 2311- | A CD F | (D-MAX 2024) M8X23 | ||
| 1 | I8-98395 596-3 | DOOR ASM, REAR | 1 | 2311- | A D | |||
| 3 | I8-97490 840-1 | HINGE, RR DOOR | 1 | 2311- | C F | (D-MAX 2024) LOWER | ||
| 38 | I8-97648 979-0 | PROTECTOR, RR DOOR | 1 | 2311- | A D | (A) | ||
| 8 | I8-97821 582-0 | ARM, CHECK,RR DOOR | 2 | 2311- | A D | |||
| 3 | I8-98398 783-1 | HINGE, RR DOOR | 1 | 2311- | C F | (D-MAX 2024) UPPER | ||
| 1 | I8-98395 595-3 | DOOR ASM, REAR | 1 | 2311- | A D | |||
| 38 | I8-97648 980-0 | PROTECTOR, RR DOOR | 1 | 2311- | A D | (A) | ||
| 38 | I8-98202 864-0 | BUFFER, DOOR GLASS RUN | 2 | 2311- | C F | (D-MAX 2024) (B) | ||
| 3 | I8-98395 608-0 | HINGE, RR DOOR | 2 | 2311- | A D | UPPER RH & LOWER LH | ||
| 20 | I8-97410 740-3 | CLIP, FRT PANEL SIDE | 2 | 2311- | A D |
