6-78 | FLOOR HOLE PLUG
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

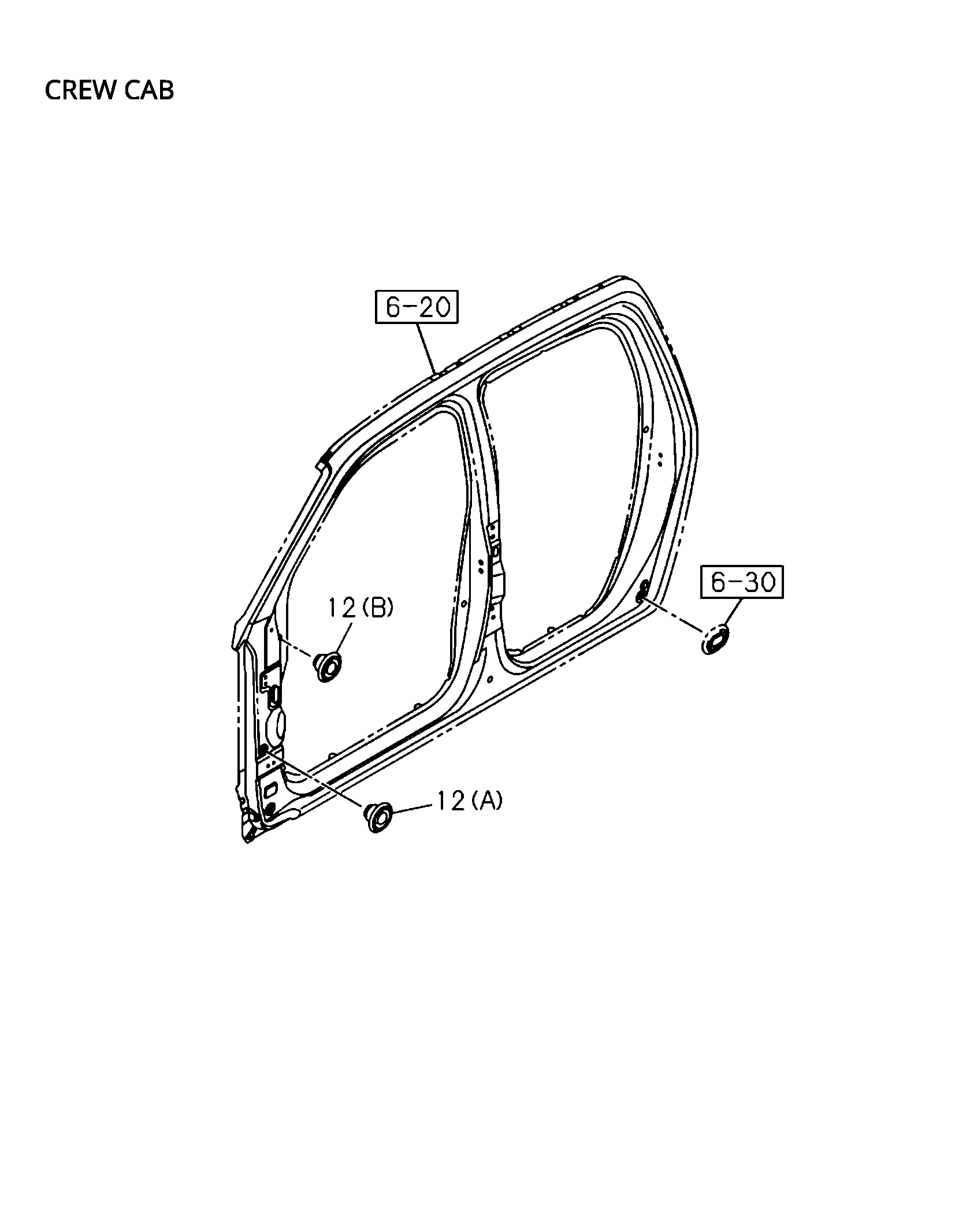

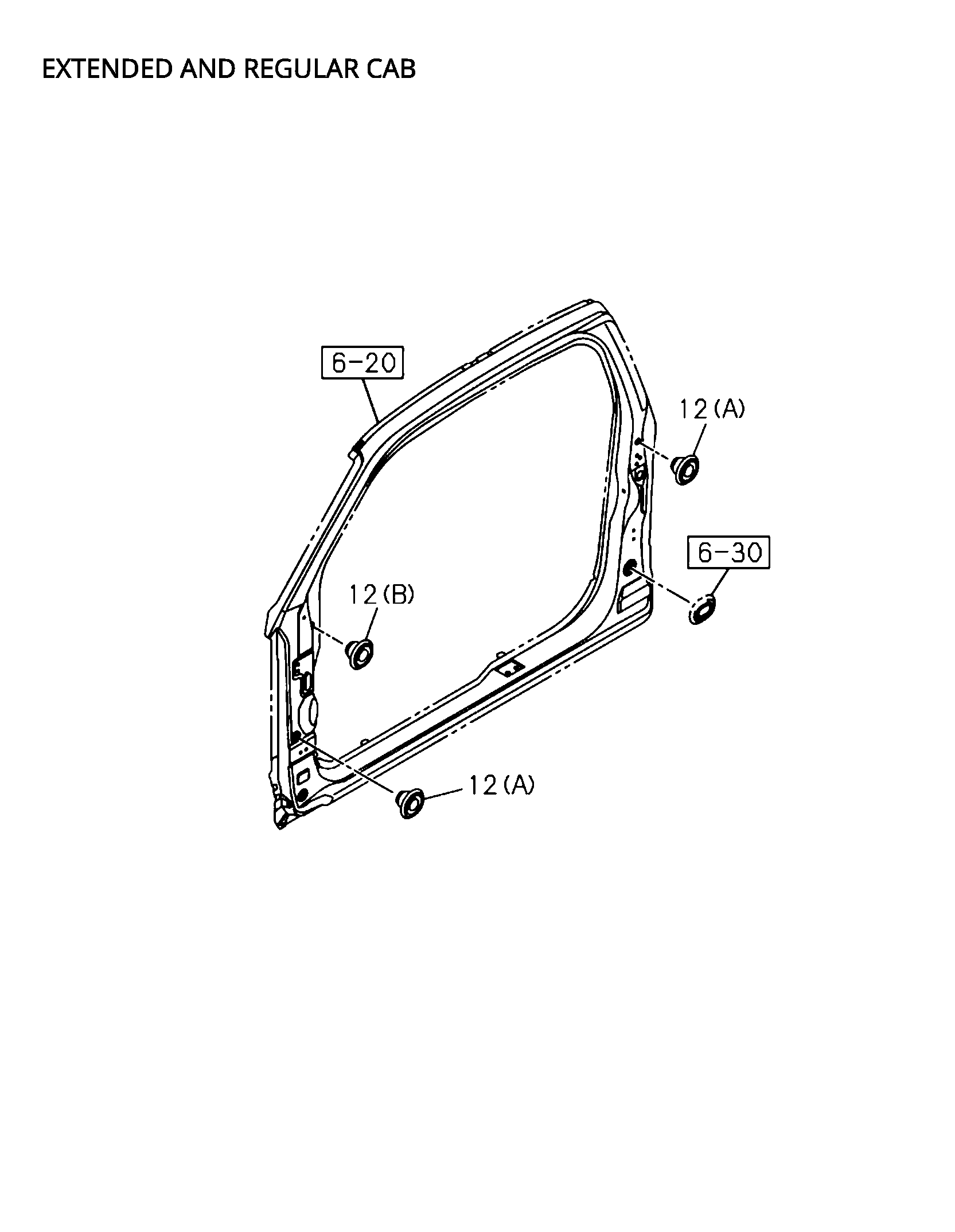

| 12 | I8-97320 908-0 | GROMMET, PROTECTOR | 6 | 2311- | B E | (D-MAX 2024) (A) OD=35 | ||
| 12 | I8-98391 640-0 | GROMMET, DRAIN HOLE,ROCKER RR | 4 | 2311- | ABCDE F | (D-MAX 2024) (B) OD=39 | ||

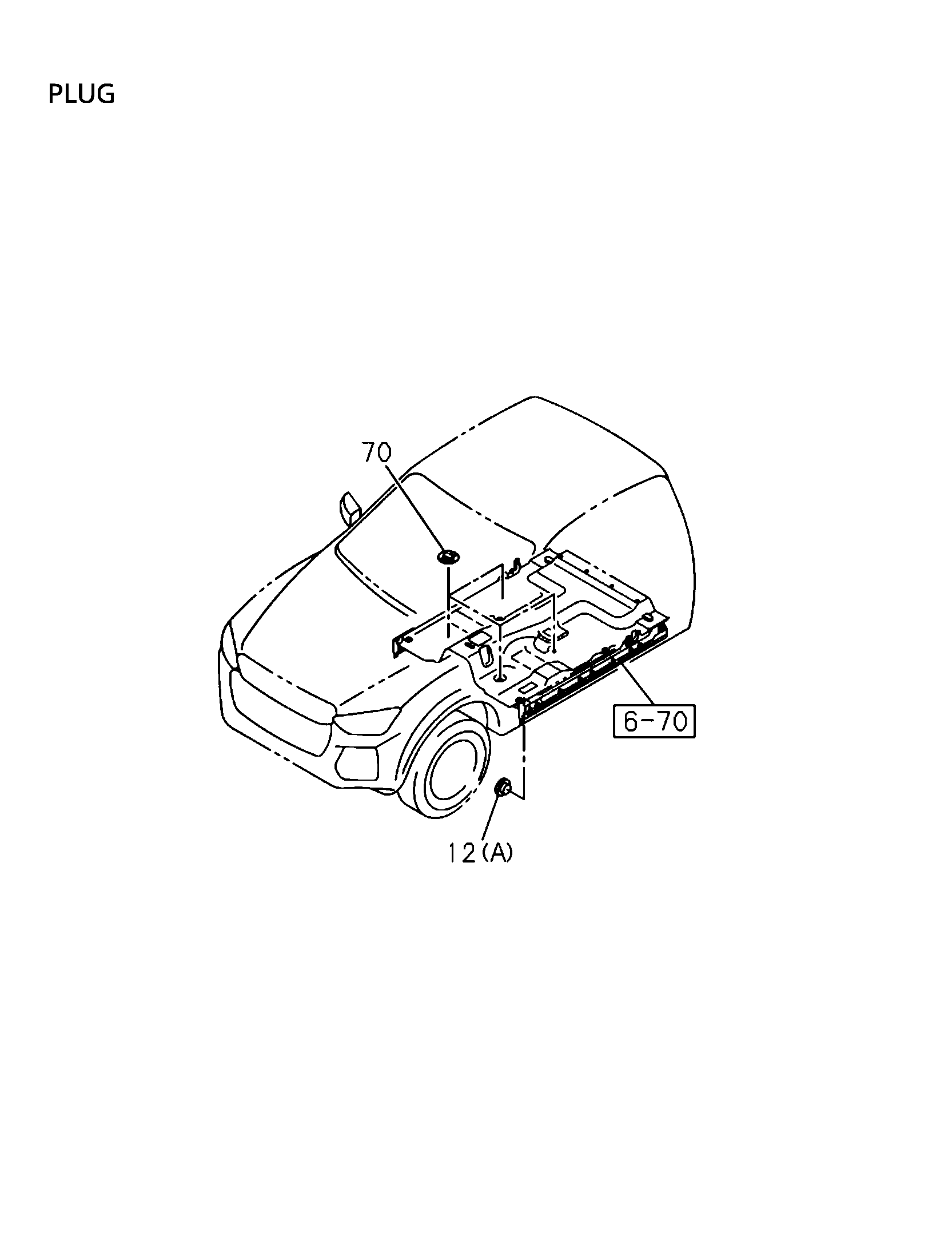

| 70 | I8-97324 563-0 | PLUG, METAL,FLOOR | 6 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 12 | I8-97320 908-0 | GROMMET, PROTECTOR | 2 | 2311- | BC E F | (D-MAX 2024) (A) OD=35 | ||
| 12 | I8-97320 908-0 | GROMMET, PROTECTOR | 14 | 2311- | A C D F | (D-MAX 2024) (A) OD=35 |
