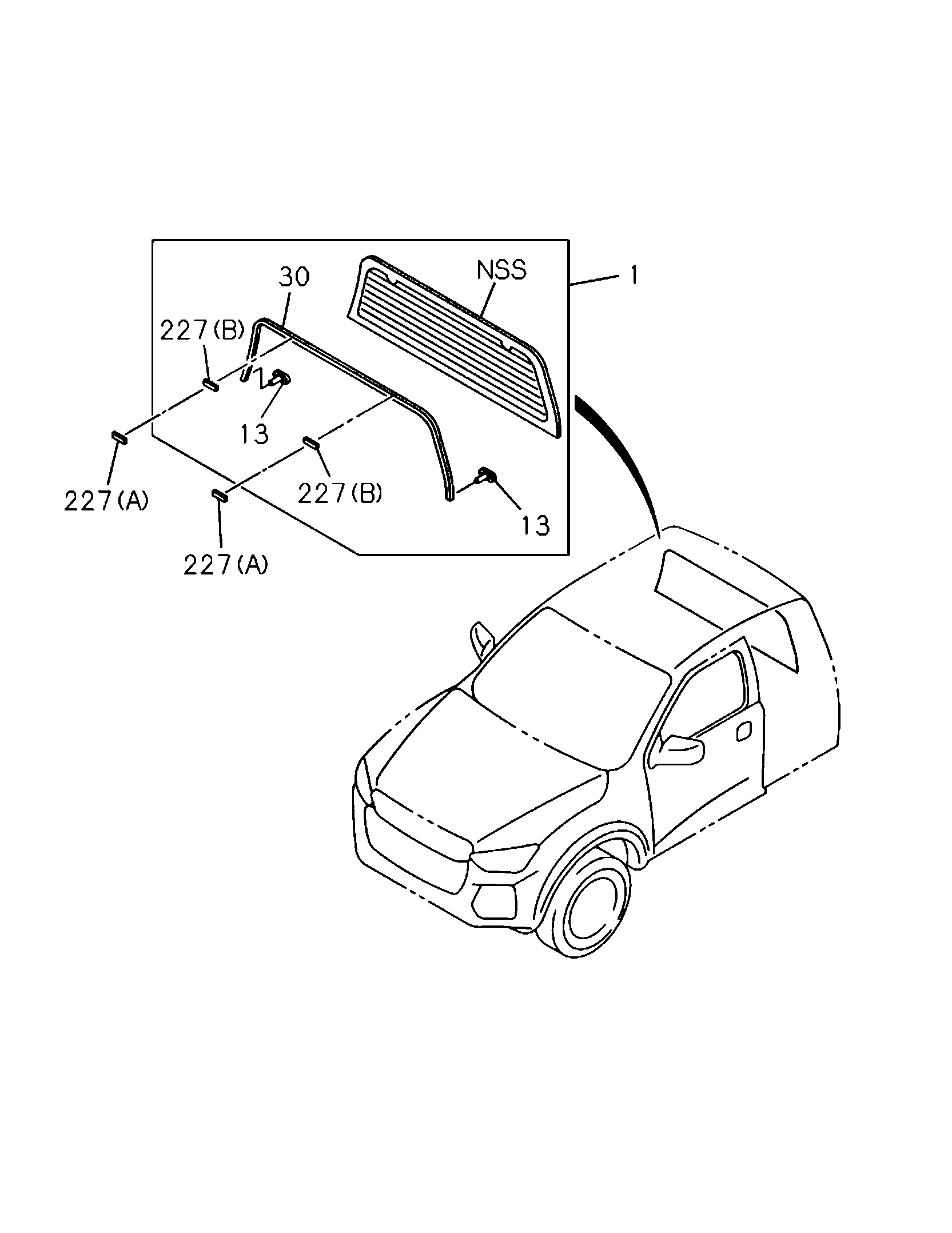

6-82 | BACK GLASS AND WEATHERSTRIP
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98334 423-0 | GLASS, BACKLIGHT | 1 | 2311- | C F | (D-MAX 2024) EXC. REAR DEFOGGER<C49> | ||
| 1 | I8-98392 826-0 | GLASS, BACKLIGHT | 1 | 2311- | D | (D-MAX 2024) EXC. REAR DEFOGGER<C49> | ||
| 1 | I8-98392 826-0 | GLASS, BACKLIGHT | 1 | 2311- | B E | (D-MAX 2024) | ||
| 227 | I8-98285 699-0 | RETAINER, RR WINDOW | 2 | 2311- | ABCDE F | (D-MAX 2024) (B) 20X8 | ||
| 1 | I8-98334 424-1 | GLASS, BACKLIGHT | 1 | 2311- | C F | (D-MAX 2024) REAR DEFOGGER<C49> | ||
| 1 | I8-98392 827-1 | GLASS, BACKLIGHT | 1 | 2311- | D | REAR DEFOGGER<C49> | ||
| 13 | I8-98481 321-0 | SUPPORT, BACKLIGHT GLASS | 2 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 30 | I8-98481 323-0 | SEAL, BACKLIGHT GLASS | 1 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 1 | I8-98392 827-1 | GLASS, BACKLIGHT | 1 | 2311- | A | |||
| 227 | I8-98187 720-0 | RETAINER, RR WINDOW | 2 | 2311- | ABCDE F | (D-MAX 2024) (A) 30X8 |
