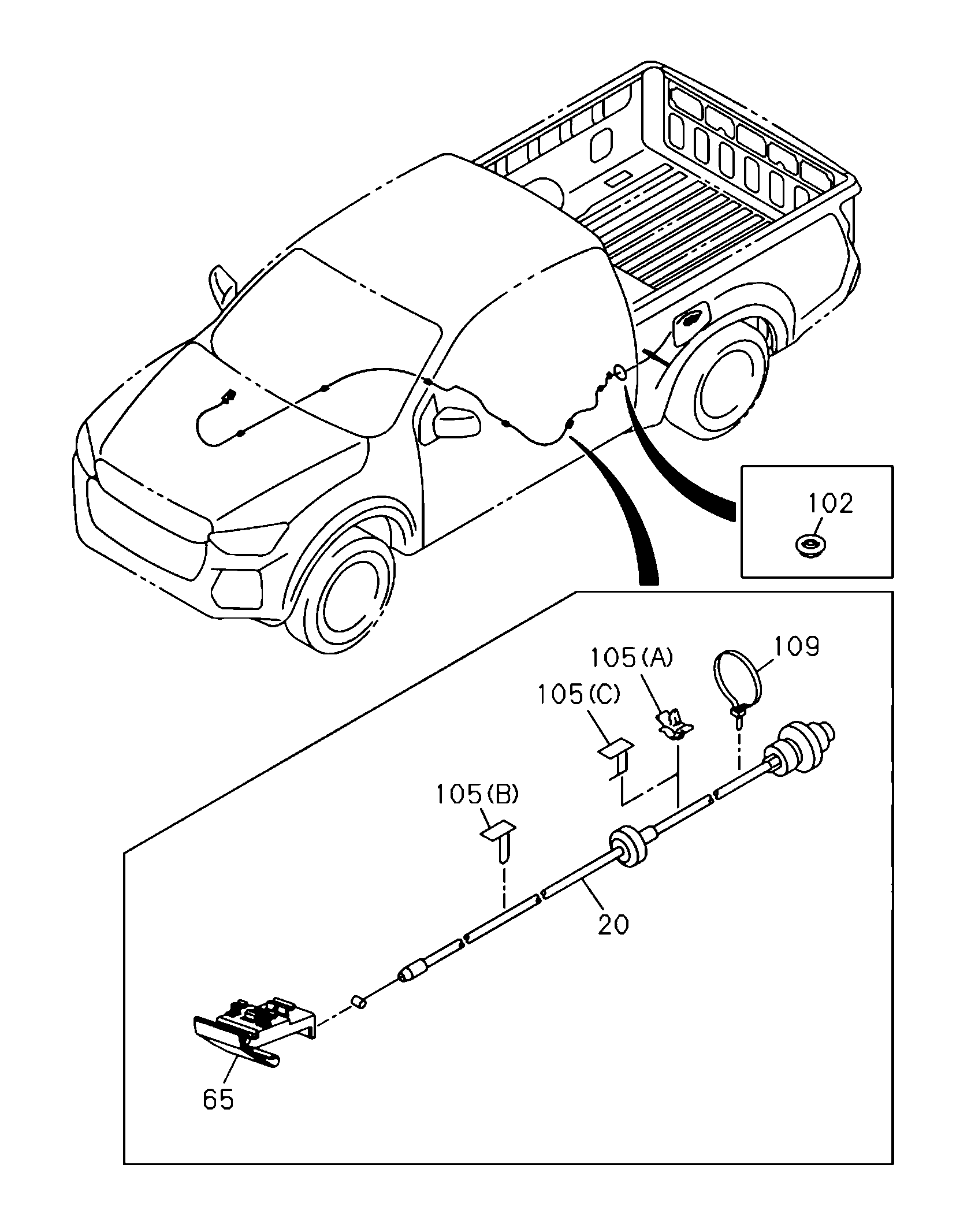

6-86 | TRUNK OPENER AND FUEL LID
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I8-98393 086-0 | CABLE, TRUNK LID & FUEL FILLER | 1 | 2311- | C | REAR BODY STD CARGO BOX(E63) EXC. HIGH RIDE SUSPENSION(7YC) | ||
| 20 | I8-98393 084-0 | CABLE, TRUNK LID & FUEL FILLER | 1 | 2311- | F | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) | ||
| 102 | I8-97321 645-1 | GROMMET | 1 | 2311- | A C D E F | REAR BODY DELETE(8HH) | ||
| 105 | I8-98158 303-0 | CLIP, CABLE,FUEL LID OPENER | 5 | 2311- | C F | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) ID=7 | ||
| 105 | I1-09987 246-2 | CLIP, FLOOR HARNESS | 1 | 2311- | C F | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) (C) L=20 | ||
| 109 | I8-94152 256-1 | CLIP, BAND | 1 | 2311- | A BC D E F | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) L=350 | ||
| 65 | I8-98393 089-0 | KNOB, FUEL FILLER DOOR | 1 | 2311- | A BC D E F | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) | ||
| 102 | I8-97321 645-1 | GROMMET | 1 | 2311- | B | REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) | ||
| 20 | I8-98393 077-0 | CABLE, TRUNK LID & FUEL FILLER | 1 | 2311- | B E | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) | ||
| 20 | I8-98393 079-0 | CABLE, TRUNK LID & FUEL FILLER | 1 | 2311- | A D | REAR BODY STD CARGO BOX(E63) | ||
| 105 | I8-98158 303-0 | CLIP, CABLE,FUEL LID OPENER | 3 | 2311- | AB DE | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) ID=7 | ||
| 105 | I5-09709 081-0 | CLIP, HARNESS | 2 | 2311- | B E | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) D=5.8 | ||
| 20 | I8-98393 084-0 | CABLE, TRUNK LID & FUEL FILLER | 1 | 2311- | C | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) HIGH RIDE SUSPENSION(7YC) | ||
| 105 | I5-09709 081-0 | CLIP, HARNESS | 1 | 2311- | A D | (D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) D=5.8 |
