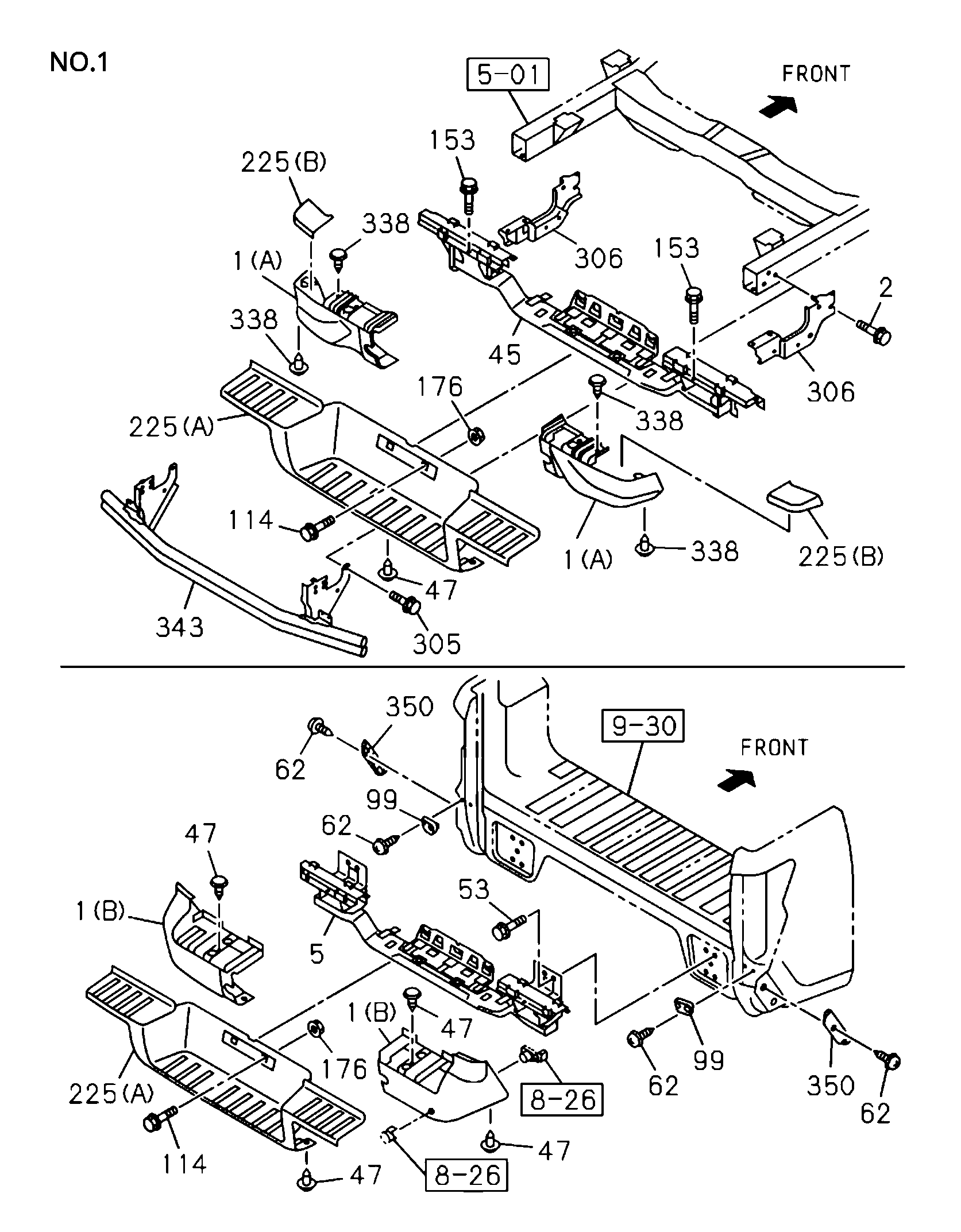

6-90 | REAR BUMPER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 350 | I8-98393 802-2 | RETAINER, BUMPER RR LWR | R | (D-MAX 2024) | ||||
| 99 | I8-98393 784-1 | RETAINER, RR BUMPER,UPR | 1 | 2401- | (D-MAX 2024) | |||
| 47 | I8-97301 188-0 | RETAINER, FRT BUMPER | 12 | 2401- | (D-MAX 2024) | |||
| 62 | I0-74160 616-0 | SCREW, ESCUTCHEON,DOOR PULL | 4 | 2401- | (D-MAX 2024) M6X16 TAPPING W/PL WASHER | |||
| 350 | I8-98393 803-2 | RETAINER, BUMPER RR LWR | 1 | 2401- | (D-MAX 2024) | |||
| 1 | I8-97552 563-0 | BUMPER, RR | 1 | 2401- | (D-MAX 2024) (B) PRIMER | |||
| 53 | I0-28651 035-0 | BOLT, BRKT TO SEDIMENTER | 8 | 2401- | (D-MAX 2024) M10X35 FLANGE | |||
| 225 | I8-98393 829-4 | PAD, STEP,RR BUMPER | 1 | 2311- | (D-MAX 2024) (A) | |||
| 5 | I8-98393 779-3 | SUPPORT, RR BUMPER | 1 | 2401- | (D-MAX 2024) | |||
| 99 | I8-98393 783-1 | RETAINER, RR BUMPER,UPR | 1 | 2401- | (D-MAX 2024) | |||
| 1 | I8-97552 562-0 | BUMPER, RR | 1 | 2401- | (D-MAX 2024) (B) PRIMER |
