| 1 |
I8-97906 927-3 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
CD F |
SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 18 |
I8-97905 867-0 |
|
COVER, RECLINING |
1 |
2311- |
R |
CD F |
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (C) BLACK |
| 1 |
I7-47506 935-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) BLACK |
| 1 |
I8-97906 928-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE 8< ROOF(AYO) AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 559 |
I8-97506 539-0 |
|
SPRING, SUSPENSION |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) (B) |
| 18 |
I8-97477 536-0 |
|
COVER, RECLINING |
1 |
2311- |
R |
A BC D E F |
(D-MAX 2024) 0) BLACK |
| 1 |
I7-47506 933-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1> BLACK |
| 1 |
I7-47506 938-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO) FRONT SEAT HEAD RESTRAINT<A88> MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1> BLACK |
| 13 |
I7-47506 991-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
F |
INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) SALES PACKAGE SPORTY X-SERIES<XK0> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) BLACK |
| 15 |
I8-97506 535-0 |
|
FRAME, CUSHION,FRT SEAT |
1 |
2311- |
L |
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> |
| 67 |
I8-97492 463-0 |
|
BOLT, FRT SEAT TO BODY |
6 |
2311- |
|
B E |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6> (A) |
| 1 |
I8-97906 937-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 1 |
I8-97906 930-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE 8< ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I7-47506 927-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) BLACK |
| 123 |
I8-98220 083-0 |
|
SCREW, COVER,RECLINING |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> (B) M6X20 |
| 123 |
I8-97506 415-0 |
|
SCREW, COVER,RECLINING |
5 |
2311- |
R |
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) |
| 2 |
I8-97905 952-1 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
|
B E |
SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK |
| 4 |
I8-97549 753-0 |
|
FRAME ASM, FRT SEAT |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> |
| 15 |
I8-97506 536-0 |
|
FRAME, CUSHION,FRT SEAT |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> |
| 485 |
I8-97664 203-0 |
|
HARNESS, FRT SEAT |
1 |
2311- |
R |
CD F |
FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) |
| 1 |
I7-47506 812-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
CD F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1>,SALES PACKAGE SPORTYX-SERIES<XK0> BLACK |
| 643 |
I8-98379 646-0 |
|
SENSOR, REMINDER |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> INDICATOR SEAT BELT WARNING<6SD> (B) |
| 485 |
I8-97506 547-1 |
|
HARNESS, FRT SEAT |
1 |
2311- |
R |
CD F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(1()1),INTERIOR COLOR UPR PALE BLACK,BROWN LWR BLACK(163) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1 >,SALES PACKAGE SPORTYX-SERIES<XK0> (B) |
| 18 |
I8-97479 855-0 |
|
COVER, RECLINING |
1 |
2311- |
R |
CD F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE BLACK,BROWN LWR BLACK(163) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1 >,SALES PACKAGE SPORTYX-SERIES<XK0> (B) BLACK |
| 18 |
I8-97477 534-0 |
|
COVER, RECLINING |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> (H) BLACK |
| 13 |
I7-47507 110-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
CD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) EXC. SALES PACKAGE SPORTY X-SERIES<XK0> BLACK |
| 28 |
I8-97477 515-0 |
|
HOLDER, GUIDE,HD REST |
1 |
2311- |
|
A CD F |
(D-MAX 2024) FRONT SEAT HEAD RESTRAINT<A88> LOCK BLACK |
| 1 |
I7-47506 927-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
CD |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(1C)1),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) BLACK |
| 13 |
I8-97905 943-1 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
BC D E F |
SEAT TRIM BASE CLOTH<8LK> AUSTRALIA EQUIPMENT(B13) EXC. FRONT SEAT HEAD RESTRAINT<A88> BLACK |
| 239 |
I8-97506 537-0 |
|
HANDLE, SIDE SUPPORT,FRT SEAT |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> |
| 15 |
I8-97554 910-0 |
|
FRAME, CUSHION,FRT SEAT |
1 |
2311- |
R |
E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 601 |
I8-97506 415-0 |
|
SCREW, COVER,RECLINING |
2 |
2311- |
R |
CD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> WITH SEAT SUPPORT(7EQ) |
| 1 |
I7-47506 810-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> INDICATOR SEAT BELT WARNING<6SD> SEAT TRIM LEATHER<6TB> BLACK |
| 14 |
I8-97549 763-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> INDICATOR SEAT BELT WARNING<6SD> |
| 67 |
I8-97492 465-0 |
|
BOLT, FRT SEAT TO BODY |
2 |
2311- |
|
B E |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6> (B) |
| 1 |
I7-47506 915-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
A C D F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) A/BAG DR&DR KNEE81PASS81SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I7-47506 924-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER 8. SIDE 8< ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1> BLACK |
| 15 |
I8-97549 762-0 |
|
FRAME, CUSHION,FRT SEAT |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> |
| 3 |
I8-97506 388-0 |
|
PAD, FRT SEAT BACK |
1 |
2311- |
R |
CD F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT HEAD RESTRAINT<A88> EXC. HEATER FRT SEAT<KA1> |
| 4 |
I8-97682 037-0 |
|
FRAME ASM, FRT SEAT |
1 |
2311- |
L |
BCDE F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER 8< PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT HEAD RESTRAINT<A88> |
| 1 |
I7-47506 808-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER 8. SIDE 8< ROOF(AYO),AIR BAG DRIVER8.DRIVER KNEE8iPASS8iSIDE8<ROOF(8TX),A/BAG DR8.DR KNEE8iPASS8iSIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR Si RR<8TF> BLACK |
| 13 |
I8-97905 954-1 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
BCDE F |
(D-MAX 2024) SEAT TRIM BASE CLOTH<8LK> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. FRONT SEAT HEAD RESTRAINT<A88> BLACK |
| 1 |
I7-47506 808-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
C |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> BLACK |
| 485 |
I8-97664 209-0 |
|
HARNESS, FRT SEAT |
1 |
2311- |
R |
CD F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> HEATER FRT SEAT<KA1> (B) |
| 485 |
I8-97664 209-0 |
|
HARNESS, FRT SEAT |
1 |
2311- |
L |
CD F |
HEATER FRT SEAT<KA1> (B) |
| 67 |
I8-97492 465-0 |
|
BOLT, FRT SEAT TO BODY |
4 |
2311- |
|
A |
(D-MAX 2024) (B) |
| 28 |
I8-97477 515-0 |
|
HOLDER, GUIDE,HD REST |
1 |
2311- |
|
A CD F |
(D-MAX 2024) FRONT SEAT HEAD RESTRAINT<A88> LOCK BLACK |
| 11 |
I8-97506 459-0 |
|
WIRE, SEAT BACK |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> |
| 211 |
I8-97472 524-1 |
|
COVER, FRT SEAT |
1 |
2311- |
L |
C F |
(D-MAX 2024) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT SEAT HEAD RESTRAINT<A88> (A) BLACK |
| 13 |
I7-47506 885-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
CD F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. HEATER FRT SEAT<KA1> BLACK |
| 239 |
I8-97506 537-0 |
|
HANDLE, SIDE SUPPORT,FRT SEAT |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> |
| 63 |
I8-97549 617-0 |
|
ADJUSTER, SEAT SLIDE |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (A) OUTER |
| 63 |
I8-97549 619-0 |
|
ADJUSTER, SEAT SLIDE |
1 |
2311- |
R |
ABCDE F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (B) INNER |
| 2 |
I7-47506 955-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
R |
CD F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 260 |
I8-97549 770-0 |
|
CLIP, HARNESS |
2 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> INDICATOR SEAT BELT WARNING<6SD> |
| 1 |
I7-47506 805-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
A C D F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER 8. SIDE 8< ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE8<PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8tPASS8<SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. HEATER FRT SEAT<KA1> BLACK |
| 3 |
I8-97549 754-0 |
|
PAD, FRT SEAT BACK |
1 |
2311- |
L |
BCDE F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT HEAD RESTRAINT<A88> |
| 211 |
I8-97472 524-1 |
|
COVER, FRT SEAT |
1 |
2311- |
L |
B E |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6> (A) BLACK |
| 306 |
I8-97549 622-0 |
|
NUT, SEAT ADJ |
7 |
2311- |
|
A BC D E F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> |
| 14 |
I8-97277 772-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INDONESIA EQUIPMENT(BOO),MALAYSIA EQUIPMENT(B1()),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) |
| 1 |
I7-47506 922-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1> BLACK |
| 17 |
I8-97506 889-0 |
|
BOLT, RECLINING |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 13 |
I7-47506 999-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
CD F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 485 |
I8-97664 207-0 |
|
HARNESS, FRT SEAT |
1 |
2311- |
R |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) |
| 3 |
I8-97549 754-0 |
|
PAD, FRT SEAT BACK |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. FRONT SEAT HEAD RESTRAINT<A88> |
| 2 |
I8-97906 156-1 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
|
CD F |
(D-MAX 2024) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 27 |
I8-97888 238-0 |
|
REST, HD,FRT SEAT |
1 |
2311- |
|
CDF |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> EXC. SALES PACKAGE SPORTY X-SERIES<XK0> BLACK |
| 1 |
I8-97906 926-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
B |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER8(DRIVER KNEE&PASS&SIDE&ROOF(8TX) HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I7-47506 810-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
C |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> SEAT TRIM LEATHER<6TB> BLACK |
| 1 |
I7-47506 924-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE 8< ROOF(AYO) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1> BLACK |
| 14 |
I8-97277 773-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
L |
BCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> |
| 67 |
I8-97492 463-0 |
|
BOLT, FRT SEAT TO BODY |
6 |
2311- |
|
C F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT SEAT HEAD RESTRAINT<A88> (A) |
| 1 |
I8-97906 919-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
B |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) A/BAG DR&DR KNEE8.PASS8lSIDE/FAR SIDE/ROOF(8TY) EXC. WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I7-47506 921-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
CD F |
INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) A/BAG DR&DR KNEE&PASS81SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I7-47506 933-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1> BLACK |
| 485 |
I8-97664 207-0 |
|
HARNESS, FRT SEAT |
1 |
2311- |
R |
CD |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) |
| 28 |
I8-97477 516-0 |
|
HOLDER, GUIDE,HD REST |
1 |
2311- |
|
A C D F |
(D-MAX 2024) FRONT SEAT HEAD RESTRAINT<A88> FREE BLACK |
| 1 |
I7-47506 805-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
A C D F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. HEATER FRT SEAT<KA1> BLACK |
| 24 |
I8-97477 541-0 |
|
KNOB, RECLINING,FRT,SEAT |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> (g) BLACK |
| 2 |
I8-97477 614-1 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> BLACK |
| 13 |
I7-47506 887-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
CD F |
SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8(PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) BLACK |
| 27 |
I7-47506 800-0 |
|
REST, HD,FRT SEAT |
1 |
2311- |
|
CDF |
SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> BLACK |
| 559 |
I7-55188 398-0 |
|
SPRING, SUSPENSION |
1 |
2311- |
L |
A C D F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> (A) |
| 63 |
I8-97549 617-0 |
|
ADJUSTER, SEAT SLIDE |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (A) OUTER |
| 67 |
I8-97492 463-0 |
|
BOLT, FRT SEAT TO BODY |
4 |
2311- |
|
CD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> (A) |
| 485 |
I8-97664 205-0 |
|
HARNESS, FRT SEAT |
1 |
2311- |
R |
CD F |
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1> (B) |
| 24 |
I8-97477 552-0 |
|
KNOB, RECLINING,FRT,SEAT |
1 |
2311- |
r |
CD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> WITH SEAT SUPPORT(7EQ) (B) BLACK |
| 2 |
I7-47506 829-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
L |
F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(BOO),MALAYSIA EQUIPMENT(B1()),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. HEATER FRT SEAT<KA1> BLACK |
| 2 |
I7-47506 829-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
L |
D |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD> EXC. HEATER FRT SEAT<KA1> BLACK |
| 485 |
I8-97549 764-0 |
|
HARNESS, FRT SEAT |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> INDICATOR SEAT BELT WARNING<6SD> (C) |
| 3 |
I8-97506 385-0 |
|
PAD, FRT SEAT BACK |
1 |
2311- |
L |
C |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> MALAYSIA EQUIPMENT(B10),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. HEATER FRT SEAT<KA1> |
| 1 |
I8-97906 930-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER 8. SIDE & ROOF(AYO) MALAYSIA EQUIPMENT(B10),GENERAL EXPORT EQUIPMENT(TAA) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 67 |
I8-97492 465-0 |
|
BOLT, FRT SEAT TO BODY |
4 |
2311- |
|
BC D E F |
(D-MAX 2024) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (B) |
| 170 |
I8-97664 159-0 |
|
HEATER ASM, FRT SEAT CUSHION |
1 |
2311- |
|
CD F |
HEATER FRT SEAT<KA1> |
| 1 |
I7-47506 819-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
CD F |
SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> EXC. HEATER FRT SEAT<KA1> BLACK |
| 2 |
I7-47506 836-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
L |
CD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> BLACK |
| 17 |
I8-97506 889-0 |
|
BOLT, RECLINING |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 18 |
I8-97905 343-0 |
|
COVER, RECLINING |
1 |
2311- |
R |
CD F |
FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) BLACK |
| 211 |
I8-97472 525-0 |
|
COVER, FRT SEAT |
1 |
2311- |
|
C F |
INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT SEAT HEAD RESTRAINT<A88> (B) BLACK |
| 1 |
I7-47506 922-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
CD |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1> BLACK |
| 13 |
I7-47506 889-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
F |
INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) SALES PACKAGE SPORTY X-SERIES<XK0> INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> SEAT TRIM LEATHER<6TB> BLACK |
| 1 |
I7-47506 924-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE 8. ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1> BLACK |
| 3 |
I8-97549 755-0 |
|
PAD, FRT SEAT BACK |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AKS) FRONT SEAT SPLIT BENCH<AM6> |
| 559 |
I7-55188 398-0 |
|
SPRING, SUSPENSION |
1 |
2311- |
R |
A C D F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> EXC. WITH SEAT SUPPORT(7EQ) (A) |
| 1 |
I7-47506 811-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
F |
INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) SALES PACKAGE SPORTY X-SERIES<XK0> INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1> BLACK |
| 643 |
I8-98379 644-0 |
|
SENSOR, REMINDER |
1 |
2311- |
L |
A BC D E F |
(D-MAX 2024) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> (A) |
| 1 |
I7-47506 808-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE 8< ROOF(AYO),AIR BAG DRIVER8(DRIVER KNEE8tPASS8iSIDE8<ROOF(8TX),A/BAG DR8.DR KNEE8(PASS8(SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> INDICATOR SEAT BELT WARNING<6SD> BLACK |
| 18 |
I8-97479 948-0 |
|
COVER, RECLINING |
1 |
2311- |
R |
ABCDE F |
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. WITH SEAT SUPPORT(7EQ) (C) BLACK |
| 1 |
I8-97906 917-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
B |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) BLACK |
| 11 |
I8-97506 459-0 |
|
WIRE, SEAT BACK |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) |
| 1 |
I7-47506 932-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) SALES PACKAGE SPORTY X-SERIES<XK0> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1> BLACK |
| 24 |
I8-97477 543-0 |
|
KNOB, RECLINING,FRT,SEAT |
1 |
2311- |
R |
ABCDE F |
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK |
| 1 |
I7-47506 828-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8(DRIVER KNEE8iPASS8iSIDE8<ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 320 |
I8-98220 048-0 |
|
CLIP, BAND,SEAT |
AR |
2311- |
|
A BC D E F |
(D-MAX 2024) |
| 2 |
I8-97906 152-1 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
|
CD F |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 1 |
I7-47506 808-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER 8. SIDE 8< ROOF(AYO),AIR BAG DRIVER8.DRIVER KNEE8iPASS8iSIDE8<ROOF(8TX),A/BAG DR8.DR KNEE8iPASS8iSIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR Si RR<8TF> BLACK |
| 18 |
I7-47501 139-0 |
|
COVER, RECLINING |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (i) BLACK |
| 14 |
I8-97277 779-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
L |
ABCDE F |
FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) AUSTRALIA EQUIPMENT(B13) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> |
| 9 |
I8-97477 546-0 |
|
COVER, SIDE |
1 |
2311- |
R |
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) BLACK |
| 3 |
I8-97506 385-0 |
|
PAD, FRT SEAT BACK |
1 |
2311- |
L |
D |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD> EXC. HEATER FRT SEAT<KA1> |
| 27 |
I8-97908 880-0 |
|
REST, HD,FRT SEAT |
1 |
2311- |
|
F |
FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> SALES PACKAGE SPORTY X-SERIES<XK0> BLACK |
| 559 |
I8-97549 561-1 |
|
SPRING, SUSPENSION |
1 |
2311- |
L |
BC D E F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> (A) |
| 1 |
I7-47506 809-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
F |
INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> SALES PACKAGE SPORTY X-SERIES<XK0> INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> SEAT TRIM LEATHER<6TB> BLACK |
| 485 |
I8-97506 399-0 |
|
HARNESS, FRT SEAT |
1 |
2311- |
R |
CD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> (A) |
| 14 |
I8-97277 772-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET TYPE<A50> |
| 123 |
I8-97506 415-0 |
|
SCREW, COVER,RECLINING |
3 |
2311- |
R |
CD F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE BLACK.BROWN LWR BLACK(163) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1 >,SALES PACKAGE SPORTYX-SERIES<XK0> (A) |
| 1 |
I7-47506 938-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> AIR BAG DRIVER & PASSENGER & SIDE 8< ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1> BLACK |
| 63 |
I8-97549 618-0 |
|
ADJUSTER, SEAT SLIDE |
1 |
2311- |
L |
A BC D E F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (B) INNER |
| 78 |
I8-97479 857-0 |
|
LEVER ASM, LUMBAR |
1 |
2311- |
R |
BCD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I7-47506 938-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE BLACK,BROWN LWR BLACK(163) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1 >,SALES PACKAGE SPORTYX-SERIES<XK0> BLACK |
| 14 |
I8-97671 786-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
L |
E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) EXC. INDICATOR SEAT BELT WARNING<6SD> |
| 1 |
I8-97906 937-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 15 |
I8-97554 910-0 |
|
FRAME, CUSHION,FRT SEAT |
1 |
2311- |
R |
B |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) |
| 18 |
I8-97477 531-0 |
|
COVER, RECLINING |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> (K) BLACK |
| 13 |
I7-47506 890-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
CD F |
FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) SEAT TRIM LEATHER<6TB> EXC. SALES PACKAGE SPORTY X-SERIES<XK0> BLACK |
| 2 |
I8-97477 514-2 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
R |
B E |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> SEAT TRIM VINYL<8LJ> BLACK |
| 1 |
I8-97906 937-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS8tSIDE/FAR SIDE/ROOF(8TY) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 67 |
I8-97492 463-0 |
|
BOLT, FRT SEAT TO BODY |
4 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 123 |
I8-97506 415-0 |
|
SCREW, COVER,RECLINING |
5 |
2311- |
R |
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) WITH SEAT SUPPORT(7EQ) (A) |
| 2 |
I8-97905 952-1 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
|
B E |
SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK |
| 123 |
I8-97506 415-0 |
|
SCREW, COVER,RECLINING |
7 |
2311- |
R |
CD F |
(D-MAX 2024) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) |
| 18 |
I7-47501 138-0 |
|
COVER, RECLINING |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) (E) BLACK |
| 27 |
I8-97477 501-0 |
|
REST, HD,FRT SEAT |
1 |
2311- |
|
A CD F |
(D-MAX 2024) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> BLACK |
| 27 |
I7-47506 800-0 |
|
REST, HD,FRT SEAT |
1 |
2311- |
|
CD |
SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> BLACK |
| 1 |
I7-47506 808-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE 8< ROOF(AYO),AIR BAG DRIVER8(DRIVER KNEE8tPASS8iSIDE8<ROOF(8TX),A/BAG DR8.DR KNEE8(PASS8(SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> INDICATOR SEAT BELT WARNING<6SD> BLACK |
| 13 |
I7-47506 892-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
CD F |
(D-MAX 2024) FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> BLACK |
| 4 |
I8-97680 526-0 |
|
FRAME ASM, FRT SEAT |
1 |
2311- |
R |
CD F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> |
| 559 |
I8-97554 859-2 |
|
SPRING, SUSPENSION |
1 |
2311- |
R |
BCD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> WITH SEAT SUPPORT(7EQ) (A) |
| 18 |
I7-47501 139-0 |
|
COVER, RECLINING |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) (i) BLACK |
| 123 |
I8-97506 415-0 |
|
SCREW, COVER,RECLINING |
5 |
2311- |
R |
A BC D E F |
(D-MAX 2024) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> EXC. WITH SEAT SUPPORT(7EQ) (A) |
| 4 |
I8-97680 527-0 |
|
FRAME ASM, FRT SEAT |
1 |
2311- |
L |
CD F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> |
| 18 |
I8-97477 537-0 |
|
COVER, RECLINING |
1 |
2311- |
L |
A BC D E F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (F) BLACK |
| 13 |
I7-47507 000-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1> BLACK |
| 27 |
I8-97477 501-0 |
|
REST, HD,FRT SEAT |
1 |
2311- |
|
A CD F |
(D-MAX 2024) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> BLACK |
| 13 |
I7-47506 993-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> AIR BAG DRIVER 8< PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8<DRIVER KNEE8tPASS&SIDE&ROOF(8TX) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 18 |
I8-97477 528-0 |
|
COVER, RECLINING |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> (G) BLACK |
| 1 |
I7-47506 810-0 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> SEAT TRIM LEATHER<6TB> EXC. SALES PACKAGE SPORTY X-SERIES<XK0> BLACK |
| 485 |
I8-97554 899-1 |
|
HARNESS, FRT SEAT |
1 |
2311- |
R |
CD F |
FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1> (B) |
| 559 |
I8-97506 539-0 |
|
SPRING, SUSPENSION |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (B) |
| 202 |
I8-97506 415-0 |
|
SCREW, COVER,RECLINING |
1 |
2311- |
R |
BCD F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> WITH SEAT SUPPORT(7EQ) |
| 9 |
I8-97479 856-0 |
|
COVER, SIDE |
1 |
2311- |
R |
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK |
| 18 |
I7-47501 138-0 |
|
COVER, RECLINING |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (E) BLACK |
| 28 |
I8-97477 516-0 |
|
HOLDER, GUIDE,HD REST |
1 |
2311- |
|
A CD F |
(D-MAX 2024) FRONT SEAT HEAD RESTRAINT<A88> FREE BLACK |
| 14 |
I8-97277 774-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
R |
ABCDE F |
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) AUSTRALIA EQUIPMENT(B13) |
| 14 |
I8-97671 786-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
L |
B |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. INDICATOR SEAT BELT WARNING<6SD> |
| 13 |
I7-47506 894-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
CD F |
SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(BOO),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) BLACK |
| 2 |
I8-97477 514-2 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
L |
B E |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> SEAT TRIM VINYL<8LJ> BLACK |
| 1 |
I8-97906 925-3 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD> BLACK |
| 18 |
I8-97479 853-0 |
|
COVER, RECLINING |
1 |
2311- |
L |
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (A) BLACK |
| 4 |
I8-97680 525-0 |
|
FRAME ASM, FRT SEAT |
1 |
2311- |
R |
CD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER 8< PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> |
| 2 |
I7-47506 940-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
R |
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(1C)1),INTERIOR COLOR UPR PALE BLACK,BROWN LWR BLACK(163) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1 >,SALES PACKAGE SPORTYX-SERIES<XK0> BLACK |
| 13 |
I7-47507 001-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
A C D F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 559 |
I8-97549 561-1 |
|
SPRING, SUSPENSION |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) (A) |
| 13 |
I7-47507 009-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1 >,SALES PACKAGE SPORTYX-SERIES<XK0>, WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I7-47506 828-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER 8. SIDE 8< ROOF(AYO) FRONT SEAT HEAD RESTRAINT<A88> MALAYSIA EQUIPMENT(B10),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 2 |
I8-97906 156-1 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
|
CD F |
(D-MAX 2024) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 1 |
I7-47507 029-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) HEATER FRT SEAT<KA1> SALES PACKAGE SPORTY X-SERIES<XK0> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) BLACK |
| 1 |
I7-47506 828-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER 8. SIDE 8< ROOF(AYO) FRONT SEAT HEAD RESTRAINT<A88> MALAYSIA EQUIPMENT(B10),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I8-97906 919-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) BLACK |
| 306 |
I8-97549 622-0 |
|
NUT, SEAT ADJ |
7 |
2311- |
|
A BC D E F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> |
| 2 |
I7-47506 838-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
L |
CD F |
SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT HEAD RESTRAINT<A88> EXC. HEATER FRT SEAT<KA1> BLACK |
| 13 |
I8-97906 154-1 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
BCDE F |
(D-MAX 2024) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> INDONESIA EQUIPMENT(BOO),MALAYSIA EQUIPMENT(B1()),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 1 |
I7-47506 914-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) WITH SEAT SUPPORT(7EQ) EXC. HEATER FRT SEAT<KA1> BLACK |
| 15 |
I8-97506 534-0 |
|
FRAME, CUSHION,FRT SEAT |
1 |
2311- |
R |
A CD F |
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> |
| 13 |
I8-97477 616-1 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER 8< PASSENGER(AK5),AIR BAG DRIVER &. PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> BLACK |
| 486 |
I8-97549 568-0 |
|
SWITCH, POWER SEAT |
1 |
2311- |
R |
CD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> WITH SEAT SUPPORT(7EQ) |
| 78 |
I8-98220 068-0 |
|
RING, SNAP |
AR |
2311- |
|
A BC D E F |
(D-MAX 2024) |
| 24 |
I8-97479 868-0 |
|
KNOB, RECLINING,FRT,SEAT |
1 |
2311- |
r |
CD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> WITH SEAT SUPPORT(7EQ) (A) BLACK |
| 3 |
I8-97506 385-0 |
|
PAD, FRT SEAT BACK |
1 |
2311- |
L |
F |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(BOO),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. HEATER FRT SEAT<KA1> |
| 1 |
I8-97906 928-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8(DRIVER KNEE&PASS&SIDE&ROOF(8TX) AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 24 |
I8-97477 547-0 |
|
KNOB, RECLINING,FRT,SEAT |
1 |
2311- |
R |
ABCDE F |
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (E) BLACK |
| 18 |
I8-97479 854-0 |
|
COVER, RECLINING |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> (D) BLACK |
| 1 |
I7-47506 828-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8(DRIVER KNEE8iPASS8iSIDE8<ROOF(8TX) FRONT SEAT HEAD RESTRAINT<A88> HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 13 |
I7-47506 880-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 2 |
I7-47506 829-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
L |
C |
(D-MAX 2024) GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> MALAYSIA EQUIPMENT(B10),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. HEATER FRT SEAT<KA1> BLACK |
| 27 |
I8-97888 238-0 |
|
REST, HD,FRT SEAT |
1 |
2311- |
|
CDF |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> EXC. SALES PACKAGE SPORTY X-SERIES<XK0> BLACK |
| 18 |
I8-97477 538-0 |
|
COVER, RECLINING |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> (L) BLACK |
| 3 |
I8-97506 377-0 |
|
PAD, FRT SEAT BACK |
1 |
2311- |
L |
CD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER 8< PASSENGER DELETE(AK6) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT HEAD RESTRAINT<A88> |
| 1 |
I8-97906 928-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) AUSTRALIA EQUIPMENT(B13) WITH SEAT SUPPORT(7EQ) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 170 |
I8-97664 159-0 |
|
HEATER ASM, FRT SEAT CUSHION |
1 |
2311- |
|
CD F |
HEATER FRT SEAT<KA1> |
| 2 |
I7-47506 837-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
R |
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> EXC. HEATER FRT SEAT<KA1 >,SALES PACKAGE SPORTYX-SERIES<XK0>, WITH SEAT SUPPORT(7EQ) BLACK |
| 13 |
I8-97906 162-1 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
BC D E F |
(D-MAX 2024) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 67 |
I8-97492 463-0 |
|
BOLT, FRT SEAT TO BODY |
4 |
2311- |
|
BCDE F |
(D-MAX 2024) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (A) |
| 14 |
I8-97277 777-0 |
|
PAD, FRT SEAT CUSHION |
1 |
2311- |
L |
BCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> |
| 13 |
I7-47506 883-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
A C D F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. HEATER FRT SEAT<KA1> BLACK |
| 1 |
I7-47506 935-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
C |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) BLACK |
| 27 |
I8-97908 880-0 |
|
REST, HD,FRT SEAT |
1 |
2311- |
|
F |
FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB> SALES PACKAGE SPORTY X-SERIES<XK0> BLACK |
| 15 |
I8-97506 531-0 |
|
FRAME, CUSHION,FRT SEAT |
1 |
2311- |
R |
CD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> WITH SEAT SUPPORT(7EQ) |
| 2 |
I7-47506 839-0 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
R |
CD F |
SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT HEAD RESTRAINT<A88> EXC. HEATER FRT SEAT<KA1> BLACK |
| 1 |
I8-97906 925-3 |
|
BACK ASM, SEAT |
1 |
2311- |
L |
B |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER8.DRIVER KNEE8<PASS8,SIDE&ROOF(8TX),A/BAG DR8.DR KNEE8(PASS8(SIDE/FAR SIDE/ROOF(8TY) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) INDICATOR SEAT BELT WARNING<6SD> BLACK |
| 67 |
I8-97492 465-0 |
|
BOLT, FRT SEAT TO BODY |
4 |
2311- |
|
CD F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> (B) |
| 654 |
I8-97479 858-0 |
|
HOOK, STOPPER |
1 |
2311- |
L |
CD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> FRONT SEAT HEAD RESTRAINT<A88> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> BLACK |
| 24 |
I8-97477 542-0 |
|
KNOB, RECLINING,FRT,SEAT |
1 |
2311- |
L |
ABCDE F |
(D-MAX 2024) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> (C) BLACK |
| 13 |
I8-97906 169-1 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET TYPE<A50> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 24 |
I8-97477 549-0 |
|
KNOB, RECLINING,FRT,SEAT |
1 |
2311- |
L |
B E |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6> (F) BLACK |
| 13 |
I8-97905 315-1 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
L |
BCDE F |
INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) AUSTRALIA EQUIPMENT(B13) INDICATOR SEAT BELT WARNING<6SD>,INDICATOR SEAT BELT WARNING FR & RR<8TF> EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 1 |
I7-47506 933-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS81SIDE/FAR SIDE/ROOF(8TY) EXC. HEATER FRT SEAT<KA1 >,SALES PACKAGE SPORTYX-SERIES<XK0> BLACK |
| 67 |
I8-97492 465-0 |
|
BOLT, FRT SEAT TO BODY |
2 |
2311- |
|
C F |

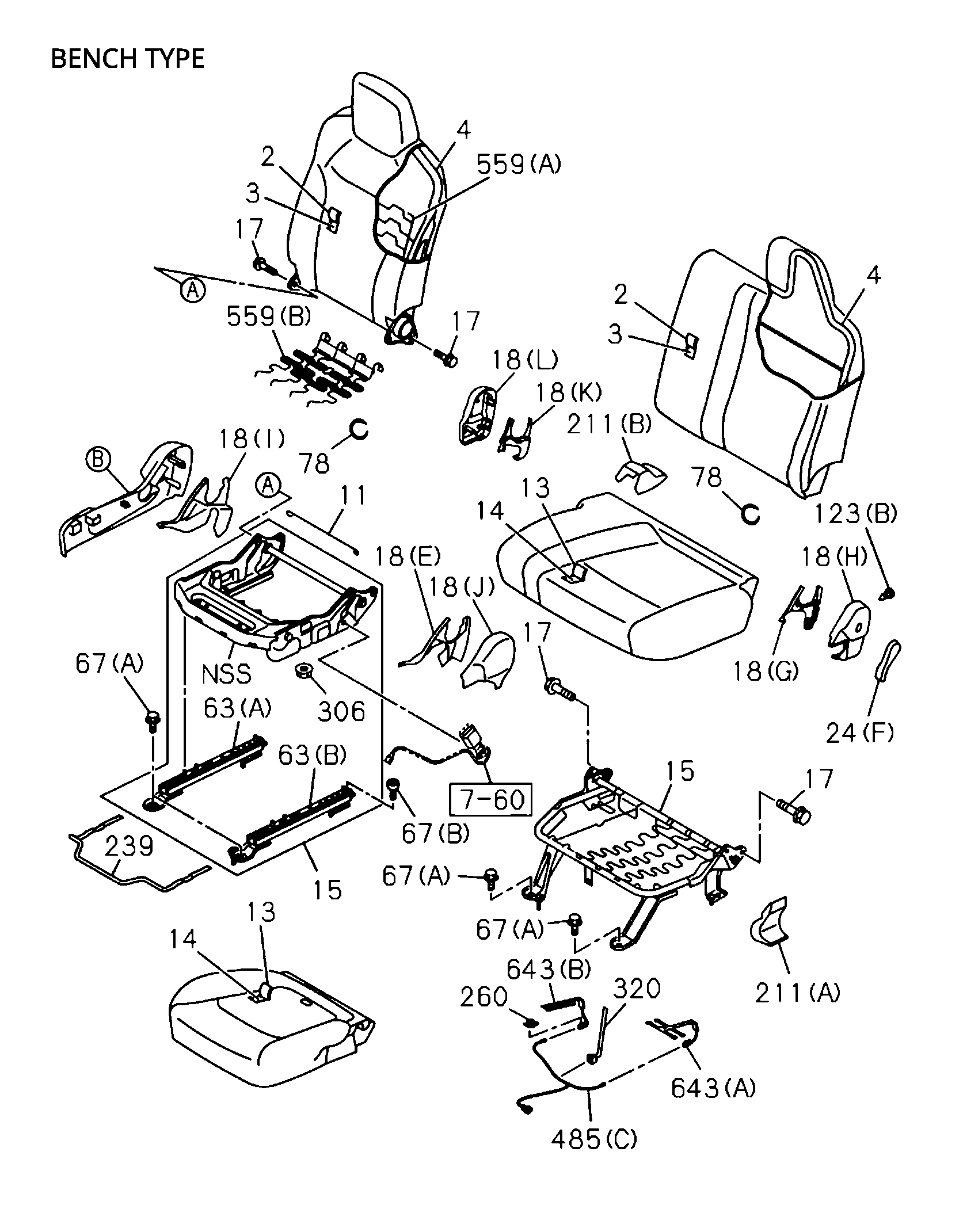

(D-MAX 2024) FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT SEAT HEAD RESTRAINT<A88> (B) |
| 18 |
I8-97479 948-0 |
|

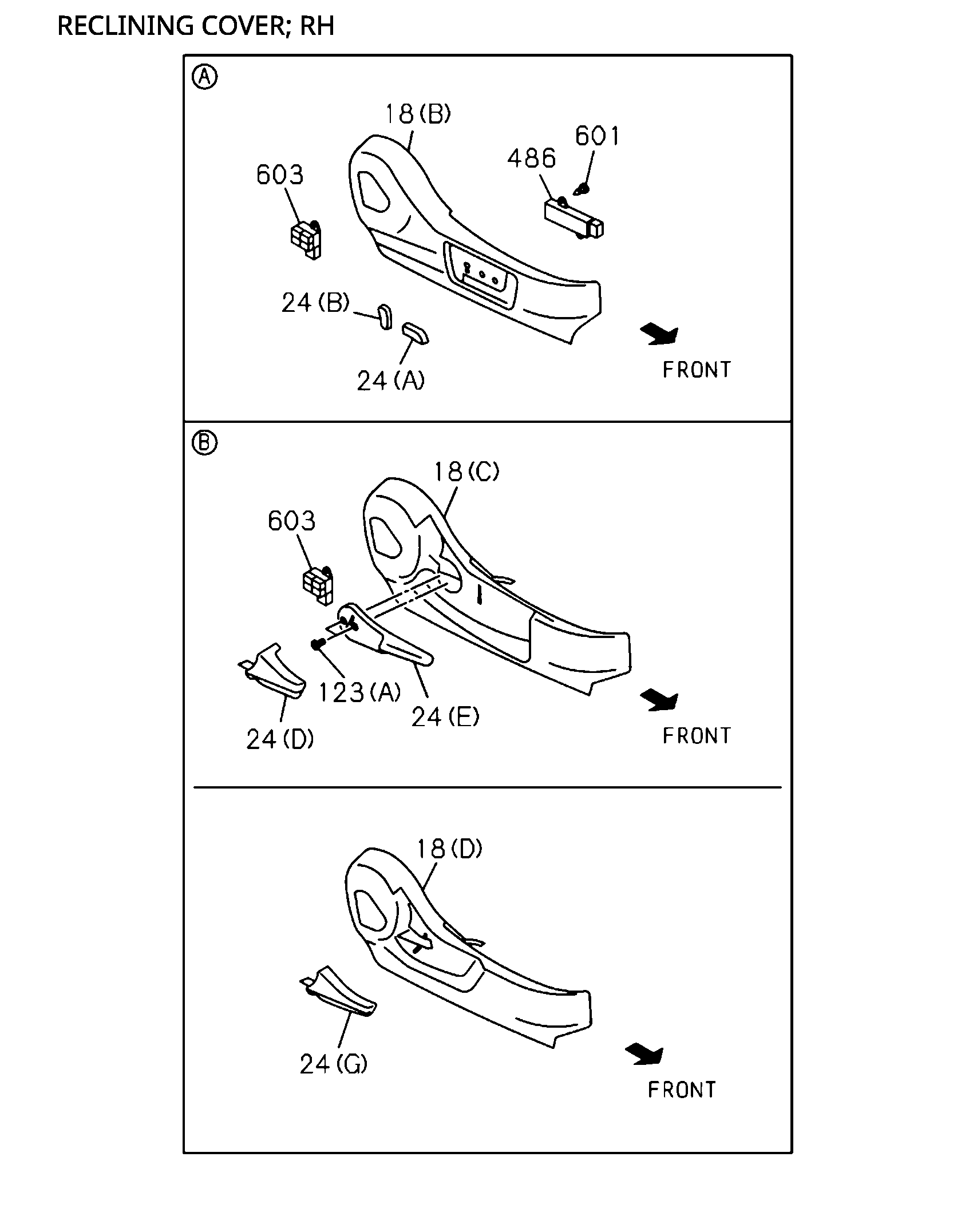

COVER, RECLINING |
1 |
2311- |
R |
A BC D E F |
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&D RIVER KNEE&PASS&SIDE&ROOF(8TX) (C) BLACK |
| 2 |
I8-97906 152-1 |
|
COVER, TRIM,FRT SEAT,BACK |
1 |
2311- |
|
CD F |
(D-MAX 2024) SEAT TRIM VINYL<8LJ> EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1> BLACK |
| 603 |
I8-97905 344-0 |
|
SWITCH, LUMBAR |
1 |
2311- |
R |
CD F |
WITH SEAT SUPPORT(7EQ) A/BAG DR8.DR KNEE8.PASS8.SIDE/FAR SIDE/ROOF(8TY) BLACK |
| 13 |
I7-47507 006-0 |
|
COVER, TRIM,FRT SEAT,CUSHION |
1 |
2311- |
R |
CD F |
SEAT TRIM HIGH GRADE CLOTH EMBOSSED<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT HEAD RESTRAINT<A88> AUSTRALIA EQUIPMENT(B13) BLACK |
| 15 |
I8-97554 910-0 |
|
FRAME, CUSHION,FRT SEAT |
1 |
2311- |
R |
B |
GRADE BASIC(RBA),GRADE DELUXE(RBB) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. WITH SEAT SUPPORT(7EQ) |
| 1 |
I8-97906 930-3 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
D |
GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET TYPE<A50> AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) EXC. FRONT SEAT HEAD RESTRAINT<A88>,HEATER FRT SEAT<KA1>,WITH SEAT SUPPORT(7EQ) BLACK |
| 1 |
I7-47506 935-0 |
|
BACK ASM, SEAT |
1 |
2311- |
R |
F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101) FRONT SEAT BUCKET DR POWER/PS MANUAL CONT<AQ9> FRONT SEAT HEAD RESTRAINT<A88> INDONESIA EQUIPMENT(BOO),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) HEATER FRT SEAT<KA1> SEAT TRIM LEATHER<6TB> WITH SEAT SUPPORT(7EQ) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. SALES PACKAGE SPORTY X-SERIES<XK0> BLACK |
| 4 |
I8-97682 036-0 |
|
FRAME ASM, FRT SEAT |
1 |
2311- |
R |
BCDE F |
(D-MAX 2024) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT HEAD RESTRAINT<A88> |
