| 298 |
I8-97492 810-0 |
|
CAP, BREATHER,RR COMB LAMP |
2 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) |
| 6 |
I5-82235 002-0 |
|
LENS, RR COMB LAMP |
1 |
2311- |
|
A C D E F |
REAR BODY DELETE(8HH) |
| 8 |
I8-97492 808-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. RR FOG LAMP<T79>,LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 199 |
I8-97369 446-0 |
|
WASHER, LENS,RR FOG LAMP |
2 |
2311- |
|
B |
REAR BODY FLAT BED(E39) RR FOG LAMP<T79> EXC. RR UNDERRUN PROTECTOR<6DY> |
| 300 |
I8-97372 854-0 |
|
HOLDER, LAMP |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) |
| 5 |
I8-94124 074-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
A BC D E F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) BACK-UP 12V 21W |
| 8 |
I8-97492 808-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
B E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. RR FOG LAM P<T79> (B) |
| 6 |
I5-82235 002-0 |
|
LENS, RR COMB LAMP |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) |

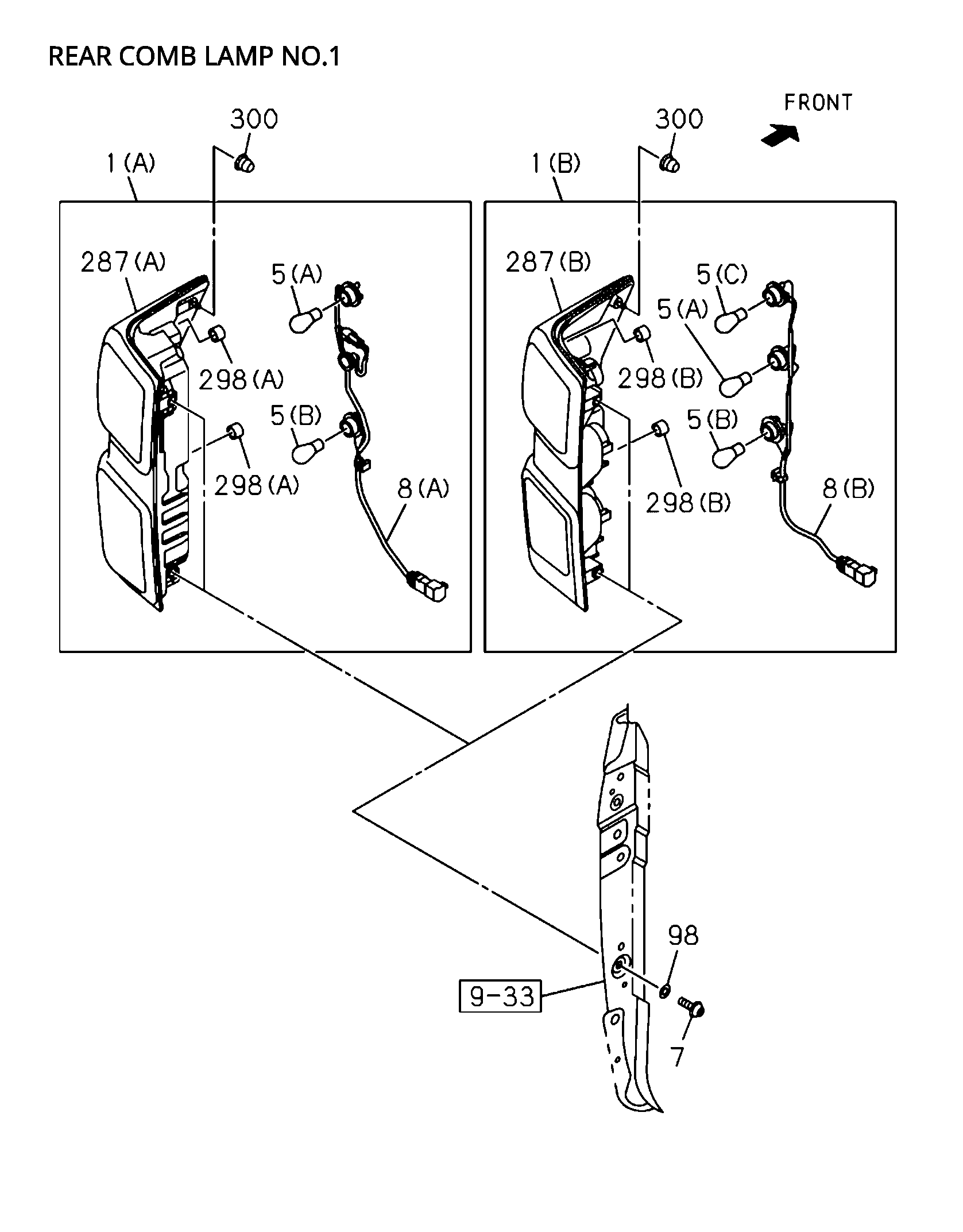

| 1 |
I8-97137 731-0 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C) |
| 298 |
I8-97289 148-0 |
|
CAP, BREATHER,HEADLAMP |
2 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) |
| 5 |
I8-94124 074-0 |
|
BULB, FRT COMB LAMP |
4 |
2311- |
|
B |
(D-MAX 2024) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B) BACK-UP 12V 21W |
| 298 |
I8-97289 148-0 |
|
CAP, BREATHER,HEADLAMP |
2 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) |
| 5 |
I8-94125 959-0 |
|
BULB, RR COMB LAMP |
1 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (C) TAIL & STOP 12V21/5W |
| 267 |
I8-97179 967-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> 12V 21W AMBER |
| 267 |
I8-97179 967-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> 12V 21W AMBER |
| 287 |
I8-97488 283-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
B E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. RR FOG LAM P<T79> (B) |
| 5 |
I8-94125 959-0 |
|
BULB, RR COMB LAMP |
2 |
2311- |
|
A C D E F |
(D-MAX 2024) REAR BODY DELETE(8HH) (C) TAIL & STOP 12V21/5W |
| 5 |
I8-94125 959-0 |
|
BULB, RR COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL & STOP 12V21/5W |
| 9 |
I8-98049 363-0 |
|
NUT, ECM BRACKET |
8 |
2311- |
|
A CDE F |
REAR BODY DELETE(8HH) M5 FLANGE |
| 1 |
I8-98328 806-4 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) |

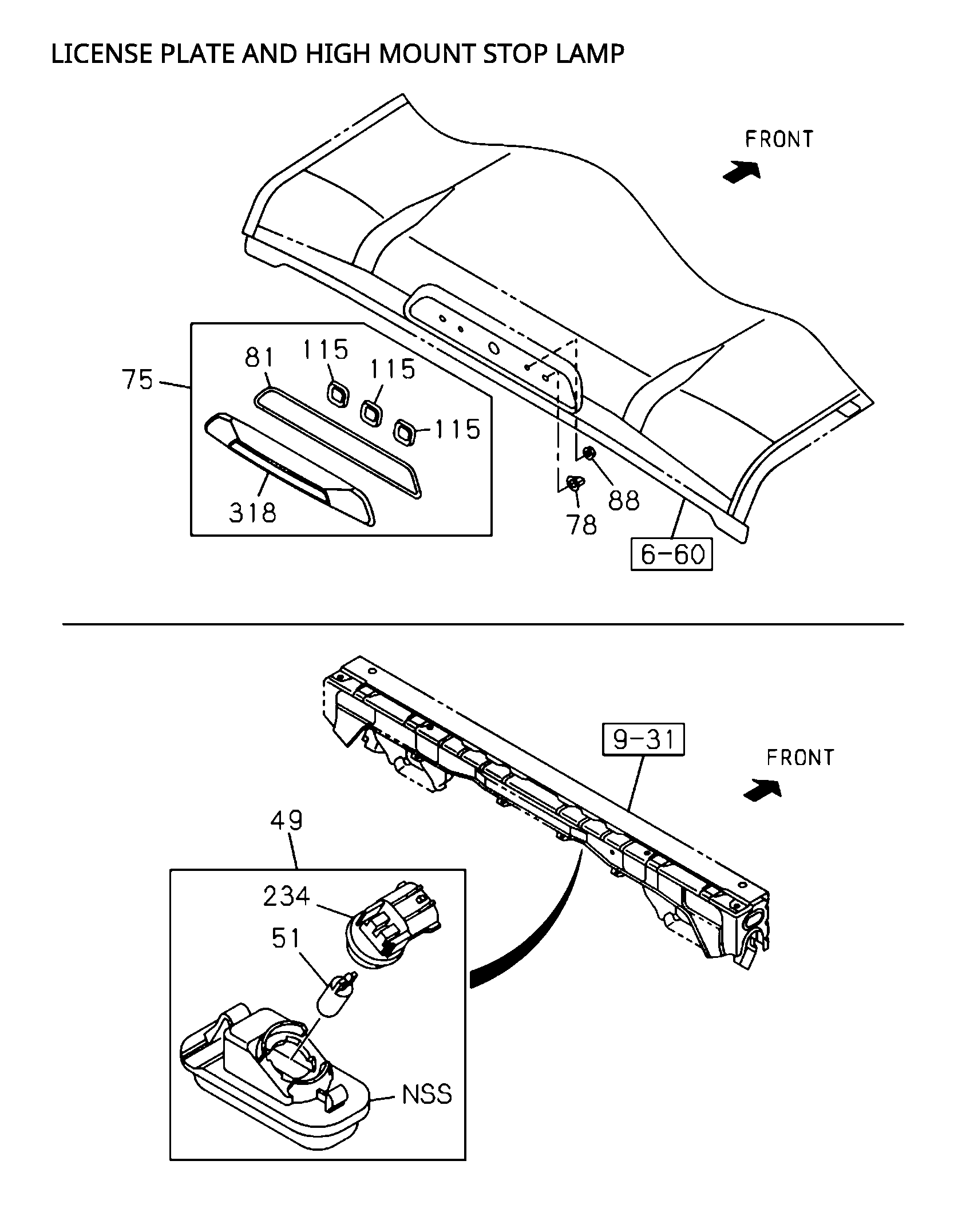

| 318 |
I8-97553 900-0 |
|
LAMP SUB ASM |
1 |
2311- |
|
B E |
(D-MAX 2024) HIGH MOUNT STOP LAMP<TS6> |
| 298 |
I8-97492 810-0 |
|
CAP, BREATHER,RR COMB LAMP |
2 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) |
| 1 |
I8-98328 799-4 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
A |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) |
| 287 |
I8-97488 283-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
A |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (b) |
| 49 |
I8-98224 482-0 |
|
LAMP, LICENSE PLATE |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 8 |
I8-97492 807-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
CD F |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 6 |
I5-82235 001-0 |
|
LENS, RR COMB LAMP |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) |
| 5 |
I8-94125 959-0 |
|
BULB, RR COMB LAMP |
1 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (C) TAIL & STOP 12V21/5W |
| 88 |
I0-91180 106-0 |
|
NUT:CONICAL |
2 |
2311- |
|
A C D F |
(D-MAX 2024) M6 FLANGE |

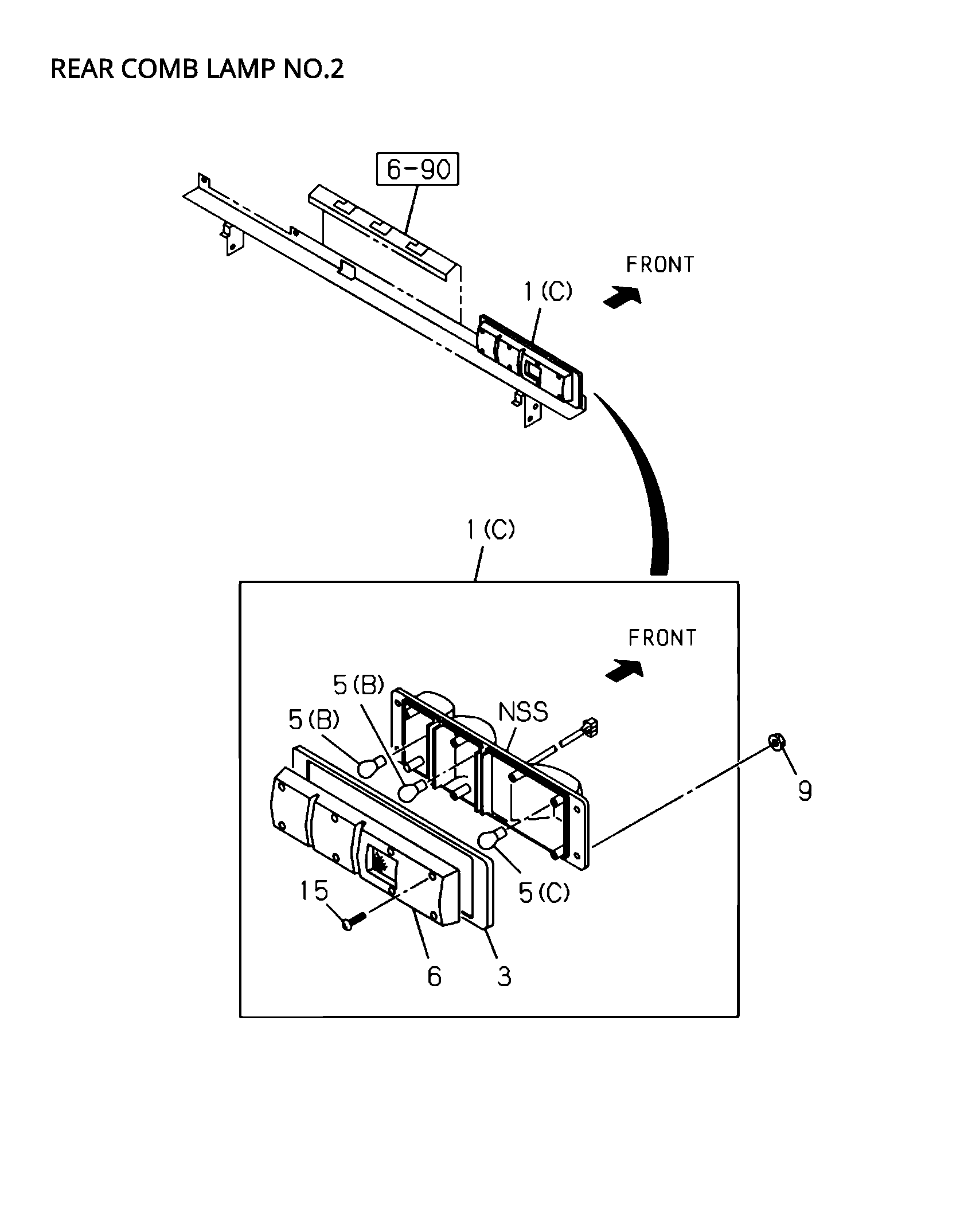

| 1 |
I8-97137 732-0 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
A C D E F |
REAR BODY DELETE(8HH) (C) |
| 98 |
I8-94427 941-0 |
|
WASHER, PL,AIR SCOOP |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) D=16 |
| 298 |
I8-97289 148-0 |
|
CAP, BREATHER,HEADLAMP |
2 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 5 |
I8-97179 967-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (A) TURN SIGNAL 12V 21W AMBER |
| 8 |
I8-97492 808-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
A |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) |
| 8 |
I8-97277 711-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
CD F |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> LAMPS TAIL AND STOP DELUXE<T81> (A) |
| 8 |
I8-97495 751-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) |
| 5 |
I8-97179 967-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (A) TURN SIGNAL 12V 21W AMBER |
| 287 |
I8-97488 284-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) |

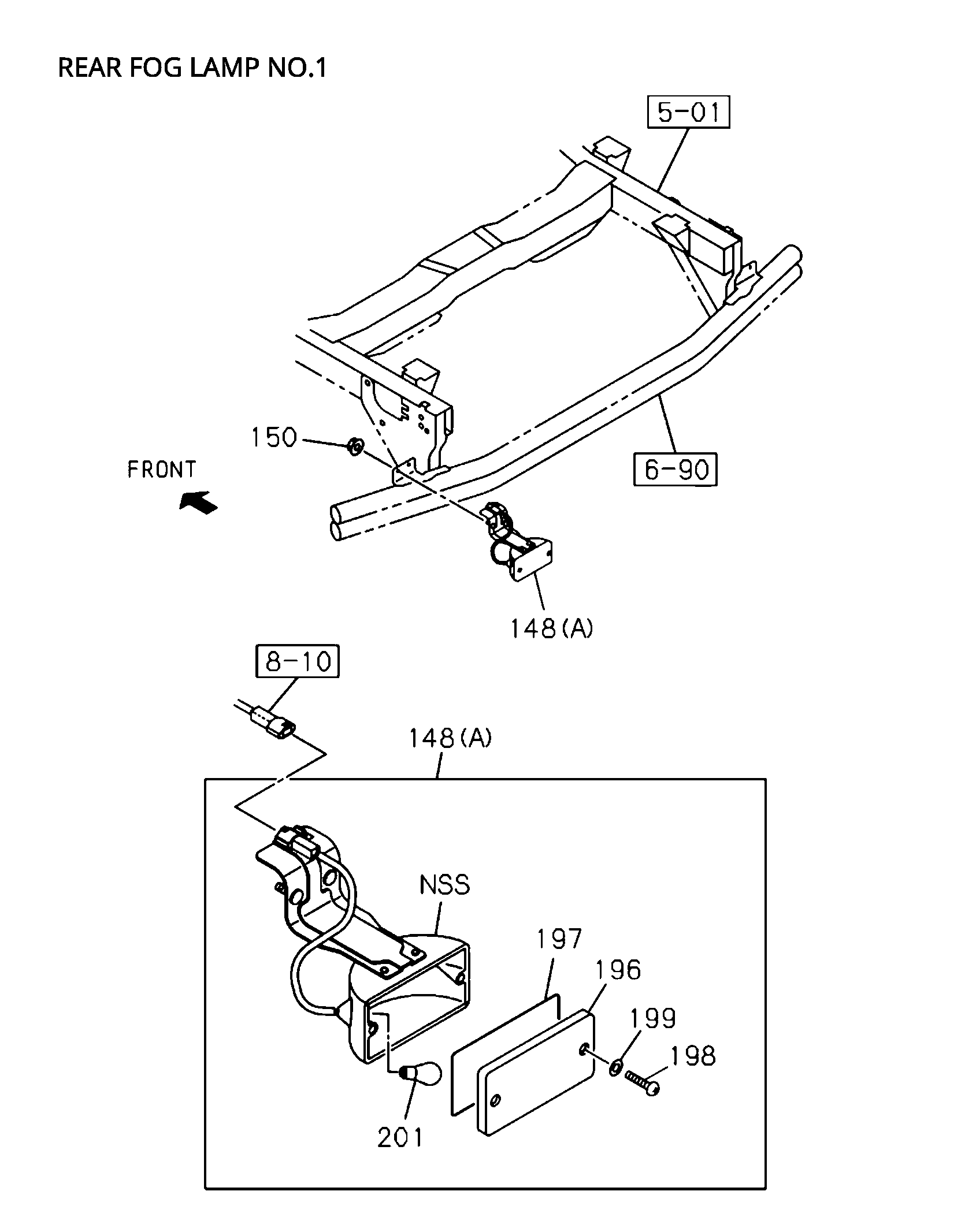

| 148 |
I8-98043 067-1 |
|
LAMP ASM, RR FOG |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39) RR FOG LAMP<T79> EXC. RR UNDERRUN PROTECTOR<6DY> (B) |
| 3 |
I5-82236 002-0 |
|
GASKET, RR COMB LAMP |
1 |
2311- |
|
A C D E F |
REAR BODY DELETE(8HH) |
| 196 |
I8-97369 448-0 |
|
LENS, RR FOG LAMP |
1 |
2311- |
|
BCDE F |
RR FOG LAMP<T79> REAR BODY DELETE(8HH) |
| 3 |
I5-82236 002-0 |
|
GASKET, RR COMB LAMP |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) |
| 15 |
I0-71090 420-0 |
|
SCREW, SIDE TURN SIGNAL |
16 |
2311- |
|
A C D E F |
REAR BODY DELETE(8HH) M4X20 TAPPING STAINLESS |
| 1 |
I8-97137 732-0 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C) |
| 198 |
I0-71190 416-0 |
|
SCREW, RR COMB LAMP |
2 |
2311- |
|
BCDE F |
RR FOG LAMP<T79> REAR BODY DELETE(8HH) M4X16 |
| 1 |
I8-98328 799-4 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. RR FOG LAMP<T79>,LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 15 |
I0-71090 420-0 |
|
SCREW, SIDE TURN SIGNAL |
16 |
2311- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M4X20 TAPPING STAINLESS |
| 7 |
I0-74160 514-0 |
|
SCREW, BRKT,ACL |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) M5X14 TAPPING W/PL WASHER |
| 197 |
I8-97369 451-0 |
|
GASKET, RR FOG LAMP |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39) RR FOG LAMP<T79> EXC. RR UNDERRUN PROTECTOR<6DY> |

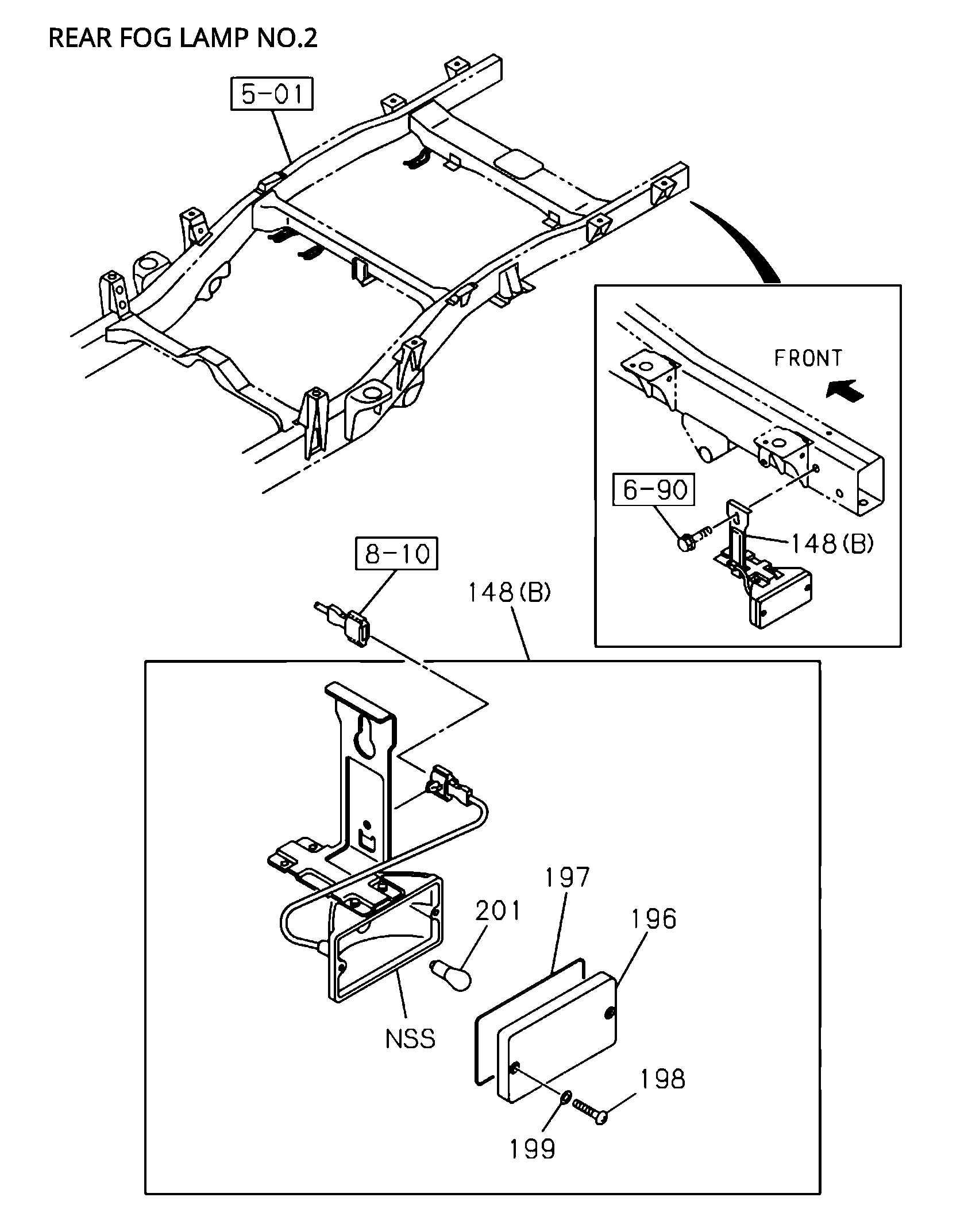

| 148 |
I8-98043 066-0 |
|
LAMP ASM, RR FOG |
1 |
2311- |
|
BCDE F |
RR FOG LAMP<T79> REAR BODY DELETE(8HH) (A) |
| 115 |
I8-97552 986-0 |
|
SEAL, STOP LAMP |
3 |
2311- |
|
A C D F |
(D-MAX 2024) |
| 318 |
I8-97553 900-0 |
|
LAMP SUB ASM |
1 |
2311- |
|
A CD F |
(D-MAX 2024) |
| 201 |
I8-94124 074-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) RR FOG LAMP<T79> REAR BODY DELETE(8HH) 12V 21W |
| 9 |
I8-98049 363-0 |
|
NUT, ECM BRACKET |
8 |
2311- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M5 FLANGE |
| 150 |
I0-91180 106-0 |
|
NUT:CONICAL |
2 |
2311- |
|
BC D E F |
(D-MAX 2024) RR FOG LAMP<T79> REAR BODY DELETE(8HH) M6 FLANGE |
| 78 |
I8-97839 184-0 |
|
GROMMET, STOP LAMP |
2 |
2311- |
|
A C D F |
(D-MAX 2024) |
| 1 |
I8-98328 799-4 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
B E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. RR FOG LAM P<T79> (B) |
| 197 |
I8-97369 451-0 |
|
GASKET, RR FOG LAMP |
1 |
2311- |
|
BCDE F |
RR FOG LAMP<T79> REAR BODY DELETE(8HH) |
| 5 |
I8-94124 074-0 |
|
BULB, FRT COMB LAMP |
4 |
2311- |
|
A C D E F |
(D-MAX 2024) REAR BODY DELETE(8HH) (B) BACK-UP 12V 21W |
| 1 |
I8-97824 864-3 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
CD F |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> LAMPS TAIL AND STOP DELUXE<T81> (A) |
| 196 |
I8-97369 448-0 |
|
LENS, RR FOG LAMP |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39) RR FOG LAMP<T79> EXC. RR UNDERRUN PROTECTOR<6DY> |
| 3 |
I5-82236 001-0 |
|
GASKET, RR COMB LAMP |
1 |
2311- |
|
A C D E F |
REAR BODY DELETE(8HH) |
| 1 |
I8-97824 866-3 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. RR FOG LAM P<T79> (A) |
| 287 |
I8-97488 283-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. RR FOG LAMP<T79>,LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 5 |
I8-97179 967-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) TURN SIGNAL 12V 21W AMBER |
| 8 |
I8-97495 751-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 287 |
I8-97277 697-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
CD F |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> LAMPS TAIL AND STOP DELUXE<T81> (A) |
| 5 |
I8-97179 967-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) TURN SIGNAL 12V 21W AMBER |
| 287 |
I8-97488 281-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
CD F |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 81 |
I8-97552 984-0 |
|
GASKET, STOP LAMP |
1 |
2311- |
|
B E |
(D-MAX 2024) HIGH MOUNT STOP LAMP<TS6> |
| 298 |
I8-97289 148-0 |
|
CAP, BREATHER,HEADLAMP |
2 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 1 |
I8-97137 731-0 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
A C D E F |
REAR BODY DELETE(8HH) (C) |
| 8 |
I8-97277 712-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. RR FOG LAM P<T79> (A) |
| 1 |
I8-97824 865-3 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) |
| 3 |
I5-82236 001-0 |
|
GASKET, RR COMB LAMP |
1 |
2311- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) |
| 198 |
I0-71190 416-0 |
|
SCREW, RR COMB LAMP |
2 |
2311- |
|
B |
REAR BODY FLAT BED(E39) RR FOG LAMP<T79> EXC. RR UNDERRUN PROTECTOR<6DY> M4X16 |
| 8 |
I8-97277 712-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) |
| 8 |
I8-97492 807-0 |
|
HARNESS, RR COMB LAMP |
1 |
2311- |
|
B E |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> (B) |
| 201 |
I8-94124 074-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
B |
(D-MAX 2024) REAR BODY FLAT BED(E39) RR FOG LAMP<T79> EXC. RR UNDERRUN PROTECTOR<6DY> 12V 21W |
| 1 |
I8-98328 805-4 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
CD F |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 1 |
I8-98328 806-4 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
AB E |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) |
| 5 |
I8-94125 959-0 |
|
BULB, RR COMB LAMP |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL & STOP 12V21/5W |
| 75 |
I8-98326 845-1 |
|
LAMP ASM, STOP,HIGHMOUNTED |
1 |
2311- |
|
B E |
(D-MAX 2024) HIGH MOUNT STOP LAMP<TS6> |
| 75 |
I8-98326 845-1 |
|
LAMP ASM, STOP,HIGHMOUNTED |
1 |
2311- |
|
A C D F |
(D-MAX 2024) |
| 6 |
I5-82235 001-0 |
|
LENS, RR COMB LAMP |
1 |
2311- |
|
A CDE F |
REAR BODY DELETE(8HH) |
| 81 |
I8-97552 984-0 |
|
GASKET, STOP LAMP |
1 |
2311- |
|
A CD F |
(D-MAX 2024) |
| 287 |
I8-97488 284-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) |
| 5 |
I8-94125 959-0 |
|
BULB, RR COMB LAMP |
2 |
2311- |
|
B |
(D-MAX 2024) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C) TAIL & STOP 12V21/5W |
| 115 |
I8-97552 986-0 |
|
SEAL, STOP LAMP |
3 |
2311- |
|
B E |
(D-MAX 2024) HIGH MOUNT STOP LAMP<TS6> |
| 287 |
I8-97277 699-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. RR FOG LAM P<T79> (A) |
| 78 |
I8-97839 184-0 |
|
GROMMET, STOP LAMP |
2 |
2311- |
|
B E |
(D-MAX 2024) HIGH MOUNT STOP LAMP<TS6> |
| 5 |
I8-94124 074-0 |
|
BULB, FRT COMB LAMP |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) BACK-UP 12V 21W |
| 1 |
I8-98328 805-4 |
|
LAMP ASM, RR COMB |
1 |
2311- |
|
B E |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> (B) |
| 234 |
I1-82119 148-0 |
|
PLUG, SOCKET,HEADLAMP |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 287 |
I8-97488 281-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
B E |
REAR BODY STD CARGO BOX(E63) RR FOG LAMP<T79> (B) |
| 287 |
I8-97277 698-0 |
|
LAMP UNIT, RR COMB |
1 |
2311- |
|
CD F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) |
| 88 |
I0-91180 106-0 |
|
NUT:CONICAL |
2 |
2311- |
|
B E |
(D-MAX 2024) HIGH MOUNT STOP LAMP<TS6> M6 FLANGE |
| 51 |
I8-94124 595-0 |
|
BULB, LICENSE PLATE LAMP |
2 |
2311- |
|
A BC D E F |
12V 5W |
| 199 |
I8-97369 446-0 |
|
WASHER, LENS,RR FOG LAMP |
2 |
2311- |
|
BC D E F |
RR FOG LAMP<T79> REAR BODY DELETE(8HH) |
