8-10 | WIRING HARNESS AND FUSE
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 774 | I8-97309 292-0 | RELAY, DIMMER & PASSING | 1 | 2311- | (D-MAX 2024) 12VYAZAKI | |||

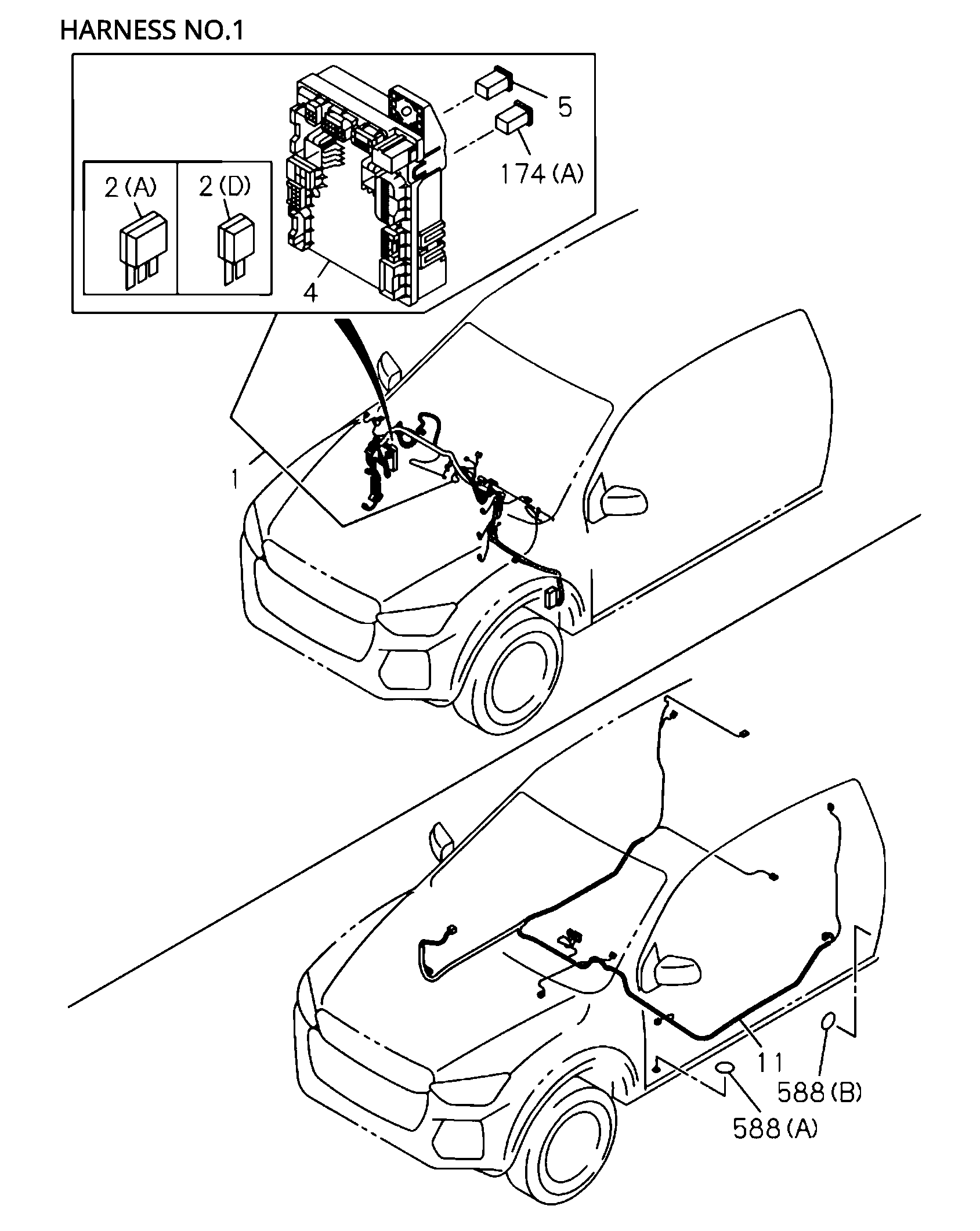

| 11 | I8-97821 702-2 | HARNESS, BODY | 1 | 2311- | (D-MAX 2024) | |||
| 5 | I8-97556 556-0 | FUSE, FACIA HARNESS | AR | 2311- | (D-MAX 2024) 5A LIGHT BROWN | |||
| 743 | I8-97481 470-0 | UNIT, FLASHER | 1 | 2311- | (D-MAX 2024) 12V PANASONIC | |||
| 226 | I8-97491 805-4 | HARNESS, RR DOOR | 1 | 2311- | (D-MAX 2024) | |||
| 5 | I8-97556 557-0 | FUSE, FACIA HARNESS | AR | 2311- | (D-MAX 2024) 7.5A BROWN | |||
| 736 | I8-97309 292-0 | RELAY, DIMMER & PASSING | 1 | 2311- | (D-MAX 2024) 12VYAZAKI | |||
| 2 | I8-94422 639-1 | DIODE, CABLE HARNESS | AR | 2311- | (D-MAX 2024) (B) BLACK 2P-1.5A | |||

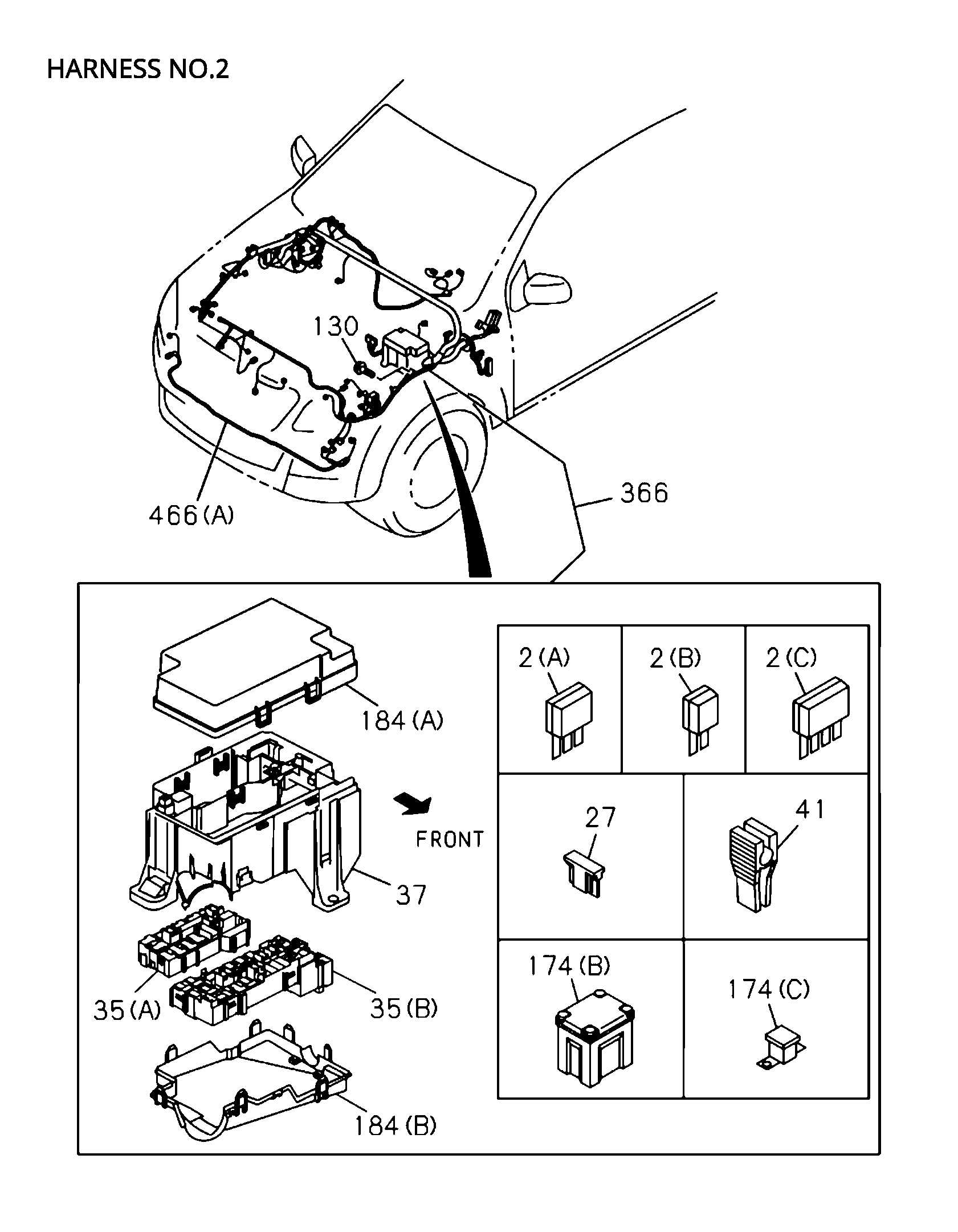

| 184 | I8-97511 980-0 | COVER, RELAY & FUSE BOX | 1 | 2311- | (D-MAX 2024) (B) LOWER | |||
| 2 | I8-94422 640-1 | DIODE, CABLE HARNESS | AR | 2311- | (D-MAX 2024) (A) BLACK 3P-1.5A | |||
| 174 | I8-98487 979-0 | FUSE, SLOW BLOW | AR | 2311- | (D-MAX 2024) (B) 50A RED | |||
| 27 | I8-98487 975-0 | FUSE UNIT | AR | 2311- | (D-MAX 2024) 15A BLUE | |||
| 27 | I8-98487 973-0 | FUSE UNIT | AR | 2311- | (D-MAX 2024) 5A LIGHT BROWN | |||
| 763 | I8-97481 470-0 | UNIT, FLASHER | 1 | 2311- | (D-MAX 2024) 12V PANASONIC | |||
| 37 | I8-97511 975-0 | COVER, FUSE,RELAY & FUSE BOX | 1 | 2311- | (D-MAX 2024) | |||
| 533 | I8-97648 477-0 | CLIP, HARNESS | 1 | 2311- | (D-MAX 2024) (C) | |||
| 189 | I8-97267 062-1 | HARNESS, EXT | 1 | 2311- | (D-MAX 2024) (B) | |||

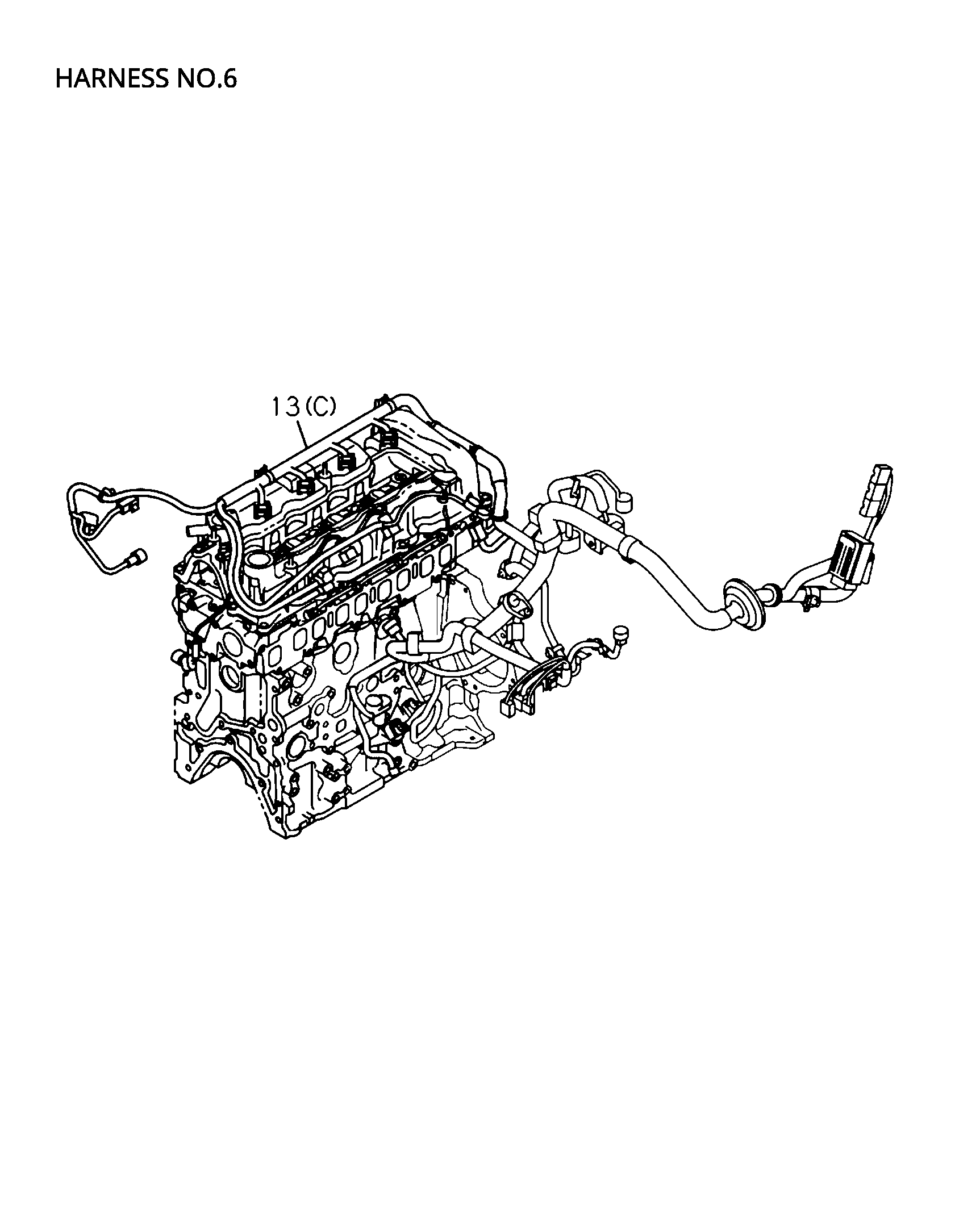

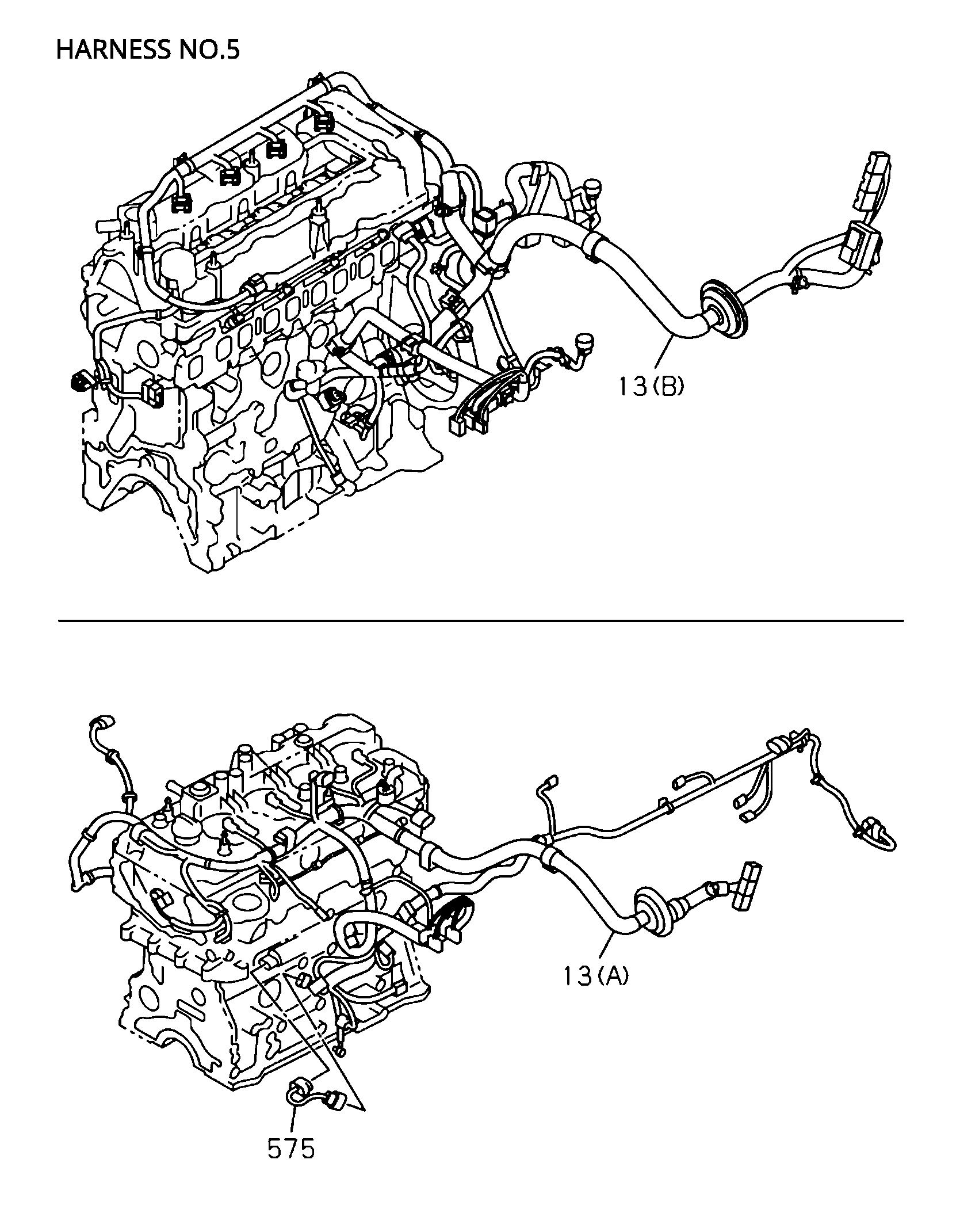

| 13 | I8-97826 477-0 | HARNESS, ENG | 1 | 2311- | (D-MAX 2024) (B) | |||
| 588 | I8-97826 300-0 | SEAL, FRT DOOR | 2 | 2311- | (D-MAX 2024) (B) OD=20 T=0.2 BLACK | |||

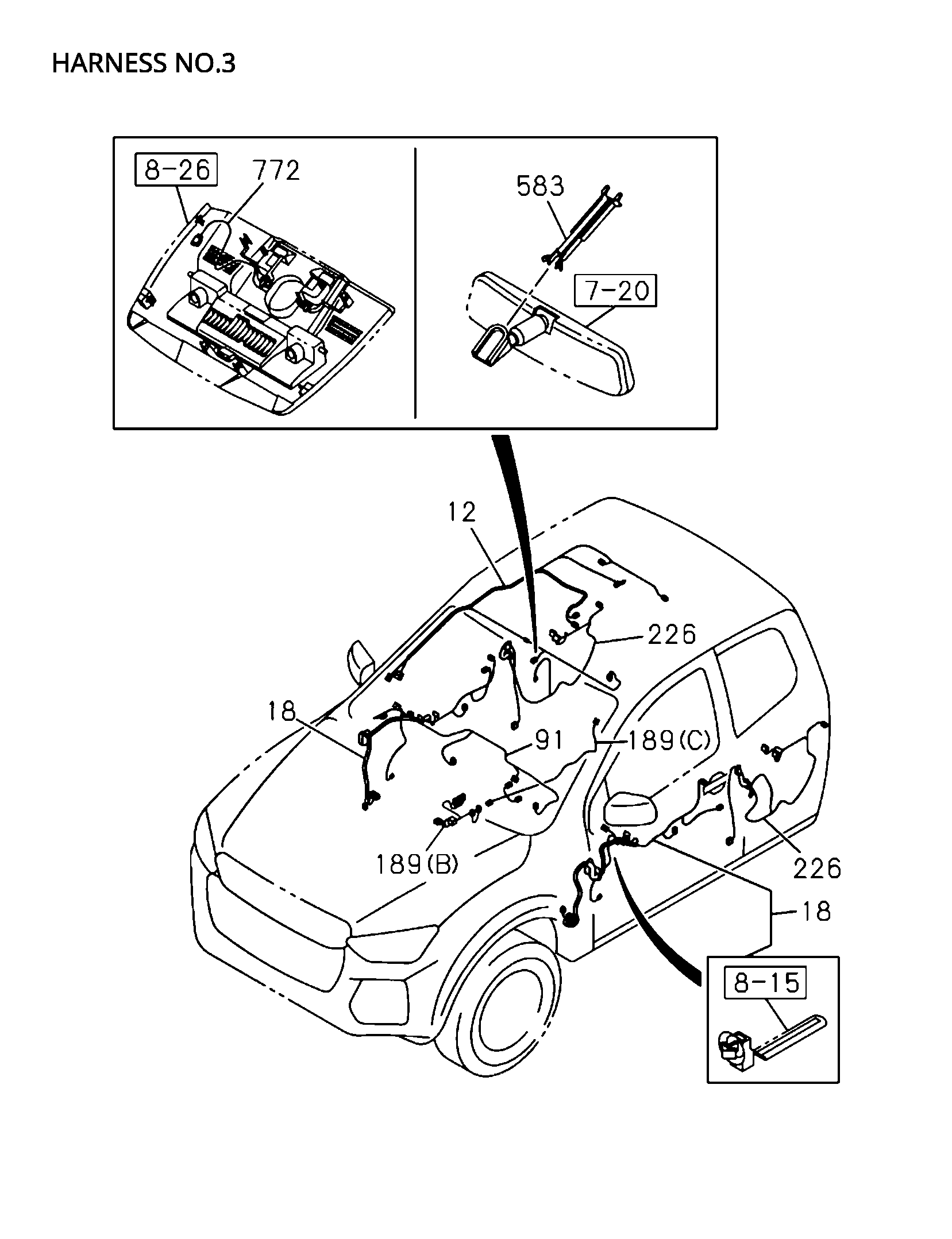

| 12 | I8-97265 428-0 | HARNESS, ROOF | 1 | 2311- | (D-MAX 2024) | |||
| 35 | I8-97511 978-0 | BOX, RELAY & FUSE | 1 | 2402- | (D-MAX 2024) (B) | |||
| 746 | I8-97512 894-0 | RELAY, HEATER | 1 | 2311- | (D-MAX 2024) 12V DENSO | |||
| 82 | I8-97492 696-3 | HARNESS, DIFF LOCK | 1 | 2311- | | (D-MAX 2024) | |||
| 41 | I8-98054 260-0 | PULLER, FUSE | 1 | 2311- | | (D-MAX 2024) | |||
| 2 | I8-97556 567-0 | DIODE, CABLE HARNESS | AR | 2311- | (D-MAX 2024) (D) 2P-3.0A | |||
| 18 | I8-97491 773-2 | HARNESS, DOOR | 1 | 2311- | (D-MAX 2024) | |||

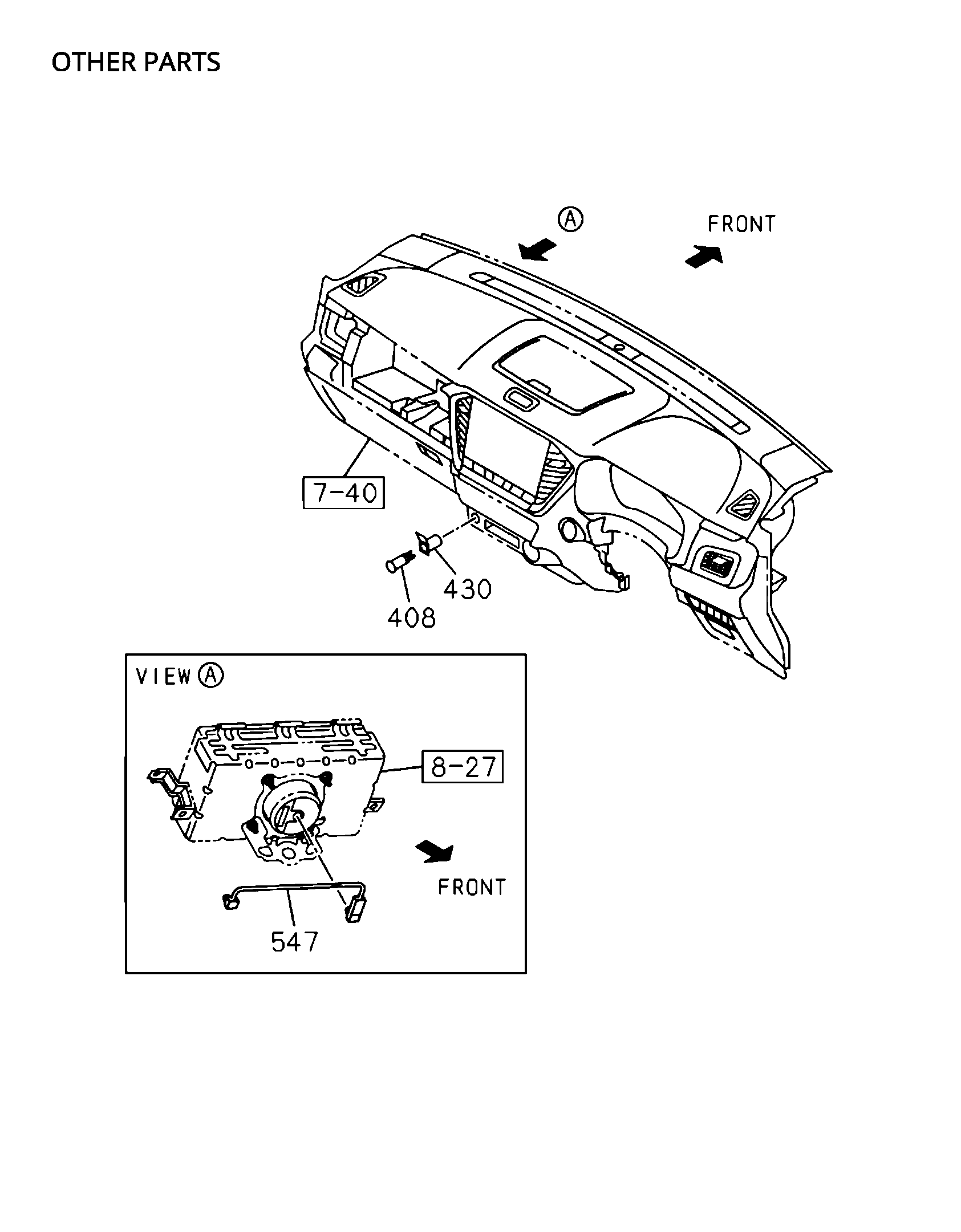

| 430 | I8-98396 149-1 | COVER ASM, SOCKET,ACCESSORY | 1 | 2311- | (D-MAX 2024) | |||
| 741 | I8-97481 470-0 | UNIT, FLASHER | 1 | 2311- | (D-MAX 2024) 12V PANASONIC | |||
| 174 | I8-98487 977-0 | FUSE, SLOW BLOW | AR | 2311- | (D-MAX 2024) (B) 30A PINK | |||
| 5 | I8-97556 559-0 | FUSE, FACIA HARNESS | AR | 2311- | (D-MAX 2024) 15A BLUE | |||
| 27 | I8-98487 974-0 | FUSE UNIT | AR | 2311- | (D-MAX 2024) 10A RED | |||
| 174 | I8-98487 978-0 | FUSE, SLOW BLOW | AR | 2311- | (D-MAX 2024) (B) 40AGREEN | |||
| 408 | I8-98396 145-0 | SOCKET ASM, ACCESSORY | 1 | 2311- | | (D-MAX 2024) | |||
| 27 | I8-98487 976-0 | FUSE UNIT | AR | 2311- | (D-MAX 2024) 20A YELLOW | |||
| 533 | I8-97811 150-1 | CLIP, HARNESS | 1 | 2311- | (D-MAX 2024) (B) | |||
| 35 | I8-97511 976-0 | BOX, RELAY & FUSE | 1 | 2311- | (D-MAX 2024) (A) | |||
| 748 | I8-97512 894-0 | RELAY, HEATER | 1 | 2311- | (D-MAX 2024) 12V DENSO | |||
| 2 | I8-94381 730-0 | DIODE, CABLE HARNESS | AR | 2311- | (D-MAX 2024) (C) BLACK 4P-1.5A | |||
| 226 | I8-97491 799-4 | HARNESS, RR DOOR | 1 | 2311- | (D-MAX 2024) | |||
| 366 | I8-97266 925-1 | HARNESS, CABLE,ENG ROOM | 1 | 2402- | | (D-MAX 2024) | |||
| 1 | I8-97266 346-1 | HARNESS, CAB | 1 | 2402- | (D-MAX 2024) | |||
| 738 | I8-97481 470-0 | UNIT, FLASHER | 1 | 2311- | (D-MAX 2024) 12V PANASONIC | |||
| 174 | I8-97556 562-0 | FUSE, SLOW BLOW | AR | 2311- | (D-MAX 2024) (A) 20A LIGHT BLUE | |||
| 174 | I8-98487 980-0 | FUSE, SLOW BLOW | AR | 2311- | (D-MAX 2024) (B) 60A YELLOW | |||
| 184 | I8-97274 830-0 | COVER, RELAY & FUSE BOX | 1 | 2311- | (D-MAX 2024) (A) UPPER | |||
| 547 | I8-97492 244-5 | HARNESS, CABLE,SRS | 1 | 2311- | (D-MAX 2024) | |||
| 91 | I8-97649 486-1 | HARNESS, INST | 1 | 2402- | | (D-MAX 2024) | |||
| 5 | I8-97556 560-0 | FUSE, FACIA HARNESS | AR | 2311- | (D-MAX 2024) 20A YELLOW | |||
| 466 | I8-97265 856-0 | HARNESS, BUMPER | 1 | 2311- | (D-MAX 2024) (A) | |||
| 174 | I8-97497 198-0 | FUSE, SLOW BLOW | AR | 2311- | (D-MAX 2024) (B) 20A BLUE | |||
| 130 | I8-98164 836-0 | BOLT, CAB EARTH | 1 | 2311- | | (D-MAX 2024) M6X14 W/PL WASHER | |||
| 531 | I8-97481 470-0 | UNIT, FLASHER | 1 | 2311- | (D-MAX 2024) WASHER PUMP 12V PANASONIC | |||
| 174 | I8-94388 306-1 | FUSE, 100A | AR | 2311- | (D-MAX 2024) (C) 100A BLUE | |||
| 147 | I8-97492 299-2 | HARNESS, ACCEL SW | 1 | 2311- | | (D-MAX 2024) | |||
| 4 | I8-97555 089-0 | BOX ASM, FUSE,HARNESS | 1 | 2402- | (D-MAX 2024) | |||
| 745 | I8-97512 894-0 | RELAY, HEATER | 1 | 2311- | (D-MAX 2024) 12V DENSO | |||
| 5 | I8-97556 558-0 | FUSE, FACIA HARNESS | AR | 2311- | (D-MAX 2024) 10A RED | |||

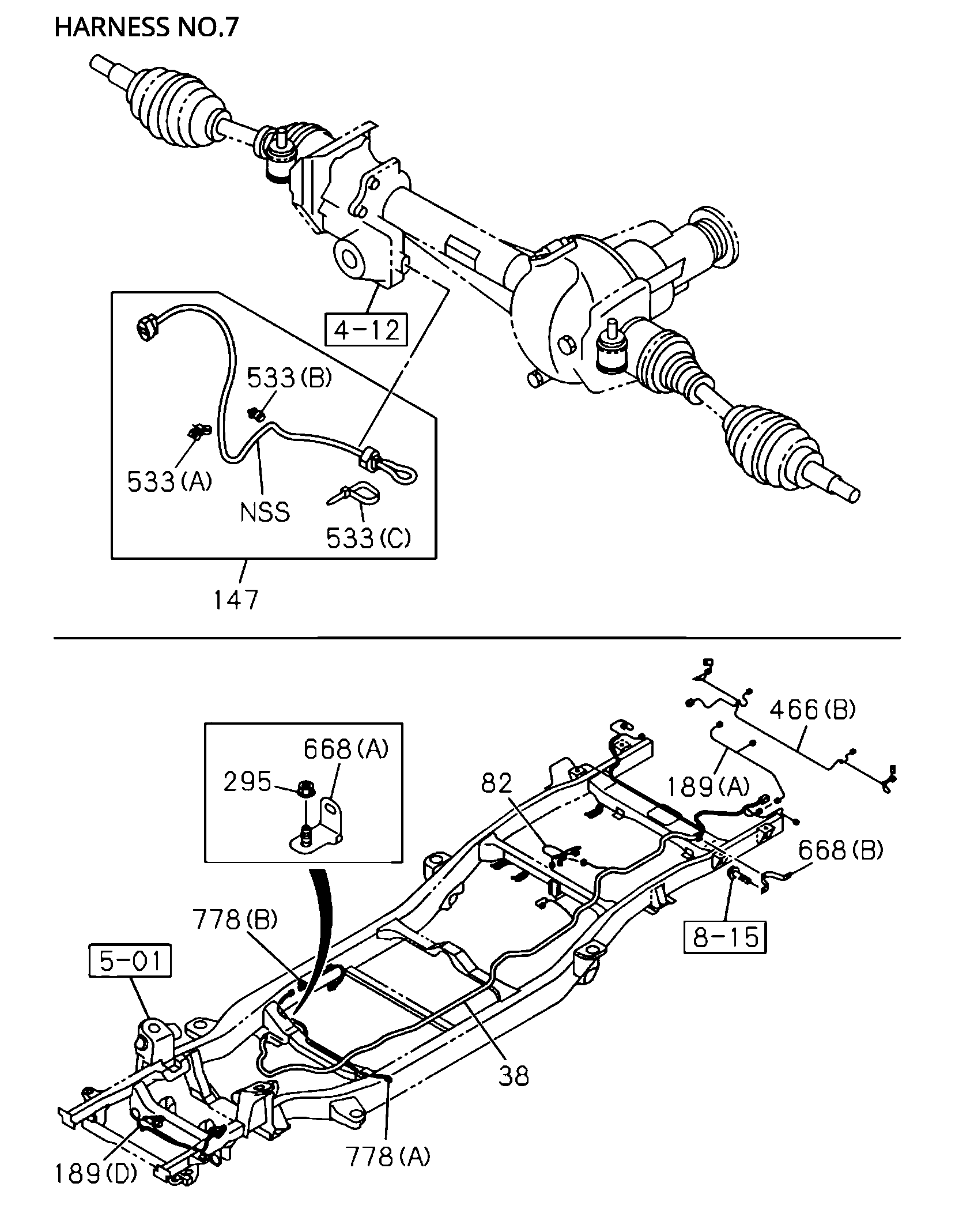

| 38 | I8-97875 280-0 | HARNESS, CHAS | 1 | 2402- | (D-MAX 2024) | |||
| 189 | I8-97492 135-1 | HARNESS, EXT | 1 | 2311- | (D-MAX 2024) (C) | |||
| 189 | I8-97492 441-2 | HARNESS, EXT | 1 | 2311- | (D-MAX 2024) (A) | |||
| 5 | I8-97556 561-0 | FUSE, FACIA HARNESS | AR | 2311- | (D-MAX 2024) 25A WHITE | |||
| 747 | I8-97512 894-0 | RELAY, HEATER | 1 | 2311- | (D-MAX 2024) 12V DENSO | |||
| 764 | I8-97309 292-0 | RELAY, DIMMER & PASSING | 1 | 2311- | (D-MAX 2024) 12VYAZAKI | |||
| 18 | I8-97491 755-2 | HARNESS, DOOR | 1 | 2311- | (D-MAX 2024) | |||
| 174 | I8-97556 563-0 | FUSE, SLOW BLOW | AR | 2311- | (D-MAX 2024) (A) 30A PINK | |||
| 588 | I8-97826 301-0 | SEAL, LOCATION HOLE | 1 | 2311- | (D-MAX 2024) (A) OD=25 BLACK | |||
| 533 | I8-94232 620-0 | CLIP, BAND | 1 | 2311- | (D-MAX 2024) (A) L=172 |
