| 25 |
I8-97491 375-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
CD F |

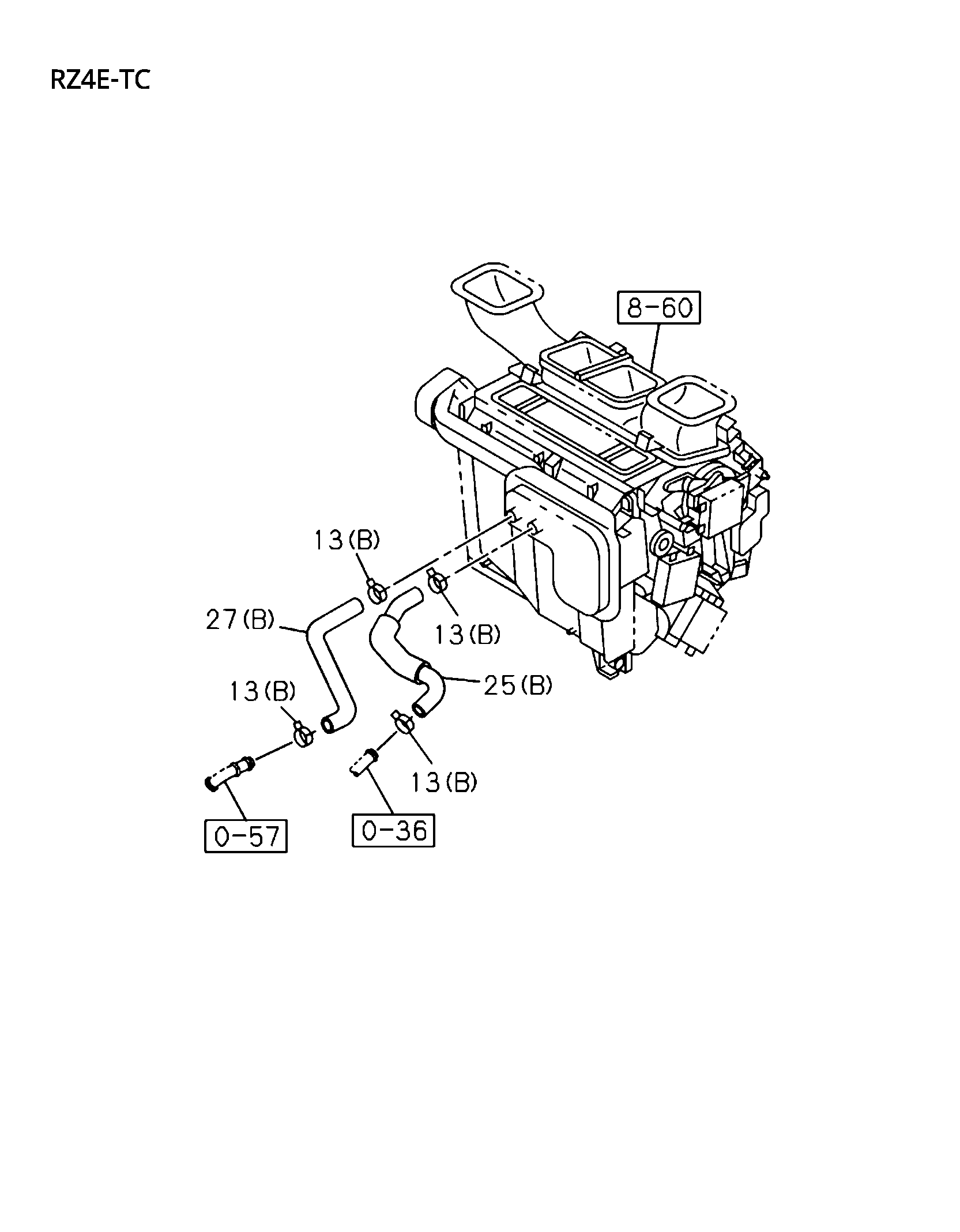

(D-MAX 2024) RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C6D),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) EXC. HIGH ALTITUDE COMPENSATOR<EE2> (b) |
| 9 |
I8-97536 748-0 |
|
PIPE, HTR |
1 |
2311- |
|
A |
(B) |
| 25 |
I8-97491 686-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
D F |

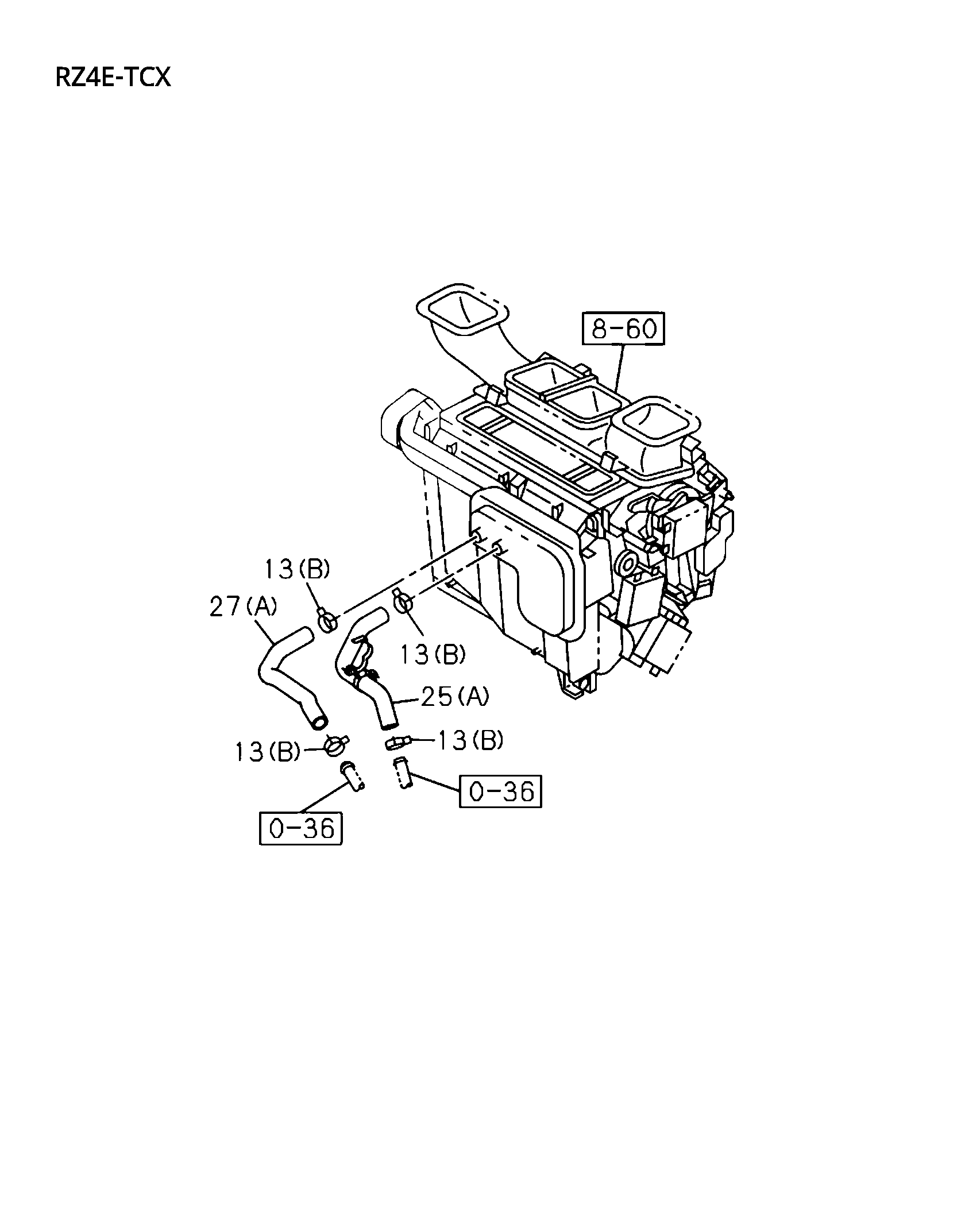

RZ4E-TCX HI-POWER ENG(LNC) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR06D SPECIFICATION(8SJ) (A) |
| 27 |
I8-97491 371-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
CD F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) |
| 26 |
I8-97495 756-0 |
|
HOSE, HTR |
1 |
2311- |
|
A |
(B) |
| 27 |
I8-97491 372-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
CD F |
(D-MAX 2024) RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) (b) |
| 25 |
I8-97503 703-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
CD F |
RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) |
| 135 |
I0-91610 508-0 |
|
WASHER, PL,OIL TANK TO BAND |
1 |
2311- |
|
E F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) COOLER W/FRESH AIR(C65) EUR04 SPECIFICATION(NT4) ID=8.4 OD=16 |
| 25 |
I8-97491 374-0 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
CD F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) |
| 9 |
I8-97536 748-0 |
|
PIPE, HTR |
1 |
2311- |
|
BC D E F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR05 SPECIFICATION(NT5) (B) |
| 48 |
I0-28050 812-0 |
|
BOLT, CLIP,FUEL HOSE |
1 |
2311- |
|
E F |
(D-MAX 2024) 4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) COOLER W/FRESH AIR(C65) EUR04 SPECIFICATION(NT4) M8X12 FLANGE |
| 25 |
I8-97651 556-0 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
B E |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUR05 SPECIFICATION(NT5) (c) |
| 95 |
I0-28050 816-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
1 |
2311- |
|
A |
(D-MAX 2024) M8X16 FLANGE |
| 26 |
I8-97495 757-0 |
|
HOSE, HTR |
1 |
2311- |
|
BC D E F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (a) |
| 25 |
I8-97491 375-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
B E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) HIGH ALTITUDE COMPENSATOR<EE2> EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) (b) |
| 95 |
I0-28050 816-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
1 |
2311- |
|
BC D E F |
(D-MAX 2024) 4JJ3 ENG(LNG) HEATER Si DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROS SPECIFICATION(NT5) M8X16 FLANGE |
| 119 |
I0-28050 816-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) 4JJ3 ENG(LNG) M8X16 FLANGE |
| 25 |
I8-97491 686-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
CD F |
RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR05 SPECIFICATION(NT5) (a) |
| 148 |
I8-98009 913-0 |
|
STUD, INL PIPE |
1 |
2311- |
|
BCDE F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROS SPECIFICATION(NT5) M8X15.M8X17 L=40 |
| 13 |
I8-98133 607-0 |
|
CLIP, VENT HOSE |
4 |
2311- |
|
B E |
(D-MAX 2024) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=20.8 |
| 17 |
I8-97495 758-0 |
|
HOSE, WATER,BYPASS |
1 |
2311- |
|
E F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) COOLER W/FRESH AIR(C65) EUR04 SPECIFICATION(NT4) (A) |
| 48 |
I0-28050 840-0 |
|
BOLT, CLIP |
1 |
2311- |
|
E F |
(D-MAX 2024) 4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) COOLER W/FRESH AIR(C65) EUR04 SPECIFICATION(NT4) M8X40 FLANGE |
| 25 |
I8-97491 375-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
CD F |
(D-MAX 2024) RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) HIGH ALTITUDE COMPENSATOR<EE2> EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) (b) |
| 25 |
I8-97491 374-0 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
B E |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) |
| 9 |
I8-97537 054-0 |
|
PIPE, HTR |
1 |
2311- |
|
D E F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C6D),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) (A) |
| 141 |
I8-97537 055-0 |
|
BRACKET, HTR PIPE |
1 |
2311- |
|
D E F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) |
| 25 |
I8-97503 703-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
B E |
RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) EXC. HIGH ALTITUDE COMPENSATOR<EE2> (B) |
| 31 |
I8-97555 155-0 |
|
PIPE, BYPASS,HTR |
1 |
2311- |
|
D E F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) (b) |
| 25 |
I8-97491 686-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
B |
RZ4E-TCX HI-POWER ENG(LNC) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUR06D SPECIFICATION(8SJ) (A) |
| 31 |
I8-97551 530-0 |
|
PIPE, BYPASS,HTR |
1 |
2311- |
|
E F |
4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) COOLER W/FRESH AIR(C65) EUR04 SPECIFICATION(NT4) (A) |
| 25 |
I8-97651 556-0 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) (C) |
| 73 |
I8-97944 127-0 |
|
CLIP, HTR HOSE |
2 |
2311- |
|
E F |
(D-MAX 2024) 4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) COOLER W/FRESH AIR(C65) ID=20.8 |
| 27 |
I8-97491 372-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
B E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) (b) |
| 27 |
I8-97491 371-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
B E |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) |
| 148 |
I8-98009 913-0 |
|
STUD, INL PIPE |
1 |
2311- |
|
A |
M8X15.M8X17 L=40 |
| 73 |
I8-97944 127-0 |
|
CLIP, HTR HOSE |
2 |
2311- |
|
BCDE F |
(D-MAX 2024) HEATER 8< DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8 |
| 73 |
I8-97944 127-0 |
|
CLIP, HTR HOSE |
2 |
2311- |
|
BCDE F |
(D-MAX 2024) 4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) ID=20.8 |
| 13 |
I8-98133 607-0 |
|
CLIP, VENT HOSE |
4 |
2311- |
|
CD F |
(D-MAX 2024) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=20.8 |
| 27 |
I8-97491 685-1 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
B |
RZ4E-TCX HI-POWER ENG(LNC) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUR06D SPECIFICATION(8SJ) (A) |
| 25 |
I8-97651 556-0 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
CD F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR05 SPECIFICATION(NT5) (C) |
| 95 |
I0-28050 816-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
4 |
2311- |
|
D E F |
(D-MAX 2024) 4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) M8X16 FLANGE |
| 25 |
I8-97491 686-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
B E |
RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUROS SPECIFICATION(NT5) (a) |
| 128 |
I8-98031 884-0 |
|
INSULATOR, HOSE |
1 |
2311- |
|
BCDE F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROS SPECIFICATION(NT5) |
| 26 |
I8-97495 756-0 |
|
HOSE, HTR |
1 |
2311- |
|
BCDE F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 27 |
I8-97682 474-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
CD F |
RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR05 SPECIFICATION(NT5) (D) |
| 13 |
I8-98133 607-0 |
|
CLIP, VENT HOSE |
4 |
2311- |
|
A |
(D-MAX 2024) (B) ID=20.8 |
| 27 |
I8-97651 555-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
B E |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUROS SPECIFICATION(NT5) (C) |
| 65 |
I8-97101 337-0 |
|
CLIP, INSULATOR |
2 |
2311- |
|
BCDE F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROS SPECIFICATION(NT5) |
| 27 |
I8-97651 555-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
CD F |
4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR05 SPECIFICATION(NT5) (C) |
| 73 |
I8-97944 127-0 |
|
CLIP, HTR HOSE |
2 |
2311- |
|
A |
(D-MAX 2024) ID=20.8 |
| 87 |
I8-97495 755-0 |
|
BRACKET, HTR HOSE CLIP |
1 |
2311- | |
|
ABCDE F |
4JJ3 ENG(LNG) |
| 25 |
I8-97491 375-1 |
|
HOSE, WATER,ENG TO HTR UNIT |
1 |
2311- |
|
B E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) EXC. HIGH ALTITUDE COMPENSATOR<EE2> (b) |
| 27 |
I8-97491 685-1 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
D F |
RZ4E-TCX HI-POWER ENG(LNC) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR06D SPECIFICATION(8SJ) (A) |
| 17 |
I8-97551 621-0 |
|
HOSE, WATER,BYPASS |
1 |
2311- |
|
E F |
4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) COOLER W/FRESH AIR(C65) EUR04 SPECIFICATION(NT4) (B) L=200 |
| 27 |
I8-97651 555-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) (C) |
| 27 |
I8-97682 474-0 |
|
HOSE, WATER,HTR UNIT TO WATER PIPE |
1 |
2311- |
|
B E |
RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C6D) EUR05 SPECIFICATION(NT5) (D) |
| 13 |
I1-09700 392-1 |
|
CLIP, NYLON TUBE |
1 |
2311- |
|
E F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) COOLER W/FRESH AIR(C65) EUR04 SPECIFICATION(NT4) (A) ID=25 L=54 |
