8-50 | AIR CONDITIONING SYSTEM, FRONT
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 14 | I0-28151 000-0 | BOLT, BRKT | 4 | 2311- | (A) M10X1 | (D-MAX 2024) | ||

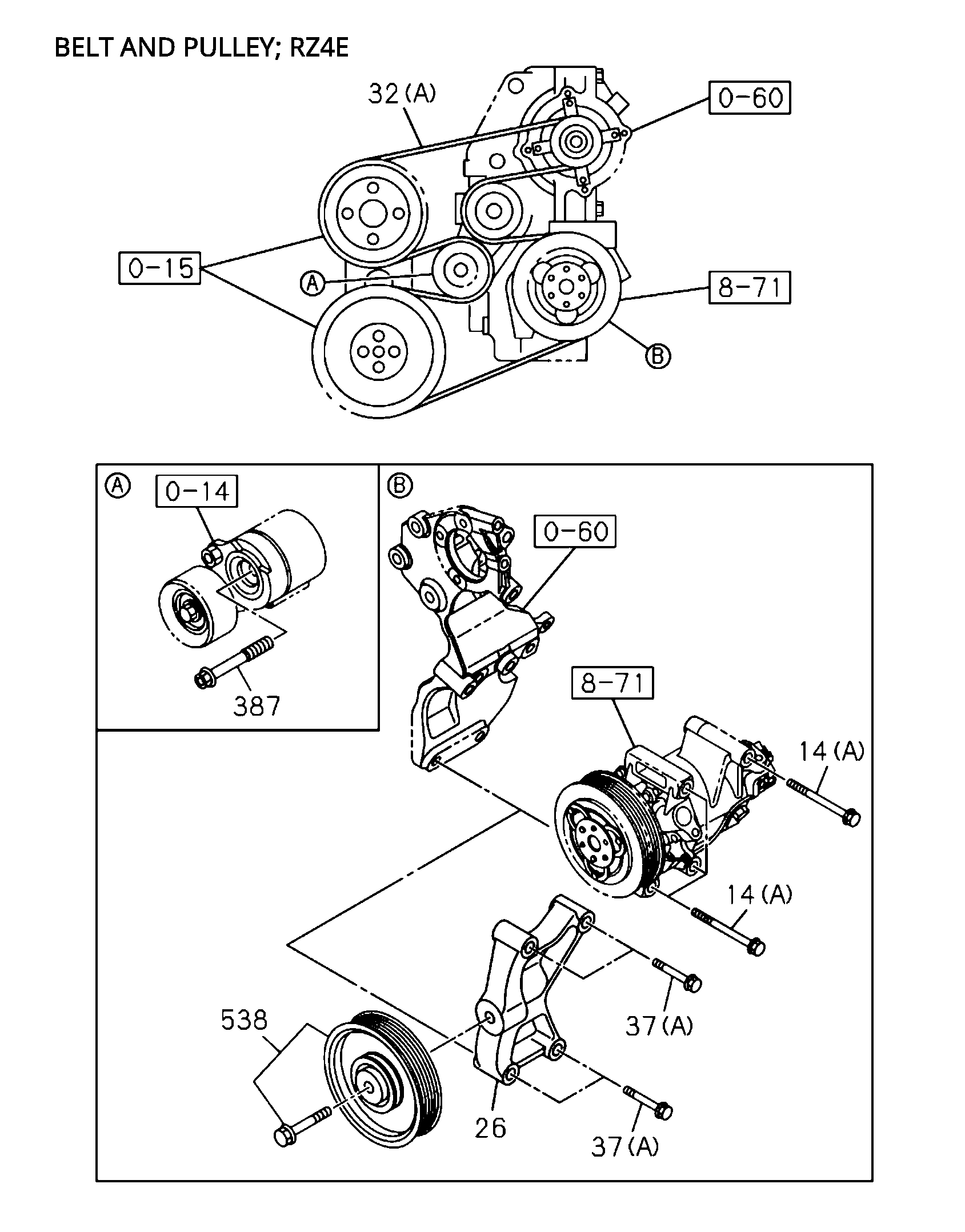

| 387 | I8-98481 251-0 | BOLT, TENSIONER FIX | 1 | 2311- | M12X84 FLA | (D-MAX 2024) | ||

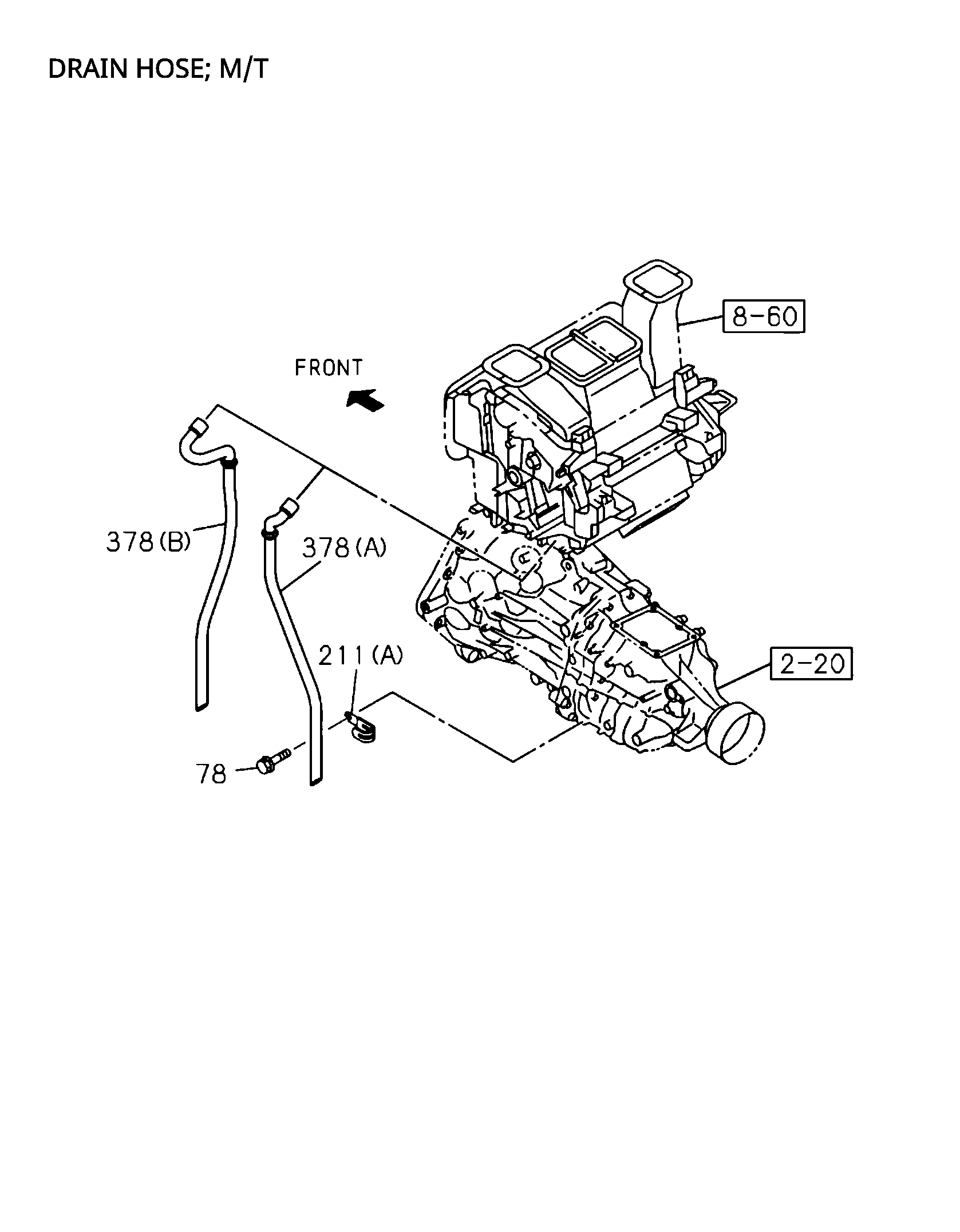

| 78 | I0-28050 612-0 | BOLT, STAY,PRESSURE REG | 1 | 2311- | M6X12 FLAN | (D-MAX 2024) | ||
| 32 | I8-98383 501-0 | BELT, A/C CMPR | 1 | 2311- | (A) L=199 | (D-MAX 2024) | ||

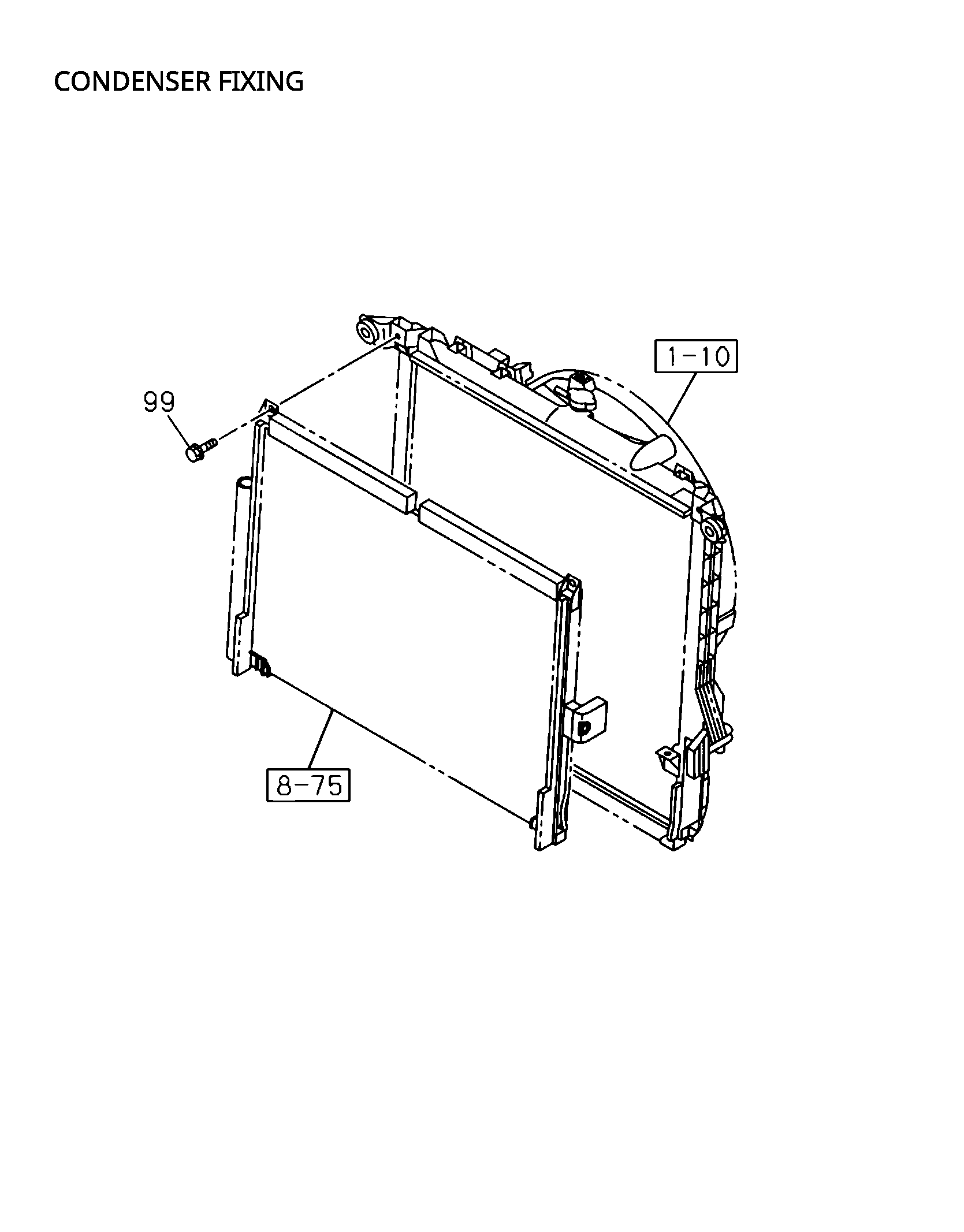

| 99 | I8-98056 282-0 | BOLT, HINGE | 2 | 2311- | M6X20 W/WA | (D-MAX 2024) | ||

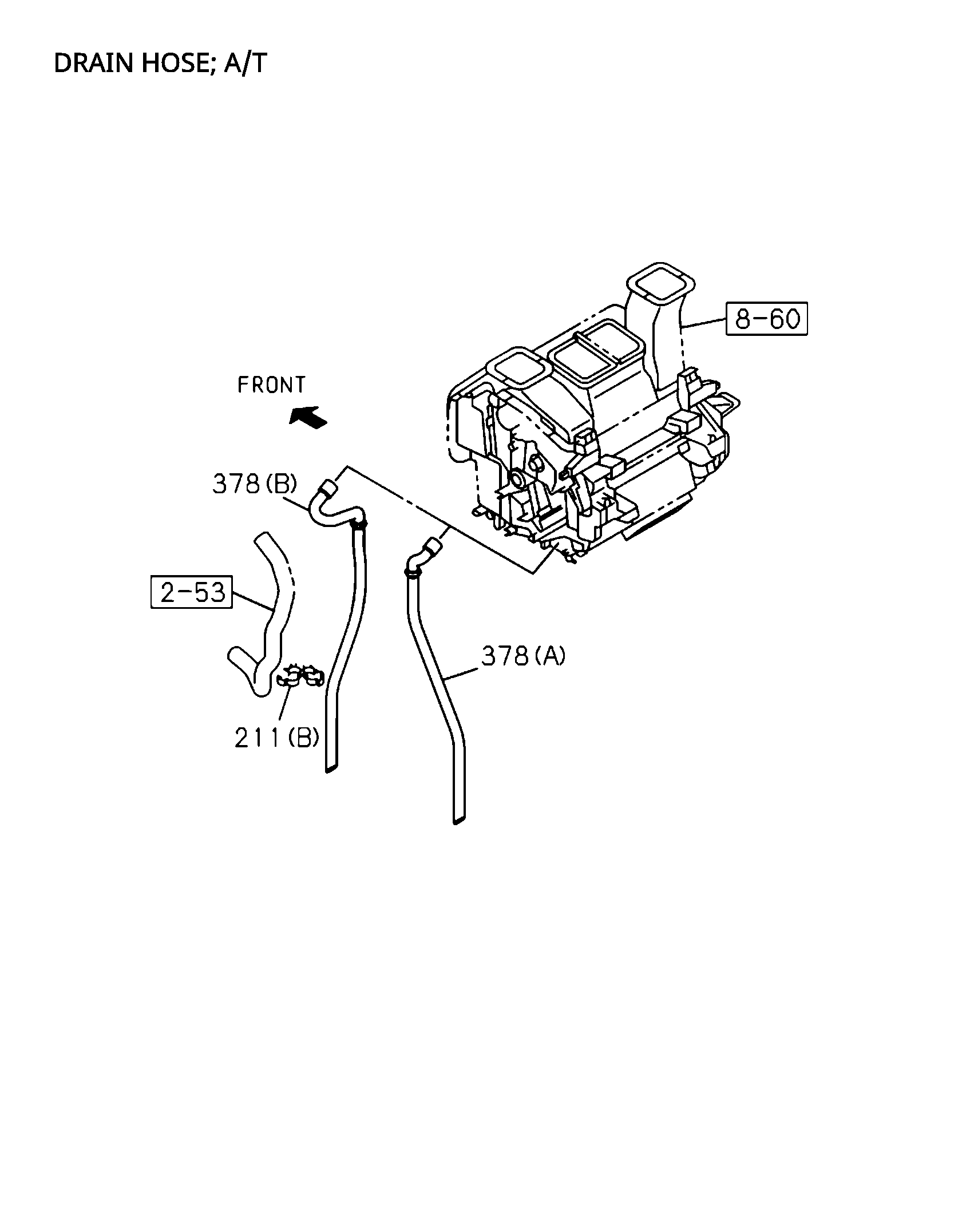

| 211 | I8-97375 643-0 | CLIP, CABLE | 1 | 2311- | (A) ID=22 | (D-MAX 2024) |
