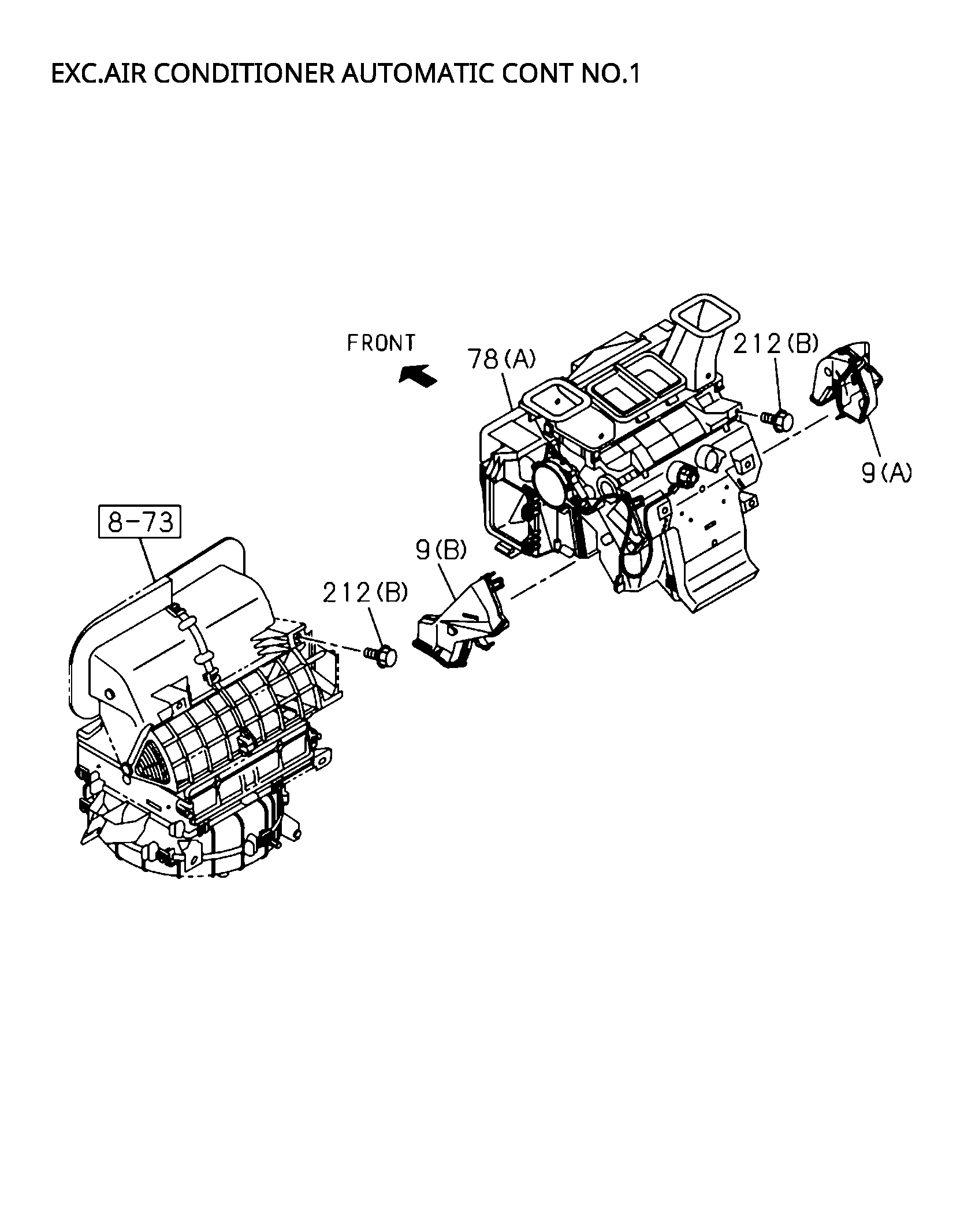

8-60 | HEATER UNIT, FRONT
DMAX
D-MAX 2024

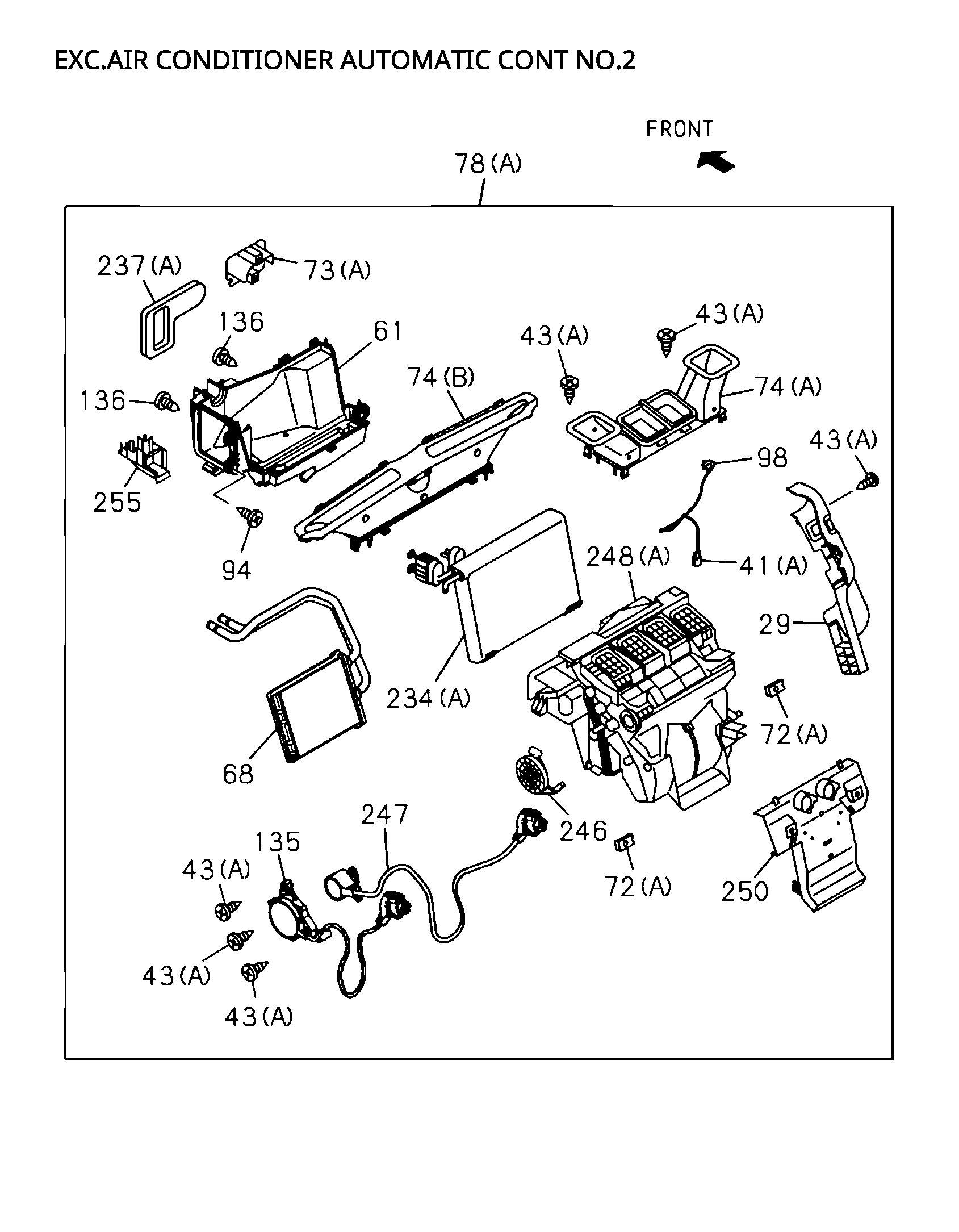

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 248 | I8-97553 882-0 | CASE ASM, HTR UNIT | 1 | 2311- | (A) | (D-MAX 2024) | ||
| 98 | I8-98157 122-0 | CLIP, HTR UNIT | 1 | 2311- | (D-MAX 2024) | |||
| 9 | I8-97523 815-0 | DUCT, HTR UNIT | 1 | 2311- | (B) | (D-MAX 2024) | ||
| 43 | I8-98233 593-0 | SCREW, HTR UNIT | 15 | 2311- | (A) | (D-MAX 2024) | ||
| 41 | I8-98139 382-0 | THERMOSTAT, HTR UNIT | 1 | 2311- | (A) | (D-MAX 2024) | ||
| 250 | I8-97553 467-0 | COVER | 1 | 2311- | (D-MAX 2024) | |||
| 72 | I8-98139 394-1 | NUT, CASE,HTR UNIT | 3 | 2311- | (A) | (D-MAX 2024) | ||
| 94 | I8-98233 593-0 | SCREW, HTR UNIT | 2 | 2311- | (D-MAX 2024) | |||
| 212 | I0-28650 620-0 | BOLT, BALANCE SPRING | 5 | 2311- | (B) M6X20 | (D-MAX 2024) | ||
| 78 | I8-97553 642-0 | HEATER ASM, SUB | 1 | 2311- | (A) | (D-MAX 2024) | ||
| 73 | I8-97553 497-0 | PLATE, HTR UNIT | 1 | 2311- | (A) | (D-MAX 2024) | ||
| 246 | I8-98139 397-1 | ACTUATOR, MODE | 1 | 2311- | (D-MAX 2024) | |||
| 9 | I8-97523 814-0 | DUCT, HTR UNIT | 1 | 2311- | (A) | (D-MAX 2024) | ||
| 135 | I8-97553 631-0 | COVER, HTR | 1 | 2311- | (D-MAX 2024) | |||
| 237 | I8-97553 633-0 | INSULATOR, EVAPORATOR | 1 | 2311- | (A) | (D-MAX 2024) | ||
| 136 | I8-98233 593-0 | SCREW, HTR UNIT | 2 | 2311- | (D-MAX 2024) | |||
| 255 | I8-97553 641-0 | COVER | 1 | 2311- | (D-MAX 2024) | |||
| 74 | I8-97829 093-0 | DUCT, HTR UNIT | 1 | 2311- | (A) | (D-MAX 2024) | ||
| 61 | I8-97553 626-0 | CASE, HTR UNIT | 1 | 2311- | (D-MAX 2024) | |||
| 234 | I8-97829 079-0 | EVAPORATOR ASM, HEATER | 1 | 2311- | (A) | (D-MAX 2024) |
