| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8t DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8< DEFROSTER(C42) REAR HEATER DUCT<S8C> POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (A) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER & DEFROSTER(C42) EXC. RR COOLER<7UL> |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (A) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> (a) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 142 |
I8-97555 444-0 |
|
CASE ASM |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61 ) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42) REAR HEATER DUCT<S8C> (A) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C6?) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
B D |
AIR CONDITIONER MANUAL CONT(C6?) EXC. IDLE STOP SYSTEM<8BM>,POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 142 |
I8-97555 444-0 |
|
CASE ASM |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61 ) EXC. IDLE STOP SYSTEM<8BM> (B) |
| 10 |
I8-97555 458-0 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42) REAR HEATER DUCT<S8C> (A) |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) (A) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8t DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8t DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 37 |
I8-97555 449-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> (B) |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER & DEFROSTER(C42) EXC. RR COOLER<7UL> (A) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER & DEFROSTER(C42) (A) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (A) |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (a) |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (a) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
A |
(D-MAX 2024) |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> (A) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> (a) |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8< DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) (a) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (A) |
| 92 |
I8-97555 447-0 |
|
MOTOR ASM, SERVO |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) |
| 50 |
I8-97555 454-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> (a) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> (A) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (a) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (a) |
| 107 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61 ) |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C6?) REAR HEATER DUCT<S8C>,RR COOLER<7UL> POLLEN FILTER FOR AIR CONDITIONER<8CM> (a) |
| 1 |
I8-97556 138-0 |
|
BLOWER ASM |
1 |
2311- |
|
D F |
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM>,POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
E |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (a) |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL C?NT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 42 |
I8-97555 450-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61 ) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) EXC. RR COOLER<7UL> (a) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (a) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 3 |
I8-97555 459-0 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
F |
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM>,POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8. DEFROSTER(C42) (A) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) EXC. RR COOLER<7UL> |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
B |
(D-MAX 2024) HEATER & DEFROSTER(C42) (A) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (a) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (a) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42) REAR HEATER DUCT<S8C> |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> (a) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 14 |
I8-97555 457-0 |
|
SCREW, COVER TO CASE |
3 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (A) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C6D) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. RR COOLER<7UL> (A) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 78 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
5 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (A) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 141 |
I8-97555 567-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER & DEFROSTER(C42) EXC. RR COOLER<7UL> (A) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
c |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. REAR HEATER DUCT<S8C> (A) |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> (a) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
B |
(D-MAX 2024) HEATER & DEFROSTER(C42) (A) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER & DEFROSTER(C42) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
A |
(D-MAX 2024) (a) |
| 1 |
I8-97556 139-0 |
|
BLOWER ASM |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. IDLE STOP SYSTEM<8BM> (B) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8< DEFROSTER(C42) REAR HEATER DUCT<S8C> (A) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER & DEFROSTER(C42) EXC. RR COOLER<7UL> (A) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> (A) |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION^) (A) |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. POLLEN FILTER FORAIRCONDITIONER<8CM> (A) |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
F |
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM>,POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
D F |
HEATER & DEFROSTER(C42) EXC. RR COOLER<7UL>,POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
B |
HEATER & DEFROSTER(C42) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
D F |
(D-MAX 2024) HEATER & DEFROSTER(C42) EXC. RR COOLER<7UL> (A) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> (A) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 37 |
I8-97555 449-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8. DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (A) |
| 1 |
I8-97556 138-0 |
|
BLOWER ASM |
1 |
2311- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8. DEFROSTER(C42) (a) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) (A) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (a) |
| 50 |
I8-97555 454-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> (B) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 54 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 107 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61 ) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 92 |
I8-97555 447-0 |
|
MOTOR ASM, SERVO |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (a) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> (a) |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (A) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 78 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
5 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42) REAR HEATER DUCT<S8C> |
| 141 |
I8-97555 567-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> (B) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42) REAR HEATER DUCT<S8C> (a) |
| 54 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 107 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61 ) EXC. IDLE STOP SYSTEM<8BM> |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER & DEFROSTER(C42) EXC. RR COOLER<7UL> (A) |
| 141 |
I8-97553 721-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (a) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (a) |
| 142 |
I8-97555 444-0 |
|
CASE ASM |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61 ) (B) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (A) |
| 42 |
I8-97555 450-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61 ) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> (A) |
| 1 |
I8-97556 139-0 |
|
BLOWER ASM |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER & DEFROSTER(C42) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. RR COOLER<7UL> (A) |
| 1 |
I8-97556 139-0 |
|
BLOWER ASM |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (a) |
| 14 |
I8-97555 457-0 |
|
SCREW, COVER TO CASE |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42) REAR HEATER DUCT<S8C> |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER &. DEFROSTER(C42) REAR HEATER DUCT<S8C> |
| 42 |
I8-97555 450-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61 ) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. IDLE STOP SYSTEM<8BM> (B) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8t DEFROSTER(C42) |
| 26 |
I8-97555 455-0 |
|
TRANSISTOR, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61 ) EXC. IDLE STOP SYSTEM<8BM> |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
c |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8t DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. REAR HEATER DUCT<58C>,RR COOLER<7UL> (A) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A) |
| 50 |
I8-97555 454-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8t DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (A) |
| 3 |
I8-97555 459-0 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 34 |
I8-97555 460-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) (a) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) EXC. RR COOLER<7UL> |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 54 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8< DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C6D) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> (A) |
| 92 |
I8-97555 447-0 |
|
MOTOR ASM, SERVO |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8. DEFROSTER(C42) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> (a) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
B |
(D-MAX 2024) HEATER & DEFROSTER(C42) |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) EXC. IDLE STOP SYSTEM<8BM> (A) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) EXC. RR COOLER<7UL> |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (A) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER Si DEFROSTER(C42) REAR HEATER DUCT<S8C> |
| 10 |
I8-97555 458-0 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8< DEFROSTER(C42) EXC. RR COOLER<7UL> |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (a) |
| 26 |
I8-97555 455-0 |
|
TRANSISTOR, BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61 ) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION^) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) EXC. RR COOLER<7UL> |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
F |
COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM>,POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8t DEFROSTER(C42) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
B |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 50 |
I8-97553 735-0 |
|
COVER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (a) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) EXC. RR COOLER<7UL> (A) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 3 |
I8-97555 459-0 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> (B) |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (A) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42) REAR HEATER DUCT<S8C> |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
C |

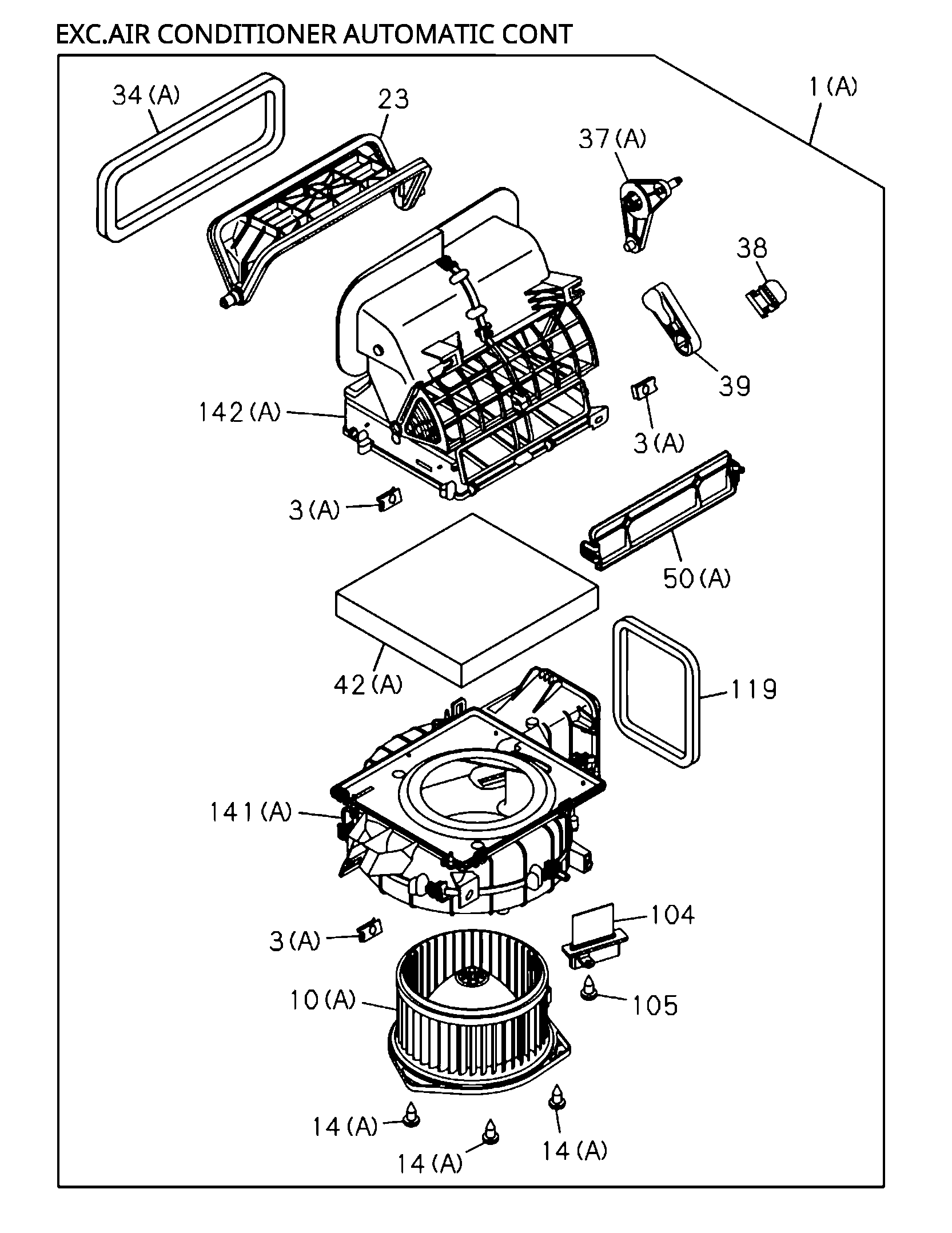

(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8t DEFROSTER(C42) REAR HEATER DUCT<S8C> POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 34 |
I8-97555 460-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
D F |

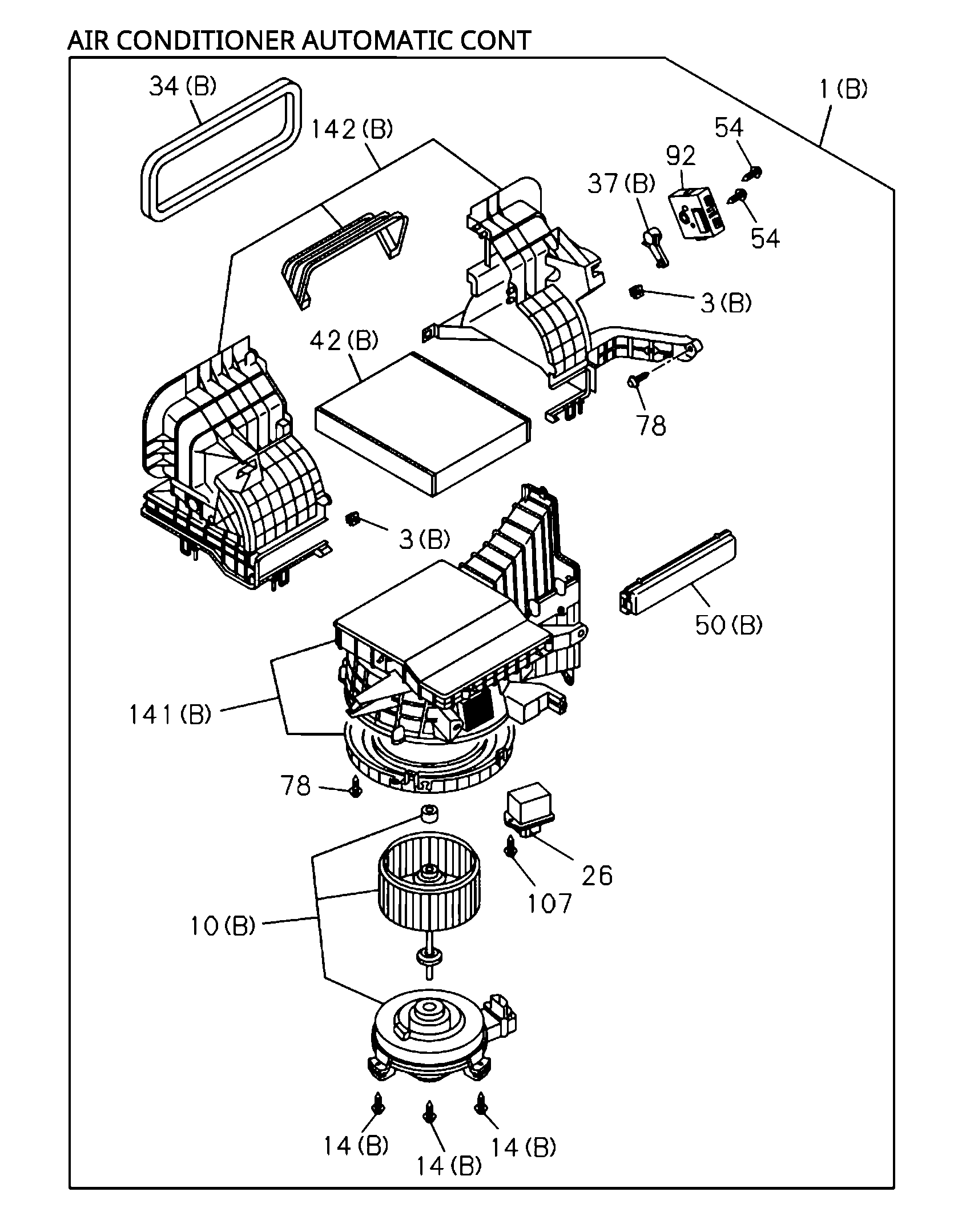

(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> (B) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 3 |
I8-98139 394-1 |
|
NUT, CASE,HTR UNIT |
3 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL>,IDLE STOP SYSTEM<8BM> (A) |
| 26 |
I8-97555 455-0 |
|
TRANSISTOR, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61 ) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (a) |
| 39 |
I8-97654 251-0 |
|
LEVER, SHUTTER,BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (A) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) HEATER 8c DEFROSTER(C42) EXC. RR COOLER<7UL> (A) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (A) |
| 38 |
I8-98139 422-1 |
|
CLIP, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. REAR HEATER DUCT<S8C> (a) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> |
| 105 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
2 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) |
| 37 |
I8-97553 727-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8t DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (A) |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8. DEFROSTER(C42) REAR HEATER DUCT<S8C> (A) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. IDLE STOP SYSTEM<8BM> (a) |
| 23 |
I8-97829 094-0 |
|
SHUTTER, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 14 |
I8-98233 593-0 |
|
SCREW, HTR UNIT |
3 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 10 |
I8-97553 732-1 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) COOLER W/FRESH AIR(C65) RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> (A) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
F |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>,RR COOLER<7UL> EXC. IDLE STOP SYSTEM<8BM> |
| 141 |
I8-97555 567-0 |
|
CASE ASM, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> |
| 1 |
I8-97553 697-1 |
|
BLOWER ASM |
1 |
2311- |
|
C |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>,POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) |
| 10 |
I8-97555 458-0 |
|
MOTOR ASM, FAN,BLOWER UNIT |
1 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> (B) |
| 119 |
I8-97553 730-0 |
|
LINING, CASE |
1 |
2311- |
|
B D |
(D-MAX 2024) AIR CONDITIONER MANUAL CONT(C6?) EXC. IDLE STOP SYSTEM<8BM> |
| 1 |
I8-97553 696-1 |
|
BLOWER ASM |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 78 |
I8-97555 456-0 |
|
SCREW, HTR UNIT |
5 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) |
| 37 |
I8-97555 449-0 |
|
LEVER, MODE LEVER |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>,RR COOLER<7UL> IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) (B) |
| 34 |
I8-97553 731-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8. DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,RR COOLER<7UL> (A) |
| 104 |
I8-97553 738-0 |
|
RESISTOR, BLOWER UNIT |
1 |
2311- |
|
B D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) AIR CONDITIONER MANUAL CONT(C60) IDLE STOP SYSTEM<8BM> POLLEN FILTER FOR AIR CONDITIONER<8CM> EUR06D SPECIFICATION(8SJ) |
| 42 |
I8-97548 842-0 |
|
FILTER, BLOWER UNIT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (a) |
| 34 |
I8-97555 460-0 |
|
LINING, BLOWER UNIT |
1 |
2311- |
|
C |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 142 |
I8-97553 722-0 |
|
CASE ASM |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) HEATER 8t DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65) (A) |
| 14 |
I8-97555 457-0 |
|
SCREW, COVER TO CASE |
3 |
2311- |
|
D F |
(D-MAX 2024) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. IDLE STOP SYSTEM<8BM> (B) |
