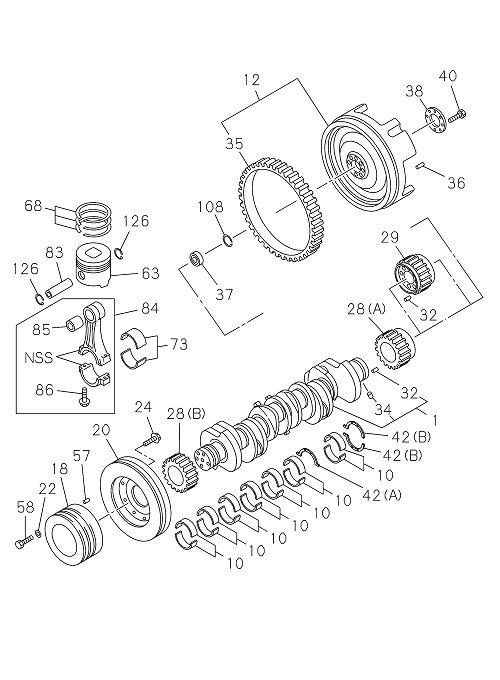

0-15 | CRANKSHAFT,PISTON AND FLYWHEEL
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 086 | I8-98091 141-0 | BOLT; CONNROD | 12 | 2302- | FVZ-N | M13X57 FLANGE | ||
| 012 | I8-97520 862-A | FLYWHEEL | 1 | 2302- | FVZ-N | |||
| 063 | I8-98215 307-0 | PISTON | 6 | 2302- | FVZ-N | NON GRADE | ||
| 083 | I8-98018 863-1 | PIN; PISTON | 6 | 2302- | FVZ-N | |||
| 068 | I8-98040 125-A | RING SET; PISTON,STANDARD | 6 | 2302- | FVZ-N | |||
| 085 | I8-94391 794-1 | BUSHING; CONNROD | 6 | 2302- | FVZ-N | |||
| 042 | I8-97386 548-0 | WASHER; THRUST,CR/SHF | 1 | 2302- | FVZ-N | (A) | ||
| 073 | I8-97616 358-0 | METAL SET; CONN ROD,STANDARD | 6 | 2302- | FVZ-N | GREEN | ||
| 010 | I8-97372 078-1 | METAL SET; CRANKSHAFT, STANDARD | 7 | 2302- | FVZ-N | BROWN | ||
| 040 | I8-94393 070-2 | BOLT; FLYWHEEL | 8 | 2302- | FVZ-N | M16X62 | ||
| 024 | I0-28151 016-0 | BOLT; DAMPER | 6 | 2302- | FVZ-N | M10X16 FLANGE | ||
| 022 | I9-09851 935-0 | PLATE; PULLEY | 4 | 2302- | FVZ-N | ID=17 OD=30 | ||
| 032 | I9-08150 816-0 | PIN; FLYWHEEL | 2 | 2302- | FVZ-N | OD=8 L=16 | ||
| 057 | I8-94391 156-0 | PIN; PULLEY | 1 | 2302- | FVZ-N | OD=8 L=16 | ||
| 028 | I8-94396 954-2 | GEAR; CR/SHF | 1 | 2302- | FVZ-N | (B) Z=41 | ||
| 037 | I8-94392 288-0 | BEARING; PILOT,TOP GEAR SHAFT | 1 | 2302- | FVZ-N | |||
| 038 | I8-94397 496-A | WASHER; FLYWHEEL | 1 | 2302- | FVZ-N | ID=55 OD=110 | ||
| 126 | I8-98006 828-0 | RING; SNAP,PISTON PIN | 12 | 2302- | FVZ-N | OD=43.7 | ||
| 010 | I8-97372 076-1 | METAL SET; CRANKSHAFT, STANDARD | 7 | 2302- | FVZ-N | BLUE | ||
| 010 | I8-97372 077-1 | METAL SET; CRANKSHAFT, STANDARD | 7 | 2302- | FVZ-N | BLACK | ||
| 073 | I8-97616 359-0 | METAL SET; CONN ROD,STANDARD | 6 | 2302- | FVZ-N | YELLOW | ||
| 084 | I8-98018 425-3 | ROD ASM; CONN | 6 | 2302- | FVZ-N | |||
| 001 | I8-97603 004-1 | CRANKSHAFT | 1 | 2302- | FVZ-N | |||
| 036 | I9-08151 020-0 | PIN; FLYWHEEL | 2 | 2302- | FVZ-N | OD=10 L=22 | ||
| 018 | I8-97606 944-0 | PULLEY; CR/SHF | 1 | 2302- | FVZ-N | 3-GROOVE | ||
| 042 | I8-97386 549-0 | WASHER; THRUST,CR/SHF | 2 | 2302- | FVZ-N | (B) | ||
| 035 | I8-94396 784-A | GEAR; RING | 1 | 2302- | FVZ-N | Z=140 | ||
| 108 | I9-09180 155-0 | RING; SNAP,BRG SET | 1 | 2302- | FVZ-N | OD=59.2 | ||
| 028 | I8-94392 255-1 | GEAR; CR/SHF | 1 | 2302- | FVZ-N | (A) Z=42 | ||
| 037 | I6-94392 288-0 | BEARING; PILOT,TOP GEAR SHAFT | 1 | 2302- | FVZ-N | (IADG) | ||
| 058 | I0-20951 650-0 | BOLT; CR/SHF PULLEY | 4 | 2302- | FVZ-N | M16X50 | ||
| 020 | I8-97613 696-1 | DAMPER; CR/SHF | 1 | 2302- | FVZ-N | |||
| 034 | I9-09878 626-0 | PIN; GEAR SETTING | 1 | 2302- | FVZ-N | OD=5 L=6 |
