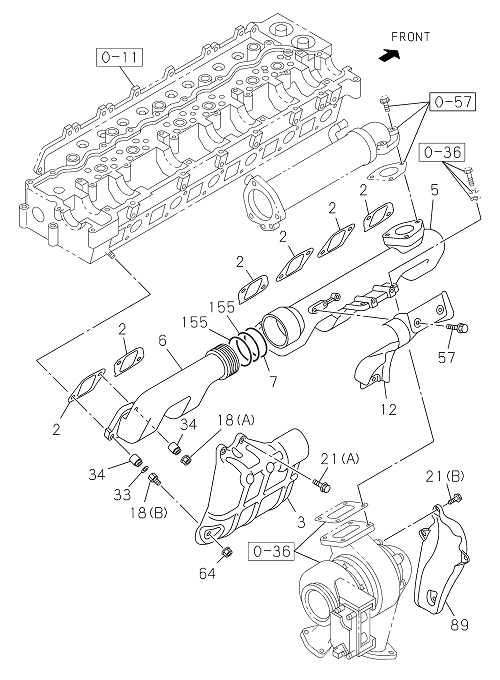

0-27 | EXHAUST MANIFOLD
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 064 | I7-05110 010-A | NUT; HEAT PROTECTOR | 2 | 2302- | FVZ-N | M10 FLANGE | ||
| 007 | I1-14149 151-0 | RING; SEAL,EXH MANIF | 1 | 2302- | FVZ-N | STAMP RH | ||
| 018 | I0-91370 010-0 | NUT; EXH MANIF | 10 | 2302- | FVZ-N | (A) M10 LOCK NUT | ||
| 005 | I8-97604 942-1 | MANIFOLD; EXH,FRT | 1 | 2302- | FVZ-N | |||
| 033 | I1-09556 015-0 | WASHER; EXH MANIF | 2 | 2302- | FVZ-N | T=2.2 | ||
| 155 | I1-14149 184-0 | RING; SEAL,EXH MANIF | 2 | 2302- | FVZ-N | |||
| 021 | I0-28050 816-0 | BOLT; BRKT | 2 | 2302- | FVZ-N | (A) M8X16 FLANGE | ||
| 006 | I8-97604 944-0 | MANIFOLD; EXH,RR | 1 | 2302- | FVZ-N | |||
| 057 | I0-28050 812-A | BOLT; BRKT | 3 | 2302- | FVZ-N | M8X14 FLANGE | ||
| 018 | I8-98205 394-0 | NUT; EXH MANIF | 2 | 2302- | FVZ-N | (B) M10 | ||
| 012 | I8-97610 717-3 | PROTECTOR; HEAT,TURBOCHARGER, EXH MANIF | 1 | 2302- | FVZ-N | |||
| 089 | I8-97611 985-3 | PROTECTOR; HEAT | 1 | 2302- | FVZ-N | |||
| 021 | I0-28050 812-A | BOLT; BRKT | 4 | 2302- | FVZ-N | (B) M8X14 FLANGE | ||
| 002 | I8-94393 672-4 | GASKET; EXH MANIF TO HD | 6 | 2302- | FVZ-N | |||
| 034 | I8-97250 073-1 | COLLAR; DIST,EXH MANIF | 12 | 2302- | FVZ-N | L=28 | ||
| 003 | I8-98205 395-0 | PROTECTOR; HEAT,EXH MANIF | 1 | 2302- | FVZ-N |
