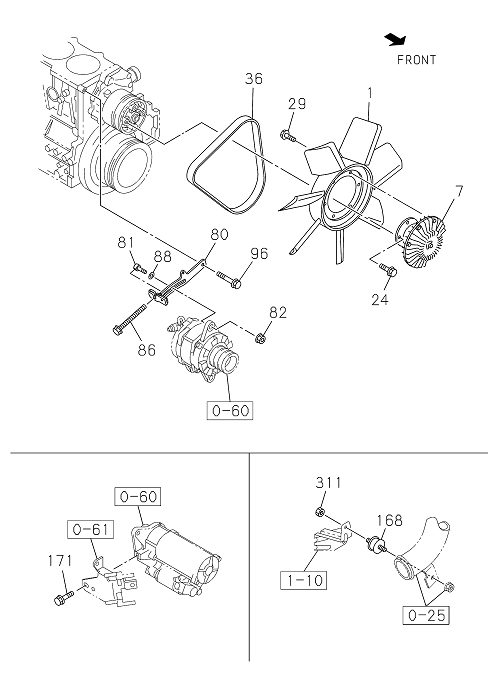

0-33 | FAN AND FAN BELT
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 024 | I0-28151 025-0 | BOLT; FAN | 4 | 2302- | FVZ-N | M10X25 FLANGE | ||
| 080 | I8-97601 020-1 | PLATE; ADJ | 1 | 2302- | FVZ-N | |||
| 171 | I0-28051 020-0 | BOLT; HEAT PROTECTOR | 1 | 2302- | FVZ-N | M10X20 FLANGE | ||
| 081 | I1-13674 160-0 | PIECE; SLIDING | 1 | 2302- | FVZ-N | M12X45 | ||
| 001 | I8-98073 467-1 | FAN; COOLING | 1 | 2302- | FVZ-N | OD=560 | ||
| 311 | I0-91180 108-0 | NUT; OIL PAN | 1 | 2302- | FVZ-N | M8 FLANGE | ||
| 088 | I0-91614 712-0 | WASHER; PL,ADJ PLATE | 1 | 2302- | FVZ-N | ID=12.5 OD=32 | ||
| 096 | I0-28051 045-0 | BOLT; ADJ PLATE | 1 | 2302- | FVZ-N | M10X45 FLANGE | ||
| 007 | I8-98075 290-1 | COUPLING; FAN | 1 | 2302- | FVZ-N | |||
| 029 | I0-28050 816-0 | BOLT; BRKT | 6 | 2302- | FVZ-N | M8X16 FLANGE | ||
| 168 | I8-98148 109-0 | RUBBER; MTG | 1 | 2302- | FVZ-N | |||
| 086 | I1-09009 114-1 | BOLT; ADJ | 1 | 2302- | FVZ-N | M10X155 FLANGE | ||
| 082 | I0-91180 112-0 | NUT; ADJ PLATE | 1 | 2302- | FVZ-N | M12 FLANGE | ||
| 036 | I8-97611 859-A | BELT; COOLING FAN | 1 | 2302- | FVZ-N | L=1170 MITSUBOSHI |
