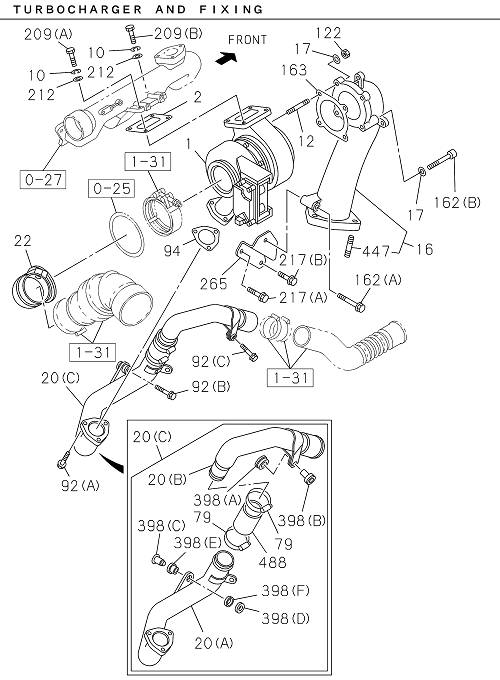

0-36 | TURBOCHARGER SYSTEM
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 209 | I8-98049 825-0 | BOLT; BRACE,TURBOCHARGER | 2 | 2302- | FVZ-N | (B) M10X80 | ||
| 115 | I8-97610 087-2 | PIPE; WATER,TURBOCHARGER OUT | 1 | 2302- | FVZ-N | |||
| 092 | I0-28650 835-0 | BOLT; INL PIPE | 1 | 2302- | FVZ-N | (B) M8X35 FLANGE | ||
| 217 | I0-28660 820-0 | BOLT; BRKT | 1 | 2302- | FVZ-N | (A) M8X20 FLANGE | ||
| 398 | I8-94160 177-0 | MOUNTING | 1 | 2302- | FVZ-N | (F) ID=19 OD=26 | ||
| 094 | I8-98053 830-0 | GASKET; INL PIPE | 1 | 2302- | FVZ-N | ID=55 | ||
| 020 | I8-98046 169-2 | PIPE; INL,TURBOCHARGER OUT | 1 | 2302- | FVZ-N | (B) | ||
| 016 | I8-98018 241-1 | ADAPTER; EXH PIPE | 1 | 2302- | FVZ-N | |||
| 092 | I0-28650 830-0 | BOLT; GEAR CASE | 3 | 2302- | FVZ-N | (A) M8X30 FLANGE | ||
| 162 | I0-28051 060-0 | BOLT; ADAPTER | 1 | 2302- | FVZ-N | (A) M10X60 FLANGE | ||
| 002 | I8-97024 124-0 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 2302- | FVZ-N | |||
| 020 | I8-98251 581-1 | PIPE; INL,TURBOCHARGER OUT | 1 | 2302- | FVZ-N | (C) | ||
| 079 | I1-09707 136-0 | CLIP; RUBBER HOSE | 2 | 2302- | FVZ-N | ID=58-79 | ||
| 021 | I0-28050 816-0 | BOLT; BRKT | 2 | 2302- | FVZ-N | M8X16 FLANGE | ||
| 265 | I8-98253 331-1 | BRACKET; EXH PIPE | 1 | 2302- | FVZ-N | |||
| 398 | I8-94390 551-1 | MOUNTING | 1 | 2302- | FVZ-N | (C) OD=28 | ||
| 017 | I5-09500 012-0 | WASHER; PL,ADAPTER | 4 | 2302- | FVZ-N | ID=8.4 T=1.4 | ||
| 398 | I8-94394 504-0 | MOUNTING | 1 | 2302- | FVZ-N | (D) ID=13 OD=28 | ||
| 020 | I8-98046 168-1 | PIPE; INL,TURBOCHARGER OUT | 1 | 2302- | FVZ-N | (A) | ||
| 163 | I8-94392 553-2 | GASKET; ADAPTER TO EXH PIPE | 1 | 2302- | FVZ-N | ID=83 | ||
| 447 | I0-44011 230-0 | STUD; ADAPTER | 3 | 2302- | FVZ-N | M12X30 L=48 | ||
| 513 | I8-98251 345-0 | GASKET; WATER PIPE,AIR CMPR | 1 | 2302- | FVZ-N | ID=14.2 OD=19.2 | ||
| 398 | I8-94394 529-0 | MOUNTING | 1 | 2302- | FVZ-N | (E) OD=26 | ||
| 092 | I0-28650 840-0 | BOLT; INL PIPE | 1 | 2302- | FVZ-N | (C) M8X40 FLANGE | ||
| 022 | I8-98222 738-0 | DUCT; INL,ACL TO TURBOCHARGER | 1 | 2302- | FVZ-N | |||
| 012 | I8-94476 282-0 | STUD; TURBOCHARGER | 2 | 2302- | FVZ-N | M8X25 L=36 | ||
| 398 | I8-97105 689-A | MOUNTING | 1 | 2302- | FVZ-N | (B) OD=23 | ||
| 209 | I9-09604 007-1 | BOLT; BRACE,TURBOCHARGER | 2 | 2302- | FVZ-N | (A) M10X40 | ||
| 137 | I8-98046 783-0 | PIPE; WATER,TURBOCHARGER IN | 1 | 2302- | FVZ-N | |||
| 398 | I8-94395 766-0 | MOUNTING | 1 | 2302- | FVZ-N | (A) OD=32 | ||
| 010 | I1-09556 015-0 | WASHER; EXH MANIF | 4 | 2302- | FVZ-N | T=2.2 | ||
| 001 | I8-97604 975-9 | TURBOCHARGER ASM | 1 | 2302- | FVZ-N | |||
| 122 | I1-09400 118-1 | NUT; ADAPTER | 2 | 2302- | FVZ-N | M8 | ||
| 212 | I1-09503 222-0 | WASHER; PL,TURBOCHARGER | 4 | 2302- | FVZ-N | ID=10 | ||
| 162 | I8-98158 604-0 | BOLT; ADAPTER | 2 | 2302- | FVZ-N | (B) M8X60 | ||
| 512 | I8-98031 856-0 | CONNECTOR; TURBO | 1 | 2302- | FVZ-N | |||
| 488 | I8-98245 242-1 | HOSE; RUBBER | 1 | 2302- | FVZ-N | ID=52.5 L=70 | ||
| 217 | I0-28751 025-0 | BOLT; ENG HANGER | 1 | 2302- | FVZ-N | (B) M10X25 FLANGE |
