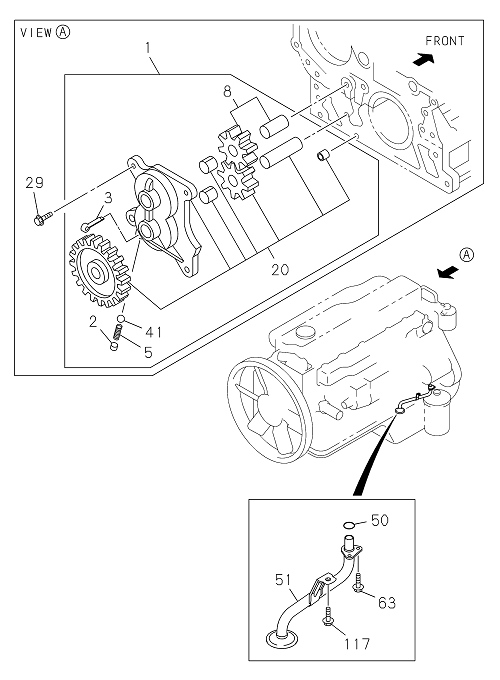

0-51 | OIL PUMP AND OIL STRAINER
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 041 | I5-09843 003-0 | BALL; OIL RELIEF VLV | 1 | 2302- | FVZ-N | |||
| 051 | I8-98204 158-0 | STRAINER & PIPE ASM; OIL | 1 | 2302- | FVZ-N | |||
| 029 | I0-28050 825-0 | BOLT; OIL PUMP | 4 | 2302- | FVZ-N | M8X25 FLANGE | ||
| 002 | I5-13165 004-0 | SEAT; SPR | 1 | 2302- | FVZ-N | |||
| 003 | I0-81124 030-0 | PIN; SPLIT | 1 | 2302- | FVZ-N | L=30 | ||
| 008 | I8-97641 838-0 | GEAR; DRIVEN,OIL PUMP | 1 | 2302- | FVZ-N | |||
| 005 | I5-09580 098-0 | SPRING; COIL | 1 | 2302- | FVZ-N | |||
| 063 | I0-58330 816-0 | BOLT; OIL PIPE,STRAINER TO PUMP | 2 | 2302- | FVZ-N | M8X16 HEX SOCKET | ||
| 117 | I8-94399 669-1 | BOLT; STAY TO CRANKCASE | 1 | 2302- | FVZ-N | M10X75 FLANGE | ||
| 001 | I8-97641 835-0 | PUMP ASM; OIL | 1 | 2302- | FVZ-N | |||
| 050 | I8-94399 398-0 | GASKET; OIL PIPE,STRAINER TO PUMP | 1 | 2302- | FVZ-N | ID=24.5 | ||
| 020 | I8-97641 839-0 | GEAR; DRIVE,OIL PUMP | 1 | 2302- | FVZ-N |
