0-60 | ENGINE ELECTRICAL CONTROL PARTS
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

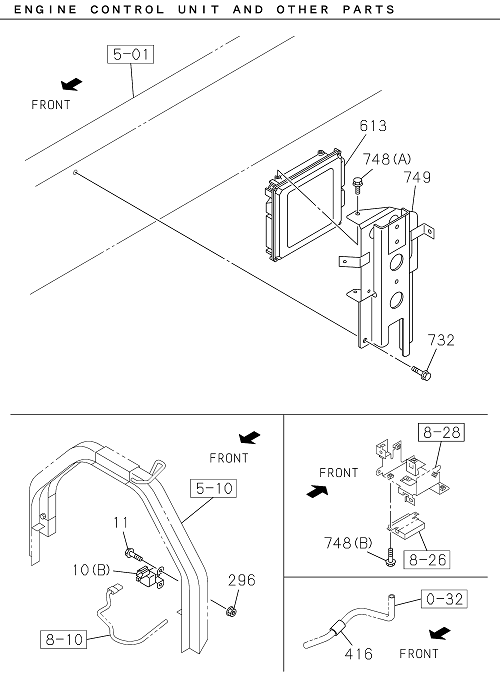

| 613 | I8-97551 770-0 | CONTROL UNIT; ENG | 1 | 2302- | FVZ-N | FVZ-N; FVZ-U | ||
| 606 | I8-98359 601-2 | BRACKET; CONT UNIT | 1 | 2302- | FVZ-N | |||
| 026 | I0-28151 080-0 | BOLT; GEN BRKT | 2 | 2302- | FVZ-N | (B) M10X80 FLANGE | ||
| 019 | I8-98082 615-1 | BRACKET; GEN | 1 | 2302- | FVZ-N | |||
| 010 | I8-98005 631-1 | RELAY; STARTER | 1 | 2302- | FVZ-N | (B) 24V | ||
| 026 | I0-28151 040-0 | BOLT; GEN BRKT | 2 | 2302- | FVZ-N | (A) M10X40 FLANGE | ||

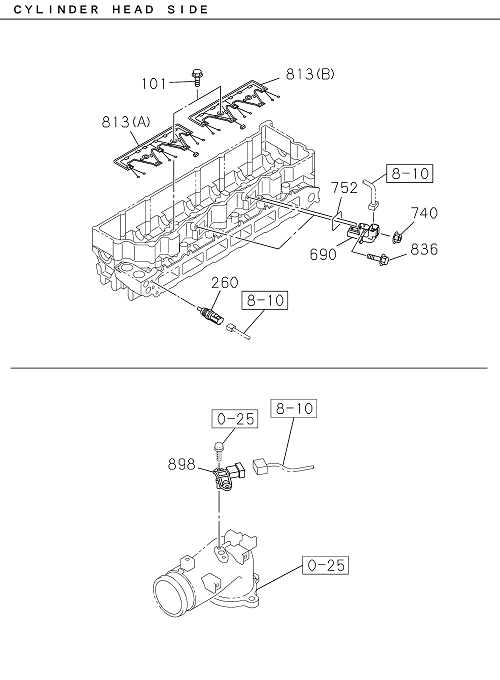

| 813 | I8-98204 718-0 | HARNESS; INJECTOR | 1 | 2302- | FVZ-N | (B) REAR | ||
| 056 | I1-82410 170-1 | SWITCH; OIL PRESSURE WARNING | 1 | 2302- | FVZ-N | |||
| 898 | I8-98009 418-0 | SENSOR; BOOST | 1 | 2302- | FVZ-N | |||

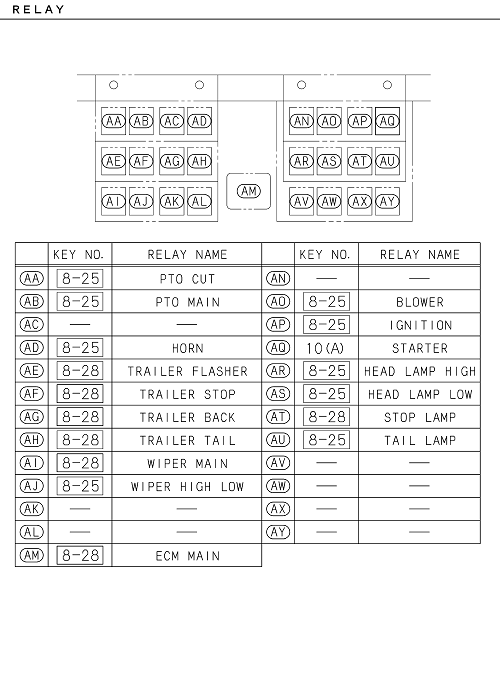

| 010 | I8-98167 173-0 | RELAY; STARTER | 1 | 2302- | FVZ-N | (A) 24V 10A | ||
| 836 | I0-28050 812-A | BOLT; BRKT | 2 | 2302- | FVZ-N | M8X12 FLANGE | ||
| 017 | I0-91610 514-0 | WASHER; PL,STARTER | 1 | 2302- | FVZ-N | ID=15 | ||
| 018 | I0-91510 514-0 | WASHER; LK,GEN | 1 | 2302- | FVZ-N | ID=14.2 | ||
| 813 | I8-98204 717-0 | HARNESS; INJECTOR | 1 | 2302- | FVZ-N | (A) FRONT | ||

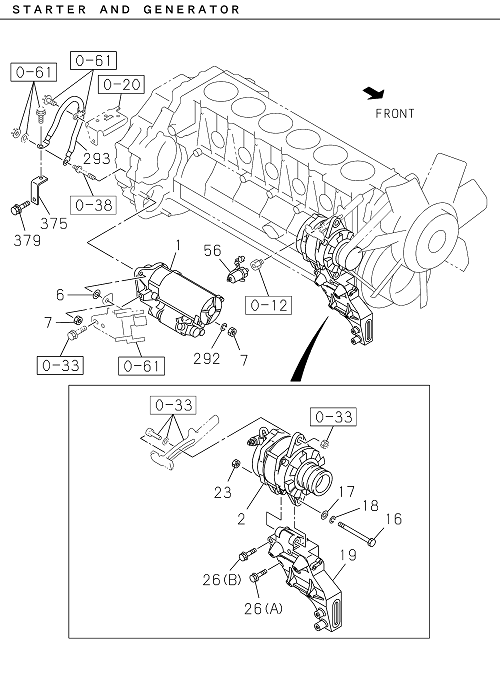

| 001 | I8-97695 240-A | STARTER ASM | 1 | 2302- | FVZ-N | 24V 5.0KW | ||
| 752 | I8-94391 310-0 | GASKET | 2 | 2302- | FVZ-N | |||
| 416 | I1-09337 012-0 | SLEEVE; RUBBER | 1 | 2302- | FVZ-N | ID=17 OD=21 L=40 | ||
| 732 | I0-28651 030-0 | BOLT; BRKT | 3 | 2302- | FVZ-N | M10X30 FLANGE | ||
| 292 | I0-91510 514-0 | WASHER; LK,GEN | 1 | 2302- | FVZ-N | ID=14.2 | ||
| 002 | I8-97799 445-0 | GENERATOR ASM | 1 | 2302- | FVZ-N | 24V 60A | ||
| 023 | I0-91110 514-0 | NUT; STARTER | 1 | 2302- | FVZ-N | M14 | ||
| 016 | I1-09000 133-1 | BOLT; GEN | 1 | 2302- | FVZ-N | M14X135 | ||
| 011 | I0-28650 820-0 | BOLT; GEAR CASE COVER | 2 | 2302- | FVZ-N | M8X20 FLANGE | ||
| 260 | I8-98260 257-0 | SENSOR; WATER TEMP | 1 | 2302- | FVZ-N | |||
| 379 | I8-97087 204-0 | BOLT; BRKT | 1 | 2302- | FVZ-N | M8X30 W/LK&PL WASHER | ||
| 007 | I0-91110 514-0 | NUT; STARTER | 2 | 2302- | FVZ-N | M14 | ||
| 101 | I0-28650 840-0 | BOLT; INL PIPE | 4 | 2302- | FVZ-N | M8X40 FLANGE | ||
| 293 | I8-98339 359-0 | CABLE; STARTER EARTH | 1 | 2302- | FVZ-N | |||
| 740 | I0-91180 108-0 | NUT; OIL PAN | 2 | 2302- | FVZ-N | M8 FLANGE | ||
| 375 | I8-98340 665-0 | BRACKET | 1 | 2302- | FVZ-N | |||
| 006 | I0-91610 514-0 | WASHER; PL,STARTER | 1 | 2302- | FVZ-N | ID=15 | ||
| 690 | I8-94390 858-1 | CONNECTOR | 2 | 2302- | FVZ-N | |||
| 602 | I1-09980 492-0 | BOLT; BRKT | 2 | 2302- | FVZ-N | |||
| 749 | I8-97552 626-0 | STAY; CONT UNIT | 1 | 2302- | FVZ-N | |||
| 296 | I0-91180 108-0 | NUT; OIL PAN | 2 | 2302- | FVZ-N | M8 FLANGE | ||
| 748 | I0-28050 612-0 | BOLT; SENSOR | 4 | 2302- | FVZ-N | (A) M6X12 FLANGE |
