| 220 |
I0-91180 108-0 |
|
NUT; OIL PAN |
1 |
2302- |
|
FVZ-N |
M8 FLANGE |
| 528 |
I8-98311 828-0 |
|
PLATE; SIDE,RADIATOR CORE |
1 |
2302- |
|
FVZ-N |
|
| 259 |
I8-98319 601-0 |
|
BRACKET; RAD STAY |
1 |
2302- |
|
FVZ-N |
(A) |
| 073 |
I8-97916 015-0 |
|
RUBBER; CUSHION,RAD MTG |
4 |
2302- |
|
FVZ-N |
|
| 089 |
I0-28050 612-0 |
|
BOLT; SENSOR |
2 |
2302- |
|
FVZ-N |
(A) M6X12 FLANGE |
| 060 |
I1-09332 117-0 |
|
GROMMET |
6 |
2302- |
|
FVZ-N |
|
| 267 |
I1-21469 130-A |
|
RUBBER; CUSHION |
4 |
2302- |
|
FVZ-N |
(A) |
| 211 |
I8-97696 824-A |
|
HOSE; RAD TO PIPE |
1 |
2302- |
|
FVZ-N |
|
| 261 |
I7-05110 010-A |
|
NUT; HEAT PROTECTOR |
4 |
2302- |
|
FVZ-N |
M10 FLANGE |
| 259 |
I8-98319 602-0 |
|
BRACKET; RAD STAY |
1 |
2302- |
|
FVZ-N |
(A) |
| 051 |
I8-97171 437-A |
|
PLUG; DRAIN |
1 |
2302- |
|
FVZ-N |
W/GASKET |
| 080 |
I8-98311 954-0 |
|
BOLT; FAN GUIDE |
4 |
2302- |
|
FVZ-N |
M8X16 FLANGE |
| 062 |
I1-09009 020-1 |
|
BOLT; STAY |
4 |
2302- |
|
FVZ-N |
(A) M8X30 |
| 212 |
I5-09707 030-1 |
|
CLIP; HOSE |
1 |
2302- |
|
FVZ-N |
(A) L=250 |
| 259 |
I8-98320 744-1 |
|
BRACKET; RAD STAY |
1 |
2302- |
|
FVZ-N |
(B) |
| 078 |
I7-05110 010-A |
|
NUT; HEAT PROTECTOR |
2 |
2302- |
|
FVZ-N |
(A) M10 FLANGE |

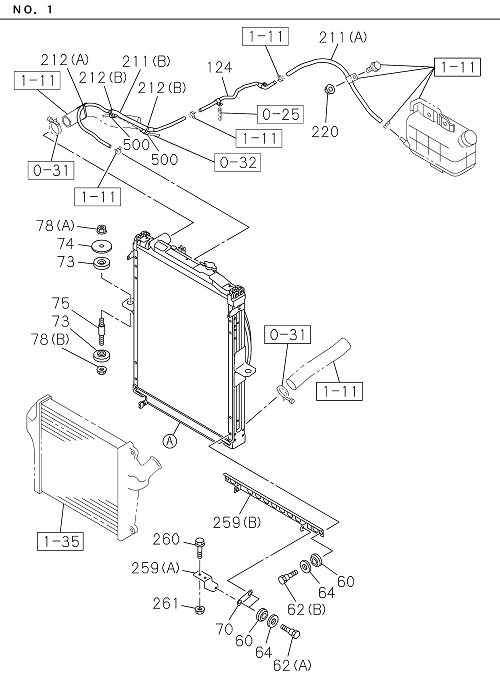

| 001 |
I8-98311 825-A |
|
RADIATOR ASM |
1 |
2302- |
|
FVZ-N |
|
| 500 |
I1-09337 012-0 |
|
SLEEVE; RUBBER |
2 |
2302- |
|
FVZ-N |
ID=17 OD=21 L=40 |
| 074 |
I1-09503 154-2 |
|
WASHER; PL,CUSHION RUBBER |
2 |
2302- |
|
FVZ-N |
ID=11 OD=54 |
| 064 |
I0-91610 612-0 |
|
WASHER; STAY TO RAD |
6 |
2302- |
|
FVZ-N |
ID=12.5 OD=26 |
| 235 |
I1-21469 133-0 |
|
WASHER; CUSHION RUBBER |
2 |
2302- |
|
FVZ-N |
|
| 078 |
I0-91180 212-0 |
|
NUT; CUSHION RUBBER TO ENG FOOT |
2 |
2302- |
|
FVZ-N |
(B) M12 FLANGE |
| 212 |
I8-97920 656-0 |
|
CLIP; HOSE |
2 |
2302- |
|
FVZ-N |
(B) L=140 |
| 528 |
I8-98311 827-1 |
|
PLATE; SIDE,RADIATOR CORE |
1 |
2302- |
|
FVZ-N |
|
| 075 |
I8-98240 336-0 |
|
BOLT; CUSHION RUBBER,RAD MTG |
2 |
2302- |
|
FVZ-N |
M12X27.5,M10X16 L=82 |
| 016 |
I8-98096 226-0 |
|
CAP; RAD |
1 |
2302- |
|
FVZ-N |
|
| 062 |
I1-09009 123-0 |
|
BOLT; STAY |
2 |
2302- |
|
FVZ-N |
(B) M8X22 |

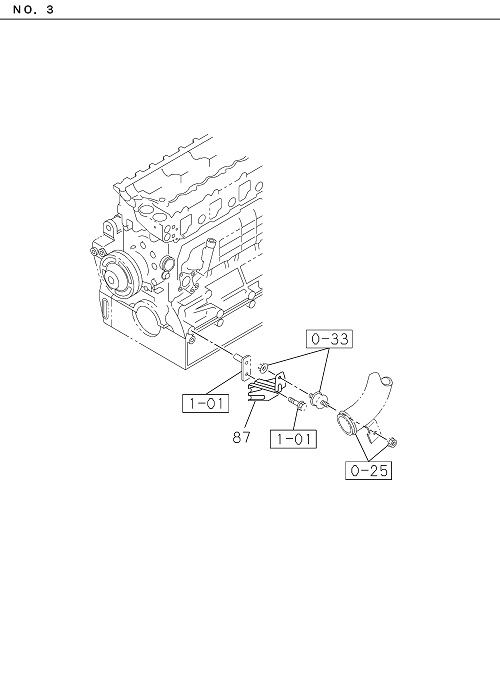

| 087 |
I8-97653 841-A |
|
STAY; FAN GUIDE |
1 |
2302- |
|
FVZ-N |
|
| 124 |
I8-97483 408-0 |
|
PIPE; WATER,TANK TO RAD |
1 |
2302- |
|
FVZ-N |
|
| 267 |
I1-21469 131-0 |
|
RUBBER; CUSHION |
2 |
2302- |
|
FVZ-N |
(B) |
| 070 |
I8-98322 053-0 |
|
STAY; RAD |
2 |
2302- |
|
FVZ-N |
|
| 079 |
I8-97653 032-0 |
|
GUIDE; FAN,RAD |
1 |
2302- |
|
FVZ-N |
|
| 089 |
I8-98311 937-0 |
|
BOLT |
4 |
2302- |
|
FVZ-N |
(B) M8X25 FLANGE |
| 232 |
I8-98141 232-A |
|
COLLAR; DIST,CUSHION RUBBER |
4 |
2302- |
|
FVZ-N |
|
| 260 |
I0-28651 035-0 |
|
BOLT; BRKT |
4 |
2302- |
|
FVZ-N |
M10X35 FLANGE |
| 211 |
I8-98073 544-A |
|
HOSE; RAD TO PIPE |
1 |
2302- |
|
FVZ-N |
(B) L=940 |
