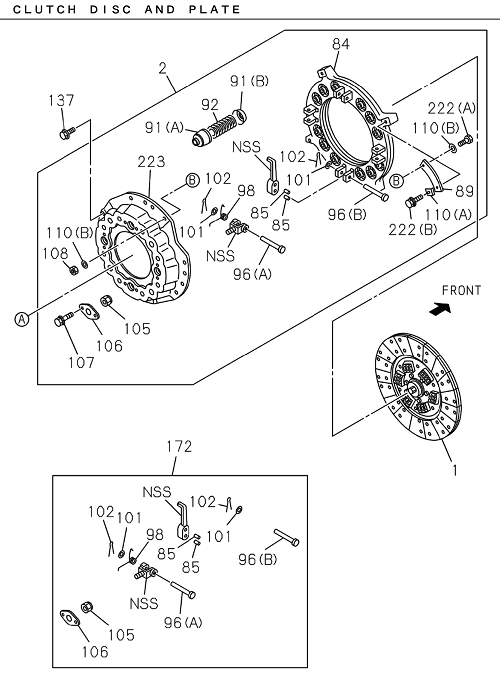

| 092 |
I1-31214 053-0 |
|
SPRING; CLU |
12 |
2302- |
|
FVZ-N |
|
| 091 |
I1-31219 012-0 |
|
SEAT; SPR |
12 |
2302- |
|
FVZ-N |
(A) ID=37 H=25 |
| 110 |
I8-97374 512-0 |
|
WASHER; SPECIAL,STRAP |
8 |
2302- |
|
FVZ-N |
(B) T=3.2 |

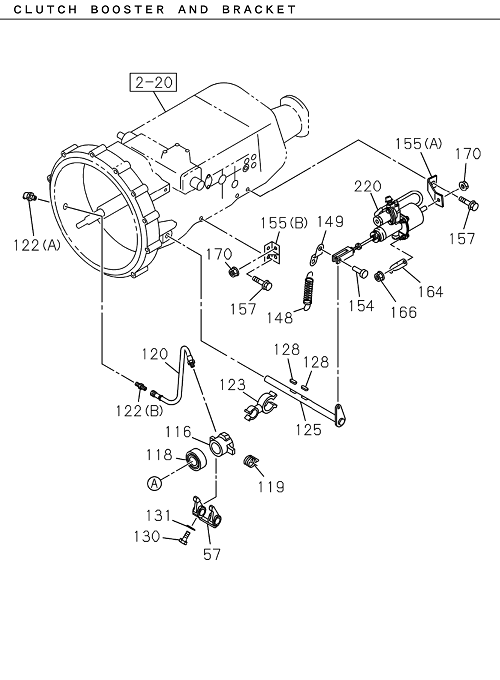

| 116 |
I1-31321 086-1 |
|
BLOCK; SHIFT,CLU |
1 |
2302- |
|
FVZ-N |
|
| 057 |
I1-31341 036-0 |
|
FORK; SHIFT,CLU |
1 |
2302- |
|
FVZ-N |
|
| 110 |
I1-31229 009-0 |
|
WASHER; SPECIAL,STRAP |
4 |
2302- |
|
FVZ-N |
(A) T=1.2 |
| 157 |
I0-28151 025-0 |
|
BOLT; FAN |
3 |
2302- |
|
FVZ-N |
(A) M10X25 FLANGE |
| 130 |
I9-06120 816-0 |
|
SCREW; SHIFT FORK |
1 |
2302- |
|
FVZ-N |
|
| 154 |
I1-31424 007-0 |
|
PIN; JAW JOINT |
1 |
2302- |
|
FVZ-N |
L=30 |
| 155 |
I1-31429 472-1 |
|
BRACKET; MINIPACK |
1 |
2302- |
|
FVZ-N |
(B) |
| 220 |
I1-31800 516-2 |
|
BOOSTER ASM; CLU |
1 |
2302- |
|
FVZ-N |
SEE FIG-NO 2-07 FOR COMPONENT. |
| 107 |
I1-31239 061-0 |
|
BOLT; LK PLATE |
8 |
2302- |
|
FVZ-N |
|
| 170 |
I7-05110 010-A |
|
NUT; HEAT PROTECTOR |
3 |
2302- |
|
FVZ-N |
M10 FLANGE |
| 085 |
I9-31239 116-0 |
|
BUSHING; RELEASE LEVER |
8 |
2302- |
|
FVZ-N |
|
| 172 |
I1-87831 172-1 |
|
LEVER KIT; RELEASE,CLU |
1 |
2302- |
|
FVZ-N |
|
| 002 |
I6-31220 416-0 |
|
PLATE ASM; PRESSURE,CLU |
1 |
2302- |
|
FVZ-N |
(IADG) |
| 002 |
I1-31220 380-2 |
|
PLATE ASM; PRESSURE,CLU |
1 |
2302- |
|
FVZ-N |
|
| 120 |
I1-09364 881-0 |
|
HOSE; FLEX,SHIFT BLOCK,CLU |
1 |
2302- |
|
FVZ-N |
L=360 |
| 155 |
I1-31429 473-0 |
|
BRACKET; MINIPACK |
1 |
2302- |
|
FVZ-N |
(A) |
| 222 |
I1-09040 042-0 |
|
BOLT; STRAP |
4 |
2302- |
|
FVZ-N |
(B) M10X23.2 |
| 118 |
I1-09820 117-0 |
|
BEARING; CLU RELEASE |
1 |
2302- |
|
FVZ-N |
|
| 166 |
I7-05110 010-A |
|
NUT; HEAT PROTECTOR |
1 |
2302- |
|
FVZ-N |
|
| 001 |
I6-31240 972-0 |
|
DISC; CLUTCH |
1 |
2302- |
|
FVZ-N |
(IADG) 15" |
| 108 |
I1-09449 036-0 |
|
NUT; STRAP |
4 |
2302- |
|
FVZ-N |
M10 |
| 125 |
I1-31342 336-0 |
|
SHAFT; CLU |
1 |
2302- |
|
FVZ-N |
|
| 131 |
I0-91510 508-0 |
|
WASHER; LK,SHIFT FORK |
1 |
2302- |
|
FVZ-N |
ID=8.2 |
| 123 |
I8-97010 484-0 |
|
CLIP; FLEX HOSE,SHIFT BLOCK |
1 |
2302- |
|
FVZ-N |
|
| 101 |
I1-31239 058-0 |
|
WASHER; RELEASE LEVER |
8 |
2302- |
|
FVZ-N |
T=1.6 |
| 119 |
I1-31329 015-0 |
|
SPRING; SHIFT FORK |
1 |
2302- |
L |
FVZ-N |
|
| 106 |
I1-31239 019-0 |
|
PLATE; LK,LEVER SUPPORT |
4 |
2302- |
|
FVZ-N |
|
| 128 |
I9-09867 008-1 |
|
KEY; FEATHER,CLU SHAFT |
2 |
2302- |
|
FVZ-N |
|
| 149 |
I1-31426 041-0 |
|
EYE; SPRING,RETURN SPRING |
1 |
2302- |
|
FVZ-N |
|
| 137 |
I0-28151 020-0 |
|
BOLT; ENG HANGER |
12 |
2302- |
|
FVZ-N |
M10X20 FLANGE |
| 089 |
I1-31229 050-0 |
|
PLATE; STRAP |
16 |
2302- |
|
FVZ-N |
|
| 148 |
I1-09583 305-0 |
|
SPRING; CLU RETURN |
1 |
2302- |
|
FVZ-N |
L=135 |
| 096 |
I1-31232 005-0 |
|
PIN; RELEASE LEVER |
4 |
2302- |
|
FVZ-N |
(A) L=49.0 |
| 164 |
I1-31426 050-0 |
|
EYE; SPRING |
1 |
2302- |
|
FVZ-N |
|
| 096 |
I1-31232 014-0 |
|
PIN; RELEASE LEVER |
4 |
2302- |
|
FVZ-N |
(B) L=57.0 |
| 102 |
I9-08113 022-0 |
|
PIN; SPLIT,RELEASE LEVER |
8 |
2302- |
|
FVZ-N |
OD=2.7 L=22 |
| 098 |
I1-31233 003-0 |
|
SPRING; RETURN |
4 |
2302- |
|
FVZ-N |
|
| 223 |
I1-31211 019-1 |
|
COVER; CLU |
1 |
2302- |
|
FVZ-N |
|
| 091 |
I1-31219 013-0 |
|
SEAT; SPR |
12 |
2302- |
|
FVZ-N |
(B) ID=37 H=15 |
| 222 |
I1-09040 043-0 |
|
BOLT; STRAP |
4 |
2302- |
|
FVZ-N |
(A) M10X26 HEX SOCKET |
| 122 |
I1-09660 710-0 |
|
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK |
1 |
2302- |
|
FVZ-N |
(B) PT1/8 & M10 |
| 118 |
I6-09820 117-0 |
|
BEARING; CLU RELEASE |
1 |
2302- |
|
FVZ-N |
(IADG) |
| 105 |
I1-31235 014-0 |
|
NUT; SUPPORT |
4 |
2302- |
|
FVZ-N |
|
| 084 |
I1-31221 100-0 |
|
PLATE; PRESSURE |
1 |
2302- |
|
FVZ-N |
15" |
| 001 |
I1-31240 972-2 |
|
DISC; CLUTCH |
1 |
2302- |
|
FVZ-N |
15" |
| 119 |
I1-31329 014-0 |
|
SPRING; SHIFT FORK |
1 |
2302- |
R |
FVZ-N |
|
| 122 |
I0-90301 610-0 |
|
NIPPLE; GREASE,FRT |
1 |
2302- |
|
FVZ-N |
|
