2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 399 | I7-20801 388-A | BRACKET; CLIP | 1 | 2302- | FVZ-N | |||
| 343 | I8-94399 669-1 | BOLT; STAY TO CRANKCASE | 1 | 2302- | FVZ-N | |||
| 430 | I1-33119 621-0 | PLUG; OIL DRAIN | 1 | 2302- | FVZ-N | |||
| 037 | I1-09625 002-0 | SEAL; DUST,CLU HSG | 2 | 2302- | FVZ-N | |||
| 082 | I1-33119 618-0 | PLUG; SCREW,CASE | 2 | 2302- | FVZ-N | (C) | ||
| 071 | I1-33119 622-0 | COVER; SIDE,TRANS CASE | 1 | 2302- | FVZ-N | |||
| 412 | I1-31119 026-0 | CAP; CLU HSG | 1 | 2302- | FVZ-N | |||

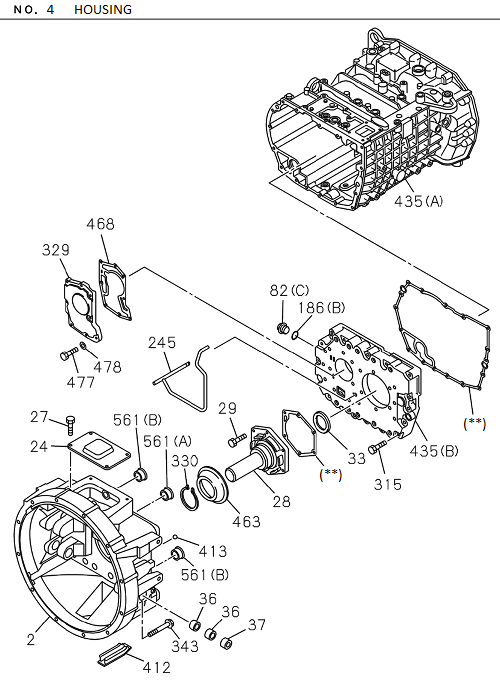

| 002 | I1-31111 183-0 | HOUSING; CLU | 1 | 2302- | FVZ-N | |||
| 033 | I8-97649 225-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2302- | FVZ-N | |||
| 082 | I1-33119 620-0 | PLUG; SCREW,CASE | 2 | 2302- | FVZ-N | (B) | ||
| 245 | I8-98351 381-0 | PIPE; OIL | 1 | 2302- | FVZ-N | |||
| 561 | I1-31119 047-0 | PLUG | 4 | 2302- | FVZ-N | (B) | ||
| 477 | I1-33549 581-0 | BOLT; OIL PUMP | 8 | 2302- | FVZ-N | M8X30 | ||
| 265 | I0-28650 820-0 | BOLT; GEAR CASE COVER | 1 | 2302- | FVZ-N | |||
| 029 | I1-33549 581-0 | BOLT; FRT COVER | 6 | 2302- | FVZ-N | M8X30 | ||
| 463 | I1-33129 018-0 | COVER; DUST,FRT COVER | 1 | 2302- | FVZ-N | |||
| 439 | I0-28650 830-0 | BOLT; GEAR CASE | 1 | 2302- | FVZ-N | |||
| 027 | I1-31119 058-0 | BOLT; COVER TO CLU HSG | 4 | 2302- | FVZ-N | |||
| 315 | I1-33119 616-0 | BOLT; CASE | 17 | 2302- | FVZ-N | (A) M10X70 | ||

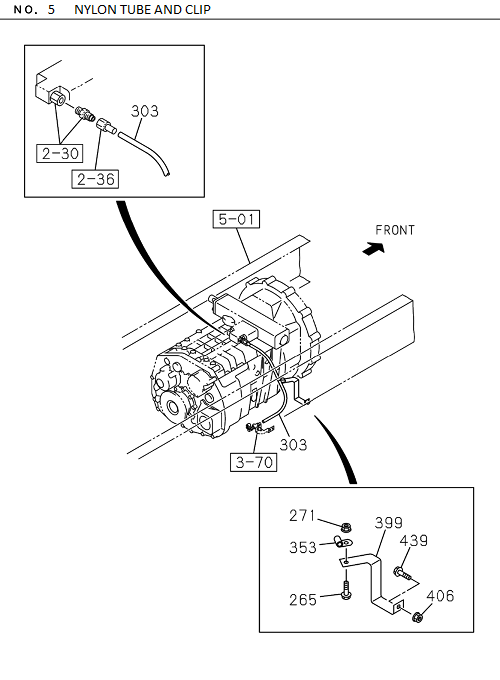

| 303 | I1-87411 006-0 | TUBE; NYLON | 1 | 2302- | FVZ-N | SERVICED BY L=2000 OD=8 | ||
| 322 | I1-33119 556-0 | RIVET; NAME PLATE | 4 | 2302- | FVZ-N | |||
| 072 | I1-33119 592-0 | BOLT; SIDE COVER | 6 | 2302- | FVZ-N | M10X22 | ||
| 186 | I1-33119 249-0 | RING; SEAL | 2 | 2302- | FVZ-N | (A) | ||
| 332 | I1-33119 437-0 | FILTER; OIL | 1 | 2302- | FVZ-N | |||
| 186 | I1-33119 286-0 | RING; SEAL | 2 | 2302- | FVZ-N | (B) | ||
| 353 | I0-95234 825-0 | CLIP; CLU PIPE | 1 | 2302- | FVZ-N | |||
| 413 | I1-31119 014-0 | BALL; CLU HSG | 4 | 2302- | FVZ-N | |||
| 086 | I1-33139 236-0 | BOLT; RR COVER | 1 | 2302- | FVZ-N | (C) M10X50 | ||
| 271 | I0-91180 108-0 | NUT; OIL PAN | 1 | 2302- | FVZ-N | |||
| 519 | I8-98486 191-0 | GASKET; SHAFT | 1 | 2302- | FVZ-N | |||
| 468 | I1-34159 122-0 | GASKET; OIL PUMP | 1 | 2302- | FVZ-N | |||
| 073 | I1-33119 237-0 | GASKET; SIDE COVER TO TRANS CASE | 1 | 2302- | FVZ-N | |||
| 561 | I1-31119 046-0 | PLUG | 2 | 2302- | FVZ-N | (A) | ||

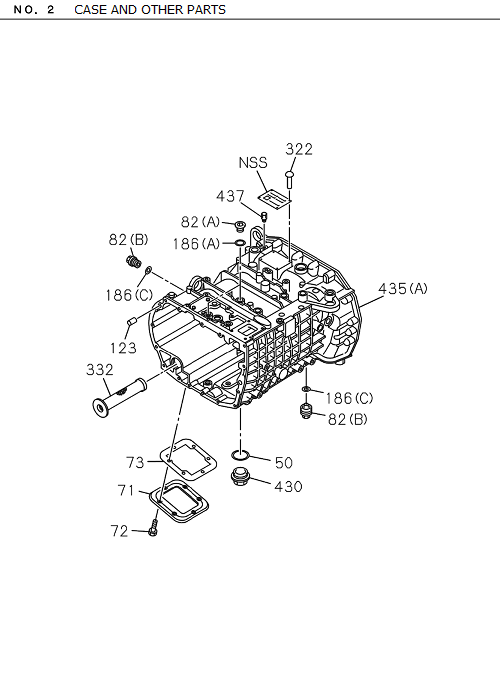

| 435 | I1-33111 380-0 | CASE; TRANS | 1 | 2302- | FVZ-N | (A) | ||
| 036 | I1-09811 396-0 | BEARING; NEEDLE,CLU HSG | 4 | 2302- | FVZ-N | |||
| 435 | I1-33111 372-0 | CASE; TRANS | 1 | 2302- | FVZ-N | (B) | ||
| 086 | I1-33139 235-0 | BOLT; RR COVER | 5 | 2302- | FVZ-N | (B) M10X110 | ||
| 028 | I1-33121 166-0 | COVER; FRT,TRANS CASE | 1 | 2302- | FVZ-N | |||
| 437 | I1-36122 006-0 | BREATHER; TRANS | 1 | 2302- | FVZ-N | |||
| 123 | I1-33119 292-0 | DOWEL; TRANS CASE | 4 | 2302- | FVZ-N | |||
| 082 | I1-33119 619-0 | PLUG; SCREW,CASE | 2 | 2302- | FVZ-N | (A) | ||
| 062 | I1-33132 087-0 | GASKET; RR COVER | 1 | 2302- | FVZ-N | |||
| 330 | I1-33129 005-0 | RING; RET | 1 | 2302- | FVZ-N | |||
| 186 | I1-33119 435-0 | RING; SEAL | 2 | 2302- | FVZ-N | (C) | ||

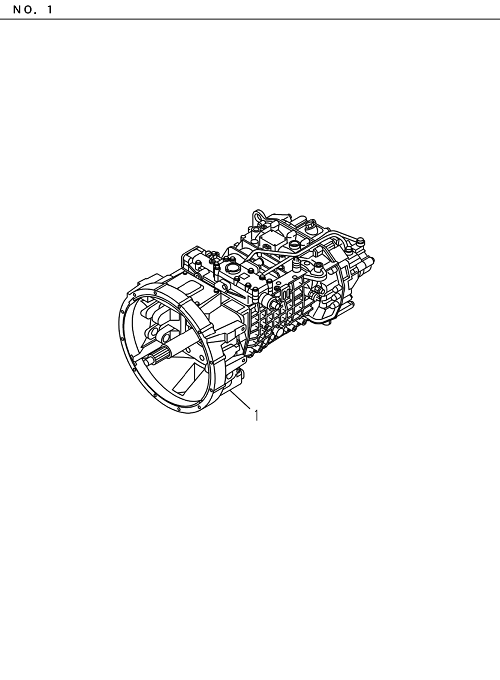

| 001 | I8-97543 927-0 | TRANSMISSION ASM; MANUAL | 1 | 2302- | FVZ-N | PTO ZF TRANS RR | ||
| 024 | I1-31119 059-0 | COVER; CHECK HOLE,DUST | 1 | 2302- | FVZ-N | |||
| 086 | I1-33119 616-0 | BOLT; RR COVER | 12 | 2302- | FVZ-N | (A) M10X70 | ||
| 329 | I1-34150 123-0 | PUMP ASM; OIL | 1 | 2302- | FVZ-N | |||
| 478 | I1-33549 583-0 | WASHER; LK,OIL PUMP | 8 | 2302- | FVZ-N | |||
| 050 | I1-33119 293-0 | GASKET; DRAIN PLUG | 1 | 2302- | FVZ-N | |||
| 406 | I0-91180 108-0 | NUT; OIL PAN | 1 | 2302- | FVZ-N | |||

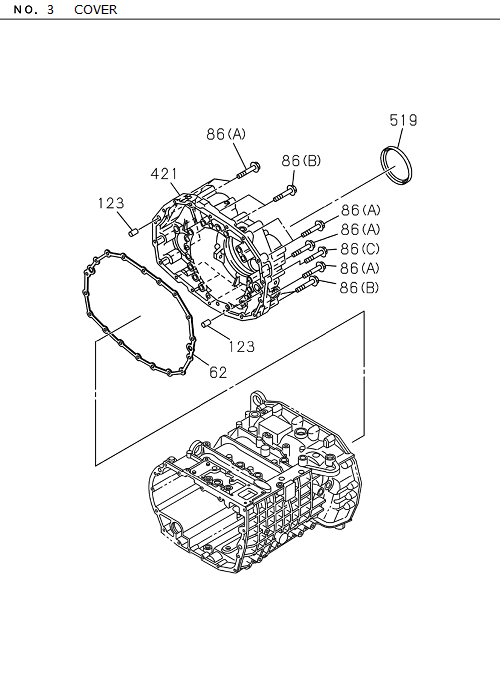

| 421 | I8-98354 020-0 | COVER; RR,TRANS | 1 | 2302- | FVZ-N |
