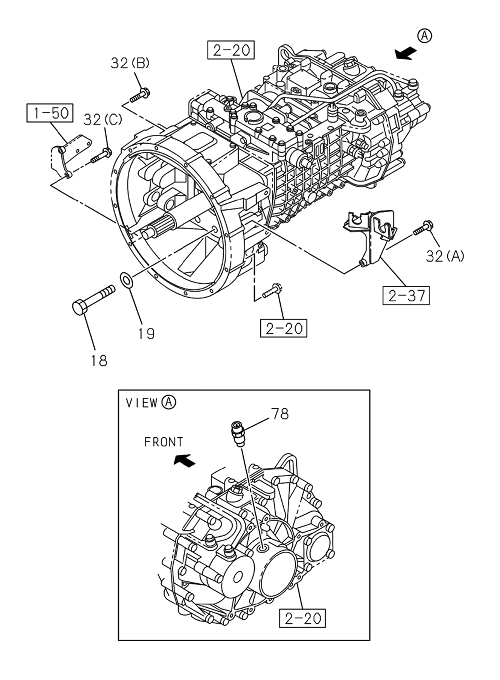

2-25 | SPEEDOMETER DRIVEN GEAR
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 078 | I1-83227 018-0 | SENSOR; SPD | 1 | 2302- | FVZ-N | |||
| 032 | I8-98234 153-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2302- | FVZ-N | (C) M10X92 | ||
| 019 | I1-31119 012-0 | WASHER; PL,CLU HSG TO TRANS | 10 | 2302- | FVZ-N | |||
| 032 | I0-28151 090-0 | BOLT; OIL FILTER | 2 | 2302- | FVZ-N | |||
| 032 | I8-94399 669-1 | BOLT; STAY TO CRANKCASE | 7 | 2302- | FVZ-N | |||
| 018 | I1-31119 057-0 | BOLT; CLU HSG TO TRANS | 10 | 2302- | FVZ-N | M18X85 |
