2-26 | MANUAL TRANSMISSION GEAR
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 325 | I1-33389 086-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.40 | ||
| 129 | I1-33369 026-0 | BEARING; NEEDLE,IDLER | 2 | 2302- | FVZ-N | |||
| 333 | I1-33239 232-0 | ROLLER; PLANETARY GEAR | AR | 2302- | FVZ-N | |||

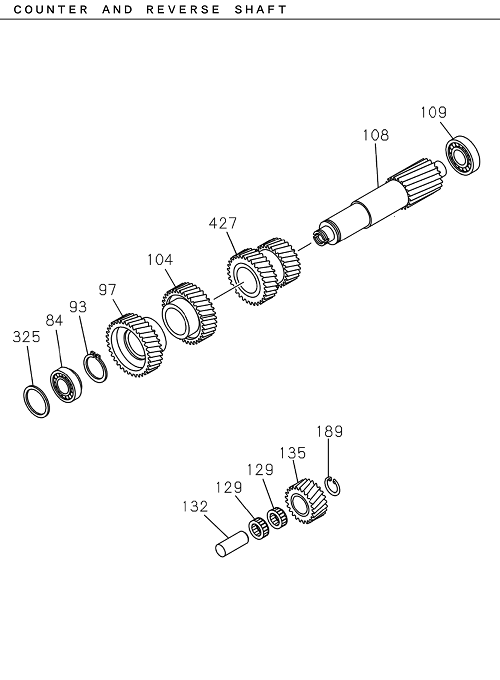

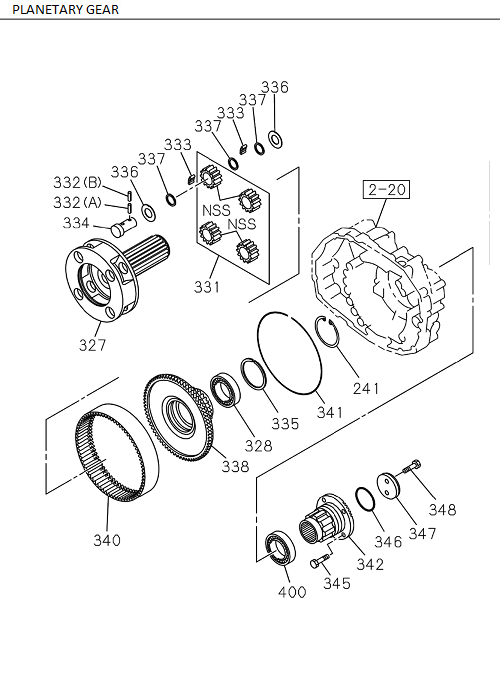

| 109 | I1-33312 019-0 | BEARING; COUNTER SHAFT,RR | 1 | 2302- | FVZ-N | |||
| 189 | I1-44519 224-0 | RING; SNAP,REV,GEAR | 1 | 2302- | FVZ-N | |||
| 427 | I8-97649 227-0 | GEAR; 2ND & 3RD,COUNTER | 1 | 2302- | FVZ-N | |||
| 018 | I8-98351 448-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | H=3.5 | ||
| 325 | I1-33389 089-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.25 | ||
| 306 | I1-33319 066-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.95 | ||
| 126 | I1-33259 052-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | (A) T=2.6 | ||
| 097 | I1-33338 407-0 | GEAR; 5TH,COUNTER | 1 | 2302- | FVZ-N | |||
| 306 | I1-43319 021-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (B) T=2.5 | ||
| 569 | I1-33269 097-0 | DAM; OIL | 1 | 2302- | FVZ-N | |||
| 336 | I1-33239 174-0 | WASHER; THRUST,PLANETARY GEAR | 8 | 2302- | FVZ-N | |||
| 059 | I1-33257 101-0 | GEAR; REV MAINSHAFT | 1 | 2302- | FVZ-N | |||
| 335 | I1-33339 078-0 | RING; SNAP,BEARING | 1 | 2302- | FVZ-N | T=2.20 | ||
| 301 | I1-33139 232-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.85 | ||
| 306 | I1-33319 067-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.90 | ||
| 325 | I1-33389 078-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.75 | ||
| 306 | I1-33319 068-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.85 | ||
| 325 | I1-33389 084-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.20 | ||
| 331 | I1-33239 350-0 | GEAR SET; PLANETARY | 1 | 2302- | FVZ-N | |||
| 030 | I8-98367 502-0 | GEAR; 4TH,MAINSHAFT | 1 | 2302- | FVZ-N | |||
| 317 | I1-33265 630-0 | CLUTCH; DOG,4TH GEAR | 1 | 2302- | FVZ-N | |||

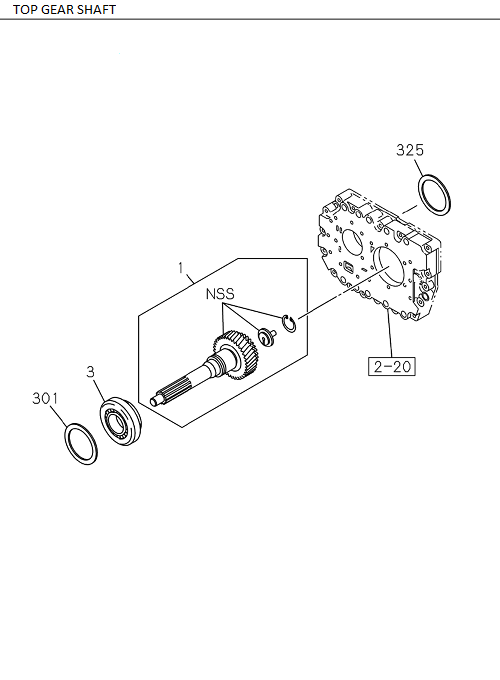

| 001 | I1-33215 040-0 | SHAFT; TOP GEAR,TRANS | 1 | 2302- | FVZ-N | |||
| 233 | I8-97649 275-0 | RING; BLOCK 4TH TO 5TH | 2 | 2302- | FVZ-N | |||
| 347 | I1-09509 060-0 | WASHER; FLANGE | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 229-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=2.00 | ||
| 301 | I1-33139 231-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.90 | ||
| 241 | I8-98354 023-0 | RING; SNAP | 1 | 2302- | FVZ-N | |||
| 325 | I1-33389 079-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.85 | ||
| 325 | I1-33389 082-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.10 | ||
| 306 | I1-33319 075-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.50 | ||
| 135 | I1-33361 096-0 | GEAR; REV IDLER | 1 | 2302- | FVZ-N | |||
| 327 | I1-33231 338-0 | CARRIER; PLANETARY GEAR | 1 | 2302- | FVZ-N | |||
| 325 | I1-33389 076-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.70 | ||
| 301 | I1-33139 230-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.95 | ||
| 306 | I1-33319 076-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.45 | ||
| 325 | I1-33389 048-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.55 | ||
| 003 | I1-33219 340-0 | BEARING; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | |||
| 093 | I1-33319 251-0 | RING; SNAP,COUNTER FRT BRG | 1 | 2302- | FVZ-N | T=2.0 | ||
| 032 | I8-98326 045-0 | COLLAR; 3RD GEAR | 1 | 2302- | FVZ-N | |||
| 325 | I1-33389 080-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.95 | ||
| 126 | I1-33259 054-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | (A) T=2.4 | ||
| 042 | I1-33262 195-0 | SLEEVE | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 050-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.10 | ||
| 393 | I1-33259 104-0 | BEARING; MAINSHAFT END | 1 | 2302- | FVZ-N | |||
| 068 | I1-33259 049-0 | SLEEVE; 1ST TO REV | 1 | 2302- | FVZ-N | |||
| 324 | I1-33261 230-0 | HUB; CLU | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 204-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.15 | ||
| 050 | I8-97483 425-0 | GEAR; 2ND,MAINSHAFT | 1 | 2302- | FVZ-N | |||
| 018 | I8-98351 450-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | H=3.7 | ||
| 311 | I1-33239 349-0 | PIPE; MAINSHAFT | 1 | 2302- | FVZ-N | |||
| 044 | I1-33261 303-0 | HUB; CLU,2ND & 3RD,MAIN | 1 | 2302- | FVZ-N | |||
| 325 | I1-33389 081-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.05 | ||
| 301 | I1-33139 226-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=2.15 | ||
| 016 | I8-98351 382-0 | BEARING; PILOT,MAINSHAFT | 1 | 2302- | FVZ-N | |||
| 306 | I1-43319 105-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (B) T=2.2 | ||
| 408 | I1-33269 039-0 | SPRING | 9 | 2302- | FVZ-N | (C) | ||
| 306 | I1-33319 074-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.55 | ||
| 018 | I8-98351 449-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | H=3.6 | ||
| 400 | I1-33139 212-0 | BEARING; OUTPUT SHAFT RR | 1 | 2302- | FVZ-N | |||
| 323 | I1-33263 027-0 | INSERT | 9 | 2302- | FVZ-N | (B) | ||
| 323 | I1-33263 030-0 | INSERT | 6 | 2302- | FVZ-N | (A) | ||
| 018 | I8-98351 453-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | H=4.0 | ||
| 325 | I1-33389 087-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.35 | ||
| 126 | I1-33259 053-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | (A) T=2.5 | ||
| 306 | I1-33319 072-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.65 | ||
| 325 | I1-33389 074-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.90 | ||
| 325 | I1-33389 088-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.30 | ||
| 306 | I1-33319 071-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.70 | ||
| 325 | I1-33389 075-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.80 | ||
| 104 | I1-33338 406-0 | GEAR; 4TH,COUNTER | 1 | 2302- | FVZ-N | |||
| 325 | I1-33389 073-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.00 | ||
| 021 | I1-33261 295-0 | HUB; CLU,4TH & 5TH | 1 | 2302- | FVZ-N | |||
| 348 | I1-37249 215-0 | BOLT; SHAFT | 2 | 2302- | FVZ-N | |||
| 009 | I1-33265 631-0 | CLUTCH; DOG,TOP GEAR | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 234-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.65 | ||
| 067 | I1-33259 135-0 | HUB; CLU,1ST TO REV | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 045-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.40 | ||
| 306 | I1-43319 103-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (B) T=2.0 | ||
| 108 | I1-33311 347-0 | SHAFT; COUNTER | 1 | 2302- | FVZ-N | |||
| 341 | I1-33339 096-0 | WIRE; LOCK,CARRIER | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 042-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.60 | ||
| 049 | I1-33259 126-0 | BEARING; NEEDLE,2ND GEAR | 2 | 2302- | FVZ-N | |||
| 313 | I1-33259 124-0 | BEARING; NEEDLE,LOW GEAR | 1 | 2302- | FVZ-N | |||
| 126 | I1-33269 050-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | (B) T=3.7 | ||
| 337 | I1-33239 176-0 | WASHER; PLANETARY GEAR,INNER | 12 | 2302- | FVZ-N | |||
| 316 | I8-97649 271-0 | CLUTCH; DOG,3RD GEAR | 1 | 2302- | FVZ-N | |||
| 315 | I8-97649 271-0 | CLUTCH; DOG,2ND GEAR | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 041-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.70 | ||
| 325 | I1-33389 083-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=2.15 | ||
| 301 | I1-33139 227-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=2.10 | ||
| 306 | I1-33319 069-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.80 | ||
| 306 | I1-43319 102-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (B) T=2.3 | ||
| 301 | I1-33139 233-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.75 | ||
| 230 | I1-33262 239-0 | SLEEVE; 4TH TO 5TH | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 223-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=2.30 | ||
| 301 | I1-33139 224-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=2.25 | ||
| 066 | I8-97649 288-0 | RING; BLOCK,SYN | 2 | 2302- | FVZ-N | |||
| 041 | I8-97649 272-0 | RING; BLOCK,2ND & 3RD | 2 | 2302- | FVZ-N | |||
| 301 | I1-33139 228-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=2.05 | ||
| 301 | I1-33139 046-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.30 | ||
| 314 | I1-33259 125-0 | BEARING; NEEDLE,REV GEAR | 1 | 2302- | FVZ-N | |||
| 342 | I8-98339 537-0 | FLANGE; OUTPUT | 1 | 2302- | FVZ-N | |||
| 036 | I1-33252 478-0 | GEAR; 3RD,MAINSHAFT | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 039-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.80 | ||

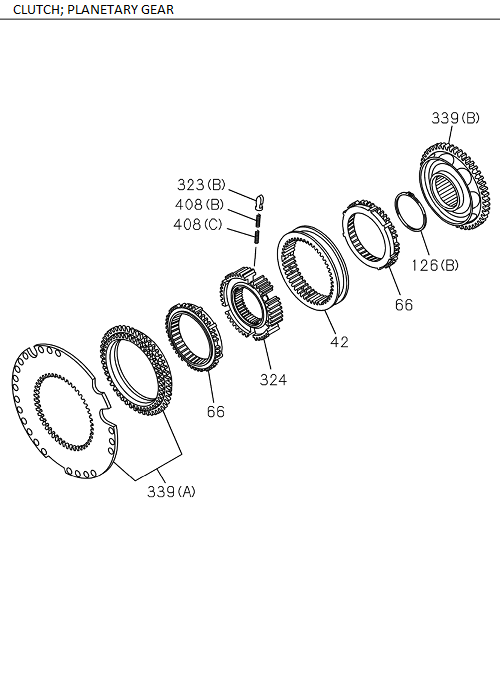

| 339 | I8-98480 629-0 | CLUTCH; PLANETARY GEAR | 1 | 2302- | FVZ-N | (A) | ||
| 306 | I1-43319 104-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (B) T=2.1 | ||
| 301 | I1-33139 206-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.35 | ||
| 132 | I1-33351 024-0 | SHAFT; REV | 1 | 2302- | FVZ-N | |||
| 084 | I1-33312 016-0 | BEARING; COUNTER SHAFT,FRT | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 201-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.45 | ||
| 301 | I1-33139 205-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.25 | ||
| 325 | I8-98080 571-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.50 | ||
| 408 | I1-33269 038-0 | SPRING | 9 | 2302- | FVZ-N | (B) | ||
| 301 | I1-33139 225-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=2.20 | ||
| 306 | I1-33319 073-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.60 | ||
| 306 | I1-43319 101-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (B) T=2.4 | ||
| 027 | I8-98345 333-0 | BEARING; 4TH GEAR | 2 | 2302- | FVZ-N | |||
| 126 | I1-33259 051-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | (A) T=2.7 | ||
| 334 | I1-33239 359-0 | SHAFT; PLANETARY GEAR | 4 | 2302- | FVZ-N | |||
| 408 | I1-33269 042-0 | SPRING | 6 | 2302- | FVZ-N | (A) | ||
| 340 | I1-33339 099-0 | GEAR; RING | 1 | 2302- | FVZ-N | |||
| 018 | I8-98351 451-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | H=3.8 | ||
| 328 | I8-98344 071-0 | BEARING; CARRIER | 1 | 2302- | FVZ-N | |||
| 070 | I1-33251 434-0 | GEAR; 1ST,MAINSHAFT | 1 | 2302- | FVZ-N | |||
| 325 | I1-33389 077-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.65 | ||
| 126 | I1-33259 050-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | (A) T=2.8 | ||

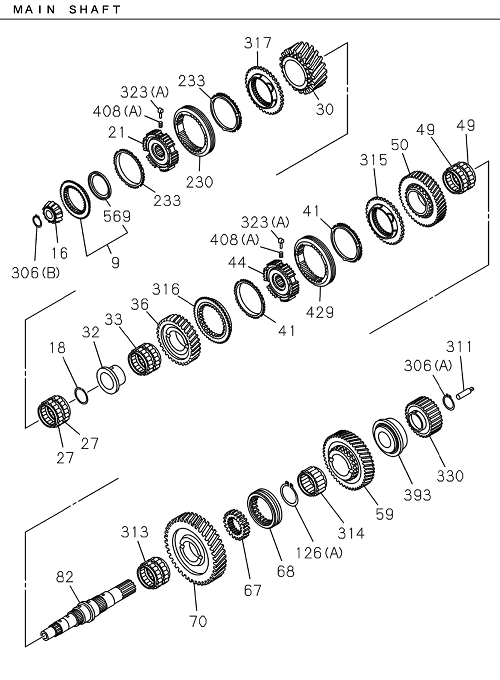

| 082 | I8-98345 336-0 | SHAFT; MAIN,TRANS | 1 | 2302- | FVZ-N | |||
| 301 | I1-33139 043-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.50 | ||
| 033 | I1-33259 127-0 | BEARING; NEEDLE,3RD GEAR | 1 | 2302- | FVZ-N | |||
| 325 | I1-33389 047-0 | SHIM; COUNTER SHAFT BRG | 1 | 2302- | FVZ-N | T=1.60 | ||
| 330 | I1-33259 134-0 | GEAR; SUN | 1 | 2302- | FVZ-N | |||
| 345 | I8-98354 026-0 | BOLT; FLANGE TO YOKE | 4 | 2302- | FVZ-N | |||
| 306 | I1-33319 070-0 | RING; SNAP,MAINSHAFT | 1 | 2302- | FVZ-N | (A) T=2.75 | ||
| 429 | I1-33262 244-0 | SLEEVE; 2ND & 3RD | 1 | 2302- | FVZ-N | |||
| 346 | I8-98231 756-0 | GASKET; FLANGE | 1 | 2302- | FVZ-N | |||
| 332 | I1-33239 179-0 | PIN; LOCK,SHAFT | 4 | 2302- | FVZ-N | (B) | ||
| 018 | I8-98351 452-0 | RING; SNAP,CLU HUB | 1 | 2302- | FVZ-N | H=3.9 | ||
| 332 | I1-33239 178-0 | PIN; LOCK,SHAFT | 4 | 2302- | FVZ-N | (A) | ||
| 339 | I8-97839 962-0 | CLUTCH; PLANETARY GEAR | 1 | 2302- | FVZ-N | (B) | ||
| 301 | I1-33139 047-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.20 | ||
| 301 | I1-33139 202-0 | SHIM; TOP GEAR SHAFT | 1 | 2302- | FVZ-N | T=1.55 | ||
| 338 | I8-98354 025-0 | CARRIER; RING GEAR | 1 | 2302- | FVZ-N |
