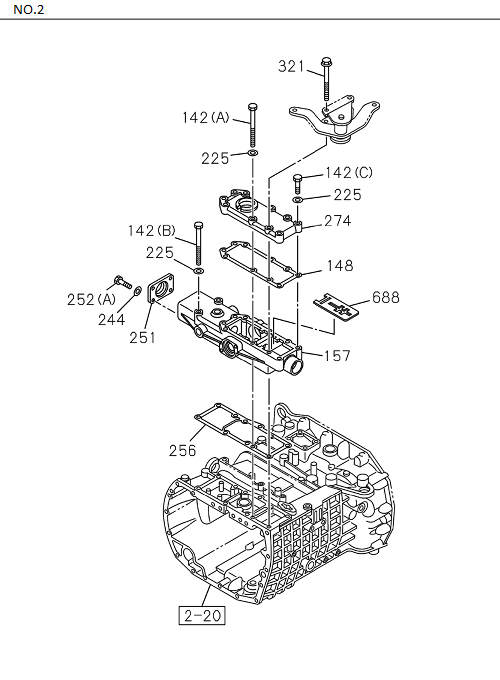

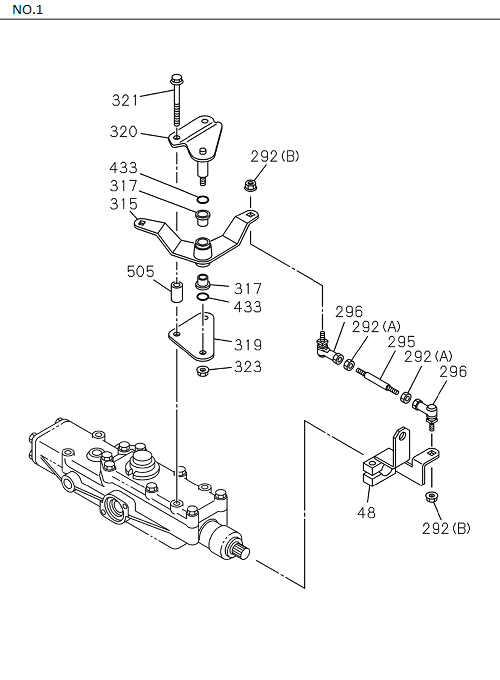

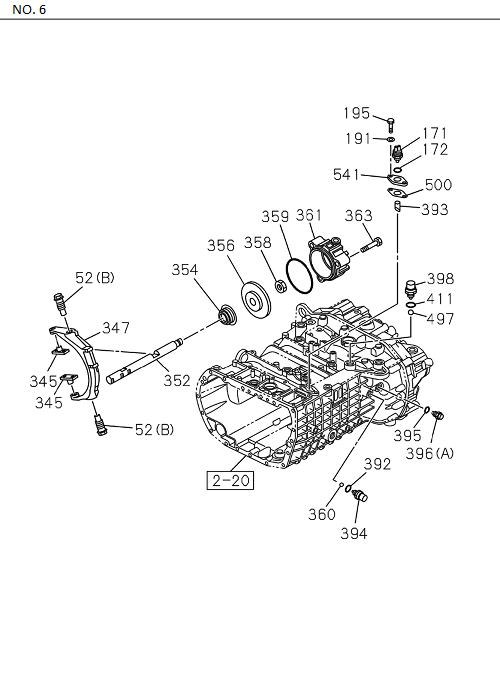

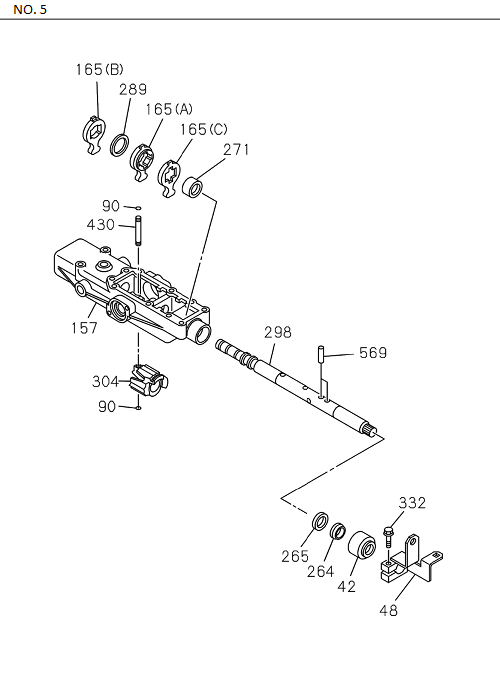

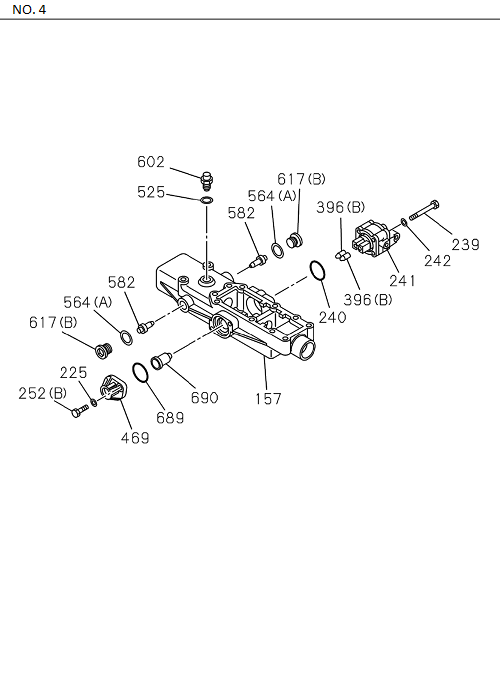

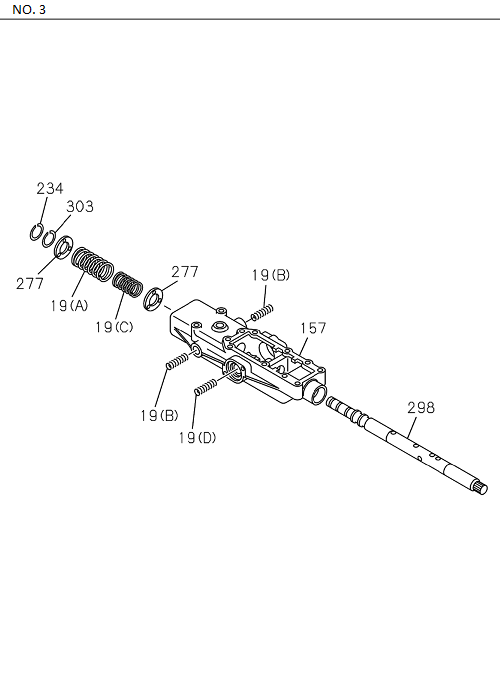

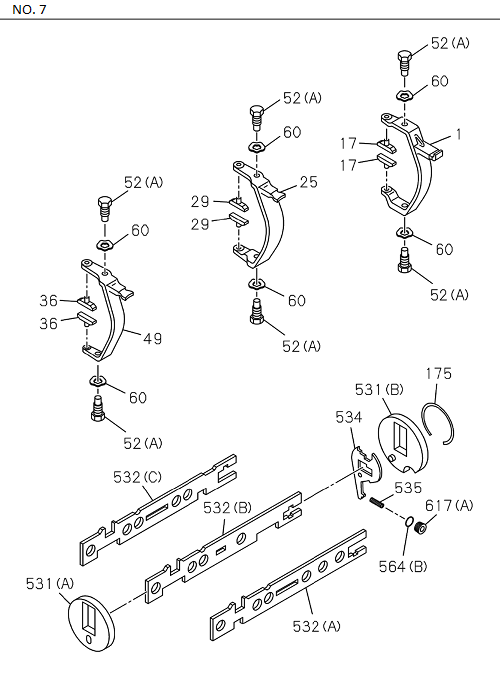

2-30 | GEAR SHIFTER AND QUADRANT BOX
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 017 | I1-33519 172-0 | BLOCK; SHIFT,1ST & REV | 2 | 2302- | FVZ-N | |||
| 148 | I1-33542 064-0 | GASKET; QUAD BOX | 1 | 2302- | FVZ-N | |||
| 060 | I1-36129 025-0 | WASHER; LK | 6 | 2302- | FVZ-N | |||
| 395 | I1-33549 497-0 | GASKET; PLUNGER | 1 | 2302- | FVZ-N | |||
| 351 | I1-33549 578-0 | GASKET; CONNECTOR | 8 | 2302- | FVZ-N | (A) | ||
| 346 | I1-33549 598-0 | HOSE; AIR | 1 | 2302- | FVZ-N | (B) | ||
| 351 | I8-98251 344-0 | GASKET; PLUG,C/BL SIDE | 1 | 2302- | FVZ-N | |||
| 296 | I1-09760 108-0 | ROD END | 2 | 2302- | FVZ-N | |||
| 622 | I1-83129 017-0 | TUBE; CORRUGATE | 1 | 2302- | FVZ-N | ID=22 | ||
| 348 | I1-09654 246-0 | CONNECTOR; AIR HOSE | 1 | 2302- | FVZ-N | M12 STRAIGHT | ||
| 332 | I0-28650 840-0 | BOLT; INL PIPE | 1 | 2302- | FVZ-N | |||
| 602 | I1-33119 618-0 | PLUNGER; DETENT | 1 | 2302- | FVZ-N | (C) | ||
| 351 | I8-97649 279-0 | GASKET; CONNECTOR | 1 | 2302- | FVZ-N | (B) | ||
| 157 | I1-33549 570-0 | BOX; QUAD,TRANS | 1 | 2302- | FVZ-N | |||
| 171 | I1-33119 627-0 | SWITCH; NEUTRAL | 1 | 2302- | FVZ-N | |||
| 019 | I1-33539 030-0 | SPRING; COIL COMP | 2 | 2302- | FVZ-N | (B) | ||
| 274 | I8-98351 384-0 | COVER; SHAFT,QUAD BOX | 1 | 2302- | FVZ-N | |||
| 323 | I0-91180 110-0 | NUT; BRKT | 1 | 2302- | FVZ-N | M10 FLANGE | ||
| 287 | I8-98372 703-0 | COVER; AIR BREATHER | 1 | 2302- | FVZ-N | |||
| 242 | I1-33549 583-0 | WASHER; CUT OFF VALVE | 4 | 2302- | FVZ-N | |||
| 564 | I1-33549 578-0 | SEAL; RING | 1 | 2302- | FVZ-N | (A) | ||
| 532 | I1-33531 492-0 | PLATE; SHIFT FORK | 1 | 2302- | FVZ-N | (A) | ||
| 315 | I8-98085 738-0 | LEVER; SELECT | 1 | 2302- | FVZ-N | |||
| 505 | I1-33659 186-1 | SPACER; BRKT | 2 | 2302- | FVZ-N | L=24.5 | ||
| 234 | I1-44519 224-0 | RING; SNAP | 1 | 2302- | FVZ-N | |||
| 525 | I1-33119 286-0 | RING; DETENT | 1 | 2302- | FVZ-N | (B) | ||
| 617 | I1-33539 109-0 | PLUG | 1 | 2302- | FVZ-N | (A) | ||
| 349 | I1-33549 592-0 | BOLT; EYE,AIR HOSE | 4 | 2302- | FVZ-N | M14 | ||
| 354 | I1-33519 045-0 | SEAL; AIR CYL | 1 | 2302- | FVZ-N | |||
| 295 | I0-84000 805-0 | ROD; LINK,RELAY LEVER | 1 | 2302- | FVZ-N | M8 L=50 | ||
| 036 | I1-33519 081-0 | BLOCK; SHIFT,4TH & 5TH | 2 | 2302- | FVZ-N | |||
| 532 | I1-33531 494-0 | PLATE; SHIFT FORK | 1 | 2302- | FVZ-N | (C) | ||
| 317 | I1-09330 119-0 | BUSHING; LEVER | 2 | 2302- | FVZ-N | |||
| 578 | I1-33549 553-0 | CONNECTOR | 1 | 2302- | FVZ-N | |||
| 689 | I1-33542 063-0 | GASKET; COVER | 1 | 2302- | FVZ-N | |||
| 029 | I1-33519 081-0 | BLOCK; SHIFT,2ND & 3RD | 2 | 2302- | FVZ-N | |||
| 172 | I1-33119 249-0 | GASKET; NEUTRAL SW | 1 | 2302- | FVZ-N | (A) | ||
| 360 | I1-33119 252-0 | BALL; AIR CYL | 1 | 2302- | FVZ-N | |||
| 241 | I1-33549 407-0 | VALVE; CUT OFF | 1 | 2302- | FVZ-N | |||
| 240 | I8-98480 432-0 | GASKET; CUT OFF VALVE | 1 | 2302- | FVZ-N | |||
| 289 | I1-33549 491-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 2302- | FVZ-N | |||
| 617 | I1-33119 619-0 | PLUG | 2 | 2302- | FVZ-N | (A) | ||
| 392 | I1-33119 249-0 | GASKET; PLUG & SW | 1 | 2302- | FVZ-N | (A) | ||
| 345 | I1-33519 095-0 | BLOCK; SHIFT,RANGE CHANGE | 2 | 2302- | FVZ-N | |||
| 531 | I1-33539 044-0 | PLATE; BEARING | 1 | 2302- | FVZ-N | (A) | ||
| 049 | I1-33511 664-0 | ARM; SHIFT,4TH & 5TH | 1 | 2302- | FVZ-N | |||
| 319 | I8-98085 740-0 | BRACKET; SELECT LEVER | 1 | 2302- | FVZ-N | |||
| 052 | I1-33519 190-0 | BOLT; SHIFT ARM | 6 | 2302- | FVZ-N | (A) | ||
| 244 | I1-33549 583-0 | WASHER; LK,COVER | 4 | 2302- | FVZ-N | |||
| 347 | I1-33511 529-0 | ARM; SHIFT,RANGE CHANGE | 1 | 2302- | FVZ-N | |||
| 353 | I1-33549 530-0 | CLIP; AIR HOSE | 2 | 2302- | FVZ-N | |||
| 165 | I1-33549 488-0 | LEVER; SHIFT | 1 | 2302- | FVZ-N | (C) | ||
| 252 | I1-33549 591-0 | BOLT; SIDE COVER | 4 | 2302- | FVZ-N | (A) M8X20 | ||
| 142 | I1-33549 582-0 | BOLT; QUAD BOX | 6 | 2302- | FVZ-N | (A) M8X100 | ||
| 346 | I8-98351 447-0 | HOSE; AIR | 1 | 2302- | FVZ-N | (A) | ||
| 534 | I1-33539 087-0 | LEVER; LOCK,SHIFT PLATE | 1 | 2302- | FVZ-N | |||
| 195 | I1-33549 581-0 | BOLT | 2 | 2302- | FVZ-N | M8X30 | ||
| 292 | I1-09440 062-1 | NUT; LINK ROD | 2 | 2302- | FVZ-N | M8 FLANGE | ||
| 052 | I1-33519 196-0 | BOLT; SHIFT ARM | 2 | 2302- | FVZ-N | (B) | ||
| 271 | I1-33549 124-0 | BUSHING; QUAD BOX | 1 | 2302- | FVZ-N | |||
| 532 | I1-33531 493-0 | PLATE; SHIFT FORK | 1 | 2302- | FVZ-N | (B) | ||
| 497 | I1-33119 252-0 | BALL; SWITCH | 1 | 2302- | FVZ-N | |||
| 264 | I1-33549 119-0 | SEAL; DUST,SHAFT | 1 | 2302- | FVZ-N | |||
| 690 | I1-33549 496-0 | PIN; STOP | 1 | 2302- | FVZ-N | |||
| 361 | I1-33519 092-0 | CYLINDER; AIR,SHIFT | 1 | 2302- | FVZ-N | |||
| 191 | I1-33549 583-0 | WASHER; LK | 2 | 2302- | FVZ-N | |||
| 411 | I1-33119 249-0 | GASKET; REV LAMP SW | 1 | 2302- | FVZ-N | (A) | ||
| 304 | I1-33549 492-0 | BLOCK; SHIFT SHAFT | 1 | 2302- | FVZ-N | |||
| 433 | I1-09623 594-0 | GASKET; BUSHING | 2 | 2302- | FVZ-N | |||
| 358 | I1-33519 188-0 | NUT; SHIFT ROD | 1 | 2302- | FVZ-N | |||
| 398 | I8-98292 810-0 | SWITCH; REV LAMP | 1 | 2302- | FVZ-N | |||
| 265 | I8-97649 280-0 | SEAL; OIL,SHIFT | 1 | 2302- | FVZ-N | |||
| 298 | I1-33522 205-0 | SHAFT; SHIFT LEVER | 1 | 2302- | FVZ-N | |||
| 142 | I1-33549 587-0 | BOLT; QUAD BOX | 4 | 2302- | FVZ-N | (C) M8X40 | ||
| 252 | I1-33549 581-0 | BOLT; SIDE COVER | 2 | 2302- | FVZ-N | M8X30 | ||
| 321 | I0-28065 813-0 | BOLT; BRKT,RELAY LEVER | 2 | 2302- | FVZ-N | M8X130 FLANGE | ||
| 513 | I5-09707 030-1 | CLIP; HOSE | 6 | 2302- | FVZ-N | |||
| 582 | I1-33549 487-0 | BOLT; SPRING GUIDE | 2 | 2302- | FVZ-N | |||
| 165 | I1-33549 603-0 | LEVER; SHIFT | 1 | 2302- | FVZ-N | (B) | ||
| 292 | I0-91111 508-0 | NUT; LK,LINK ROD | 2 | 2302- | FVZ-N | |||
| 356 | I1-33519 197-0 | PISTON; AIR CYL | 1 | 2302- | FVZ-N | |||
| 352 | I1-33531 497-0 | ROD; SHIFT,RANGE CHANGE | 1 | 2302- | FVZ-N | PTO ZF TRANS RR | ||
| 393 | I1-33119 298-0 | PIN; SW | 1 | 2302- | FVZ-N | |||
| 239 | I1-33549 585-0 | BOLT; CUT OFF VALVE | 4 | 2302- | FVZ-N | |||
| 165 | I1-33549 489-0 | LEVER; SHIFT | 1 | 2302- | FVZ-N | (A) | ||
| 001 | I8-97649 276-0 | ARM; SHIFT,1ST & REV | 1 | 2302- | FVZ-N | |||
| 175 | I1-33539 103-0 | RING; STOPPER,SHIFT LEVER | 1 | 2302- | FVZ-N | |||
| 142 | I1-33549 584-0 | BOLT; QUAD BOX | 2 | 2302- | FVZ-N | (B) M8X75 | ||
| 396 | I1-33529 085-0 | PLUNGER; SHIFT ROD | 2 | 2302- | FVZ-N | (B) | ||
| 225 | I1-33549 583-0 | WASHER; LK,QUAD BOX | 14 | 2302- | FVZ-N | |||
| 430 | I1-33549 493-0 | PIN; SPR,SHIFT ROD | 1 | 2302- | FVZ-N | |||
| 019 | I1-33539 027-0 | SPRING; COIL COMP | 1 | 2302- | FVZ-N | (A) | ||
| 512 | I1-09709 178-0 | CLIP; ENG HARNESS | 4 | 2302- | FVZ-N | |||
| 090 | I1-33549 494-0 | RING; SNAP,SHIFT ROD | 2 | 2302- | FVZ-N | |||
| 564 | I1-33119 249-0 | SEAL; RING | 2 | 2302- | FVZ-N | (A) | ||
| 256 | I1-33542 065-0 | GASKET; QUAD BOX TO TRANS CASE | 1 | 2302- | FVZ-N | |||
| 469 | I8-98304 308-0 | COVER; SPRING,QUAD BOX | 1 | 2302- | FVZ-N | |||
| 394 | I1-33119 627-0 | SWITCH; RANGE CHANGE | 1 | 2302- | FVZ-N | |||
| 303 | I1-33539 040-0 | RING; SNAP,SHAFT | 1 | 2302- | FVZ-N | |||
| 541 | I1-33119 300-0 | PLATE; SWITCH | 1 | 2302- | FVZ-N | |||
| 019 | I1-33539 093-0 | SPRING; COIL COMP | 1 | 2302- | FVZ-N | (C) | ||
| 251 | I1-33549 590-0 | COVER; SIDE | 1 | 2302- | FVZ-N | |||
| 531 | I1-33539 047-0 | PLATE; BEARING | 1 | 2302- | FVZ-N | (B) | ||
| 569 | I1-33529 128-0 | PIN; QUADRANT BOX | 2 | 2302- | FVZ-N | |||
| 025 | I1-33511 642-0 | ARM; SHIFT,2ND & 3RD | 1 | 2302- | FVZ-N | |||
| 535 | I1-33539 049-0 | SPRING; LEVER | 1 | 2302- | FVZ-N | |||
| 042 | I1-33549 589-0 | CAP; QUAD BOX | 1 | 2302- | FVZ-N | |||
| 396 | I1-33519 189-0 | PLUNGER; SHIFT ROD | 1 | 2302- | FVZ-N | (A) | ||
| 363 | I1-33119 616-0 | BOLT; AIR CYL | 3 | 2302- | FVZ-N | (A) M10X70 | ||
| 359 | I1-33519 093-0 | GASKET; AIR CYL | 1 | 2302- | FVZ-N | |||
| 500 | I1-33119 299-0 | GASKET; SW | 1 | 2302- | FVZ-N | |||
| 048 | I8-98085 725-0 | LEVER; 4TH,SHIFT | 1 | 2302- | FVZ-N | |||
| 320 | I8-98085 739-0 | SHAFT; LEVER | 1 | 2302- | FVZ-N | |||
| 277 | I1-33539 107-0 | PLATE; SPRING SEAT | 2 | 2302- | FVZ-N | |||
| 019 | I8-98351 385-0 | SPRING; COIL COMP | 1 | 2302- | FVZ-N | (D) | ||
| 688 | I1-33549 572-0 | SHIFT; INTERLOCK | 1 | 2302- | FVZ-N |
