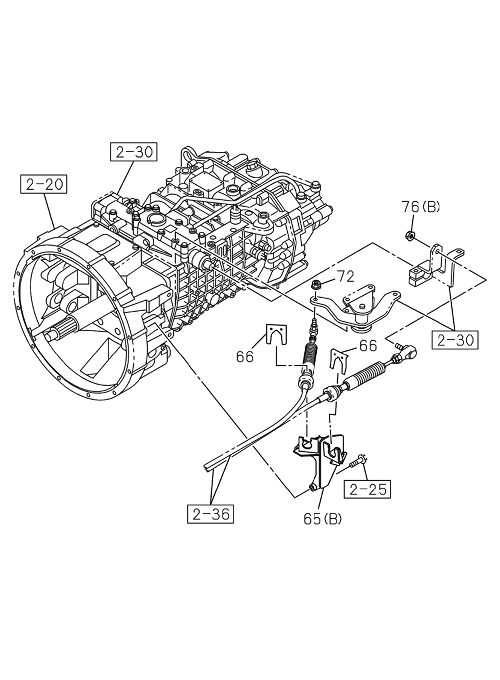

2-37 | MANUAL TRANSMISSION CONT; MISSION SIDE
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 072 | I1-09440 062-1 | NUT; LINK ROD | 1 | 2302- | FVZ-N | M8 FLANGE | ||
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 2302- | FVZ-N | ID=22.2 | ||
| 065 | I7-72400 306-A | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2302- | FVZ-N | (B) | ||
| 076 | I1-09440 061-0 | NUT; BALL JOINT,SELECT WIRE | 1 | 2302- | FVZ-N | (B) M10 FLANGE |
