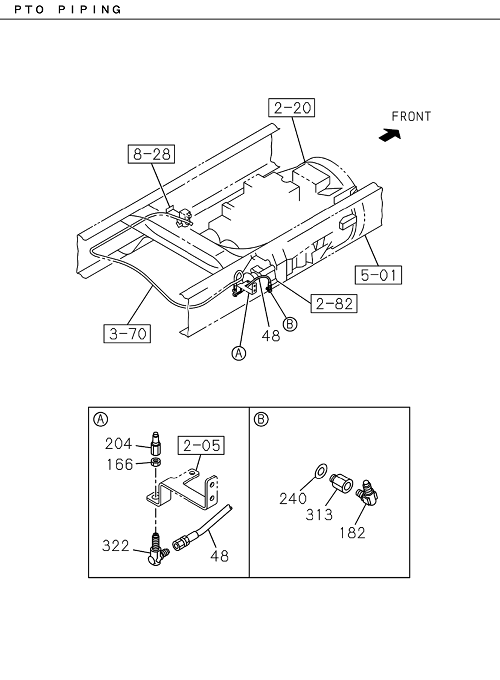

2-85 | POWER TAKE OFF CONTROL
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 166 | I9-09840 280-0 | NUT; UNION | 1 | 2302- | FVZ-N | |||
| 204 | I1-09660 873-0 | CONNECTOR | 1 | 2302- | FVZ-N | |||
| 003 | I8-94279 207-0 | BOLT; BRKT,DUMP CONT LEVER | 3 | 2302- | FVZ-N | M8X20.5 W/LK&PL WASHER | ||
| 322 | I0-92125 006-0 | UNION | 1 | 2302- | FVZ-N | M12 ELBOW | ||
| 048 | I1-09363 672-0 | HOSE; FLEX,PTO | 1 | 2302- | FVZ-N | L=280 | ||
| 015 | I1-79996 092-0 | LEVER ASM; PTO CONT | 1 | 2302- | FVZ-N | (A) | ||
| 240 | I8-98251 344-0 | GASKET; PLUG,C/BL SIDE | 1 | 2302- | FVZ-N | |||
| 182 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2302- | FVZ-N | |||
| 313 | I1-09654 396-0 | ADAPTER | 1 | 2302- | FVZ-N | PT 1/4 STRAIGHT |
