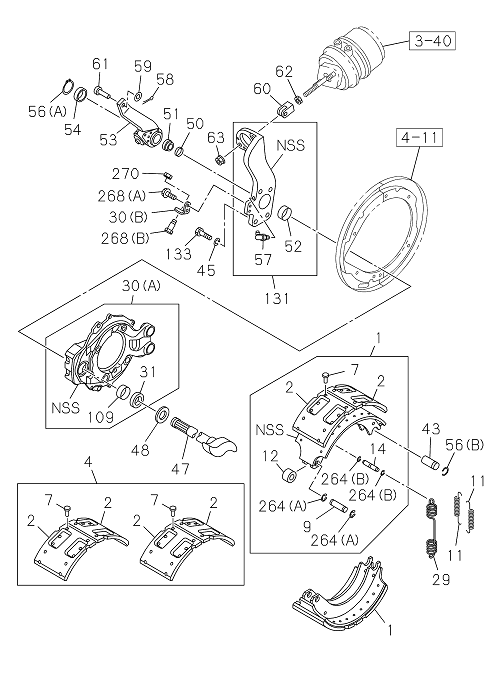

| 002 |
I8-97667 167-0 |
|
LINING; FRT BRK SHOE,STANDARD |
4 |
2302- |
|
FVZ-N |
LEADING |
| 029 |
I8-97667 337-0 |
|
SPRING; RETURN,FRT BRK SHOE |
1 |
2302- |
|
FVZ-N |
|
| 029 |
I8-97667 336-0 |
|
SPRING; RETURN,FRT BRK SHOE |
1 |
2302- |
|
FVZ-N |
|
| 268 |
I0-28050 816-0 |
|
BOLT; BRKT |
4 |
2302- |
|
FVZ-N |
(A) M8X16 FLANGE |
| 063 |
I0-91180 216-0 |
|
NUT; POWER CHAMBER |
4 |
2302- |
|
FVZ-N |
M16 FLANGE |
| 001 |
I8-97667 148-0 |
|
SHOE; BRK,FRT |
2 |
2302- |
|
FVZ-N |
LEADING |
| 056 |
I8-97524 128-0 |
|
CLIP; ANCHOR PIN |
4 |
2302- |
|
FVZ-N |
(B) |
| 012 |
I8-97524 549-0 |
|
ROLLER; CAM,BRK SHOE |
4 |
2302- |
|
FVZ-N |
|
| 060 |
I1-09768 060-1 |
|
JOINT; JAW,POWER CHAMBER |
2 |
2302- |
|
FVZ-N |
|
| 051 |
I8-98325 924-0 |
|
COLLAR; RING,CM/SHF |
2 |
2302- |
|
FVZ-N |
|
| 057 |
I0-90301 510-0 |
|
NIPPLE; GREASE,ANCHOR BRKT |
2 |
2302- |
|
FVZ-N |
PT1/8 ELBOW 67.5 DEGREES |
| 011 |
I8-97524 138-0 |
|
SPRING; SHOE HOLDING |
4 |
2302- |
|
FVZ-N |
|
| 031 |
I1-09625 228-0 |
|
SEAL; OIL,CM/SHF |
2 |
2302- |
|
FVZ-N |
|
| 048 |
I1-47143 005-0 |
|
RING; SPACER,CM/SHF |
2 |
2302- |
|
FVZ-N |
|
| 059 |
I0-91610 616-0 |
|
WASHER; PL,JAW JOINT |
2 |
2302- |
|
FVZ-N |
ID=17 OD=32 |
| 131 |
I8-98326 251-0 |
|
BRACKET; POWER CHAMBER |
1 |
2302- |
|
FVZ-N |
|
| 047 |
I8-97667 321-0 |
|
CAMSHAFT; FRT BRK |
1 |
2302- |
|
FVZ-N |
|
| 004 |
I6-88311 459-1 |
|
LINING SET; FRT BRK,STANDARD |
1 |
2302- |
|
FVZ-N |
(IADG) LEADING |
| 264 |
I8-97524 559-0 |
|
RING; SNAP,SPR PIN |
8 |
2302- |
|
FVZ-N |
(B) |
| 061 |
I1-09744 088-0 |
|
PIN; JAW JOINT,POWER CHAMBER |
2 |
2302- |
|
FVZ-N |
|
| 014 |
I1-47119 017-1 |
|
PIN; SHOE RETURN SPR |
4 |
2302- |
|
FVZ-N |
|
| 030 |
I8-98320 805-0 |
|
BRACKET; ANCHOR,FRT |
1 |
2302- |
|
FVZ-N |
(B) |
| 004 |
I1-88311 459-0 |
|
LINING SET; FRT BRK,STANDARD |
1 |
2302- |
|
FVZ-N |
LEADING |
| 001 |
I8-97667 149-0 |
|
SHOE; BRK,FRT |
2 |
2302- |
|
FVZ-N |
TRAILING |
| 007 |
I1-09732 034-0 |
|
RIVET; LINING,FRT BRK |
80 |
2302- |
|
FVZ-N |
L=18.5 |
| 058 |
I0-81124 028-0 |
|
PIN; SPLIT,JAW JOINT |
2 |
2302- |
|
FVZ-N |
OD=3.7 L=28 |
| 004 |
I1-88311 471-1 |
|
LINING SET; FRT BRK,STANDARD |
1 |
2302- |
|
FVZ-N |
TRAILING |
| 053 |
I8-98325 925-0 |
|
ADJUSTER ASM; SLACK |
1 |
2302- |
|
FVZ-N |
|
| 009 |
I8-97524 551-0 |
|
PIN; SHOE HOLDER |
4 |
2302- |
|
FVZ-N |
|
| 053 |
I8-98325 926-0 |
|
ADJUSTER ASM; SLACK |
1 |
2302- |
|
FVZ-N |
|
| 054 |
I8-97517 193-0 |
|
SPACER; CM/SHF |
2 |
2302- |
|
FVZ-N |
|
| 050 |
I1-09620 009-0 |
|
RING; FELT,CM/SHF |
2 |
2302- |
|
FVZ-N |
|
| 002 |
I8-97667 169-0 |
|
LINING; FRT BRK SHOE,STANDARD |
4 |
2302- |
|
FVZ-N |
TRAILING |
| 052 |
I1-47146 003-1 |
|
BUSHING; SLACK ADJ |
2 |
2302- |
|
FVZ-N |
|
| 131 |
I8-98326 250-0 |
|
BRACKET; POWER CHAMBER |
1 |
2302- |
|
FVZ-N |
|
| 109 |
I1-47146 003-1 |
|
BUSHING; SLACK ADJ |
2 |
2302- |
|
FVZ-N |
|
| 056 |
I9-09180 038-0 |
|
CLIP; ANCHOR PIN |
2 |
2302- |
|
FVZ-N |
(A) |
| 270 |
I8-98011 328-0 |
|
NUT; ANCHOR BRKT |
2 |
2302- |
|
FVZ-N |
M10 |
| 030 |
I8-98320 804-0 |
|
BRACKET; ANCHOR,FRT |
1 |
2302- |
|
FVZ-N |
(B) |
| 062 |
I0-91111 516-0 |
|
NUT; LK,JAW JOINT |
2 |
2302- |
|
FVZ-N |
M16 |
| 268 |
I8-98320 803-0 |
|
BOLT; ANCHOR BRKT |
2 |
2302- |
|
FVZ-N |
(B) |
| 043 |
I8-97524 124-0 |
|
PIN; ANCHOR |
4 |
2302- |
|
FVZ-N |
|
| 045 |
I0-91510 514-0 |
|
WASHER; LK,GEN |
8 |
2302- |
|
FVZ-N |
ID=14.2 |
| 047 |
I8-97667 322-0 |
|
CAMSHAFT; FRT BRK |
1 |
2302- |
|
FVZ-N |
|
| 264 |
I8-97524 558-0 |
|
RING; SNAP,SPR PIN |
8 |
2302- |
|
FVZ-N |
(A) |
| 133 |
I0-20851 440-0 |
|
BOLT; BRKT |
8 |
2302- |
|
FVZ-N |
M14X40 |
| 030 |
I8-97524 109-0 |
|
BRACKET; ANCHOR,FRT |
1 |
2302- |
|
FVZ-N |
(A) |
| 030 |
I8-97524 110-0 |
|
BRACKET; ANCHOR,FRT |
1 |
2302- |
|
FVZ-N |
(A) |
