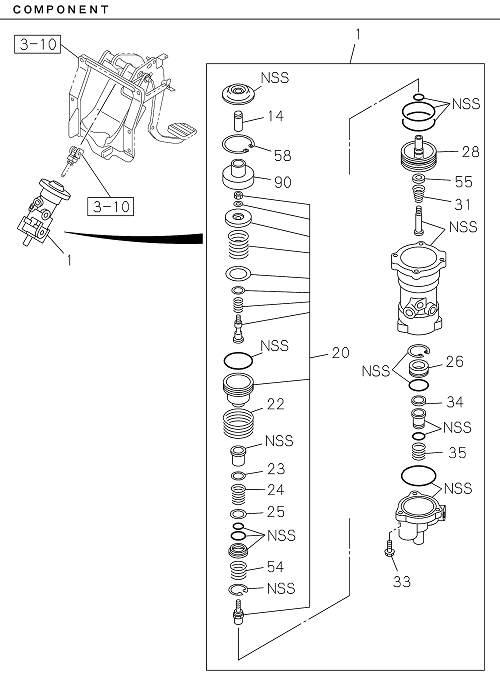

3-34 | BRAKE VALVE; AIR
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 028 | I1-48129 302-0 | PISTON; LWR,BRK VLV | 1 | 2302- | FVZ-N | |||
| 022 | I1-48123 076-0 | SPRING; PISTON,LWR,BRK VLV | 1 | 2302- | FVZ-N | |||
| 035 | I1-48123 078-0 | SPRING; VLV,BRK VLV | 1 | 2302- | FVZ-N | |||
| 034 | I1-48129 307-0 | RETAINER; VLV,BRK VLV | 1 | 2302- | FVZ-N | |||
| 025 | I1-48129 300-0 | WASHER; PISTON,BRK VLV | 1 | 2302- | FVZ-N | |||
| 054 | I1-48123 075-0 | SPRING; PISTON,UPR,BRK VLV | 1 | 2302- | FVZ-N | |||
| 014 | I1-48119 641-0 | PLUNGER; BRK VLV | 1 | 2302- | FVZ-N | |||
| 020 | I1-48119 651-0 | PISTON; UPR,BRK VLV | 1 | 2302- | FVZ-N | |||
| 055 | I1-48129 305-0 | RETAINER; PLATE,BRK VLV | 1 | 2302- | FVZ-N | |||
| 024 | I1-48123 077-0 | SPRING; UPR,BRK VLV | 1 | 2302- | FVZ-N | |||
| 058 | I1-48219 198-0 | RING; RET,EXH,BRK VLV | 1 | 2302- | FVZ-N | |||
| 026 | I1-48129 308-0 | RETAINER; VLV,BRK VLV | 1 | 2302- | FVZ-N | |||
| 001 | I8-98222 788-1 | VALVE; BRK | 1 | 2302- | FVZ-N | |||
| 090 | I1-48119 642-0 | GUIDE; PLUNGER | 1 | 2302- | FVZ-N | |||
| 023 | I1-48129 299-0 | WASHER; UPR,BRK VLV | 1 | 2302- | FVZ-N | |||
| 033 | I1-48119 213-0 | BOLT; BODY,BRK VLV | 3 | 2302- | FVZ-N | |||

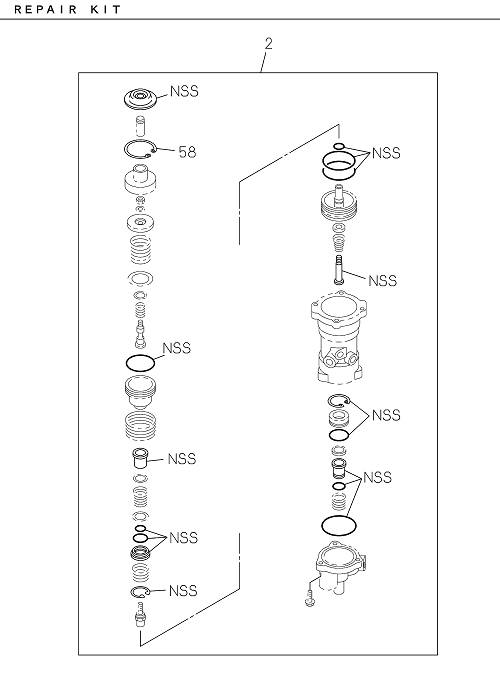

| 002 | I7-55194 545-0 | REPAIR KIT; BRK VLV | 1 | 2302- | FVZ-N | |||
| 031 | I1-48123 079-0 | SPRING; VLV,BRK VLV | 1 | 2302- | FVZ-N |
