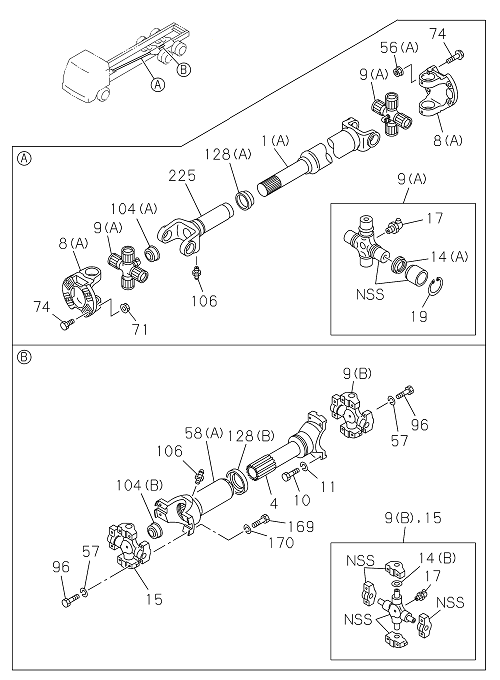

| 225 |
I1-37241 124-0 |
|
YOKE; SLEEVE,PROP SHAFT |
1 |
2302- |
|
FVZ-N |
L=330 |
| 010 |
I8-98036 382-0 |
|
BOLT; UJT |
4 |
2302- |
|
FVZ-N |
M12X45 |
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
2302- |
|
FVZ-N |
(A) FVZ MIXER; FVZ-N |
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
2302- |
|
FVZ-N |
(A) |
| 104 |
I1-09600 049-0 |
|
PLUG; SLEEVE YOKE |
1 |
2302- |
|
FVZ-N |
(B) |
| 074 |
I1-09000 645-0 |
|
BOLT; YOKE,TRANS |
4 |
2302- |
|
FVZ-N |
M14X50 |
| 004 |
I1-37171 129-3 |
|
SHAFT; PROP |
1 |
2302- |
|
FVZ-N |
L=418 |
| 017 |
I0-90301 510-0 |
|
NIPPLE; GREASE,ANCHOR BRKT |
2 |
2302- |
|
FVZ-N |
PT1/8 ELBOW 67.5 DEGREES |
| 056 |
I8-97365 444-0 |
|
NUT; YOKE |
4 |
2302- |
|
FVZ-N |
(A) M14 FLANGE |
| 015 |
I1-37300 100-1 |
|
JOURNAL ASM; PROP SHAFT |
1 |
2302- |
|
FVZ-N |
|
| 001 |
I1-37125 156-1 |
|
SHAFT; PROP |
1 |
2302- |
|
FVZ-N |
(A) |
| 057 |
I0-91510 612-0 |
|
WASHER; LK,UNIVERSAL,PROP SHAFT |
8 |
2302- |
|
FVZ-N |
ID=12.2 |
| 009 |
I1-37300 100-1 |
|
JOURNAL ASM; PROP SHAFT |
1 |
2302- |
|
FVZ-N |
(B) |
| 011 |
I0-91510 612-0 |
|
WASHER; LK,UNIVERSAL,PROP SHAFT |
4 |
2302- |
|
FVZ-N |
ID=12.2 |
| 014 |
I1-37319 004-0 |
|
COVER; DUST,SPIDER |
8 |
2302- |
|
FVZ-N |
(B) |
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
2302- |
|
FVZ-N |
(A) |
| 096 |
I8-98036 382-0 |
|
BOLT; UJT |
8 |
2302- |
|
FVZ-N |
M12X45 |
| 058 |
I1-37245 317-0 |
|
FLANGE; SPLINED |
1 |
2302- |
|
FVZ-N |
(A) L=265 |
| 009 |
I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
2302- |
|
FVZ-N |
(A) |
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT, 1ST |
8 |
2302- |
|
FVZ-N |
T=2.2 |
| 169 |
I8-98036 382-0 |
|
BOLT; UJT |
4 |
2302- |
|
FVZ-N |
M12X45 |
| 106 |
I0-90301 410-0 |
|
NIPPLE; GREASE,WATER PUMP |
1 |
2302- |
|
FVZ-N |
PT1/8 STRAIGHT |
| 128 |
I8-97603 618-0 |
|
SEAL; SLEEVE |
1 |
2302- |
|
FVZ-N |
(B) |
| 170 |
I0-91510 612-0 |
|
WASHER; LK,UNIVERSAL,PROP SHAFT |
4 |
2302- |
|
FVZ-N |
ID=12.2 |
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
2302- |
|
FVZ-N |
(A) |
| 071 |
I8-97365 444-0 |
|
NUT; YOKE |
4 |
2302- |
|
FVZ-N |
M14 FLANGE |
