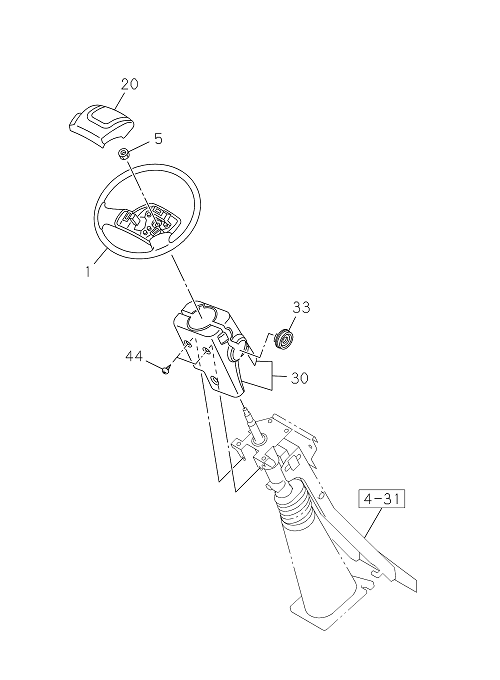

4-30 | STEERING WHEEL AND COWL
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 020 | I8-97466 634-1 | SHROUD; PAD,STRG WHEEL | 1 | 2302- | FVZ-N | |||
| 033 | I8-97409 495-1 | COVER; STRG COWL | 1 | 2302- | FVZ-N | |||
| 044 | I0-38050 512-0 | SCREW; STRG COWL | 3 | 2302- | FVZ-N | M5X12 | ||
| 030 | I8-97925 101-0 | COWL; STEERING | 1 | 2302- | FVZ-N | |||
| 001 | I8-97466 633-2 | WHEEL; STRG | 1 | 2302- | FVZ-N | |||
| 005 | I0-91111 514-0 | NUT; UNION | 1 | 2302- | FVZ-N | M14 |
