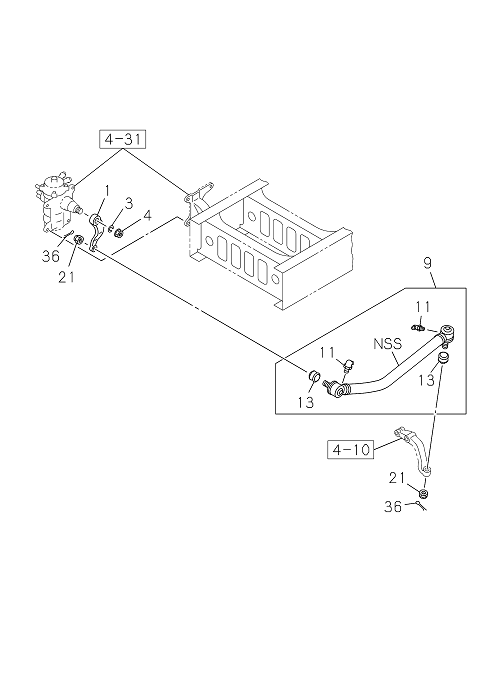

4-33 | STEERING LINKAGE
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 036 | I0-81125 035-0 | PIN; SPLIT,ROD END | 2 | 2302- | FVZ-N | OD=4.6 L=35 | ||
| 009 | I8-98313 151-2 | LINK; DRAG | 1 | 2302- | FVZ-N | |||
| 003 | I1-09500 056-0 | WASHER; LK,PITMAN ARM | 1 | 2302- | FVZ-N | ID=36.5 | ||
| 021 | I1-09442 028-0 | NUT; LK,JOINT BALL | 2 | 2302- | FVZ-N | M24 SLOTTED | ||
| 013 | I1-43159 134-0 | BOOT; DRAG LINK | 2 | 2302- | FVZ-N | |||
| 011 | I8-98160 122-0 | NIPPLE; GREASE,DRAG LINK | 2 | 2302- | FVZ-N | |||
| 001 | I8-98315 881-A | ARM; PITMAN,STRG | 1 | 2302- | FVZ-N | |||
| 004 | I1-09440 098-0 | NUT; PITMAN ARM | 1 | 2302- | FVZ-N | M36 FLANGE |
