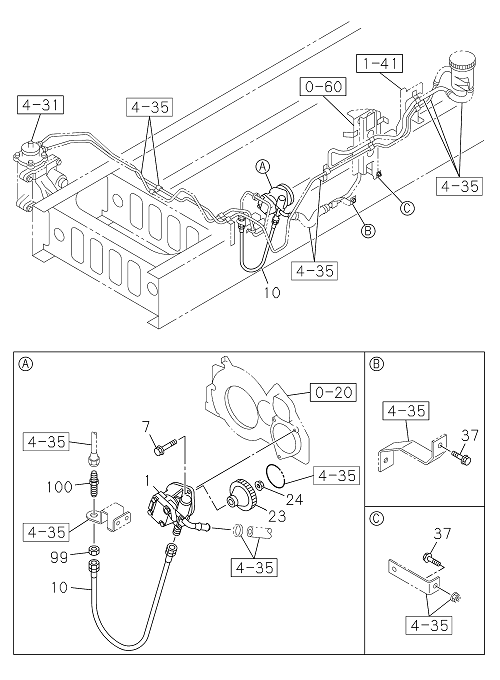

4-36 | POWER STEERING CONTROL; ENGINE SIDE
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97488 596-0 | PUMP ASM; OIL,P/S | 1 | 2302- | FVZ-N | SEE FIG-NO 4-42 FOR COMPONENT. | ||
| 099 | I0-91111 522-0 | NUT; PIPE UNION | 1 | 2302- | FVZ-N | M22 | ||
| 007 | I8-97365 449-0 | BOLT; RAIL ASM | 2 | 2302- | FVZ-N | M10X55 FLANGE | ||
| 100 | I1-09654 167-1 | UNION; FLEX HOSE | 1 | 2302- | FVZ-N | M20 & M22 STRAIGHT | ||
| 037 | I0-28650 830-0 | BOLT; GEAR CASE | 2 | 2302- | FVZ-N | M8X30 FLANGE | ||
| 023 | I8-94396 957-3 | GEAR; OIL PUMP | 1 | 2302- | FVZ-N | Z=30 | ||
| 024 | I0-91180 114-0 | NUT; GEAR,P/S PUMP | 1 | 2302- | FVZ-N | M14 FLANGE | ||
| 010 | I8-98319 393-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 2302- | FVZ-N |
