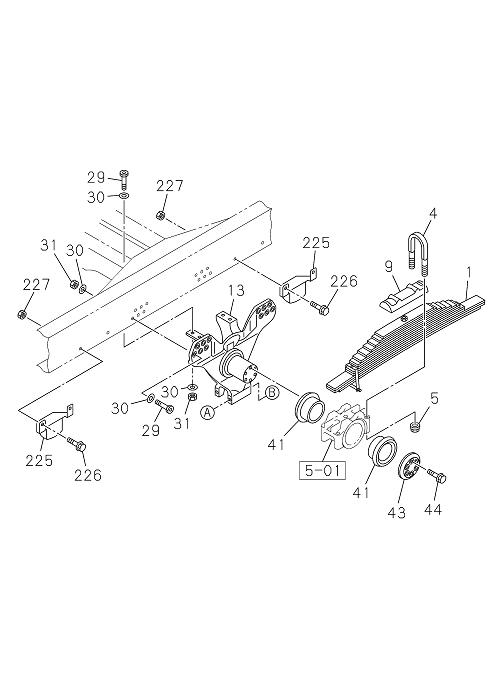

4-60 | REAR SUSPENSION
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

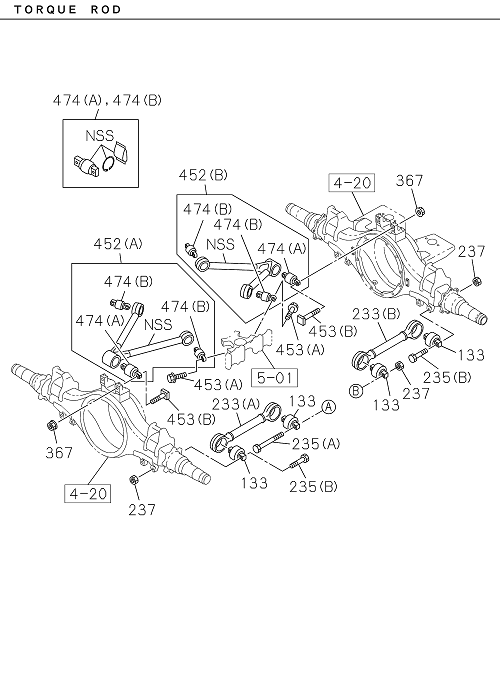

| 235 | I8-98012 875-0 | BOLT; TORQUE ROD | 4 | 2302- | FVZ-N | (A) M18X265 | ||
| 029 | I8-98345 486-0 | BOLT; BRKT TO FRAME | 32 | 2302- | FVZ-N | |||
| 235 | I8-98270 174-0 | BOLT; TORQUE ROD | 8 | 2302- | FVZ-N | (B) M18X105 | ||
| 043 | I8-98313 265-A | PLATE; SIDE,TRUNNION SHAFT | 2 | 2302- | FVZ-N | |||
| 044 | I8-98336 713-1 | BOLT; SIDE PLATE TO SHAFT | 12 | 2302- | FVZ-N | |||
| 474 | I8-98364 604-0 | REPAIR KIT; V-ROD | 1 | 2302- | FVZ-N | (A) W/GREASE | ||
| 001 | I8-97696 187-A | SPRING ASM; LEAF,RR | 2 | 2302- | FVZ-N | |||
| 004 | I8-97696 195-A | U-BOLT; RR SPR | 4 | 2302- | FVZ-N | |||
| 452 | I8-97875 107-1 | ROD ASM; V | 1 | 2302- | FVZ-N | (B) | ||
| 452 | I8-97875 106-1 | ROD ASM; V | 1 | 2302- | FVZ-N | (A) | ||
| 031 | I0-91112 818-0 | NUT; TRUNNION BRKT | 8 | 2302- | FVZ-N | |||
| 367 | I8-98019 963-0 | NUT | 4 | 2302- | FVZ-N | M24 FLANGE | ||
| 005 | I7-05027 040-A | NUT; U-BOLT,RR SPR | 8 | 2302- | FVZ-N | |||
| 031 | I8-97542 759-0 | NUT; TRUNNION BRKT | 24 | 2302- | FVZ-N | M18 FLANGE | ||
| 453 | I8-98323 200-1 | PIN; AXLE | 4 | 2302- | FVZ-N | (B) | ||
| 225 | I8-98386 737-0 | RUBBER; CUSHION,RR SPR | 2 | 2302- | FVZ-N | |||
| 474 | I6-98364 609-1 | REPAIR KIT; V-ROD | 2 | 2302- | FVZ-N | (IADG) (B) W/GREASE | ||
| 453 | I8-98311 422-0 | PIN; AXLE | 8 | 2302- | FVZ-N | (A) | ||
| 009 | I8-98296 723-A | PAD; U BOLT,RR SPR | 2 | 2302- | FVZ-N | |||
| 041 | I8-98314 019-A | BUSHING; TRUNNION SHAFT | 4 | 2302- | FVZ-N | |||
| 001 | I6-97696 187-0 | SPRING ASM; LEAF,RR | 2 | 2302- | FVZ-N | (IADG) | ||
| 030 | I1-09503 162-0 | WASHER; PL,TRUNNION BRKT | 40 | 2302- | FVZ-N | ID=19 | ||
| 226 | I0-28861 445-0 | BOLT | 8 | 2302- | FVZ-N | M14X45 FLANGE | ||
| 237 | I1-09464 011-0 | NUT; TORQUE ROD | 12 | 2302- | FVZ-N | M18 | ||
| 013 | I8-97529 992-0 | BRACKET; TRUNNION SHAFT | 2 | 2302- | FVZ-N | |||
| 474 | I8-98364 609-0 | REPAIR KIT; V-ROD | 2 | 2302- | FVZ-N | (B) W/GREASE | ||
| 474 | I6-98364 604-1 | REPAIR KIT; V-ROD | 1 | 2302- | FVZ-N | (IADG) (A) W/GREASE | ||
| 227 | I0-91180 214-0 | NUT; GEAR | 8 | 2302- | FVZ-N | M14 FLANGE |
