5-01 | FRAME AND OTHER PARTS
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 011 | I8-98294 501-0 | BRACKET; ENG MTG | 2 | 2302- | FVZ-N | |||
| 018 | I0-91180 112-0 | NUT; ADJ PLATE | 8 | 2302- | FVZ-N | M12 FLANGE | ||
| 090 | I1-09503 162-0 | WASHER; PL,TRUNNION BRKT | 20 | 2302- | FVZ-N | ID=19 | ||

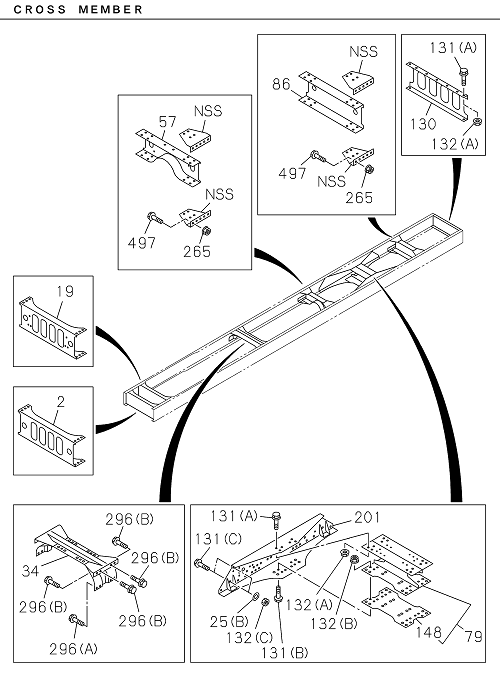

| 079 | I8-97528 156-0 | MEMBER; CROSS,TRUNNION ASM | 1 | 2302- | FVZ-N | |||
| 201 | I8-97529 527-0 | GUSSET; C/MBR | 2 | 2302- | FVZ-N | |||
| 026 | I0-91110 516-0 | NUT; ENG MTG RR TO FRAME | 4 | 2302- | FVZ-N | (B) M16 | ||
| 057 | I8-98328 903-3 | MEMBER; CROSS,RR SUSP FRT | 1 | 2302- | FVZ-N | |||
| 025 | I1-09503 316-0 | WASHER; PL,STRG UNIT | 8 | 2302- | FVZ-N | (B) ID=16.2 | ||
| 131 | I1-09044 090-1 | BOLT; END C/MBR | 12 | 2302- | FVZ-N | (B) M16X50 | ||

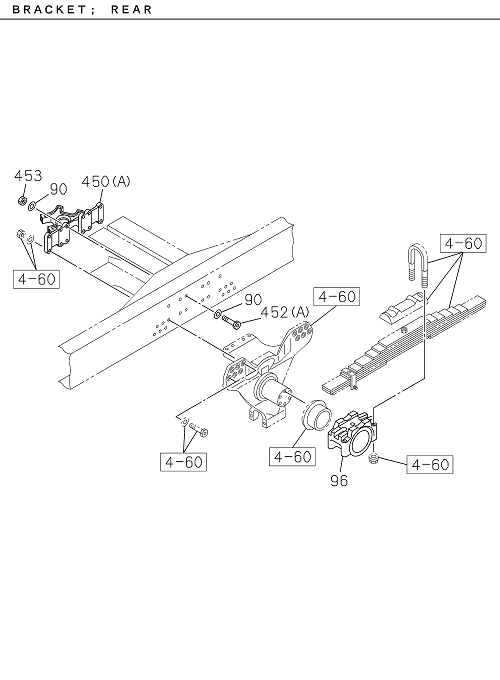

| 452 | I8-98345 486-0 | BOLT; BRKT TO FRAME | 20 | 2302- | FVZ-N | (A) | ||
| 019 | I8-98311 933-0 | MEMBER; CROSS,2ND | 1 | 2302- | FVZ-N | |||
| 025 | I8-98010 627-1 | WASHER; PL,STRG UNIT | 16 | 2302- | FVZ-N | (A) ID=15 | ||
| 265 | I0-91180 214-0 | NUT; GEAR | 32 | 2302- | FVZ-N | M14 FLANGE | ||
| 023 | I0-20951 445-0 | BOLT; BRKT,SPR | 16 | 2302- | FVZ-N | (A) M14X45 | ||

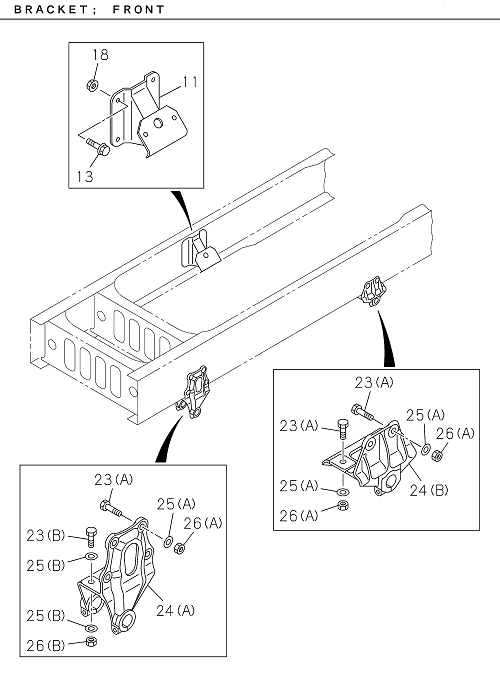

| 024 | I8-97502 718-0 | BRACKET; FRT SPR,FRT | 1 | 2302- | FVZ-N | (A) | ||

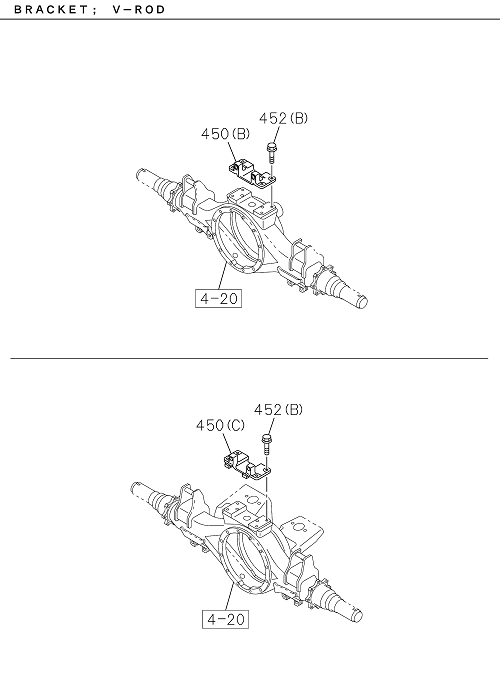

| 450 | I8-97558 215-A | BRACKET; V ROD | 1 | 2302- | FVZ-N | (C) | ||
| 497 | I0-28851 440-0 | BOLT; 5TH C/MBR | 32 | 2302- | FVZ-N | M14X40 FLANGE | ||
| 450 | I8-98313 244-0 | BRACKET; V ROD | 2 | 2302- | FVZ-N | (A) | ||
| 002 | I8-98311 932-0 | MEMBER; CROSS,1ST | 1 | 2302- | FVZ-N | |||
| 096 | I8-98313 256-A | PAD; RR SPR | 2 | 2302- | FVZ-N | |||
| 130 | I8-97683 076-1 | MEMBER; CROSS,END | 1 | 2302- | FVZ-N | WB4900; 5400; 7100 | ||
| 453 | I8-97542 759-0 | NUT; TRUNNION BRKT | 20 | 2302- | FVZ-N | M18 FLANGE | ||
| 026 | I0-91110 514-0 | NUT; STARTER | 16 | 2302- | FVZ-N | (A) M14 | ||
| 452 | I1-09044 090-1 | BOLT; END C/MBR | 8 | 2302- | FVZ-N | (B) M16X50 | ||
| 013 | I0-28051 235-0 | BOLT; EXH PIPE | 8 | 2302- | FVZ-N | M12X35 FLANGE | ||
| 024 | I8-97526 185-0 | BRACKET; FRT SPR,FRT | 2 | 2302- | FVZ-N | (B) | ||
| 296 | I0-28851 440-0 | BOLT; 5TH C/MBR | 8 | 2302- | FVZ-N | (A) M14X40 FLANGE | ||
| 132 | I0-91180 216-0 | NUT; POWER CHAMBER | 12 | 2302- | FVZ-N | (B) M16 FLANGE | ||
| 034 | I8-98315 397-2 | MEMBER; CROSS,3RD | 1 | 2302- | FVZ-N | FVZ MIXER; FVZ-N | ||
| 024 | I8-97502 717-0 | BRACKET; FRT SPR,FRT | 1 | 2302- | FVZ-N | (A) | ||
| 132 | I0-91110 516-0 | NUT; ENG MTG RR TO FRAME | 32 | 2302- | FVZ-N | (C) M16 | ||
| 131 | I0-29261 650-0 | BOLT; END C/MBR | 32 | 2302- | FVZ-N | (C) M16X50 FLANGE | ||
| 023 | I0-20951 650-0 | BOLT; CR/SHF PULLEY | 4 | 2302- | FVZ-N | (B) M16X50 | ||
| 086 | I8-98294 852-1 | MEMBER; CROSS,RR SUSP RR | 1 | 2302- | FVZ-N | |||
| 296 | I8-98339 366-0 | BOLT; END C/MBR | 8 | 2302- | FVZ-N | (B) M14X45 FLANGE | ||
| 450 | I8-97558 214-A | BRACKET; V ROD | 1 | 2302- | FVZ-N | (B) | ||
| 148 | I8-97528 158-0 | SPACER; C/MBR | 1 | 2302- | FVZ-N |
