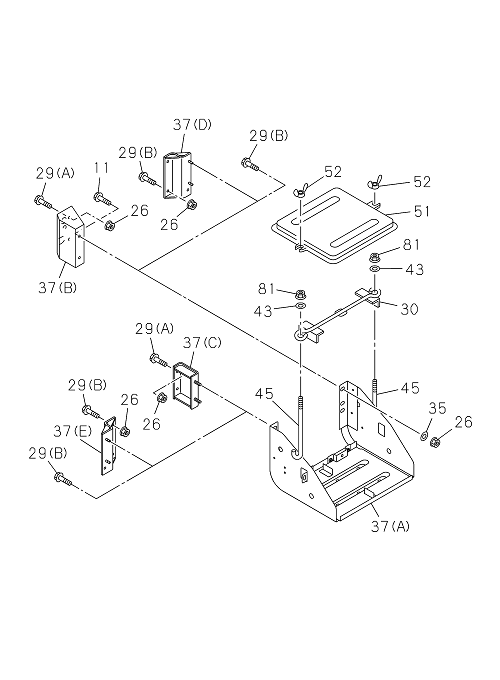

5-20 | BATTERY CARRIER
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 045 | I9-53616 615-A | ROD; TENSION,BATTERY | 2 | 2302- | FVZ-N | L=120 | ||
| 081 | I0-91180 108-0 | NUT; OIL PAN | 2 | 2302- | FVZ-N | M8 FLANGE | ||
| 037 | I8-97695 343-A | BRACKET; BATTERY | 1 | 2302- | FVZ-N | (A) | ||
| 026 | I7-05110 010-A | NUT; HEAT PROTECTOR | 2 | 2302- | FVZ-N | M10 FLANGE | ||
| 030 | I5-53615 004-B | PLATE; BATTERY | 1 | 2302- | FVZ-N | |||
| 035 | I0-91614 610-0 | WASHER; PL,BATTERY CARRIER | 4 | 2302- | FVZ-N | ID=10.5 OD=22 | ||
| 029 | I0-28651 035-0 | BOLT; BRKT | 4 | 2302- | FVZ-N | (B) M10X35 FLANGE | ||
| 043 | I0-91614 708-0 | WASHER; PL,CLAMP | 2 | 2302- | FVZ-N | ID=8.4 OD=22 T=2 | ||
| 051 | I7-42406 321-A | COVER; BATTERY | 1 | 2302- | FVZ-N | |||
| 052 | I0-91118 408-0 | NUT; WING,COVER FIX | 2 | 2302- | FVZ-N | M8 WING NUT |
