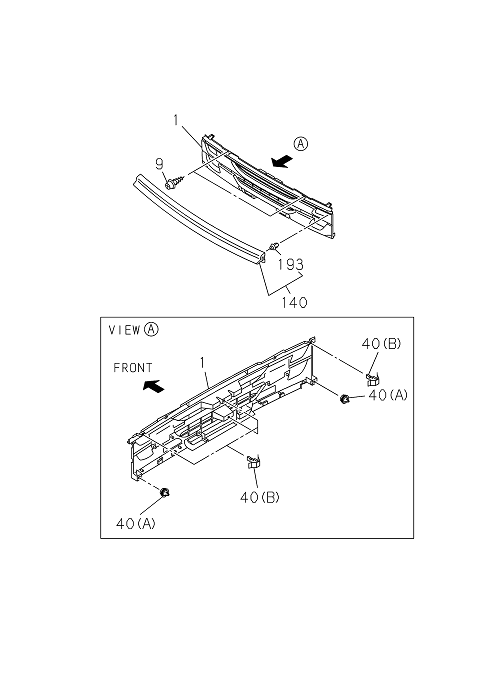

6-03 | RADIATOR GRILLE
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 040 | I8-98025 698-0 | CLIP; RAD GRILLE | 4 | 2302- | FVZ-N | (B) | ||
| 001 | I8-98346 029-0 | GRILLE; RAD | 1 | 2302- | FVZ-N | |||
| 040 | I8-97581 651-2 | CLIP; RAD GRILLE | 2 | 2302- | FVZ-N | (A) | ||
| 193 | I8-98027 457-0 | CLIP; SEAL | 13 | 2302- | FVZ-N | NATURAL | ||
| 140 | I8-98322 277-0 | SEAL; RAD GRILLE | 1 | 2302- | FVZ-N | |||
| 009 | I0-74160 516-0 | SCREW; RAD GRILLE | 2 | 2302- | FVZ-N | M5X16 TAPPING W/PL WASHER |
