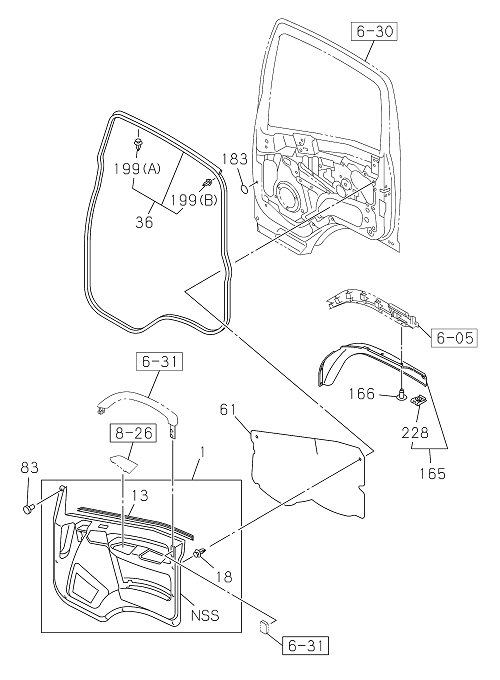

6-35 | FRONT DOOR TRIM
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 061 | I8-98029 395-A | SEAL; WATER,DOOR PAD | 1 | 2302- | FVZ-N | |||
| 036 | I8-98029 199-A | SEAL; DOOR,MAIN,CAB SIDE | 1 | 2302- | FVZ-N | |||
| 228 | I8-98056 302-0 | NUT; SPIRE | 2 | 2302- | FVZ-N | |||
| 166 | I1-09987 248-1 | CLIP; FENDER LWR | 10 | 2302- | FVZ-N | D=8X13.5 | ||
| 061 | I8-98029 394-A | SEAL; WATER,DOOR PAD | 1 | 2302- | FVZ-N | |||
| 199 | I8-98062 271-0 | CLIP; SEAL | 2 | 2302- | FVZ-N | (B) RED | ||
| 001 | I8-97923 901-2 | PAD; TRIM,FRT DOOR | 1 | 2302- | FVZ-N | POWER WIDOW FRT DOOR | ||
| 199 | I8-98062 270-0 | CLIP; SEAL | 80 | 2302- | FVZ-N | (A) NATURAL | ||
| 018 | I8-98004 025-0 | CLIP; DOOR PAD | 14 | 2302- | FVZ-N | |||
| 001 | I8-97923 902-2 | PAD; TRIM,FRT DOOR | 1 | 2302- | FVZ-N | POWER WIDOW FRT DOOR | ||
| 165 | I8-98315 411-0 | LINER; DOOR LWR | 1 | 2302- | FVZ-N | |||
| 013 | I8-97923 891-1 | SEAL; DOOR TRIM | 1 | 2302- | FVZ-N | INNER | ||
| 036 | I8-98077 429-A | SEAL; DOOR,MAIN,CAB SIDE | 1 | 2302- | FVZ-N | |||
| 083 | I8-97405 308-0 | CLIP; DOOR TRIM | 2 | 2302- | FVZ-N | |||
| 013 | I8-97923 892-1 | SEAL; DOOR TRIM | 1 | 2302- | FVZ-N | INNER | ||
| 183 | I1-76798 019-1 | SEAL; LOCATION HOLE | 2 | 2302- | FVZ-N | |||
| 165 | I8-98315 412-0 | LINER; DOOR LWR | 1 | 2302- | FVZ-N |
