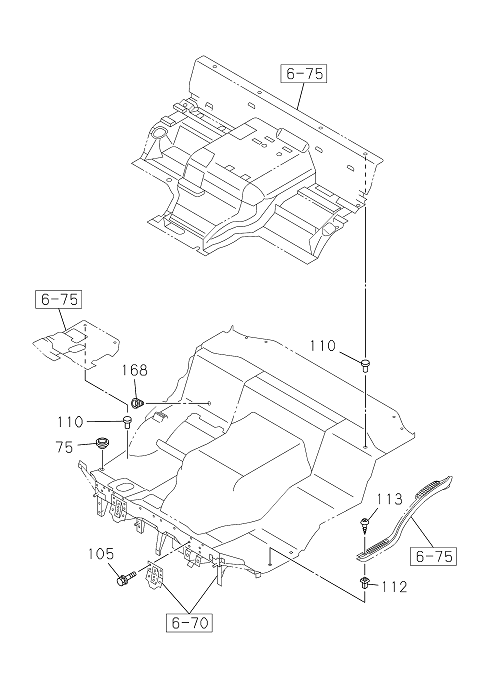

6-78 | FLOOR HOLE PLUG
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 110 | I8-94279 089-0 | FASTENER; FLOOR MAT | 8 | 2302- | FVZ-N | BLACK | ||
| 112 | I8-94279 043-A | GROMMET; STRG SHAFT COVER | 8 | 2302- | FVZ-N | D=7.8X7.8 L=18 NATURAL | ||
| 105 | I0-28661 030-0 | BOLT; BRKT | 16 | 2302- | FVZ-N | M10X30 FLANGE | ||
| 168 | I1-79998 891-A | COVER; HOLE,ANNTENA CABLE | 1 | 2302- | FVZ-N | |||
| 113 | I0-72180 516-0 | SCREW; COVER FIX | 8 | 2302- | FVZ-N | M5X16 TAPPING HEXALOBULAR | ||
| 075 | I1-09983 155-0 | PLUG; RUBBER,FLOOR | 4 | 2302- | FVZ-N | OD=23.5 |
