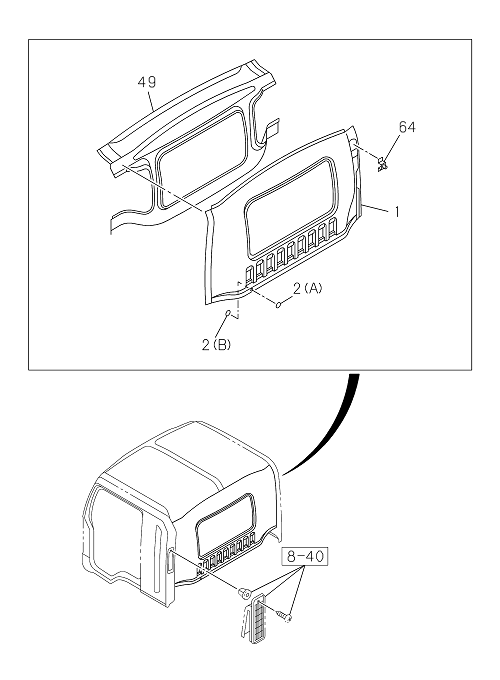

6-80 | BACK PANEL
GIGA E4
GIGA FVZ-N HP E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I5-76777 035-0 | GROMMET; LOCATION HOLE,BACK PANEL | 2 | 2302- | FVZ-N | (B) OD=36 T=0.05 BLACK | ||
| 064 | I8-97584 611-1 | BRACKET; DUCT | 1 | 2302- | FVZ-N | |||
| 049 | I8-97584 610-3 | PANEL; BACK INNER | 1 | 2302- | FVZ-N | |||
| 001 | I8-97584 602-3 | PANEL; BACK OUTER | 1 | 2302- | FVZ-N | |||
| 002 | I1-76798 019-1 | GROMMET; LOCATION HOLE,BACK PANEL | 2 | 2302- | FVZ-N |
